10R80 Transmission Pan Upgrades

ARRIVES LATE SEPTEMBER 2026 — PRE-ORDERS OPEN — 30+ INSTALLATION LOCATIONS — FREE THERMAL BYPASS VALVE

✔ 14+ years serving the Australian automotive market ✔ 200,000+ customers Australia wide ✔ Trusted by workshops and retailers across Australia ✔ Backed by a 3 year warranty ✔ 14+ years serving the Australian automotive market ✔ 200,000+ customers Australia wide ✔ Trusted by workshops and retailers across Australia ✔ Backed by a 3 year warranty

Shop Pan Only Shop Complete Kit Book Full Install

Preventative maintenance for your 10R80 starts here.

⚠ FREE Thermal Bypass Valve With Every 10R80 Pan Pre-Order ⚠

Available across the Pan Kit, Complete Upgrage Kit and Installed Package.

Upgrade your 10R80 transmission with a high-capacity cast alloy pan designed for towing, touring and heavy-duty use.

Factory transmission pans can struggle to control fluid temperatures under sustained loads. By increasing transmission fluid capacity by approximately 2 litres and incorporating external cooling fins, this pan helps improve heat dissipation and maintain more consistent operating temperatures. Customers and workshop partners have reported transmission temperature reductions of over 30°C after installation.

Manufactured from thick-wall cast alloy, the pan features a magnetic drain plug to assist with capturing metallic particles and remains fully serviceable using standard Ford Ranger transmission filters and gaskets. For customers wishing to install a transmission temperature sensor, the pan includes cast provisions on both the left and right-hand sides that can be drilled and tapped to suit individual requirements.

⚠️ WARNING ⚠️

Heat is one of the biggest contributors to early wear and failure in the 10R80 transmission. Vehicles used for towing, touring, or heavy-duty applications are especially at risk.

Vehicle Compatibility

To suit vehicles equipped with the 10R80 automatic 10-speed transmission.

Ford Ranger
PX3 2.0L Bi-Turbo Diesel PX3 (2018–2022)
Next-Gen 3.0L V6 Turbo Diesel Next-Gen (2022-On)
Ford Everest
2.0L Bi-Turbo Diesel (2018-On)
3.0L V6 Turbo Diesel (2022-On)
Volkswagen Amarok NF
3.0L V6 Turbo Diesel (2023-On)

Important: Automatic transmission models only. Not compatible with manual transmission vehicles.

✔ Increased fluid capacity by 2 litres ✔ Integrated cooling fins ✔ Retains factory pan magnet ✔ Thick wall construction for durability and heat resistance ✔ Designed for towing, touring and heavy-duty use

Choose the package that suits you

Whether you want just the pan, a complete upgrade kit, or the whole job supplied and fitted, we have an option to suit.

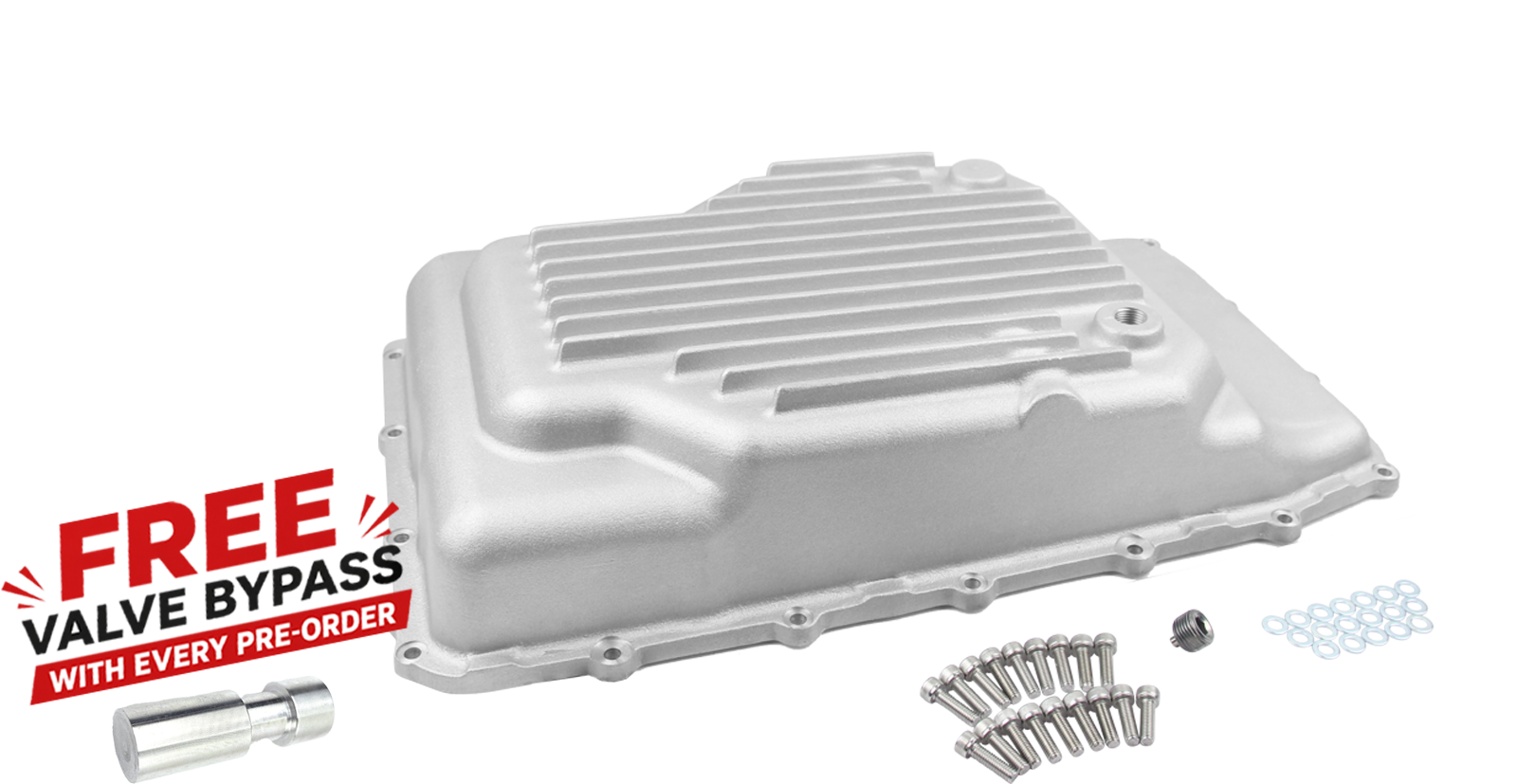

Pan Upgrade & Fitting Kit

Best for customers who already have service parts or only want the pan upgrade.

High-volume transmission pan
Complete fitting kit (inc. factory magnet retention kit)
Magnetic drain plug
FREE Thermal Bypass Valve
PRE-ORDER BONUS OFFER

Includes Internal Upgrade Components

Includes bypass valve to improve cooler flow and maintain reliable operation within the transmission.

$399Save $70

$329

Limited Pre-Order Price

Shop Pan Only

Best Value

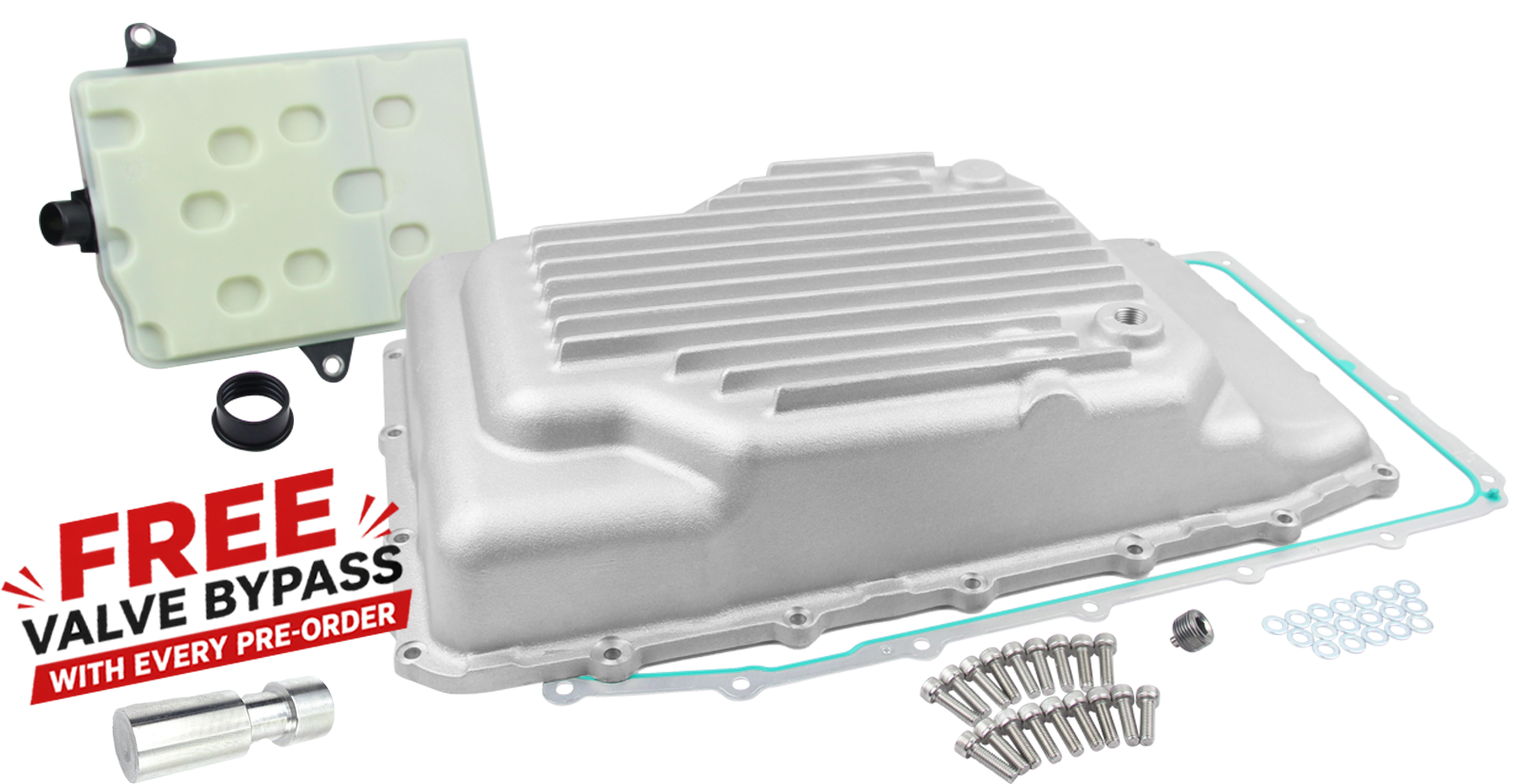

Complete Upgrade Kit – With Bypass Valve

Best for customers who want the complete hardware package ready for workshop installation.

High-volume transmission pan
Complete fitting kit (inc. factory magnet retention kit)
Magnetic drain plug
Genuine Ford metal gasket
Genuine Ford filter
Genuine Ford filter seal
FREE Thermal Bypass Valve
PRE-ORDER BONUS OFFER

Includes Internal Upgrade Components

Includes bypass valve to improve cooler flow and maintain reliable operation within the transmission.

$599 Save $70

$529

Limited Pre-Order Price

Shop Complete Kit

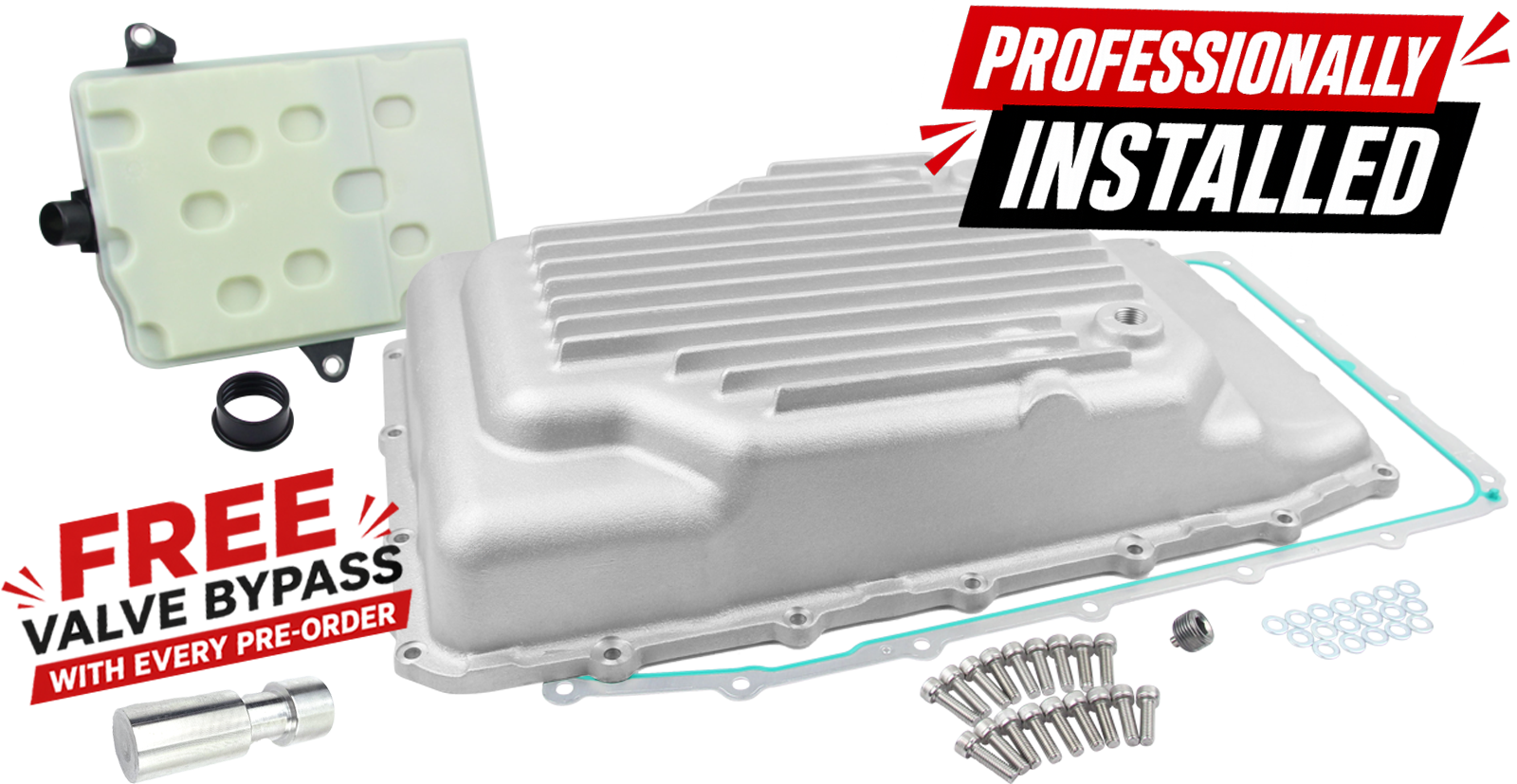

Premium Installed Package

Full Install Package – Supplied & Fitted (30+ Workshop Partners)

Best for customers who want the whole job handled professionally from start to finish.

CLICK HERE TO VIEW OUR INSTALLATION LOCATIONS

High-volume transmission pan
Complete fitting kit (inc. factory magnet retention kit)
Magnetic drain plug
Genuine Ford metal gasket
Genuine Ford filter
Genuine Ford filter seal
FREE Thermal Bypass Valve
PRE-ORDER BONUS OFFER
Professional installation of the above parts
Full transmission service and refill
Inspection of accessible valve body components, solenoids and lead frame
Post-install diagnostic scan and code check

Includes Internal Upgrade Components

Includes bypass valve to improve cooler flow and maintain reliable operation within the transmission.

$1199 Save $200

$999

Limited Pre-Order Price

Book Full Install

Compare the kits

⬅️⬅️ MOBILE USERS: Please swipe left to view full table ⬅️⬅️

Feature	Pan Kit	Complete Upgrade Kit	Installed Package
High-volume transmission pan	✓	✓	✓
Cooling fins	✓	✓	✓
Factory magnet retention	✓	✓	✓
Magnetic drain plug	✓	✓	✓
FREE Thermal Bypass Valve	✓	✓	✓
Genuine Ford Filter	–	✓	✓
Genuine Ford Gasket	–	✓	✓
Professional Installation	–	–	✓
Transmission Fluid Service	–	–	✓
Post-Install Diagnostic Scan	–	–	✓
Price	$329	$529	$999

Installation available in 30+ locations

Our Full Install Package is designed for customers who want the entire upgrade handled professionally from start to finish. We supply the pan and service components, while our installation partner completes the upgrade, transmission service and inspection.

See If We Have An Installer Near You

Planet Parts has a growing Australia-wide installer network including selected Ultra Tune centres and specialist workshops.

VIEW INSTALLER NETWORK

Frequently Asked Questions

Which package should I choose?

The Complete Upgrade Kit offers the best value, combining the pan upgrade with internal components such as the bypass valve and connector to improve flow and address common wear points. The Pan Only option suits lower kilometre vehicles or lighter use, where a new filter or gasket may not yet be required. If you're in Melbourne, the Full Install Package is the easiest option.

Does this include transmission fluid?

Transmission fluid is not supplied in the DIY kits. Fluid is supplied and installed by the workshop as part of the Full Install Package, which includes a fluid flush.

What does the bypass valve do?

The bypass valve replaces the original thermistor and spring assembly to improve cooler flow and eliminate sticking issues that can restrict oil flow.

Do I need the bypass valve?

The bypass valve is recommended for vehicles used for towing, touring or higher load applications. It helps maintain consistent cooler flow and reduces the risk of flow restriction caused by the factory thermistor assembly.

Is this suitable for towing?

Yes. This upgrade is ideal for towing, touring and heavy-use vehicles due to increased fluid capacity and improved heat dissipation.

Is this suitable for manual vehicles?

No. These products are designed specifically for vehicles equipped with the 10R80 automatic transmission and are not compatible with manual transmission models.

Where is installation available?

Installation is available through our Australia-wide installer network. After purchasing an eligible Full Install Package, Planet Parts will coordinate installation with the participating workshop closest to your location.

Click here to view our installation locations.
