Holden Commodore VB-VS Front Stub Stiffener Bearing Spacers (PAIR)
Description
The standard Commodore front stub axles are prone to flexing under heavy load & cornering. This flexing causes the bearings to move around inside the hub, which causes a change to the wheel camber when turning at high speeds.

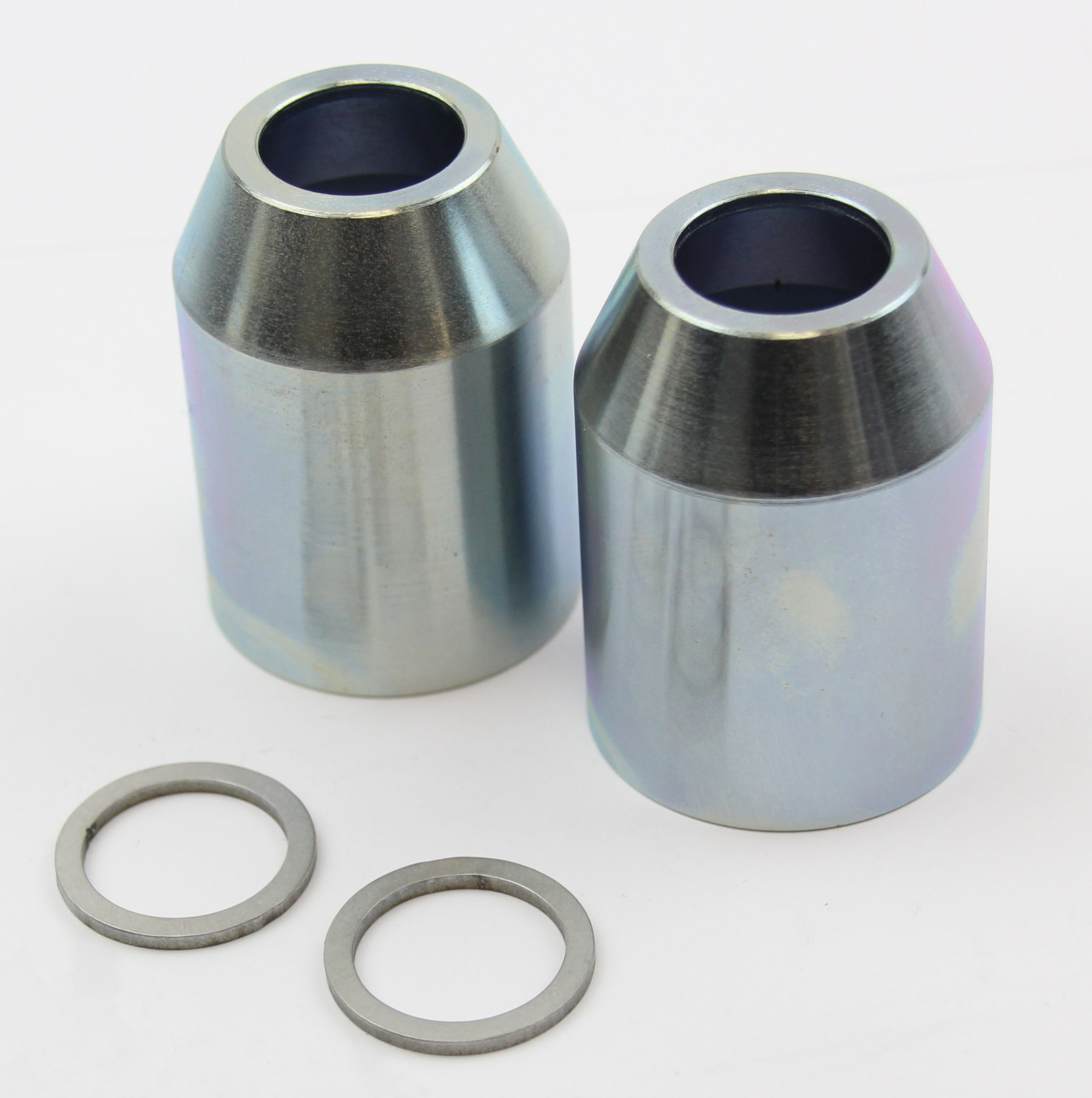

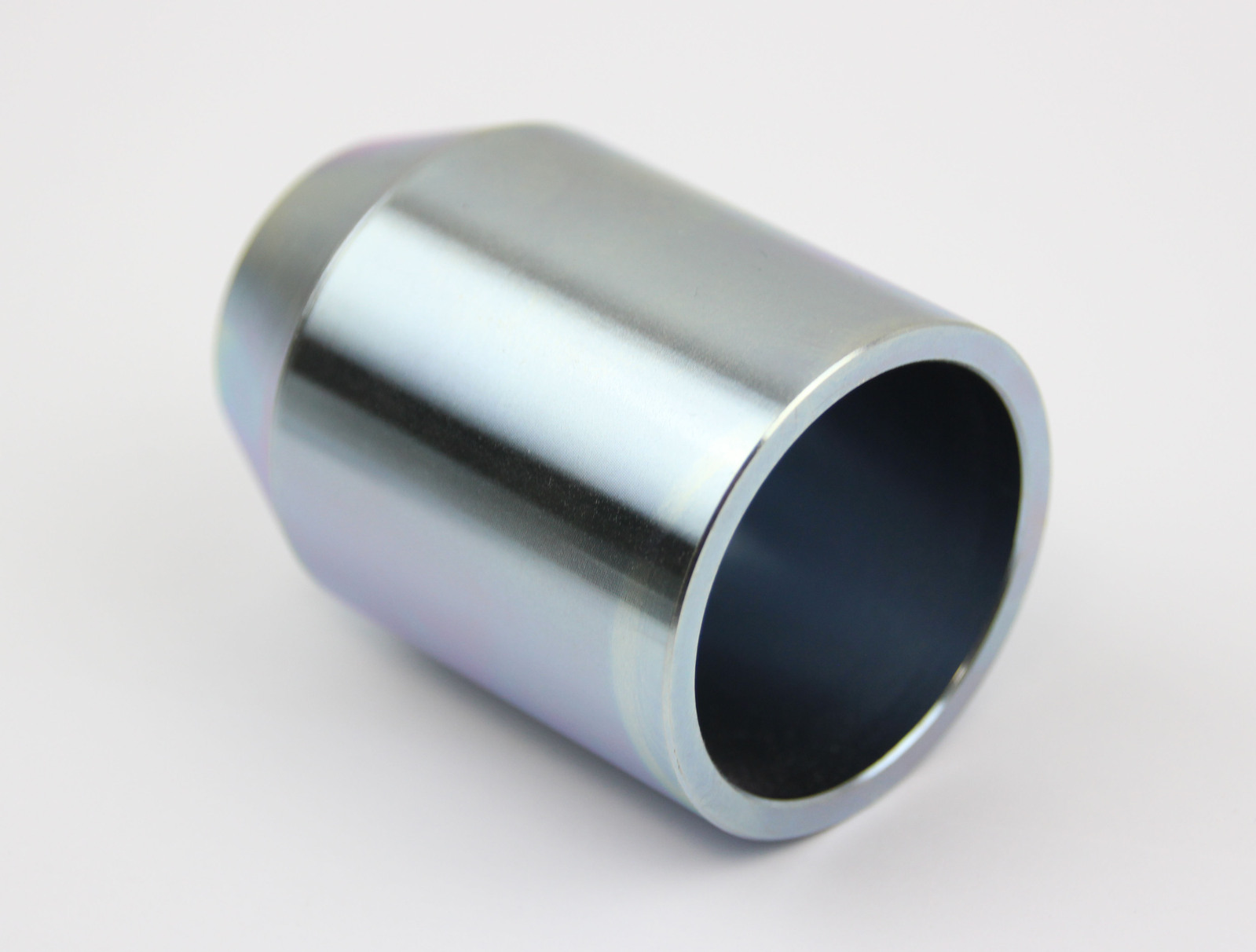

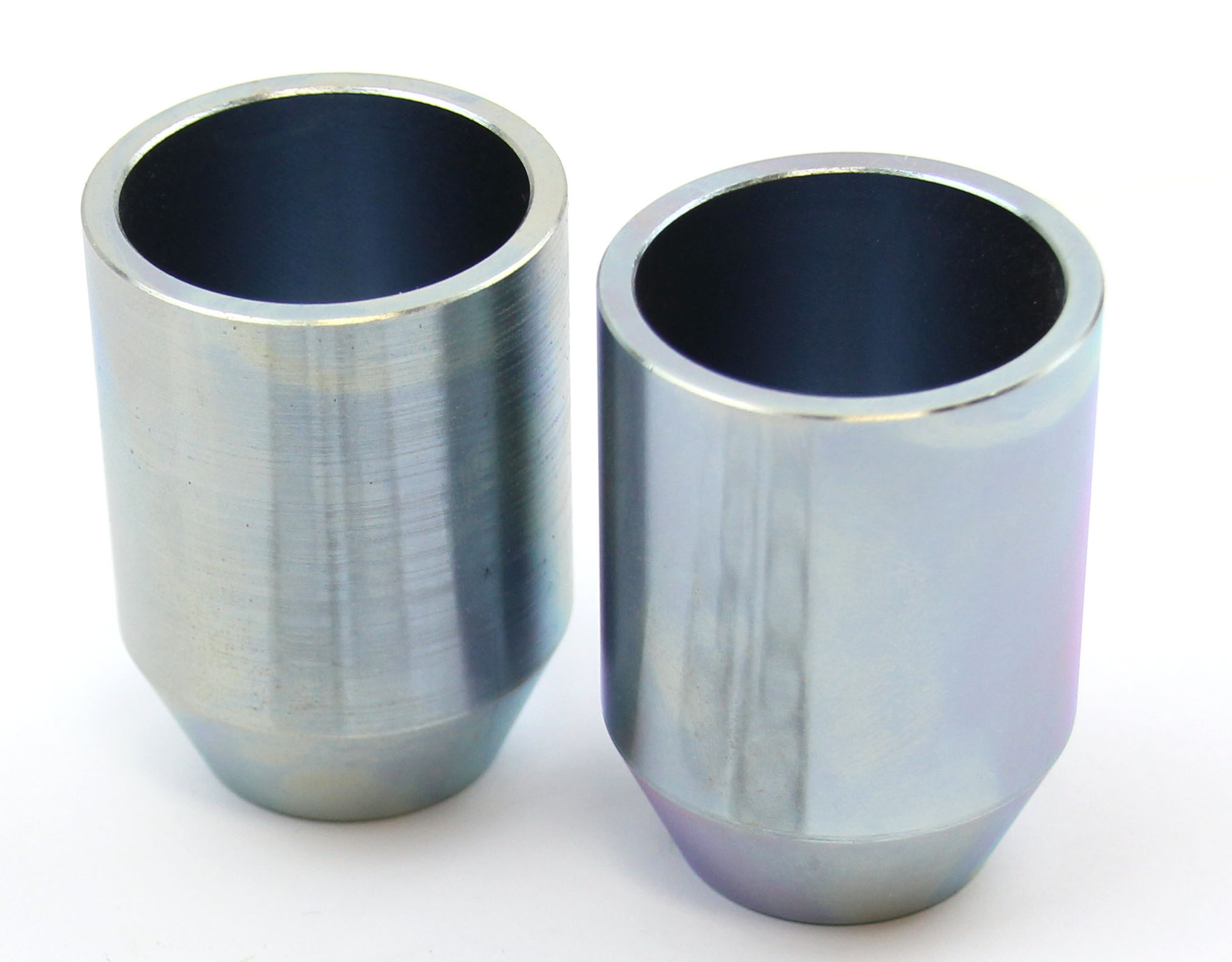

To counter this flex, Planet Parts have developed stub stiffeners/bearing spacers specifically for early model Commodores. Our bearing spacers are installed inside the front hub, between the bearings.
Manufactured from hardened steel & zinc coated for durability.
Sold in pairs.
To suit:
Holden Commodore VB, VC, VH, VK, VL, VN, VP, VR & VS Models.
Will also fit VB-VS models with VT-VZ brake conversions.
*** To suit front brakes only – will not fit rear ***
Once our bearing spacers are installed, you will have increased wheel spin, reduced bearing friction and significantly better brake & steering performance during high-speed cornering and braking. The retaining nut is also now able to be fully tightened, allowing for full roller contact, accurate preloading and a much stiffer and stronger hub.
Please note:
A lathe is required for installation. As each spacer is installed specifically to each hub, they need to be slightly machined for them to run true to the hub & bearings.
Machine from the larger end of the spacer.
Once you have machined the spacer to the point where it has no free-play or tightness with the bearings, you need to machine a further .025mmm to .050mm.
Inspect hubs and stub axles condition before installation and check for any excess wear or cracks.
Use a high quality high temp bearing grease. Do not use a moly disulphide grease.
Specifications
SKU | SS-VBVS |
Brand | Planet Parts |
Shipping Weight | 0.2900kg |
Shipping Width | 0.100m |
Shipping Height | 0.050m |
Shipping Length | 0.100m |
Shipping Cubic | 0.000500000m3 |
