Holden VS-VY Commodore L67/M90 High-Flow Intake Elbow & LS1 Throttle Body Adaptor
Description

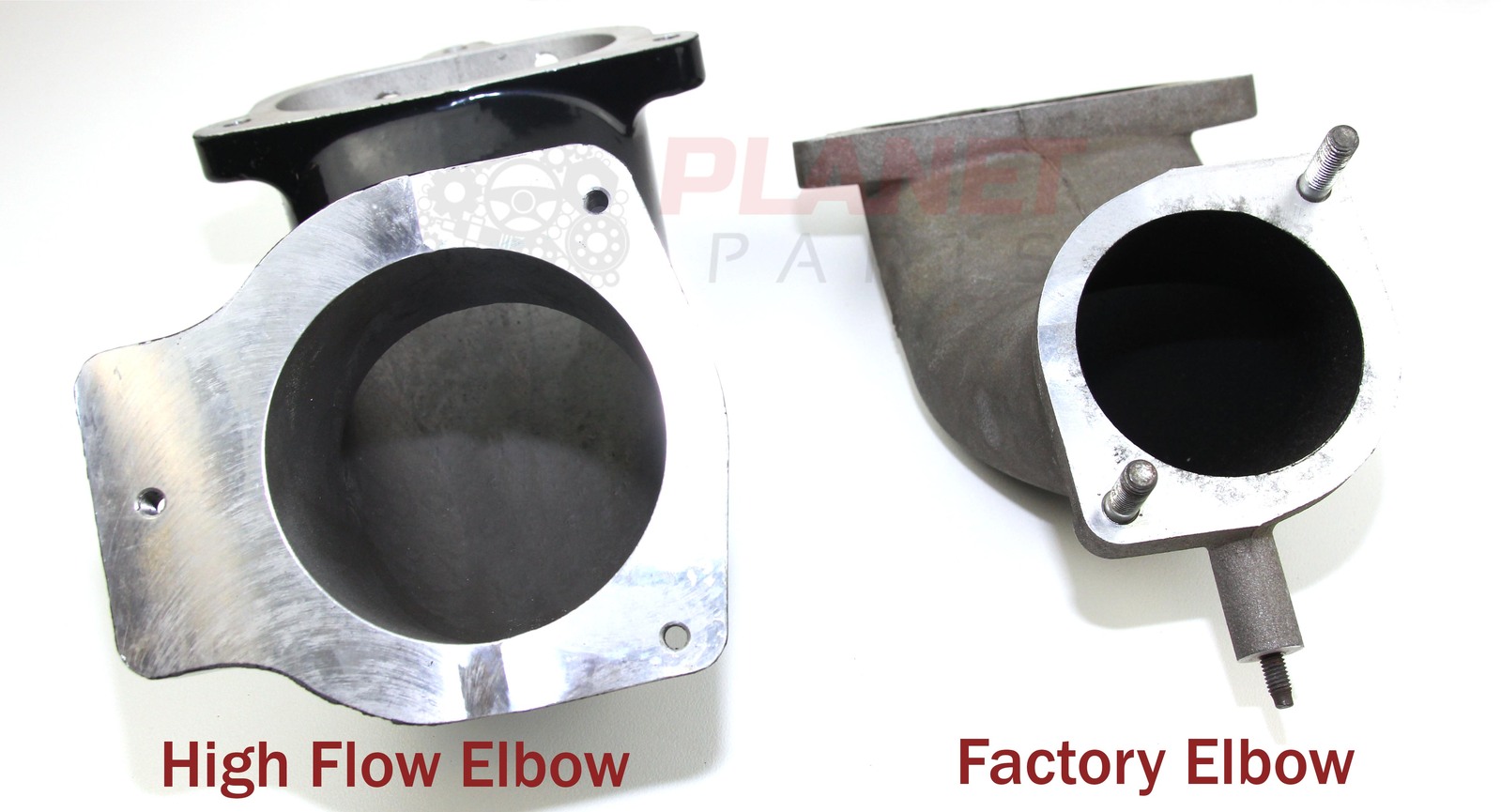

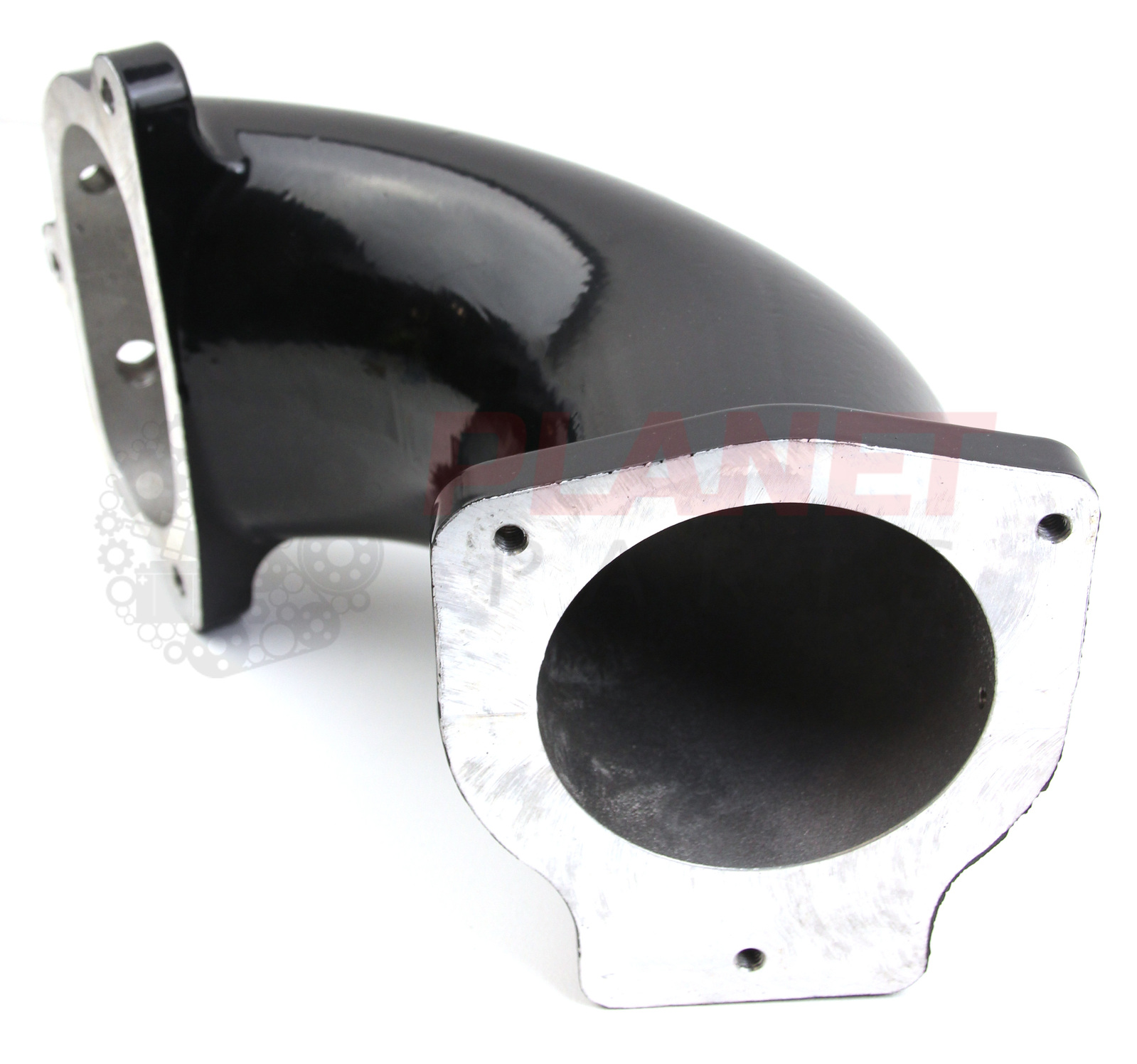

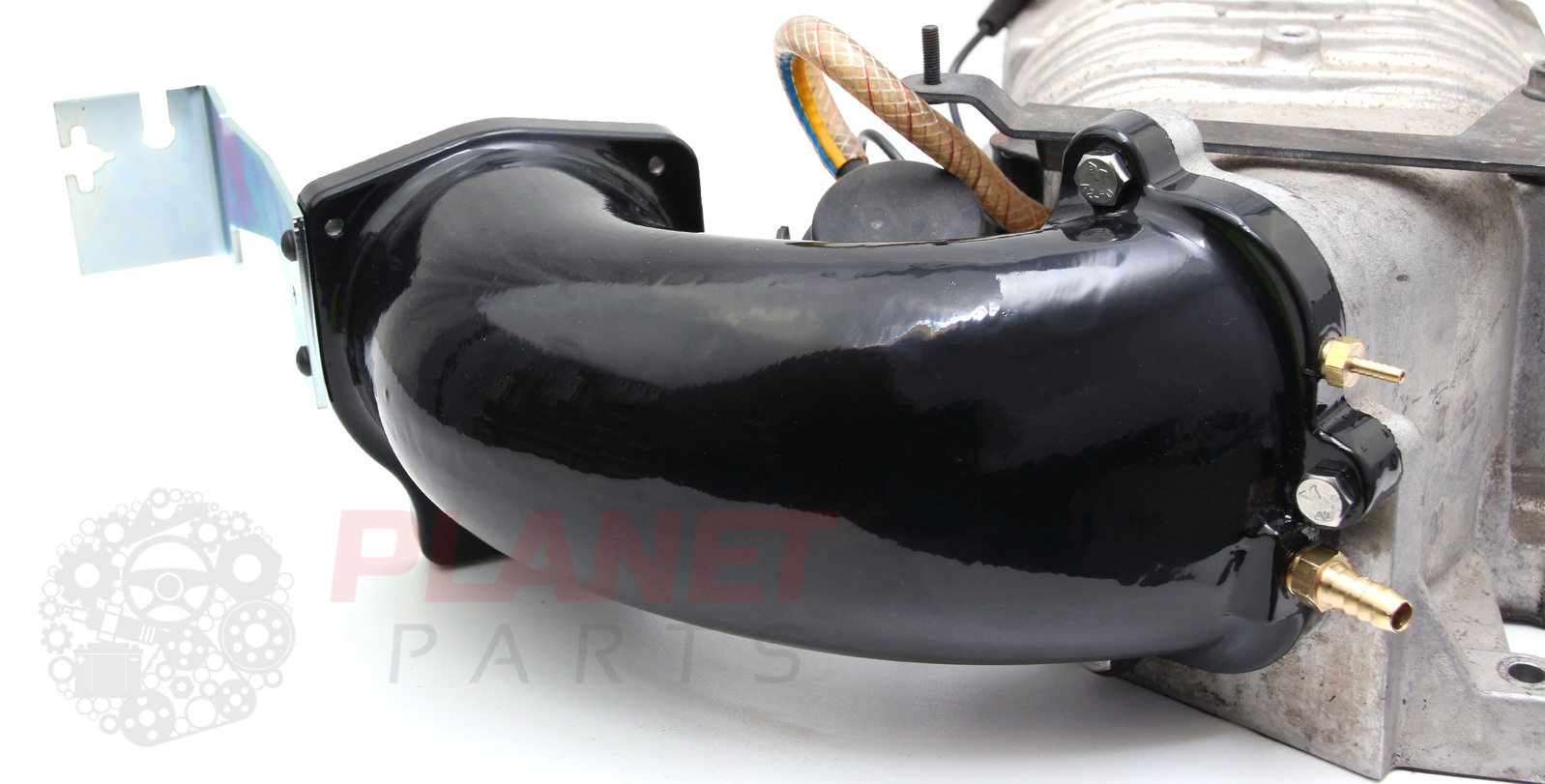

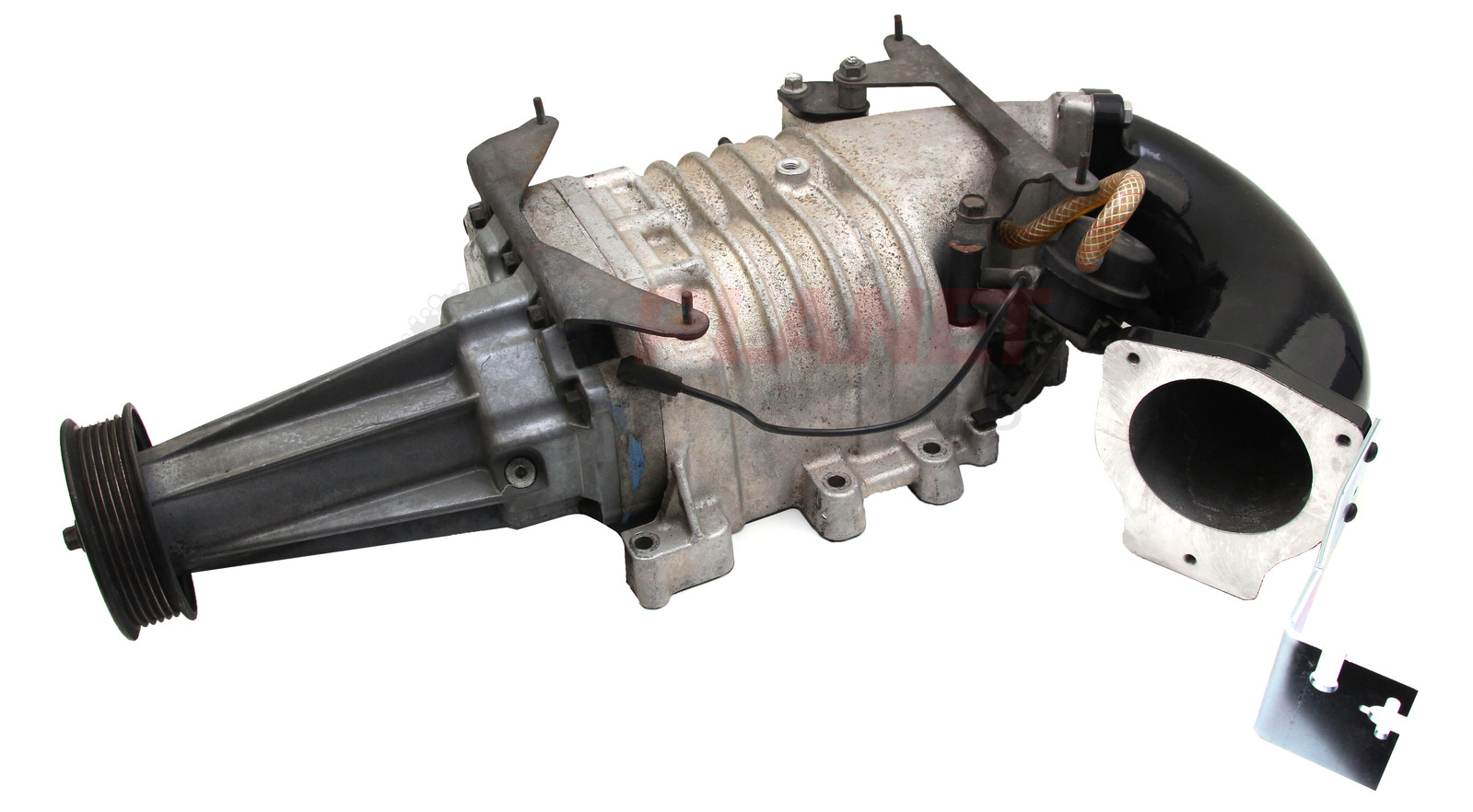

Our High-Flow Intake Elbows have been specifically designed to suit M90/L67 supercharged engines. The larger diameter pipe is less restrictive than the factory elbow, allowing for better airflow into the engine. Once installed with an LS1 throttle body, you’ll be able to unleash even more power out of the M90!
Each unit comes powder-coated BLACK.
To suit:
Holden Commodore VS, VT, VU, VX & VY L67 M90 Supercharged Models.

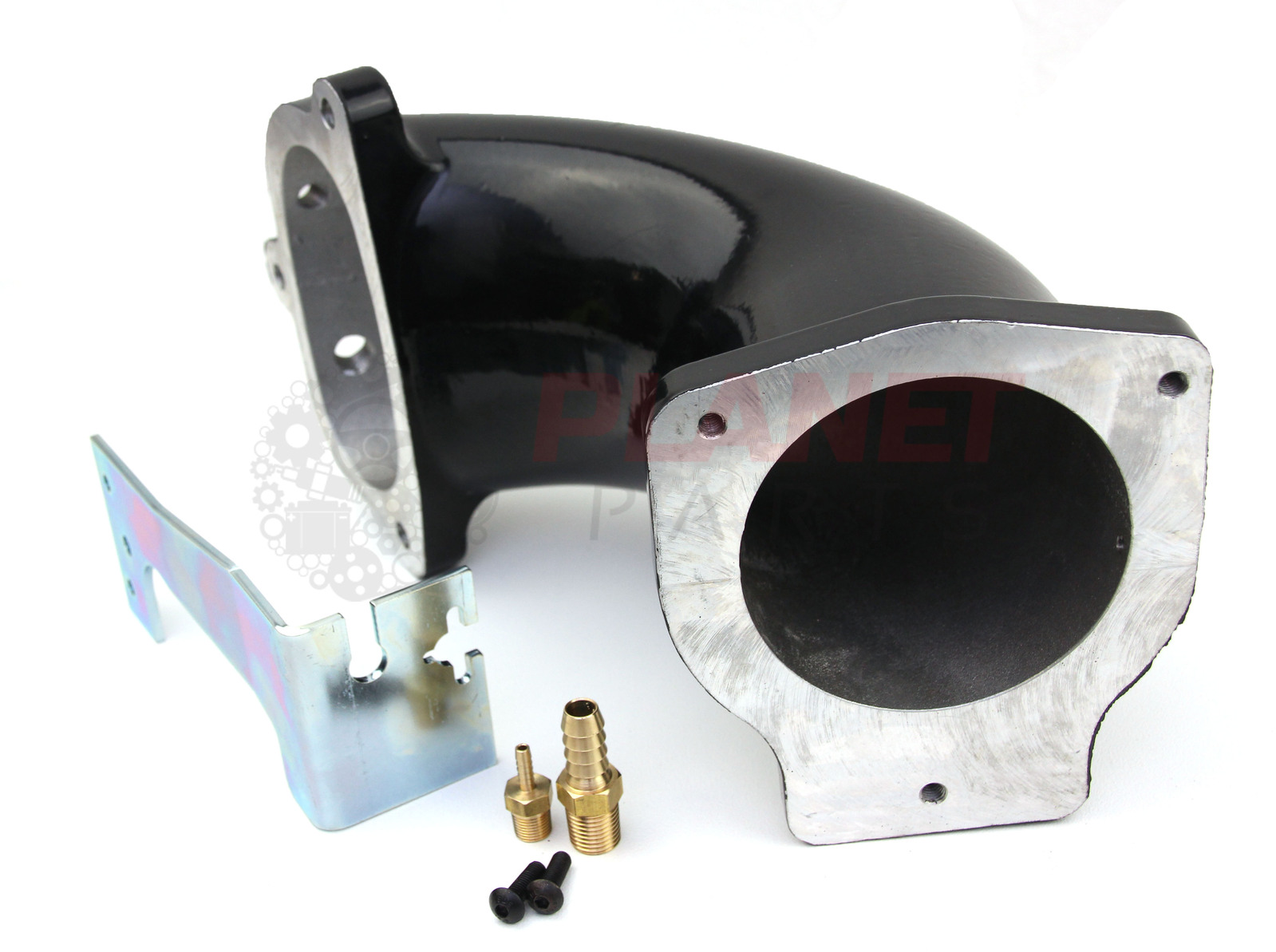

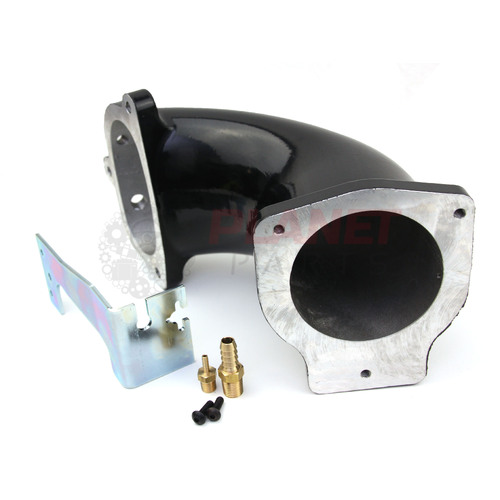

Each package includes:
1 x Planet Parts High-Flow Intake Elbow

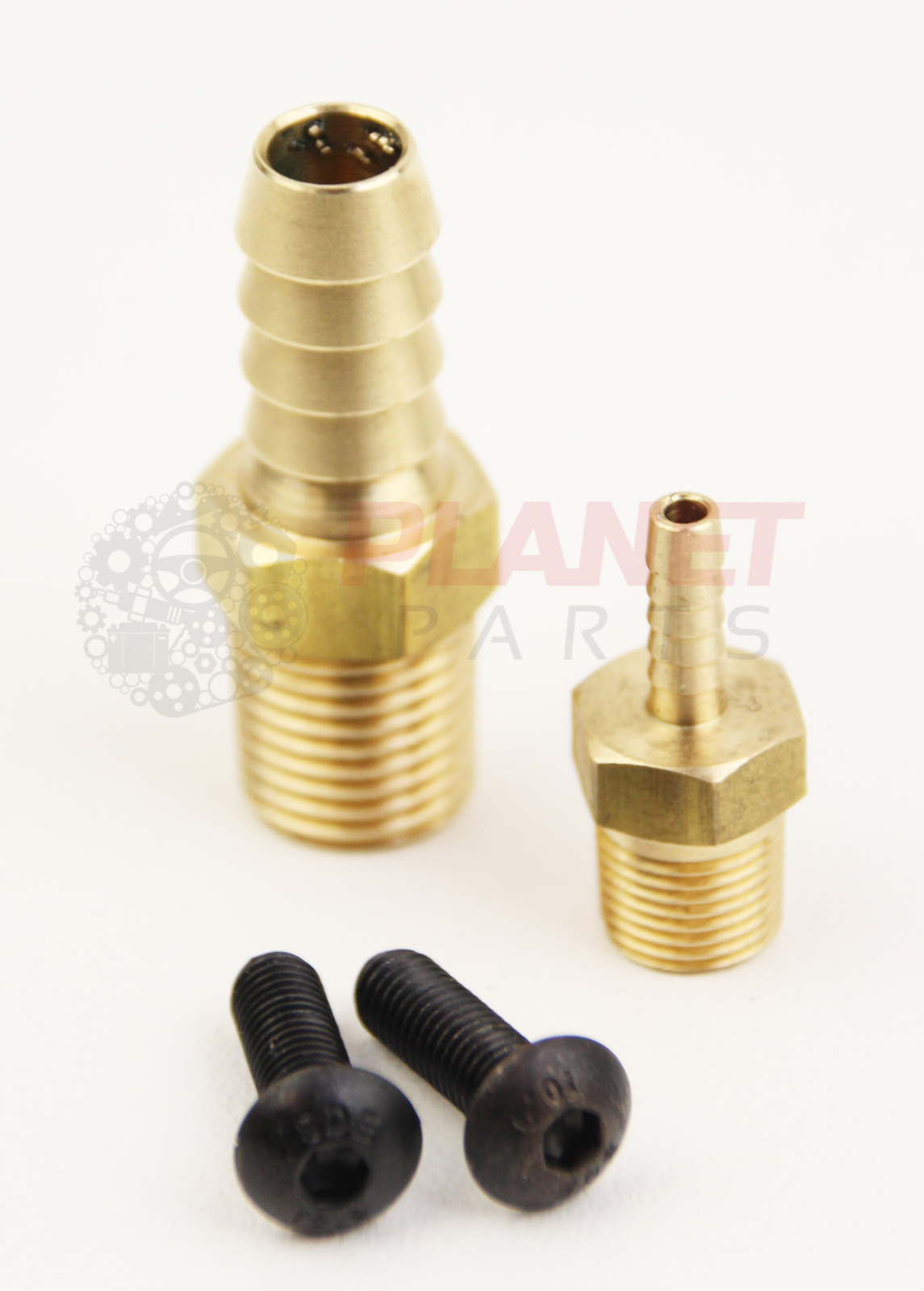

2 x Copper Hose Fittings

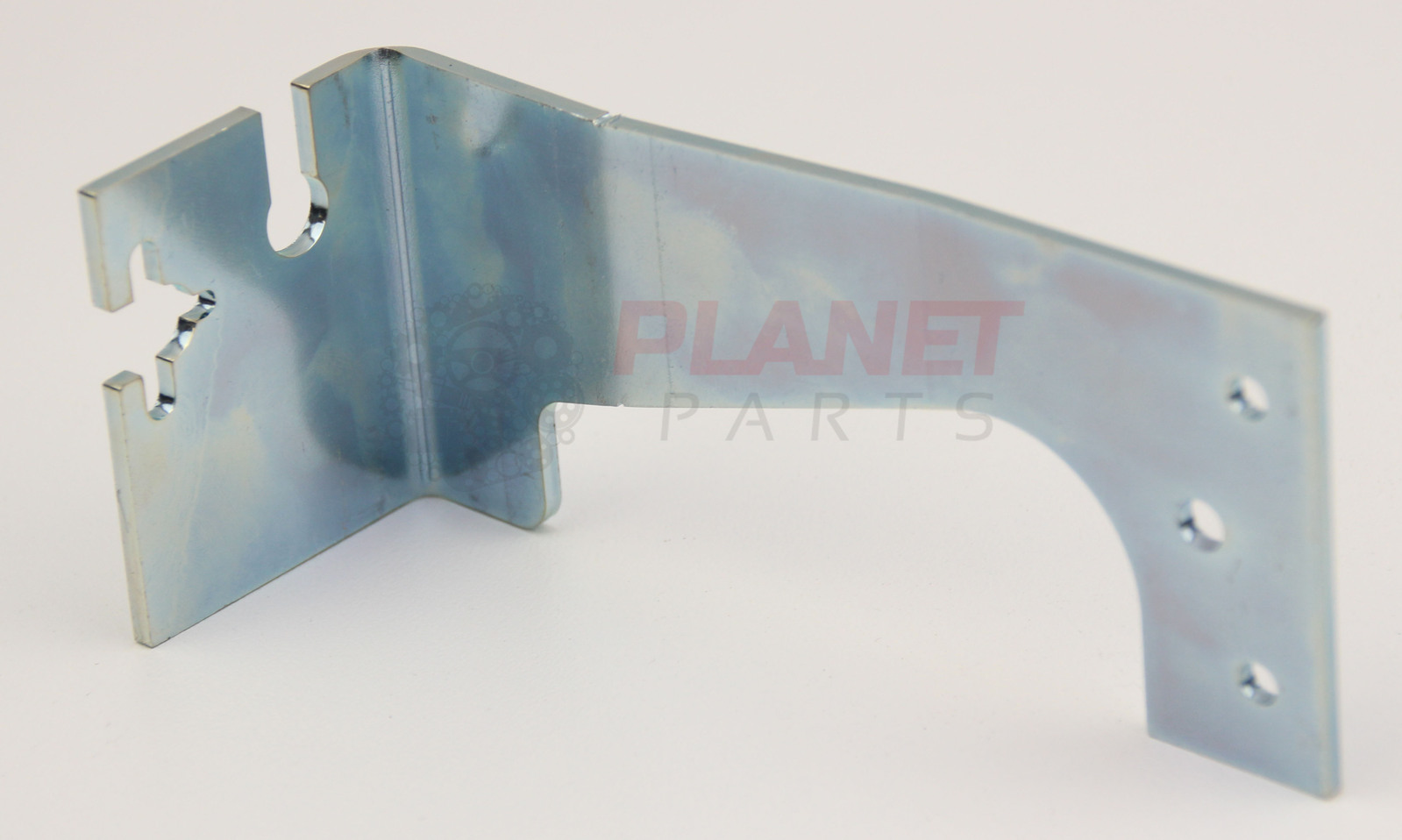

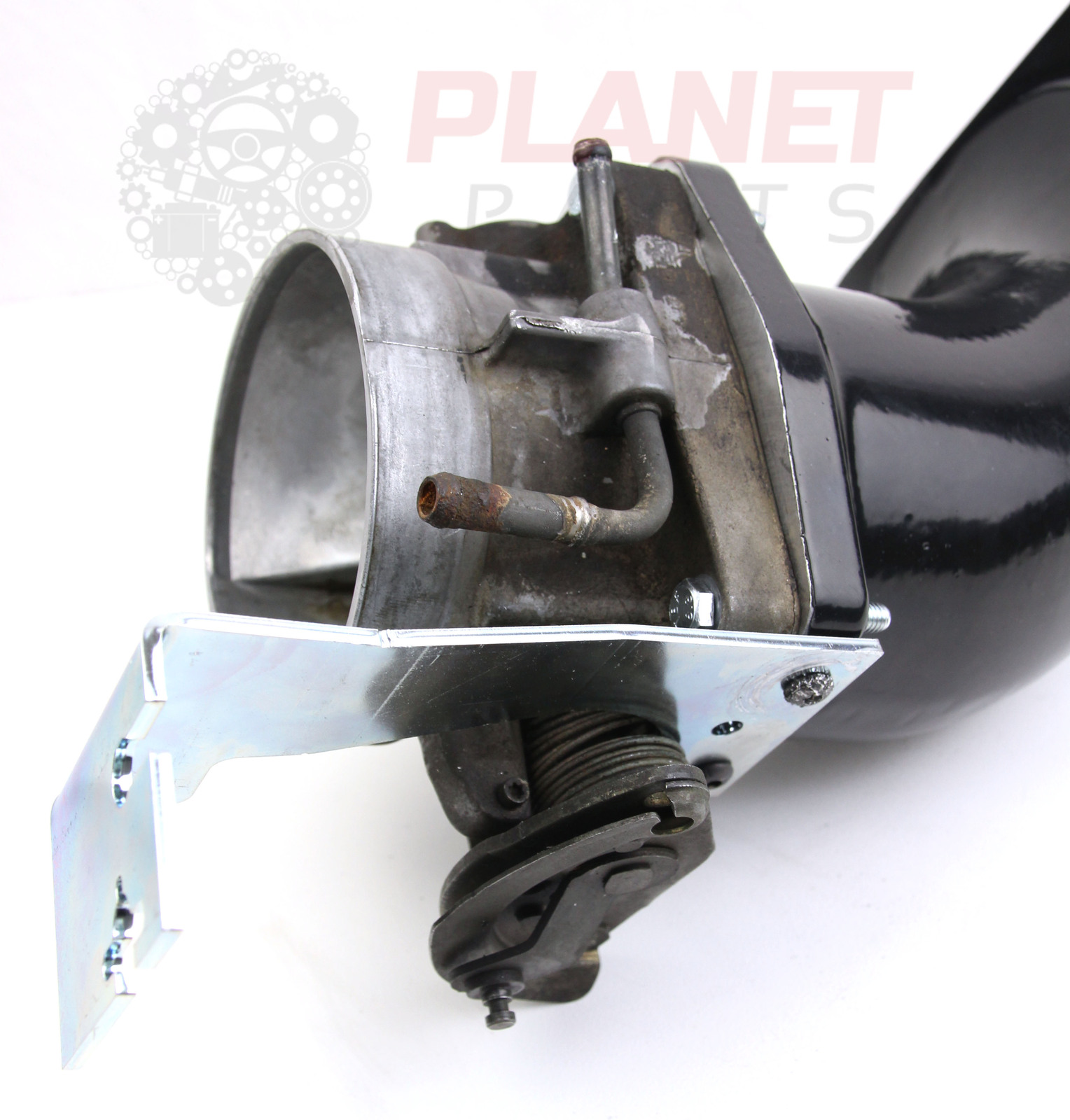

1 x Throttle Cable Bracket & bolts
Installation notes:
The L67 throttle cable won’t be compatible with the LS1 throttle linkage. You will need to cut off the LS1 linkage and weld on an L67 linkage.
An LS2/LS3 throttle body can be used with the purchase of an adaptor plate. We unfortunately don’t currently stock the adaptor plate, but they are readily available from several other sellers online (search for LS1 to LS3 Throttle Body Adaptor). We recommend porting out the adaptor to match the size of our elbow’s t/body flange.
The Elbow cannot be installed with an Ecotec/L67 throttle body. An LS1/LS2/LS3 throttle body is required.
If you have a A2A/W2A plate installed, you will need to modify (‘massage’) your firewall to clear the larger pipe.
We recommend porting out the rear of your supercharger to match the larger diameter elbow flange for optimal performance.
If you don’t have a A2A/W2A plate installed, you may need to machine down the lower left-hand corner of the throttle body flange so it clears the rocker cover. If you have a A2A/W2A plate, you will not need to machine the flange
Specifications
SKU | IE-L67 |
Brand | Planet Parts |
Shipping Weight | 2.4400kg |
Shipping Width | 0.100m |
Shipping Height | 0.150m |
Shipping Length | 0.100m |
Shipping Cubic | 0.001500000m3 |
