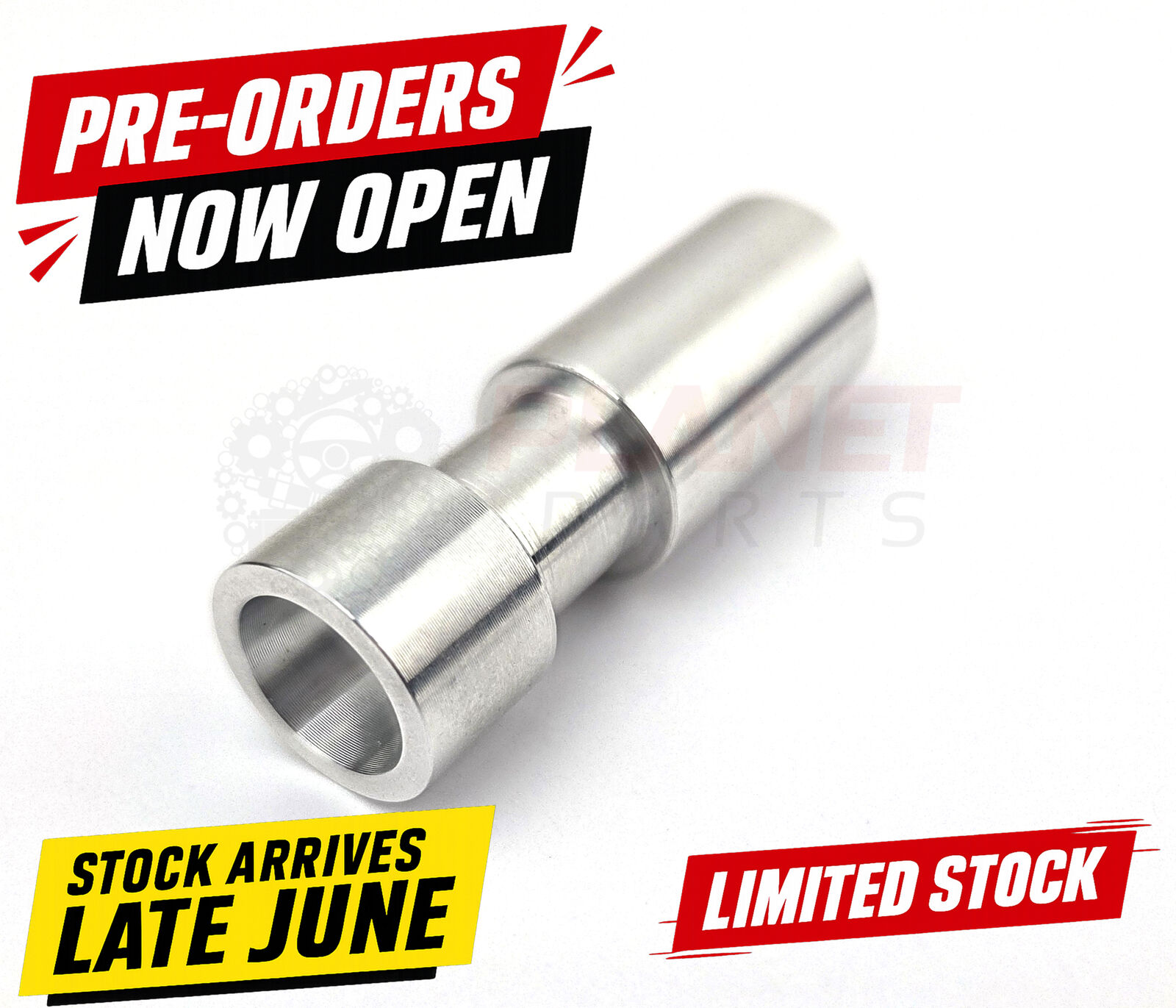

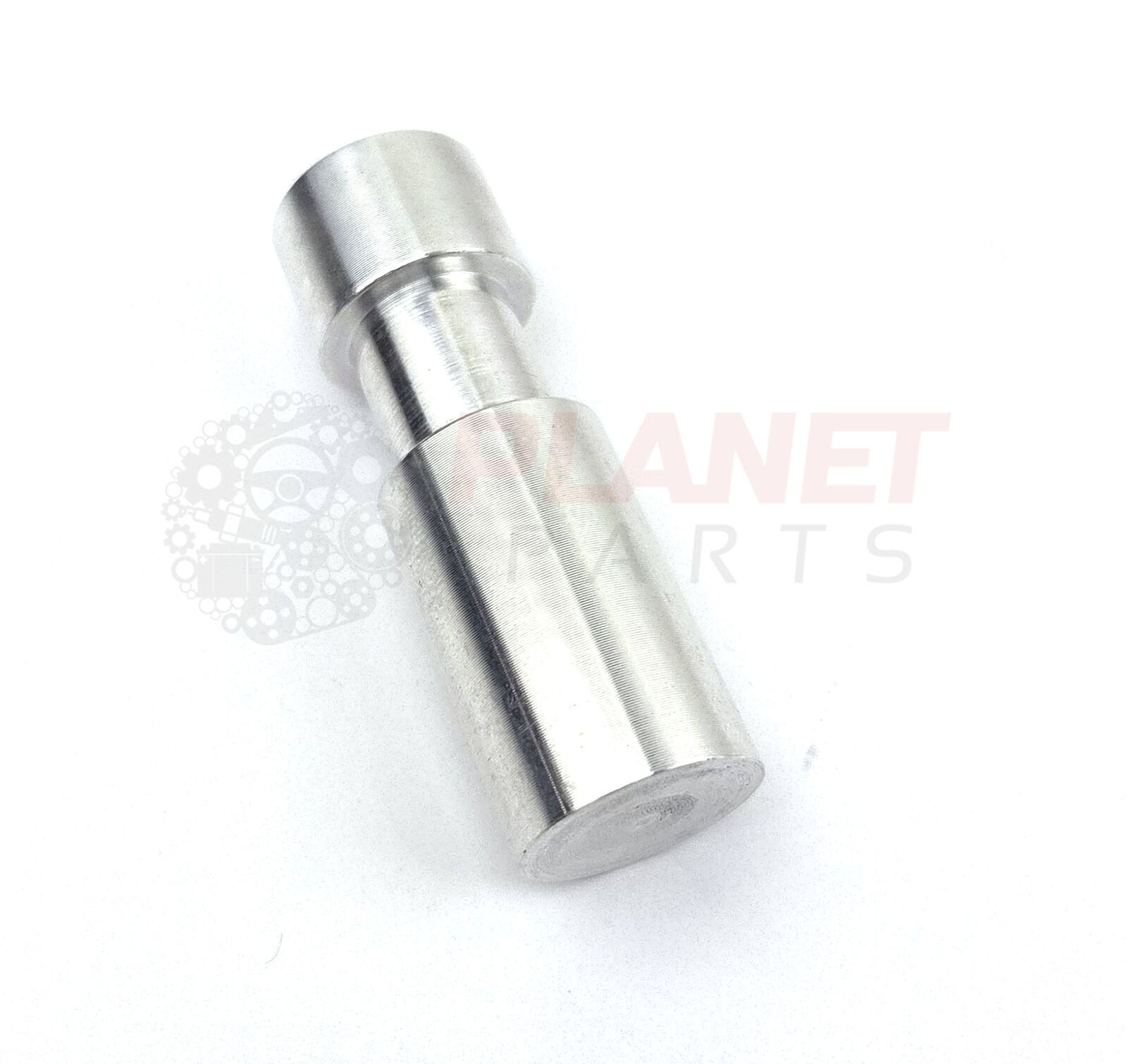

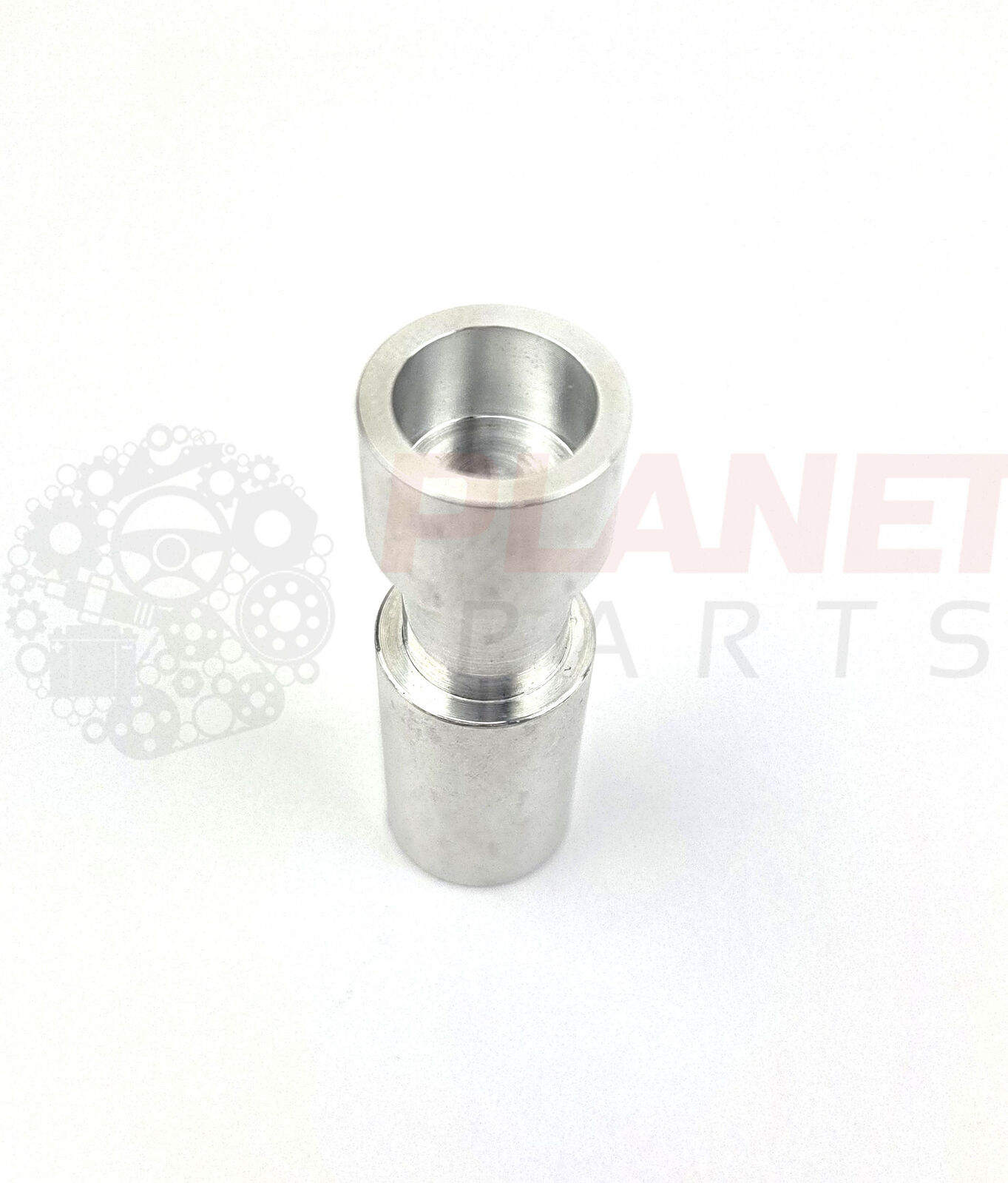

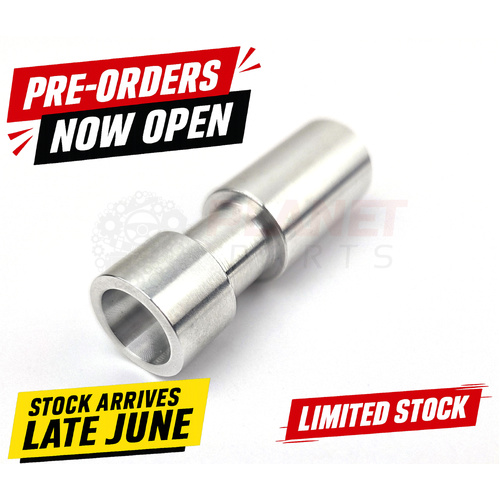

10R80 Transmission Thermal Bypass Valve Upgrade BILLET Ford Ranger PX3 & Next-gen (2018-on)

10R80 Thermal Bypass Valve Upgrade

The factory 10R80 thermal bypass restricts flow to the cooler. This billet aluminium upgrade from Planet Parts removes that restriction, allowing full-time circulation and consistent cooling under load. This helps control temperatures before they become a problem.

Installation is straightforward. The billet bypass valve is a direct drop-in replacement for the factory thermostat valve located inside the transmission valve body. Simply remove the factory valve and install the upgraded unit.

Why Upgrade the Factory Bypass?

From factory, the 10R80 keeps fluid inside the transmission until it reaches a set temperature before allowing it to flow through the cooler. While this helps with warm-up and emissions, it also means the cooler isn’t doing anything when you first start putting load into the transmission.

Under real driving conditions like towing, acceleration, climbing, or slow off-road work, heat builds quickly. The issue isn’t just the delay - it’s that the system can struggle to react fast enough once heat is already there.

By allowing constant flow through the cooler, this upgrade:

• Starts removing heat as soon as it’s generated, not after the fact

• Prevents heat from building up internally before cooling begins

• Maintains more stable temperatures instead of spikes and drops

• Keeps the cooler working continuously, especially during sustained load

When You Need This

• Heavy towing or load carrying

• Modified or tuned vehicles

• High ambient temperatures (Aussie conditions)

• Off-road / slow-speed driving where airflow is limited

• Preventative upgrade for long-term reliability

Compatibility

Designed for vehicles equipped with the Ford 10R80 10-speed automatic transmission, including:

• Ford Ranger PX3 2.0 Bi-Turbo (2018–2022)

• Ford Ranger Next-Gen V6 & Bi-Turbo (2022+)

• Ford Mustang (10-speed models)

• Ford F150 (10-speed models)
