SKU: IM214-T

Ford Falcon BOSS V8 5.4L High-Volume Inlet Plenum & Twin-Blade Throttle Body for BA BF FG FGX Falcon XR8 BOSS 260, 290, 302 & 315 Engine


More info.

Make 4 payments of $198.75 over 8 weeks and get it now!

Sold Out

Calculate Shipping

In Store Pick-Up - $0.00
Please email or call us to book a time to collect your order.


* Includes Throttle Body *

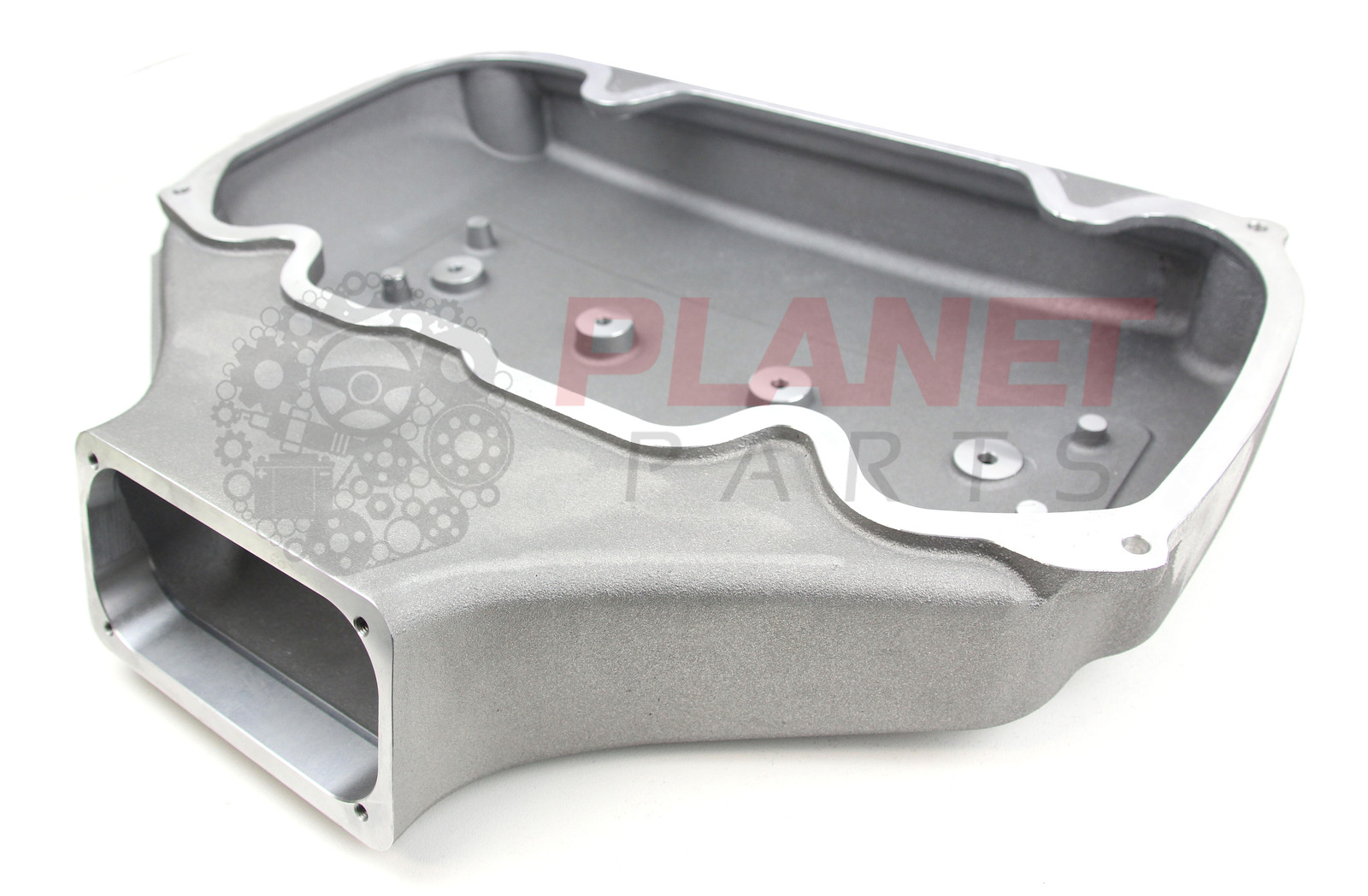

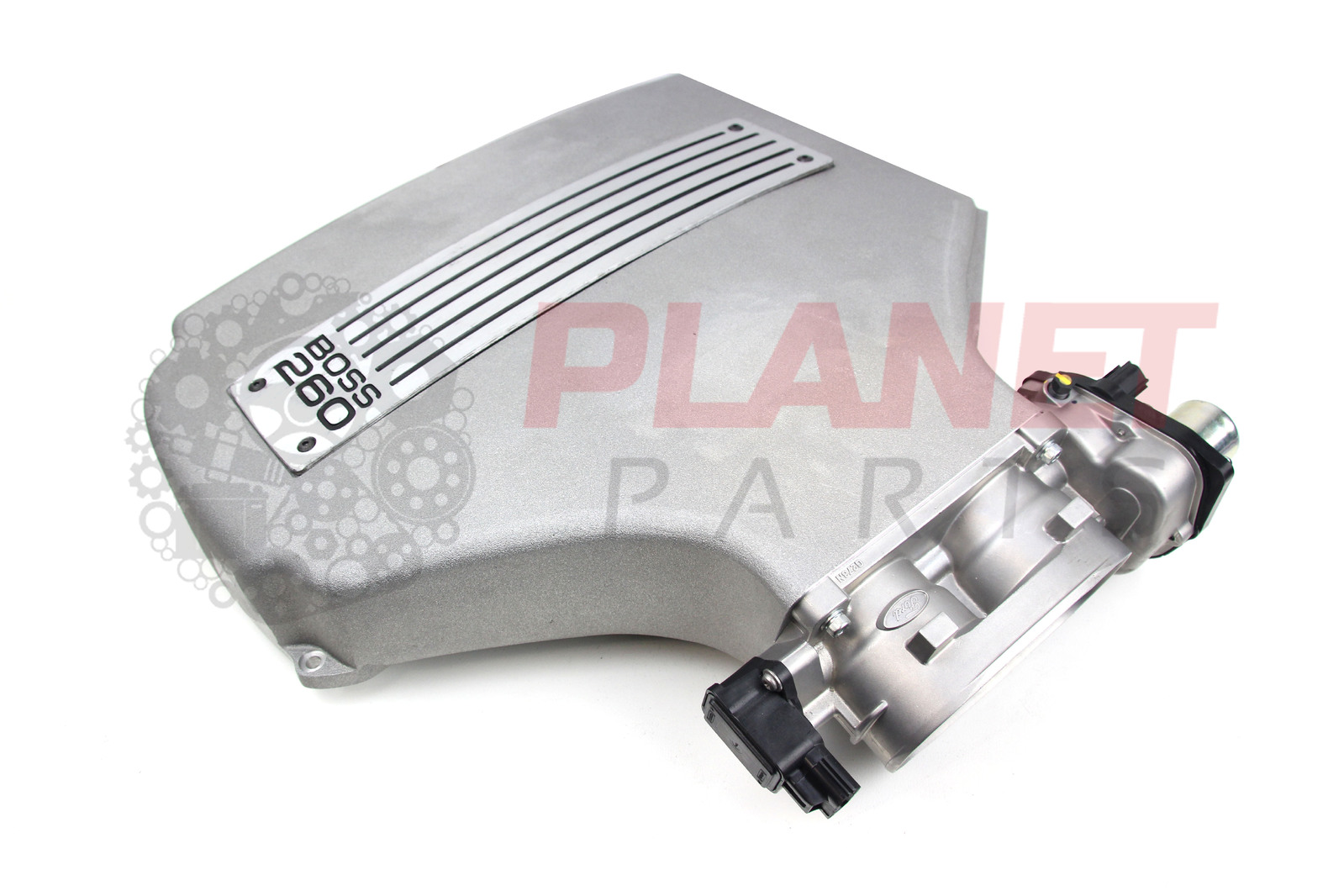

Planet Parts' High-Volume BOSS V8 inlet plenums are designed for both street & track purposes. Our BOSS plenums give performance gains to N/A and boosted setups. They are an absolute must for ANYONE looking to increase the performance of their Ford BOSS 5.4L V8.

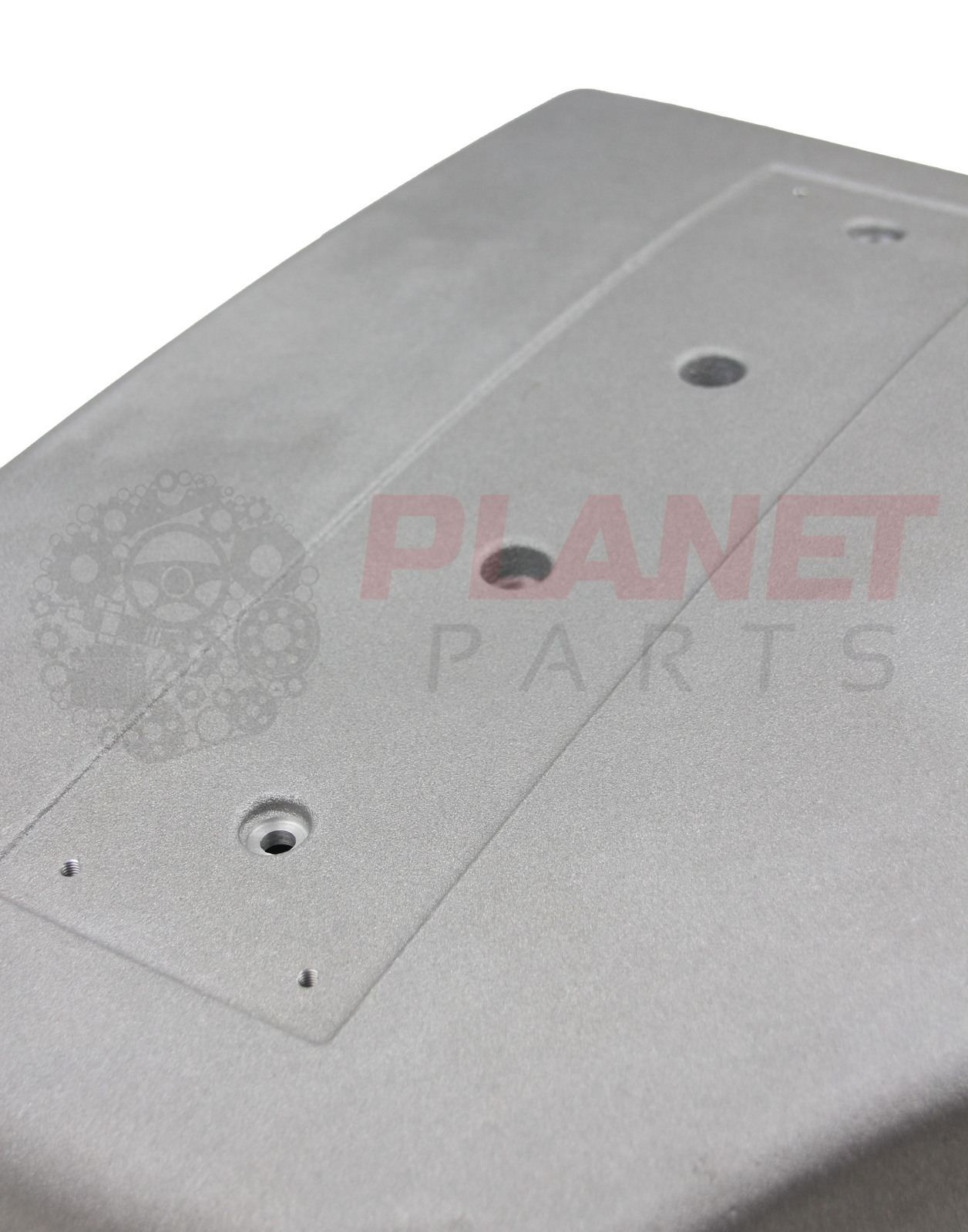

Even though these manifolds are the absolute best value on the market, we haven't taken any shortcuts on quality. Each manifold follows a strict manufacturing process - after casting, they are heat-treated for strength & shot blasted smooth. After that, the plenums flat surfaces get machined to mirror finish for a flush fitment. Then each unit is tested to hold 40psi of pressure before finally being safely boxed up and sent on its way to you!

Our High-Volume inlet plenums are supplied in a smooth cast iron finish - perfect to either install right away or get painted in your preferred colour!


Strong & Lightweight design.

Fits under all BA-FGX XR8 style bonnets.

20% larger capacity increases air flow compared to stock plenum/manifold.

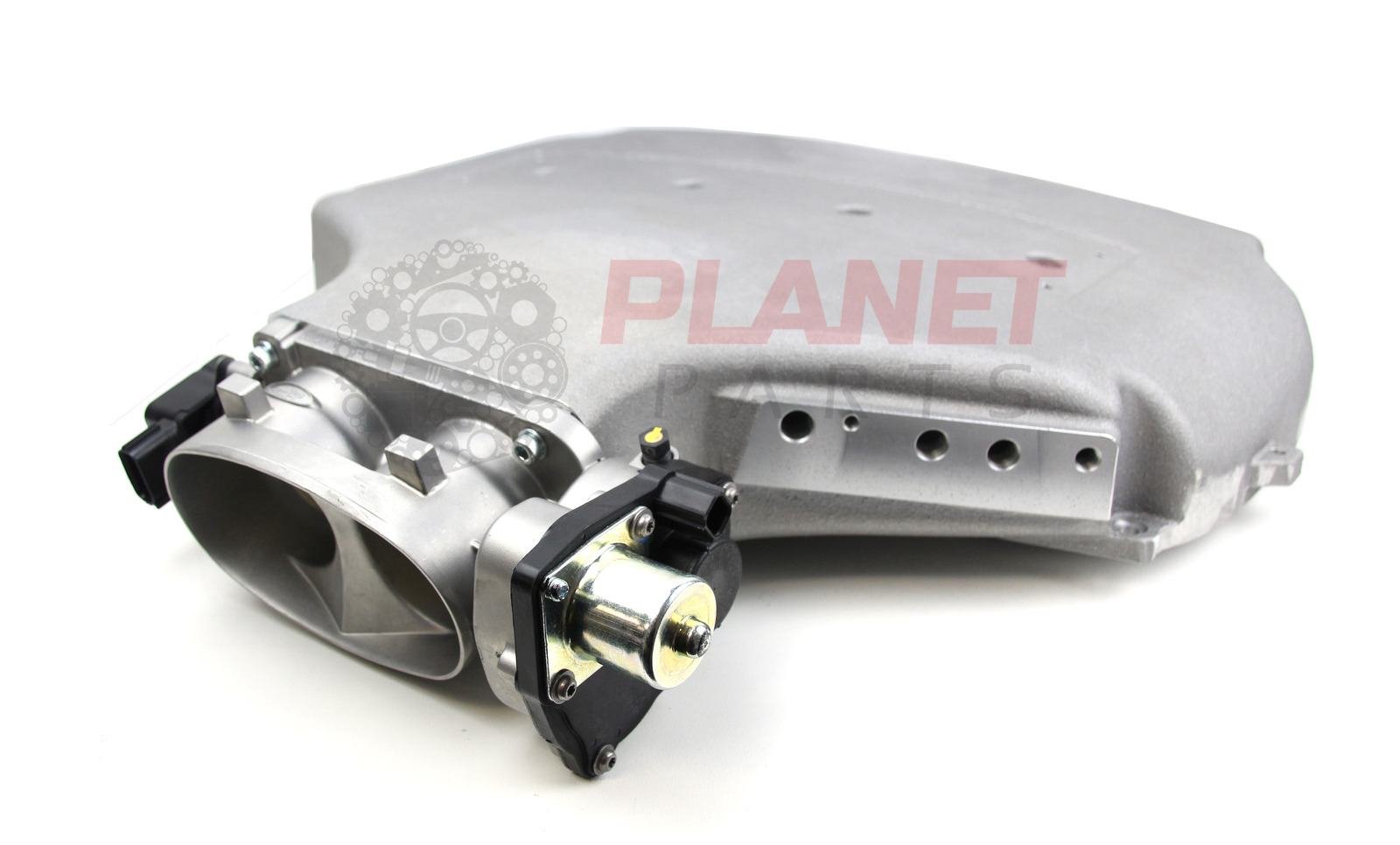

Design utilises the FPV FG 315 GT & Ford Mustang GT500 Twin-Blade 60mm Throttle Body.

Retains factory MAP sensor, vac line fittings, etc.

Increases performance at the same boost level on Turbo and Supercharged engines.

Larger throttle body increases throttle response.

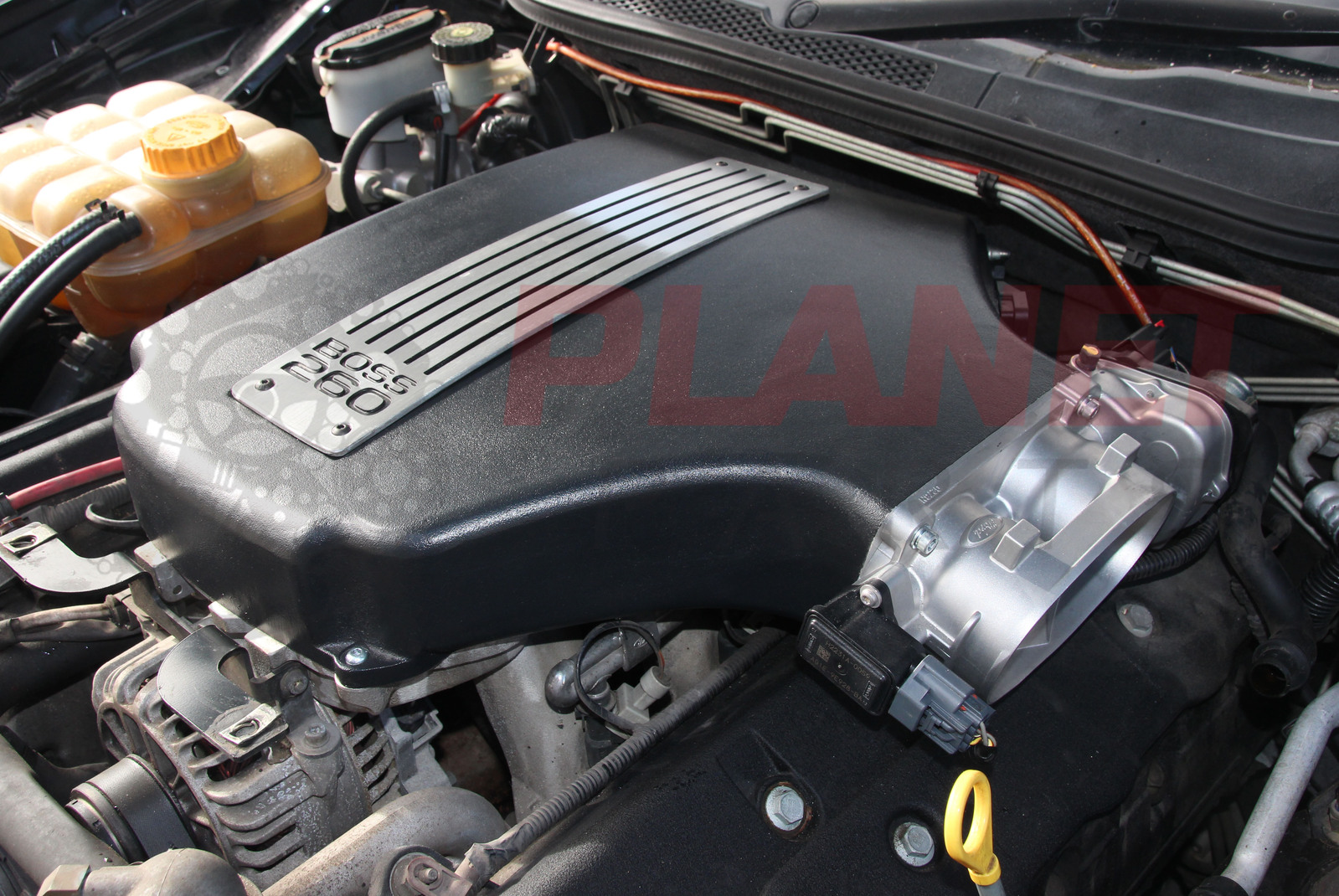

Retains factory Engine Plate. Also retains the factory engine cover (some trimming required for N/A models).

To suit:

Ford BA, BF, FG & FGX Falcon Boss 5.4L V8 Engines (inc. XR8 & FPV GT models).

Will suit all BOSS 260, 290, 302, and 315 V8 5.4L motors.


Tune is required after installation.

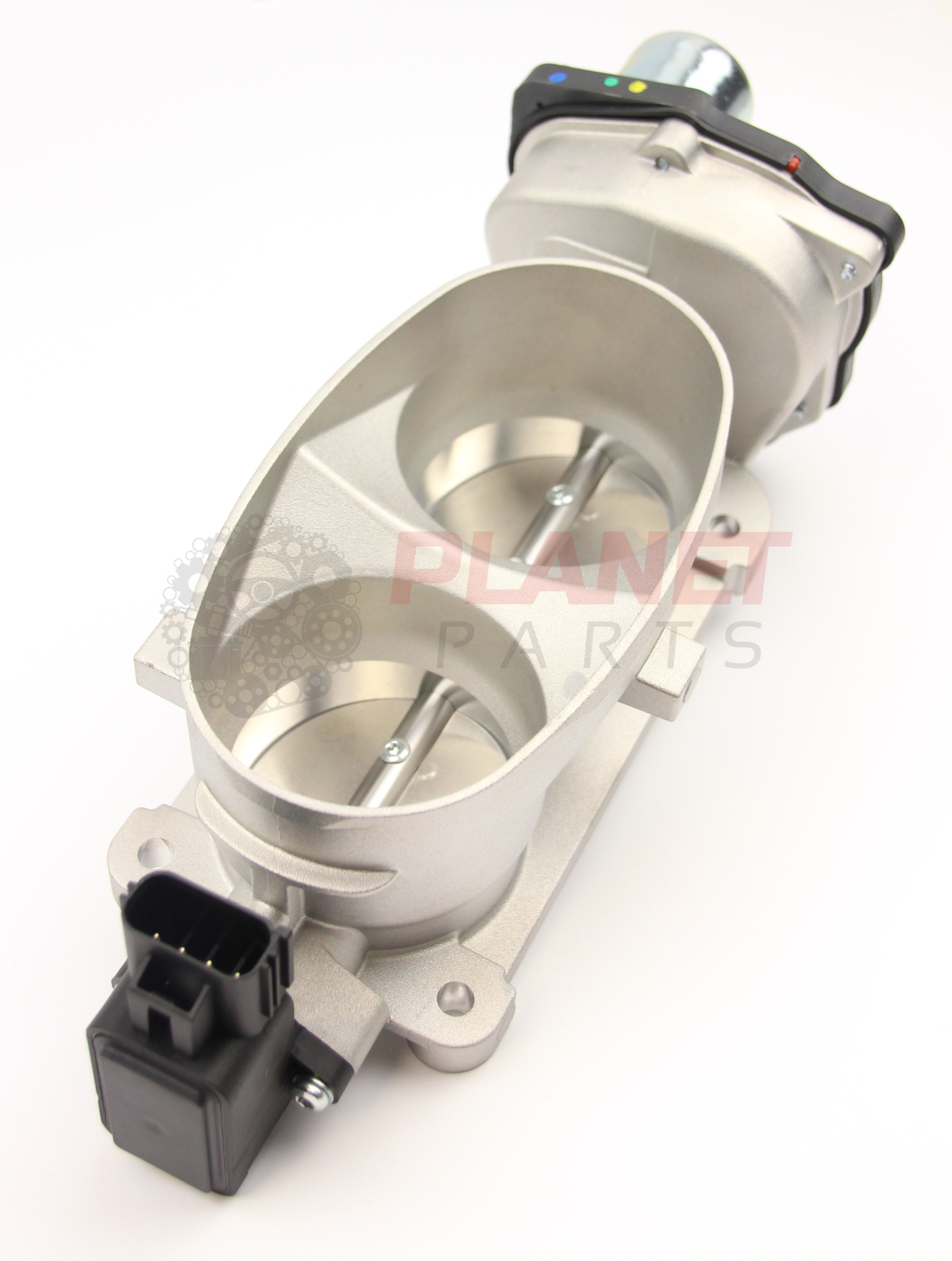

Throttle body INCLUDED. This listing includes our twin-blade 60mm throttle body.

A 4” silicone hose/joiner can be used on the oval GT500 throttle body to then connect your intake pipe to (will need to then reduce further if choosing to retain factory air box).

Will NOT suit 6-cyl BARRA models.

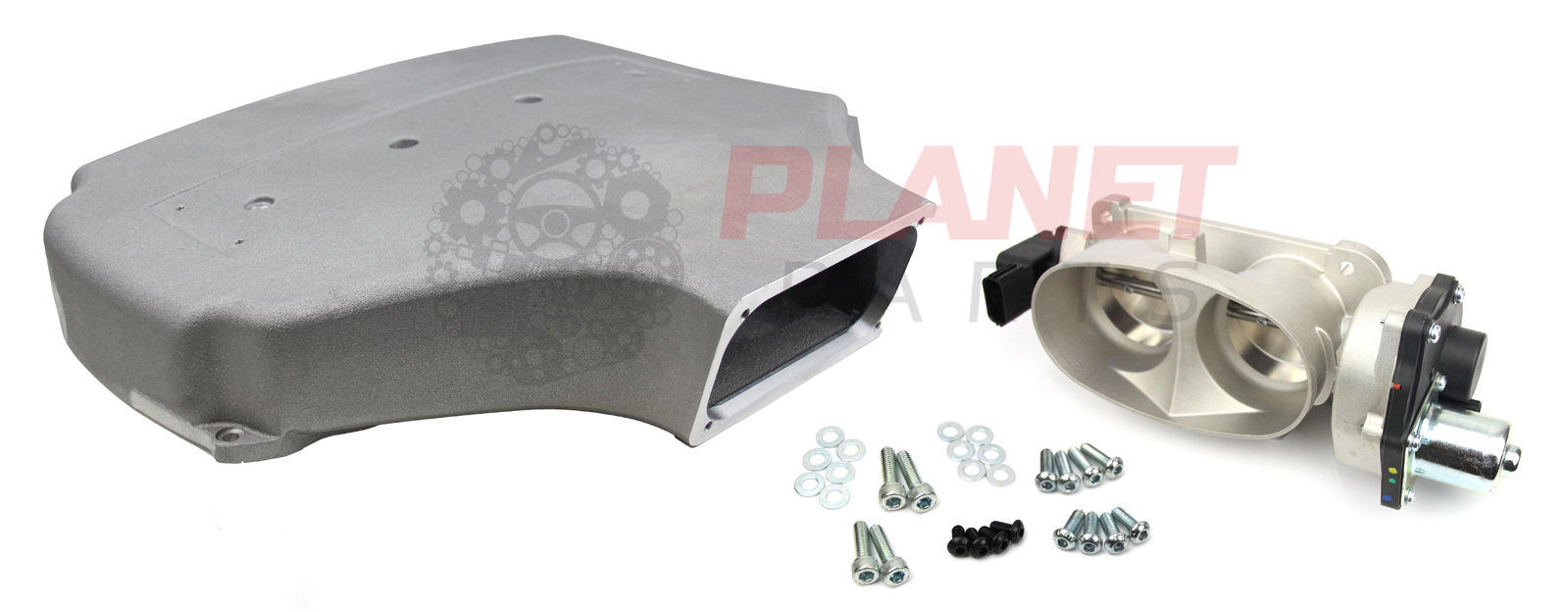

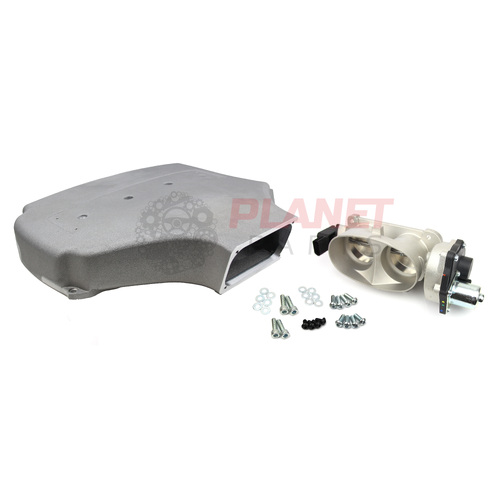

Each kit includes:

1x Planet Parts BOSS V8 High-Volume Plenum

1x Planet Parts GT500 Twin-Blade 60mm Throttle Body

12x High tensile bolts & washers

4x Engine Plate mounting bolts



Brand Planet Parts
Shipping Weight 7.5000kg
Shipping Width 0.450m
Shipping Height 0.220m
Shipping Length 0.450m
Shipping Cubic 0.044550000m3
