FORD PX RANGER & MAZDA BT50 (2011-2022) 6R80 6 SPEED HIGH VOLUME Deep Cast Alloy Transmission Oil Pan Sump

Planet Parts High-Volume Alloy Transmission Oil Pan – FORD PX RANGER & MAZDA BT50 (2011-2022) 6R80 6 SPEED

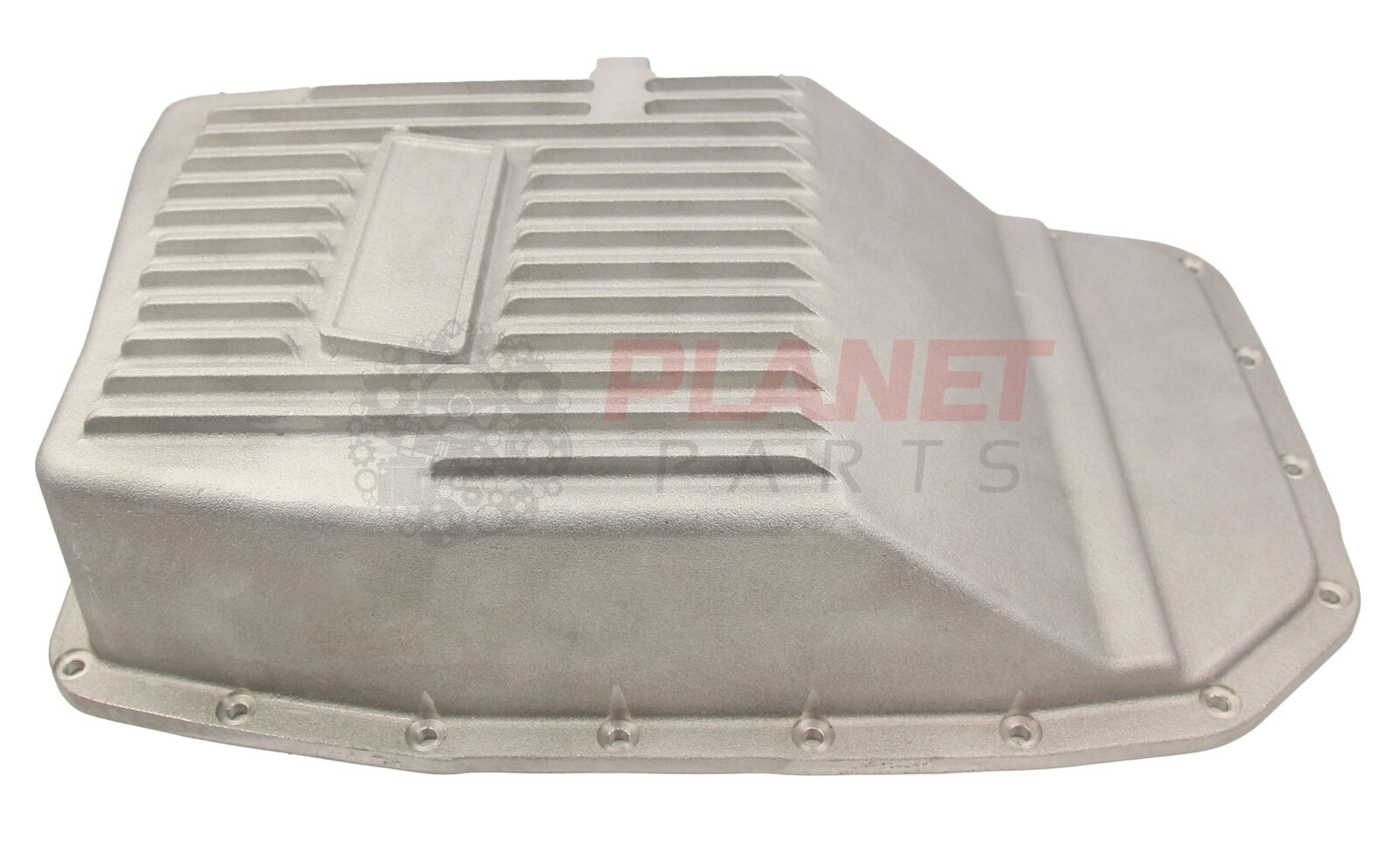

Upgrade your Ranger/BT50 transmission performance with the Planet Parts High-Volume Alloy Transmission Oil Pan. Designed specifically for the 6-speed 6R80 transmission, this deeper pan increases fluid capacity by 3 litres and features integrated cooling fins to help manage heat effectively.
In testing, this setup has shown transmission oil temperatures 15–25°C cooler than factory configurations.

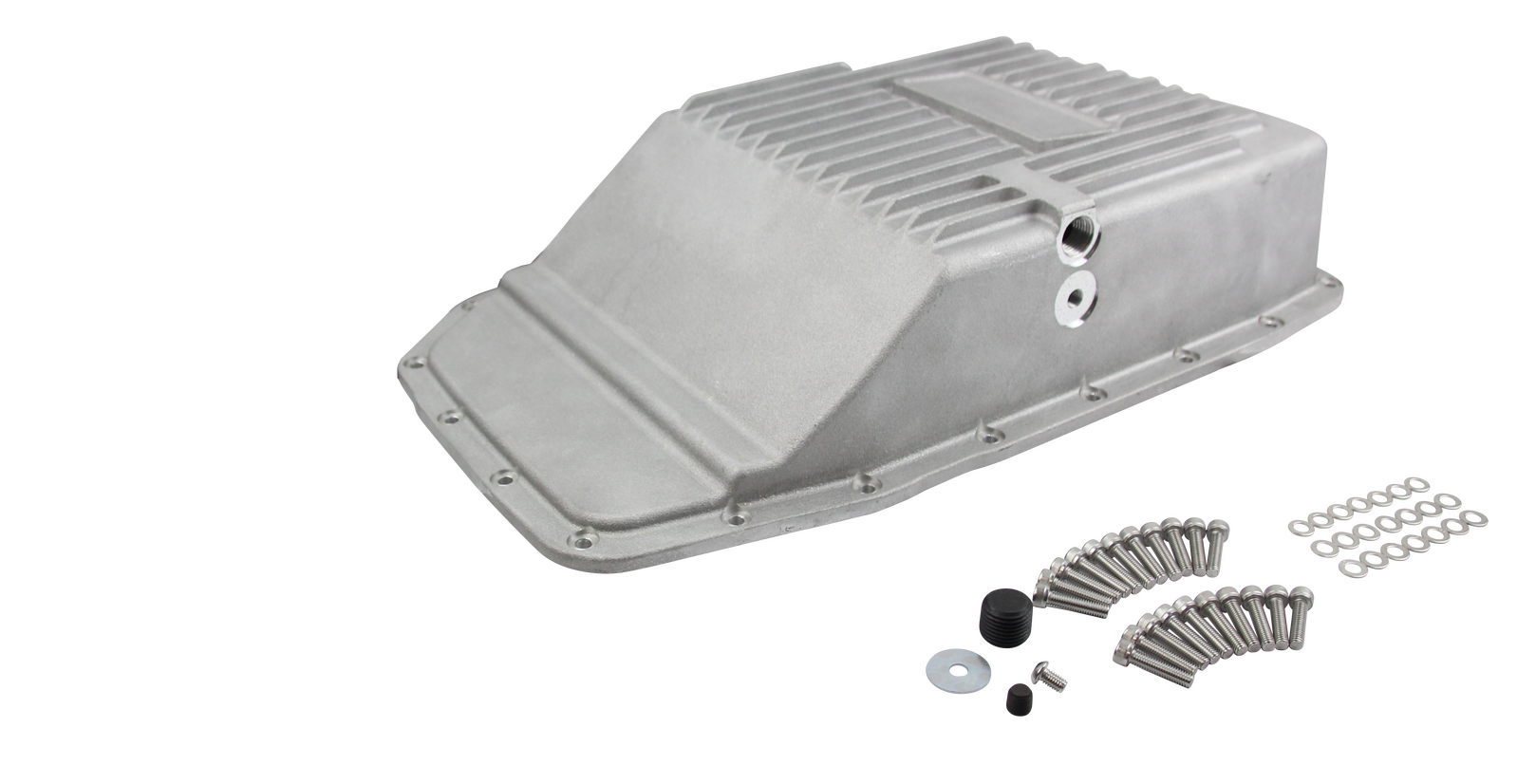

Also features a 1/8-inch NPT temperature sensor port, allowing easy installation of a transmission temp gauge for accurate monitoring during daily driving, towing, or performance use. Supplied complete with all required hardware for installation.

The pan retains compatibility with the factory 6R80 filter and gasket, so replacement parts remain easily available from standard suppliers.

Suits:
FORD PX RANGER (2011–2022) with 6 Speed 6R80 transmission
MAZDA BT50 (2011–2022) with 6 Speed 6R80 transmission

Key Benefits:

• Increased fluid capacity for improved thermal stability

• Heavy-duty design

• Cast alloy construction with precision cooling fins to dissipate heat

• Lower operating temperatures without needing an external cooler

• Extends transmission life and overall reliability

• Includes a boss for optional temp sender installation (drill and tap as required)

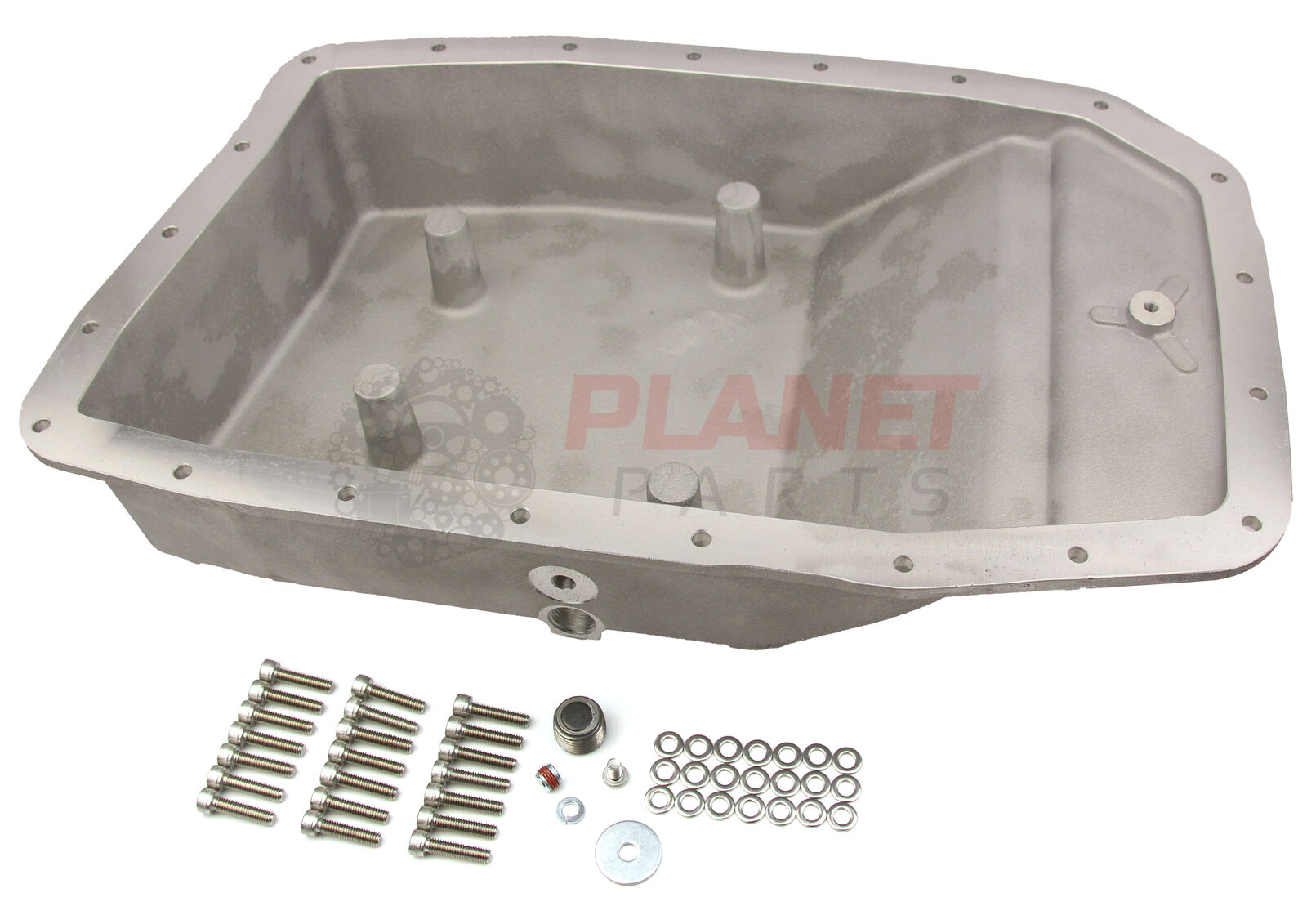

• Magnetic drain plug for cleaner oil and easier servicing

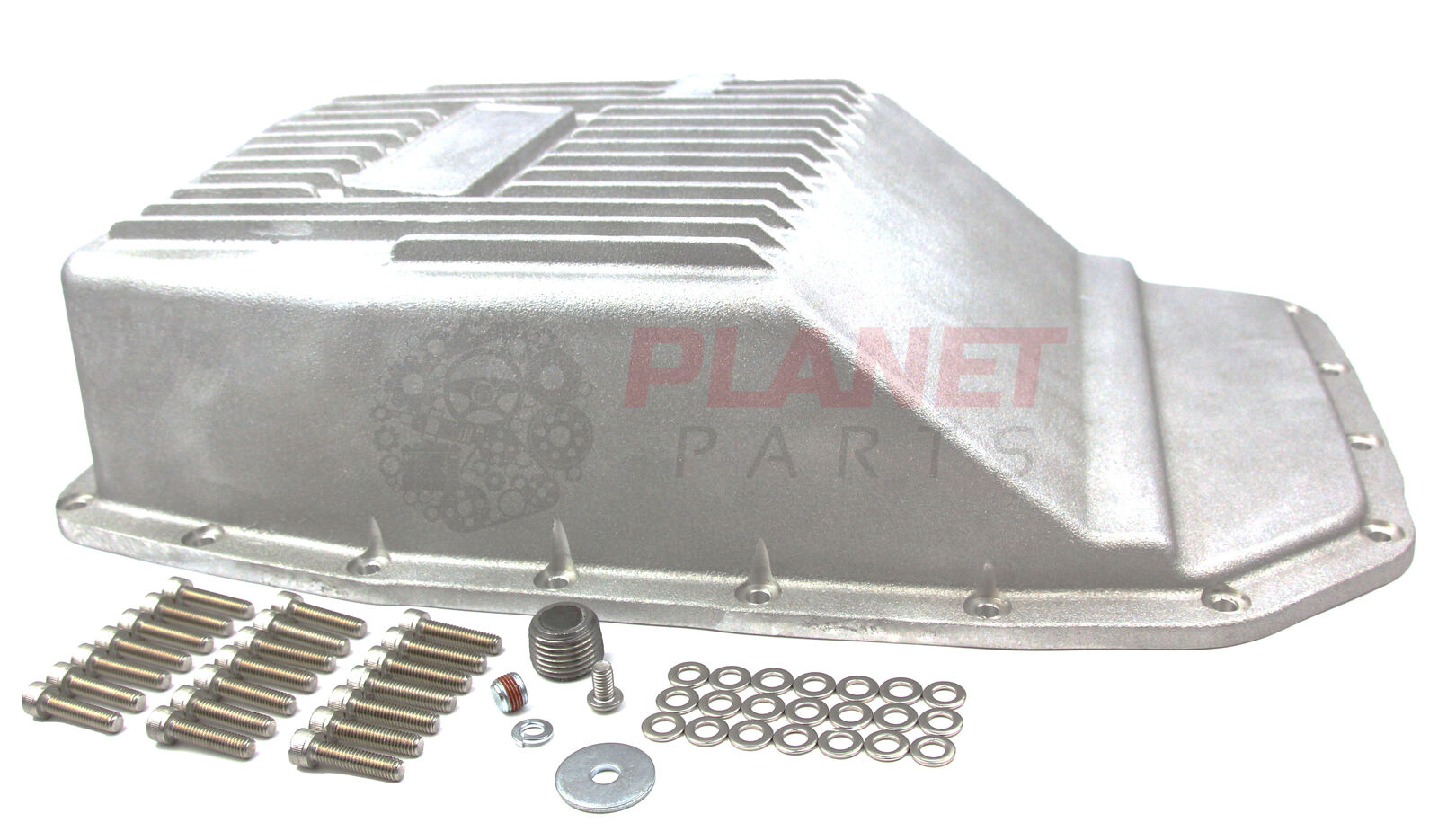

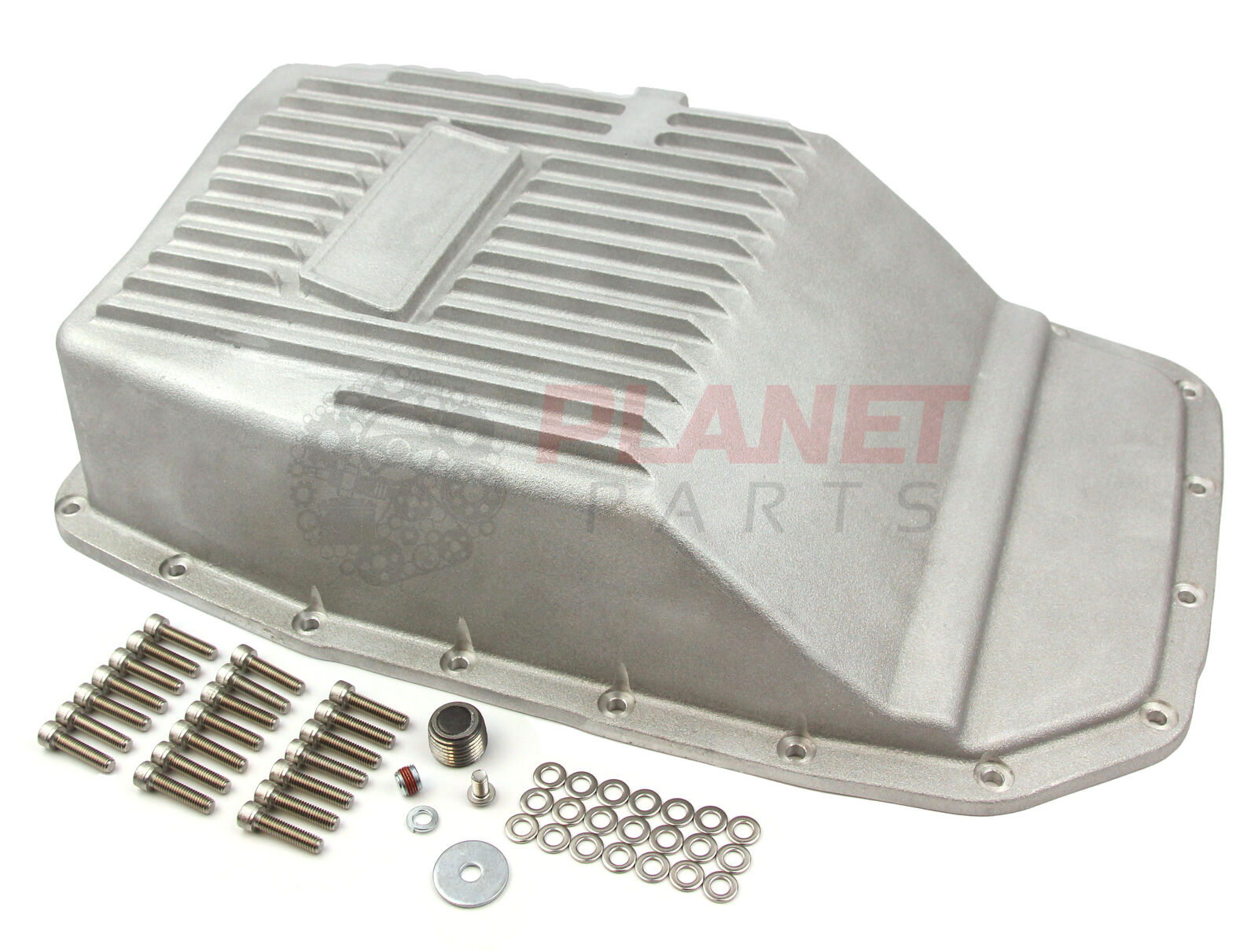

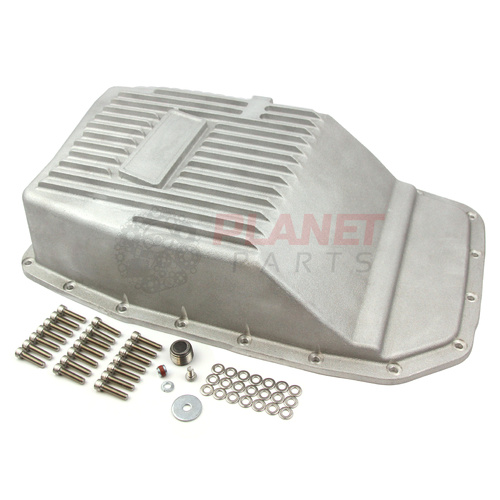

Package Includes:

• 1x High-Volume Alloy Transmission Sump

• 1x Complete Fitting Kit

Installation:
Direct bolt-on replacement for all 6R80 transmissions.
