Holden HQ HJ HX HZ WB to AU2 298mm Brake Upgrade Hubs, Calipers, Brackets & Brake Lines KIT 5X114.3

Calculate Shipping

In Store Pick-Up - $0.00
Please email or call us to book a time to collect your order.

Description

*** BRAKE HUBS SUPPLIED IN THIS KIT WILL HAVE A 114.3X5 PCD (Ford Falcon Stud Pattern). This allows you to use standard Ford Falcon BA-FG 298mm rotors without re-drilling discs ***

This adaptor kit allows you to fit Ford AU2/AU3 Falcon Twin Piston Front Calipers with Ford BA Falcon 298mm Front Brake rotors onto Holden HQ, HJ, HX, HZ and WB vehicles.

REQUIRES MINIMUM 15" WHEELS

The kit is very straight-forward and easy to install by anyone familiar with brake systems.

The adaptor brackets are manufactured from solid steel and zinc coated.

This kit also includes a pair of stainless steel braided brake lines, which have a teflon inner tube for ultimate performance. Each hose is tested to 3,000PSI. All of our brake hoses are manufactured by ISO certified manufacturers, meaning they are ADR compliant and legal for road use in Australia.

Protex calipers are made from premium rubber components, hardened pistons and quality castings for maximum life.

Please read before purchasing:

Kit Includes:

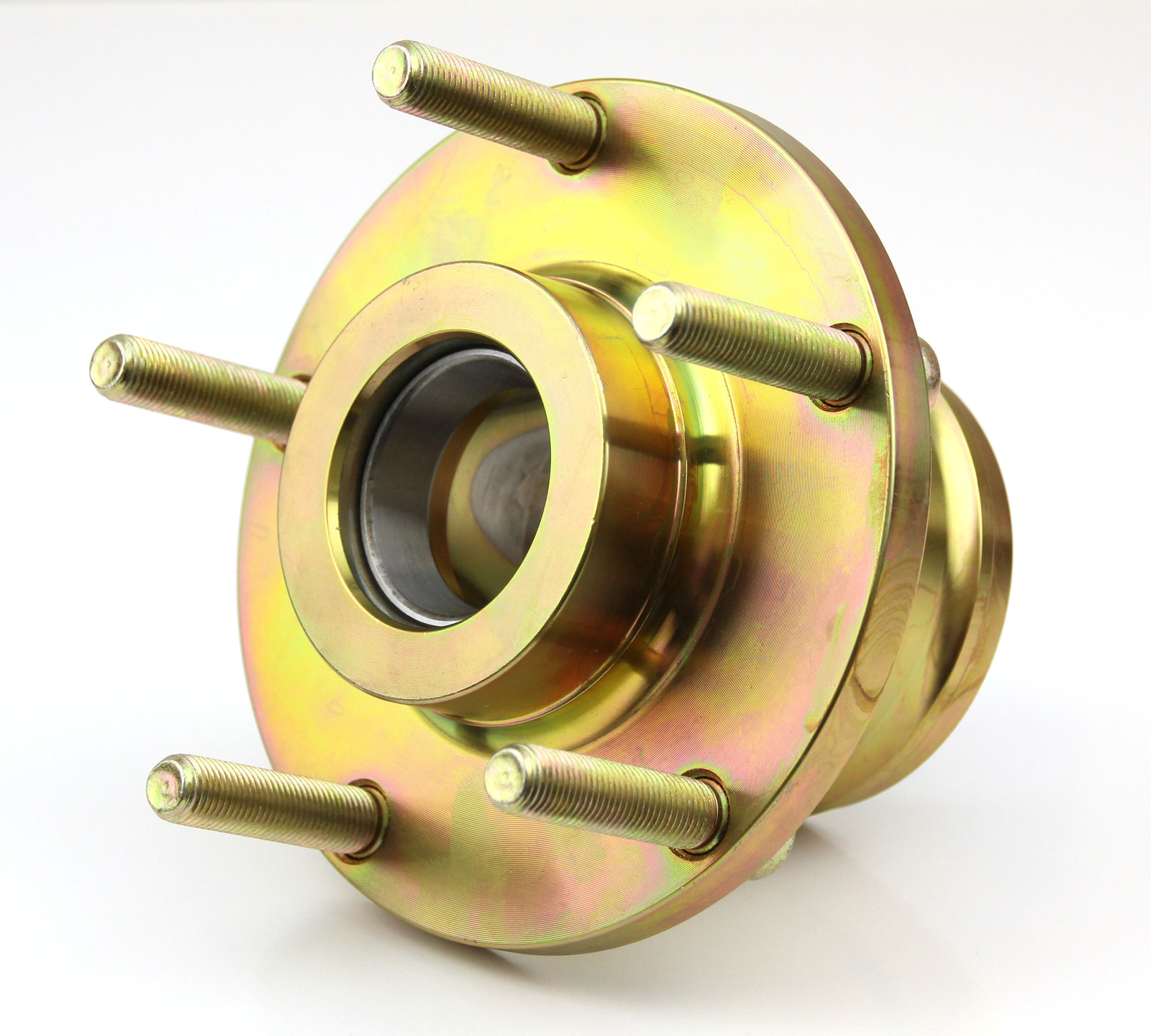

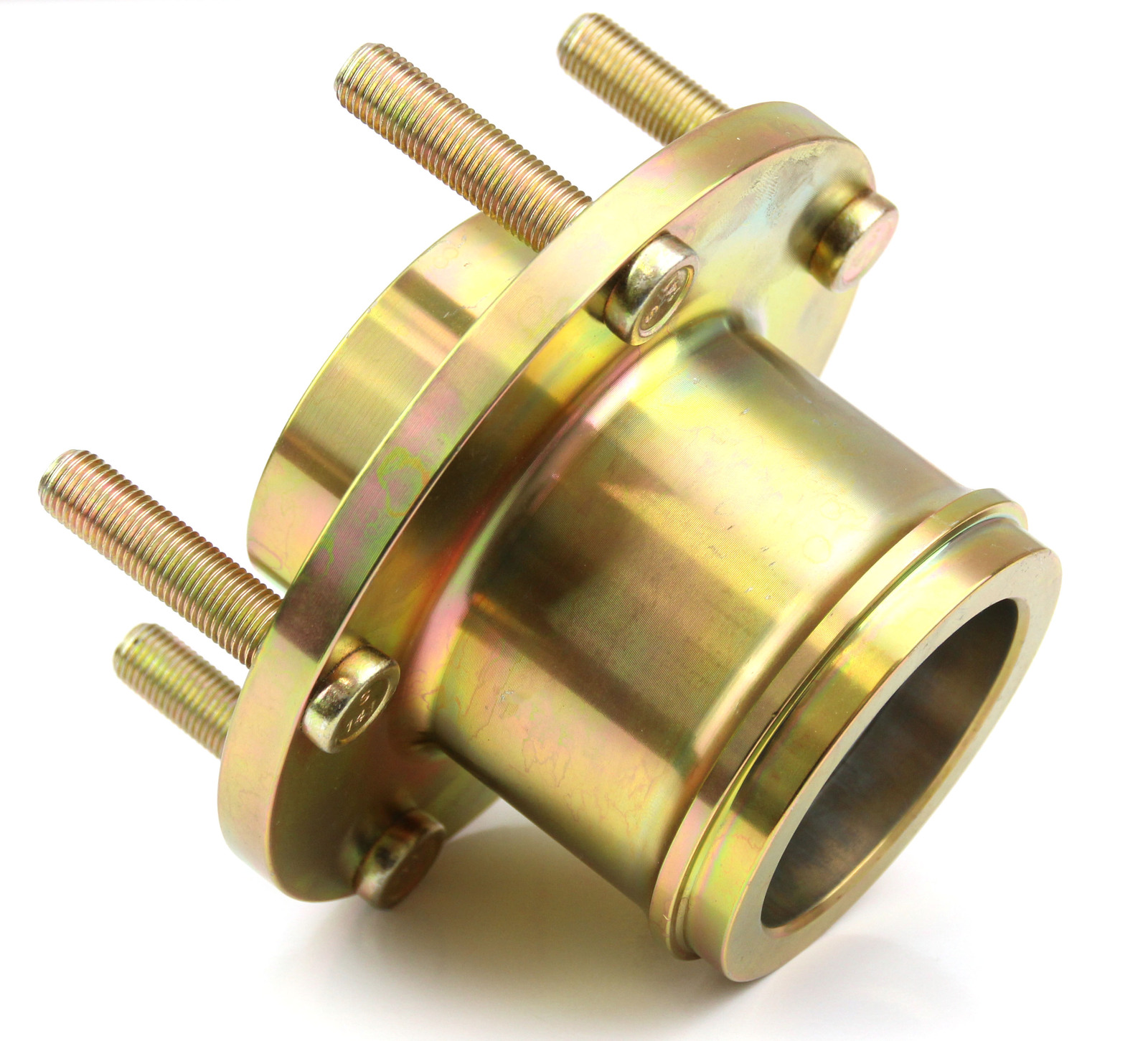

2 x Holden HQ-WB Adaptor Hubs with Ford Falcon 114.3X5PCD stud pattern & 1/2"x20 studs pressed in hubs (Ford Falcon spec)

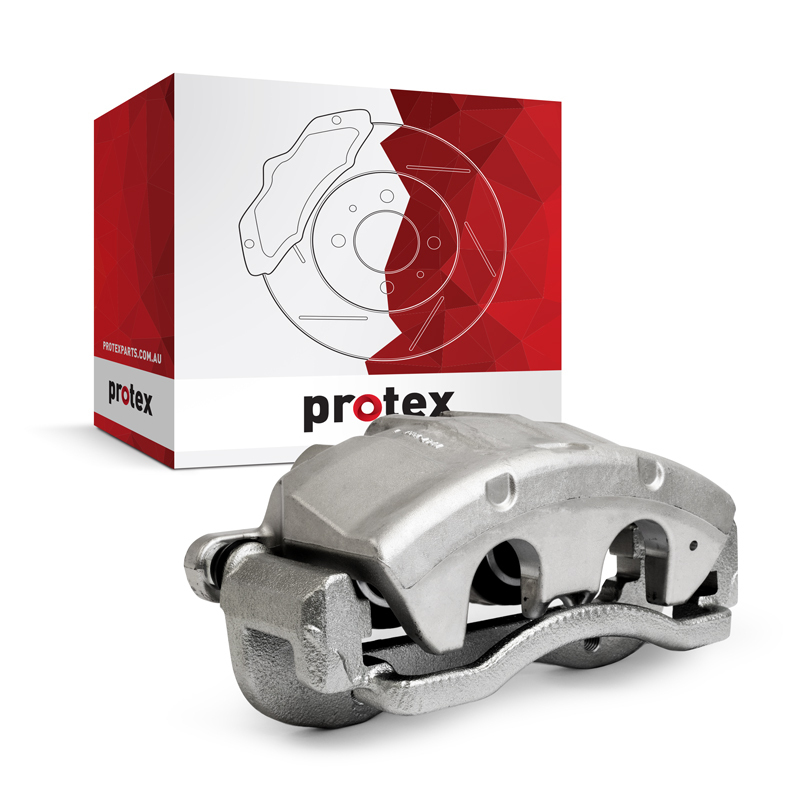

2x NEW Protex AU2-AU3 Falcon two-piston front brake calipers in silver finish (1x LH Front, 1x RH Front)

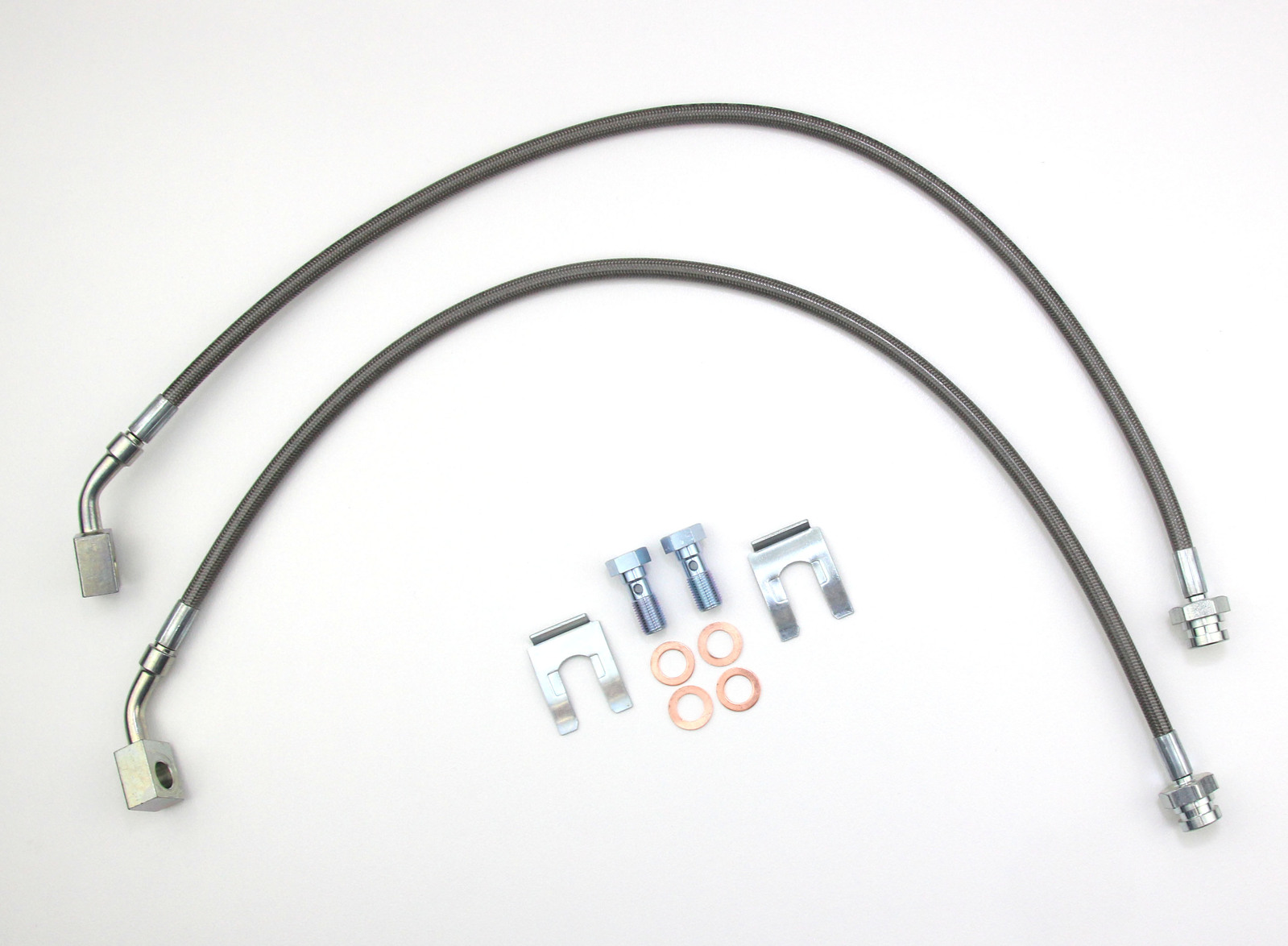

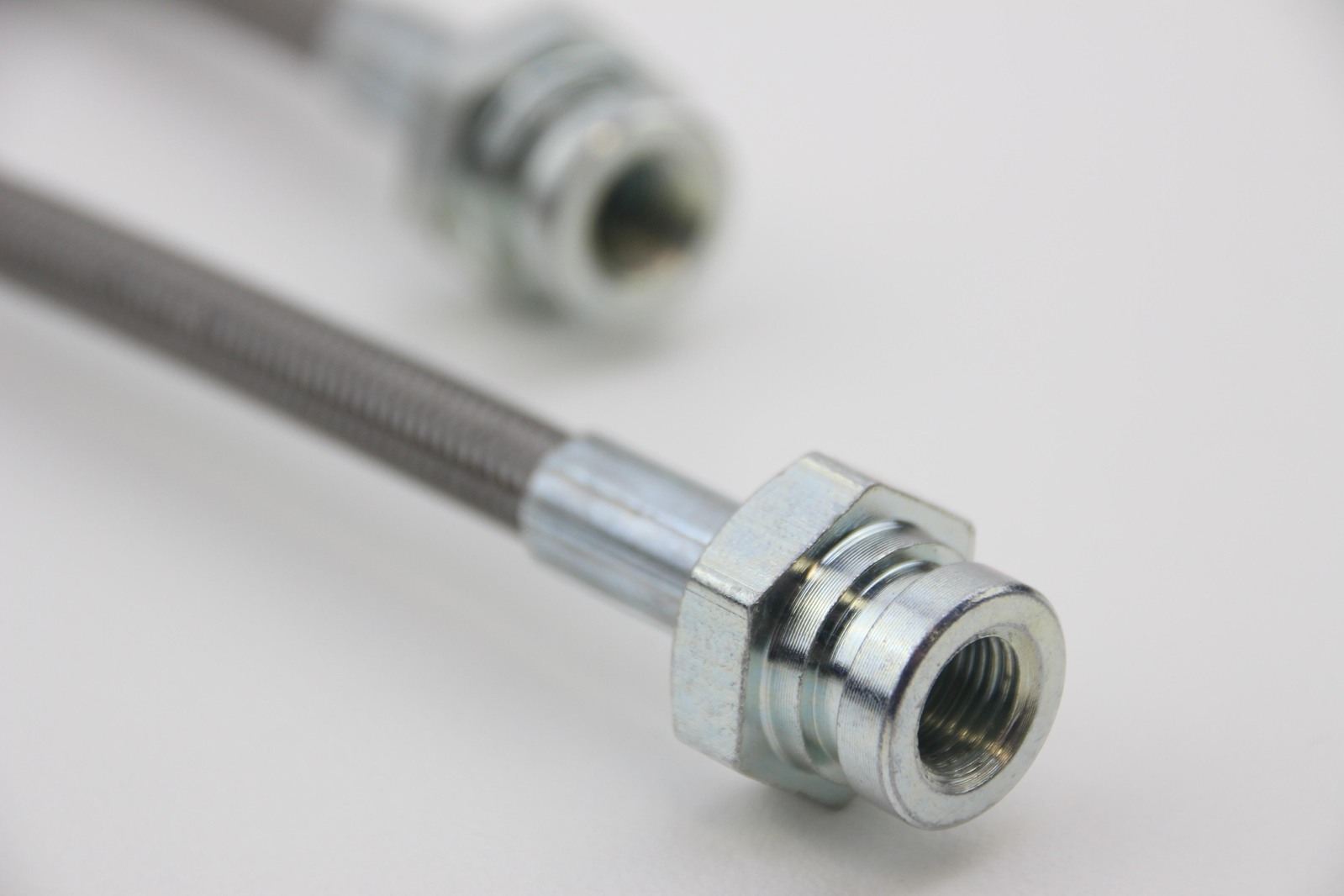

2 x Planet Parts Front Braided Brake Conversion Lines (RRP: $115.00) - ADR Compliant, tested to 3,000PSI

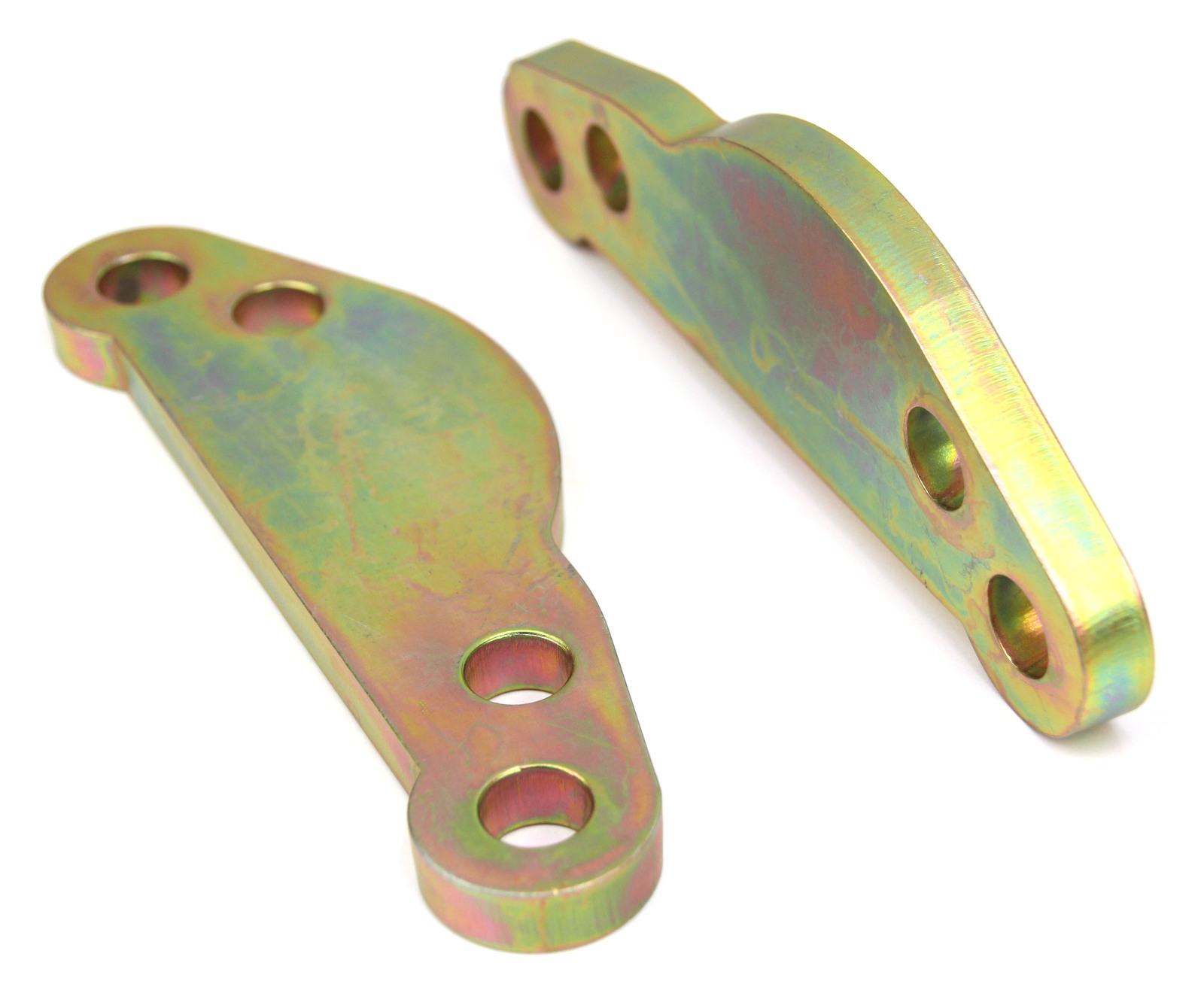

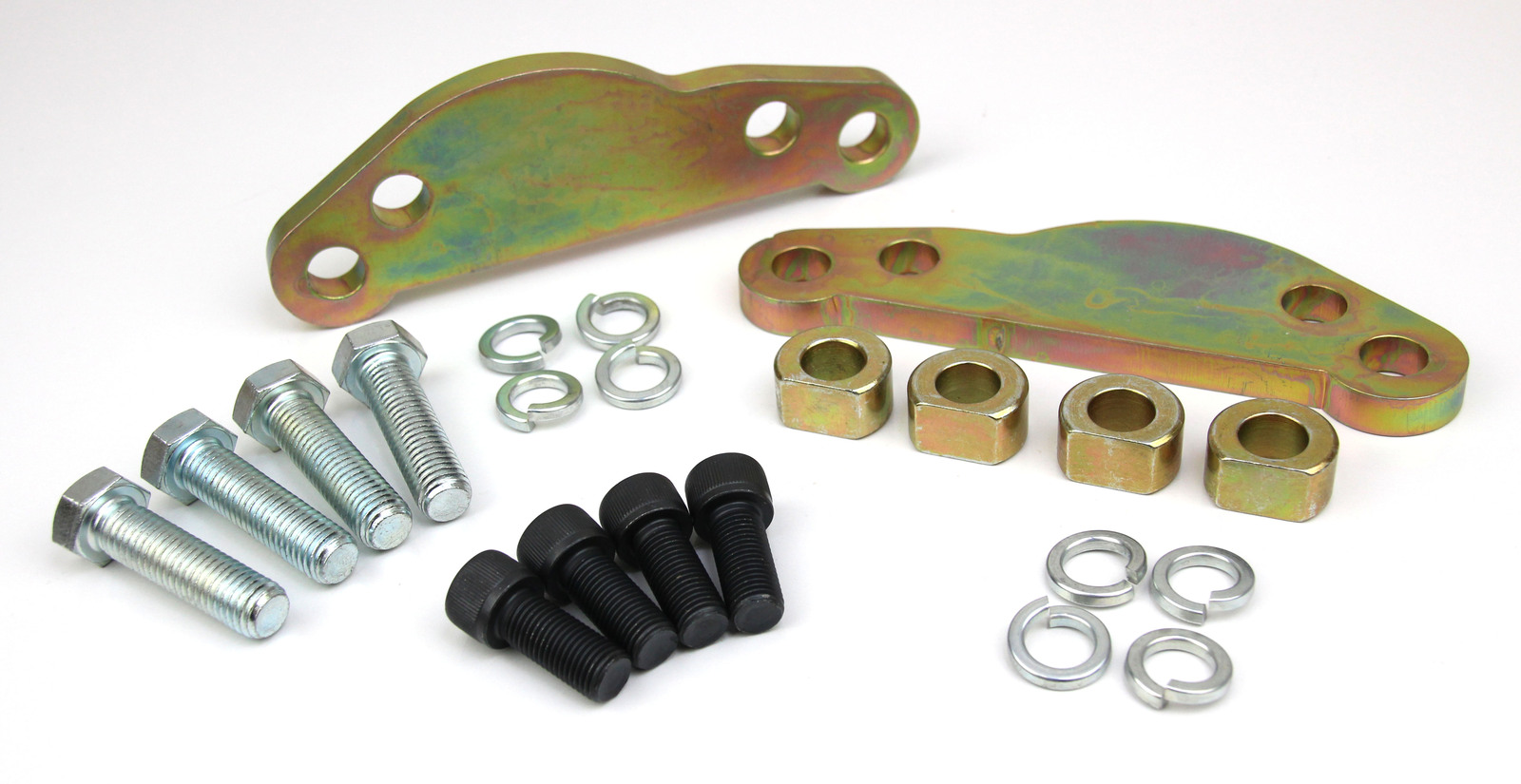

2 x Front Zinc Coated Adaptor Brackets to fit Falcon AU2/AU3 TWIN PISTON Calipers. Please note: Will not suit AU1 Calipers or BA-onwards calipers

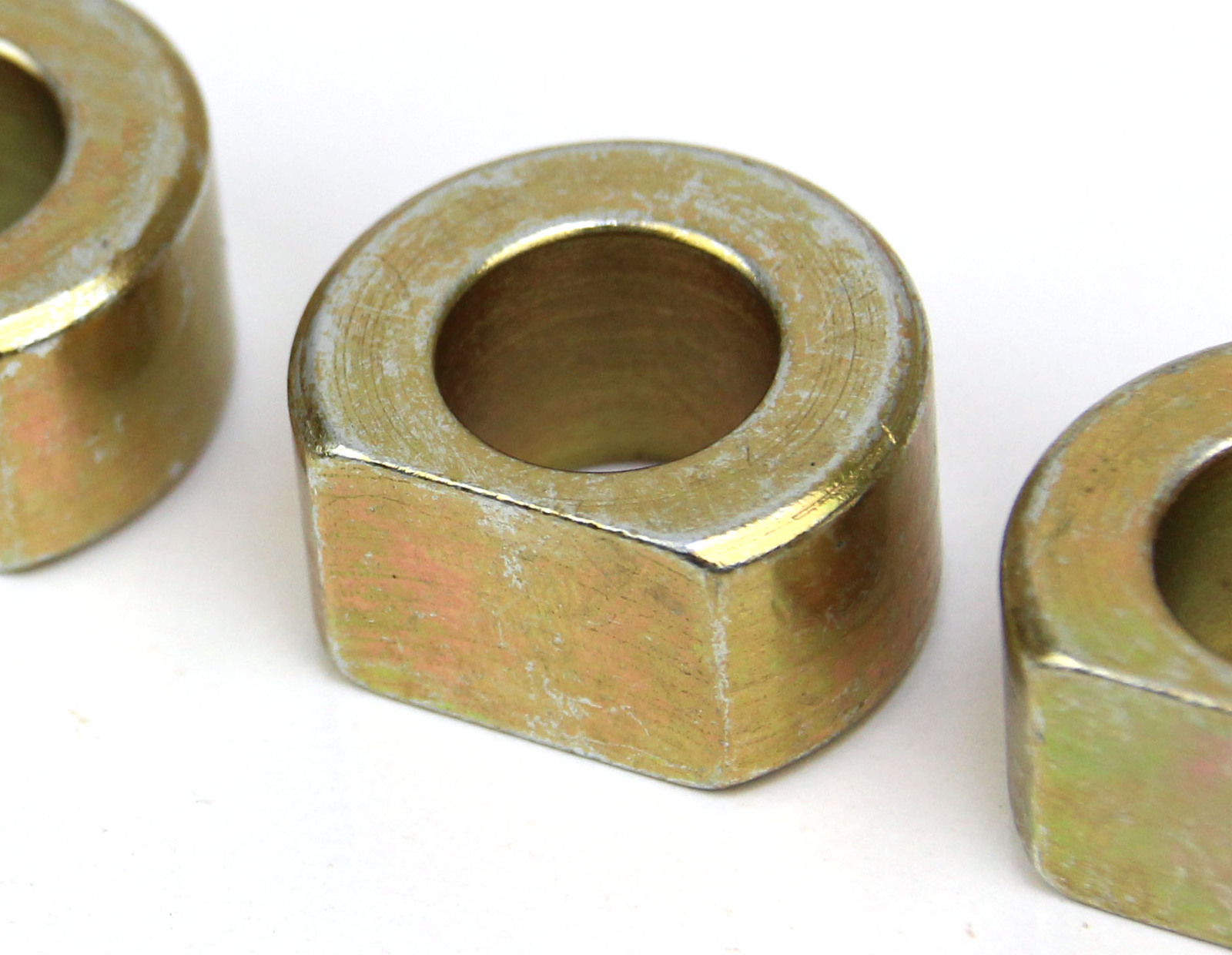

4 x Billet Caliper Spacers
8 x Fitment Bolts
8 x Spring Washers

Please note: Additional parts are still required to complete the upgrade.

You will need to supply:
AU2/AU3 Falcon front brake pads,
BA Falcon 298mm rotors,
HQ-WB/VB-VP Front Wheel bearings

Brake Discs Information:
The front discs required are the brake discs that come fitted to BA, BF, FG Falcon non-turbo models, Size: 298mm. (DBA Part number: DBA504, RDA Part Number: RDA504)

Specifications

SKU	BUK-HQWB06
Brand	Planet Parts
Shipping Weight	8.3500kg
Shipping Width	0.140m
Shipping Height	0.110m
Shipping Length	0.310m
Shipping Cubic	0.004774000m3
