SKU: BBUK-VTZ-AFR

Holden VT VU VX VY VZ Commodore FRONT & REAR 4-Piston Brembo Big Brake Brackets/Adaptors - to fit VE/VF Brembo Brakes

$445.00

More info.

Make 4 payments of $111.25 over 8 weeks and get it now!

Sold Out


Calculate Shipping



In Store Pick-Up - $0.00
Please email or call us to book a time to collect your order.

Description

The most affordable big brake kit for VT-VZ Commodores!



  • Under 3-Hour installation time
  • All fittings included
  •  Aircraft-grade billet brackets
  • Supply your own calipers, pads & discs





Upgrade your brakes to the MASSIVE 4-piston Front AND rear Brembo calipers – a huge improvement from the factory Commodore brakes!

This brake upgrade kit has been specifically designed to suit Holden VT, VU, VX, VY & VZ Commodores.


This adaptor kit allows you to:
Install VE Redline FRONT Brembo calipers (or Cadillac CTS-V silver 4P front Brembo Calipers) onto the front of VT-Z Commodore
Install
VF SERIES 2 Redline REAR Brembo calipers (or Cadillac CTS-V 4P rear Brembo Calipers) onto the rear of VT-Z Commodores..

IF YOU WISH TO INSTALL VF REDLINE BREMBO CALIPERS: The VF calipers have a 14mm bolt instead of a 12mm bolt. This means the caliper mounts on the front adaptor brackets needs to be expanded from 12mm to 14mm to clear the thicker thread bolts.

*** PLEASE NOTE THIS IS FOR THE ADAPTOR KIT ONLY. CALIPERS ARE NOT INCLUDED ***

The kit is very straight-forward and easy to install by anyone familiar with brake systems and can be installed with basic hand tools in under 2 hours.

The adaptor brackets are manufactured from billet 6061-T6 aircraft-grade aluminium and are heat treated and anodized black to guarantee durability.

The kit retains use of the factory handbrake.

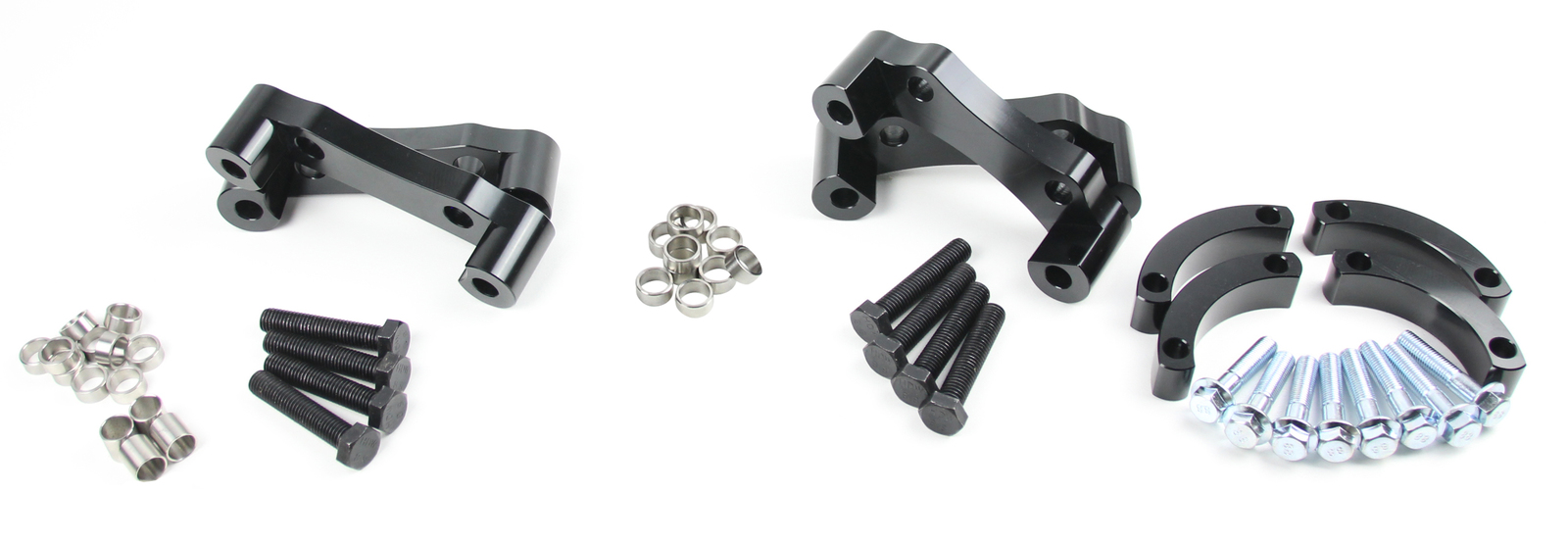

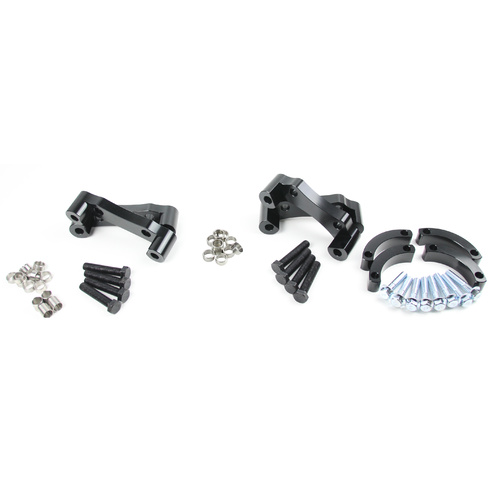

What the kit includes:

FRONT KIT:

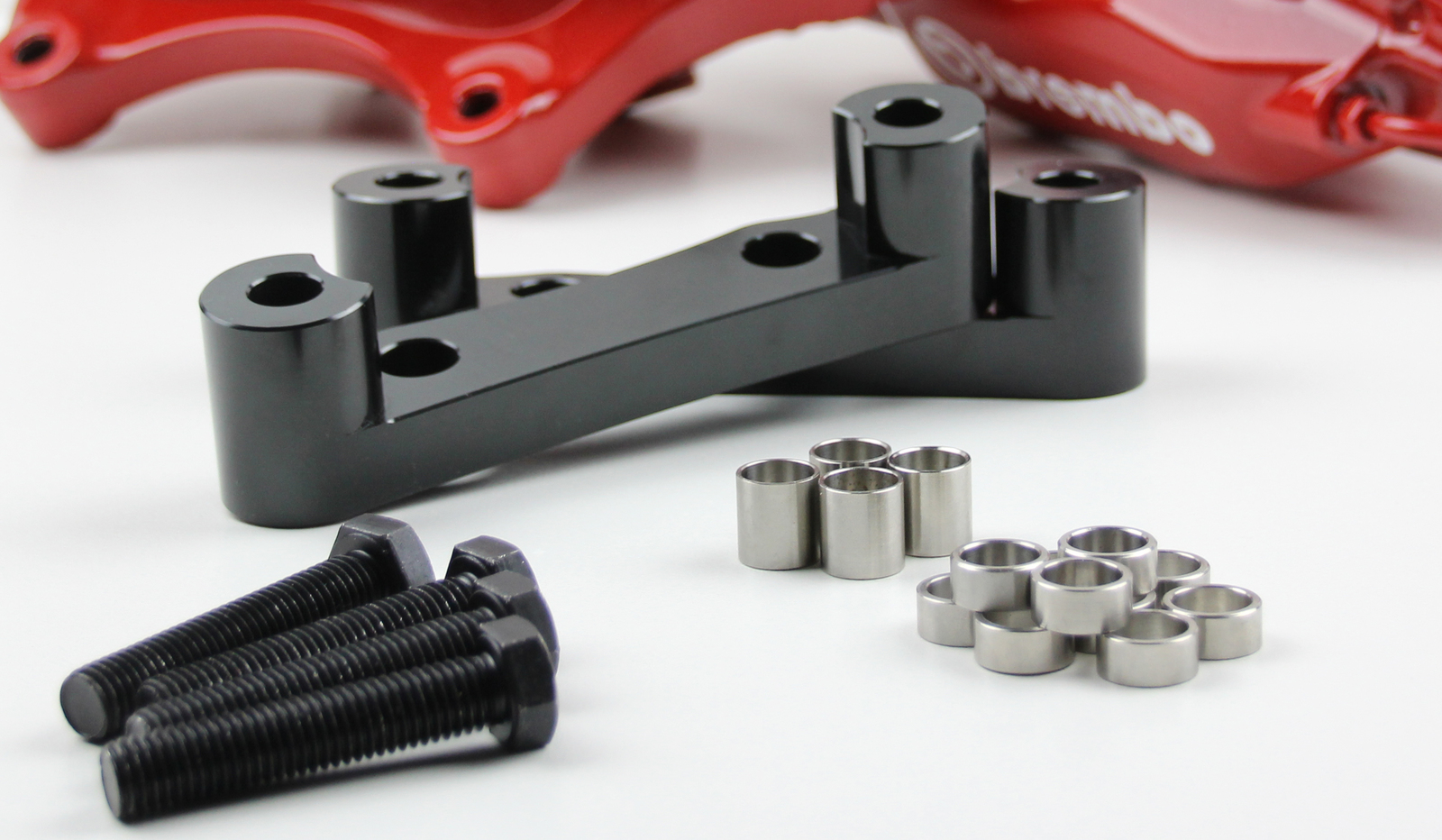

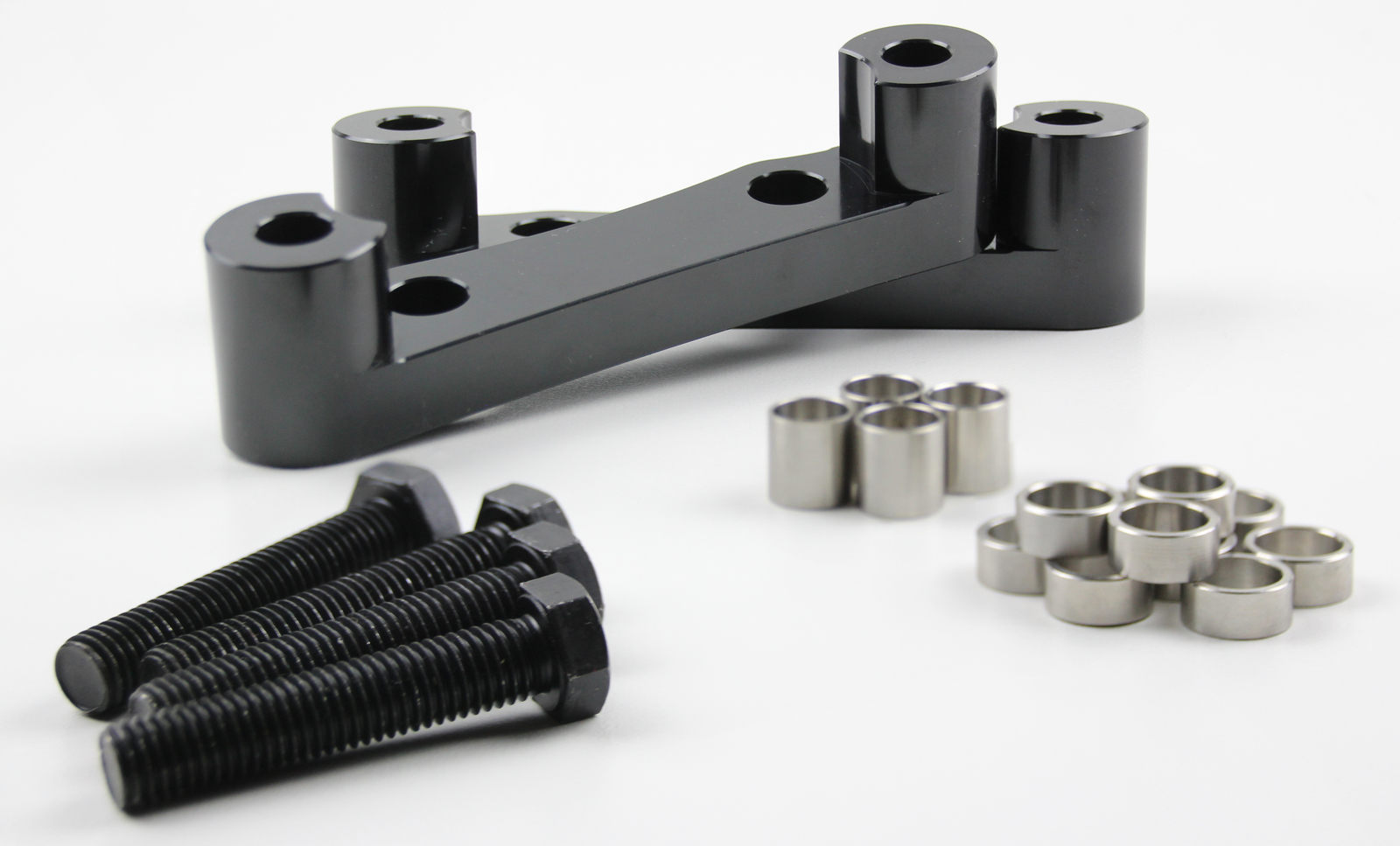

  • Set of FRONT billet 6061-T6 aircraft aluminium caliper adaptor brackets

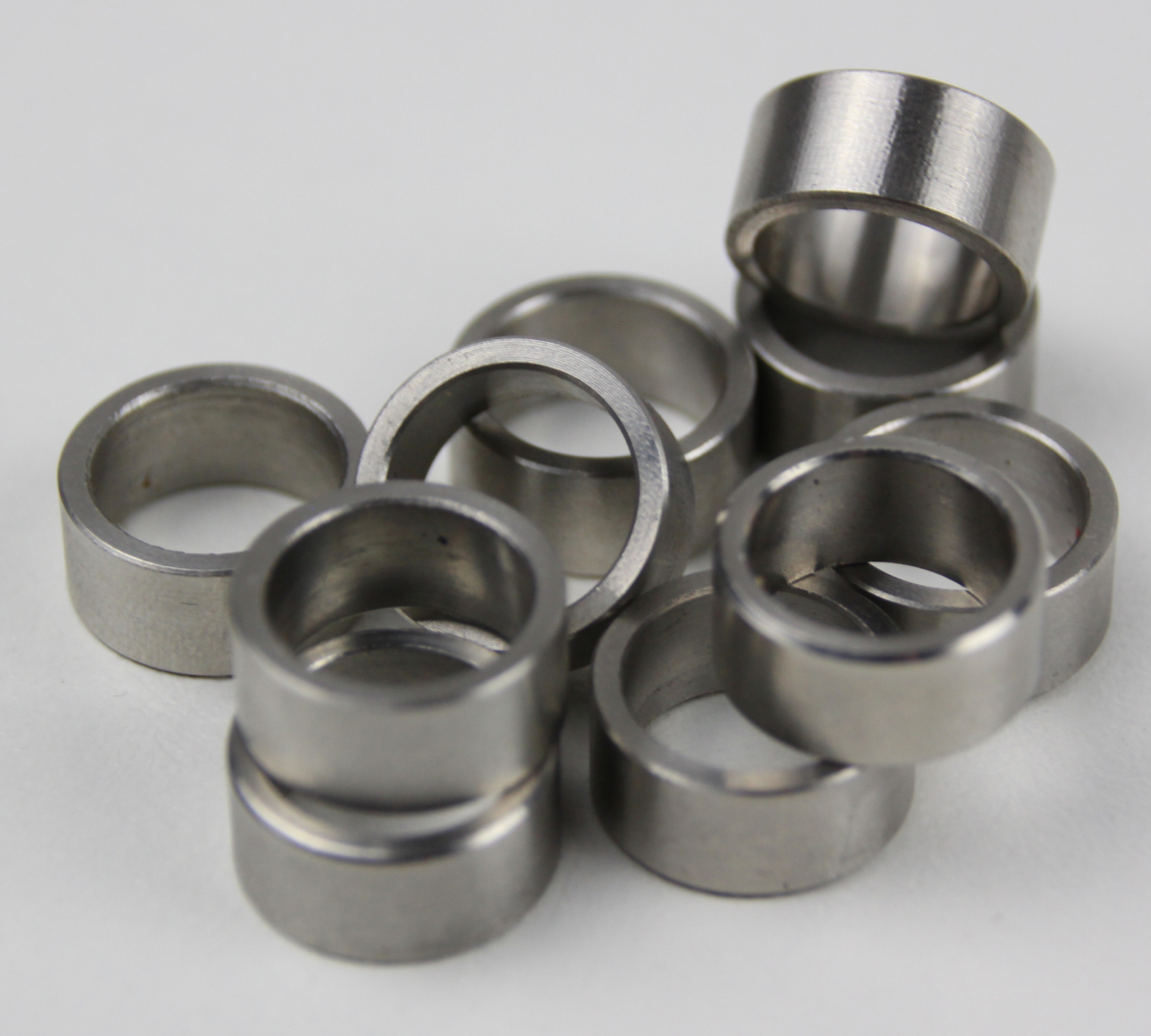

  • 10 x FRONT rotor bushings (required to reduce the stud holes on the brake discs to accept the smaller diameter  VT-VZ wheel studs)

  • 4 x FRONT caliper bolt bushings (only required for vehicles with brake upgrades from factory)

  • All bolts and washers required for installation

REAR KIT:

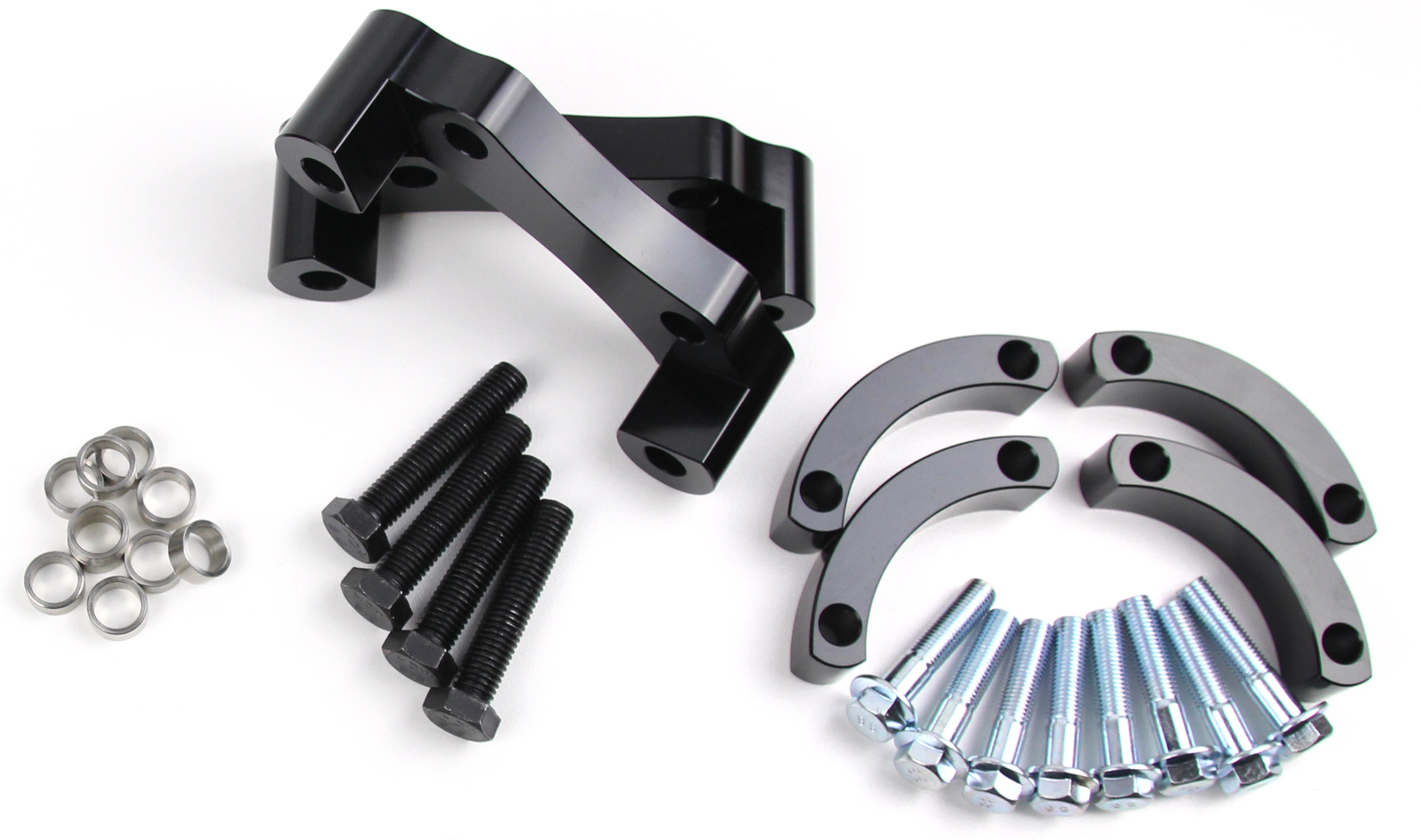

  • Set of REAR billet 6061-T6 aircraft aluminium caliper adaptor brackets (including hand brake spacer brackets)

  • 10 x REAR rotor bushings (required to reduce the stud holes on the brake discs to accept the smaller diameter  VT-VZ wheel studs)

  • All bolts and washers required for installation

Please read before purchasing:


Brake Discs Information:
The front discs required are the brake discs that come fitted to VE & VF Commodore Redline edition vehicles with front Brembo calipers, Size: 355mm x 32mm. (RDA Part Number: RDA8103, DBA Part Number: DBA42604)

The rear discs required are the brake discs that come fitted to HSV E-Series models, Size: 350mm x 25mm. (RDA Part Number: RDA7376, DBA Part Number: DBA42031)

IMPORTANT: You will need to enlarge the centre hole on both front and rear rotors from 67.4mm to 71.4mm (if you follow the same taper/angle as the stock centre hole). If you cannot reproduce the same taper, then it is recommend to increase the hole size to 76.2mm – this will still allow the disc to still sit central on the hub because of the stainless steel stud sleeves (included with our kit).
The hole can be enlarged with a rotary tool/Dremel quite easily, however we do recommend having it done on a lathe or by a machinist.

Brake Pad Information:

Front brake pads required: Equivalent to VE & VF Redline Edition Models with front Brembo Calipers (RDA Part Number: RDX2161).

Rear brake pads required: Equivalent to VF2 Redline Edition Models with rear Brembo Calipers (RDA Part Number: RDX2083).

Installation Notes:

The factory steering knuckles are cast iron and may have an uneven finish from the manufacturing process. This can cause the brackets to not sit flush against the knuckle. If this is the case, you will need to sand/grind the steering knuckles to a smooth finish.

Factory brake lines can be used with this kit if your vehicle came with factory standard brakes. Note that if you have PBR Brake Upgrade Calipers (C5/C6 calipers), you will need to change your brake lines to the standard VT-VZ type as the C5/C6 lines are slightly too short.

You will need a minimum 18” wheels to clear the brake upgrade. Wheels needs to have an offset of 35mm – 42mm. Larger offsets can work but these wheels usually have concave wheel spokes that may rub on the caliper. In some instances, a small wheel spacer (2mm-5mm thick) may be required.

You will need to trim/remove the front and rear dust shields to allow the larger caliper to fit.

You will need to swap the bleeders and crossover pipe positions on the front calipers before installation. The VE-VF front calipers sit at the trailing position, while the VT-VZ Commodore calipers fit at a leading position. Swapping the crossover pipe position means the calipers will have the larger brake pistons at the correct location for best braking performance.

Specifications

SKU BBUK-VTZ-AFR
Brand Planet Parts
Shipping Weight 2.0000kg
Shipping Width 0.300m
Shipping Height 0.200m
Shipping Length 0.300m
Shipping Cubic 0.018000000m3
