Nissan GU Patrol Y61 Billet Brake Upgrade Hats & Calipers for 330mm 4-Piston 200 Series Landcruiser Conversion KIT

The most affordable big brake kit for Nissan GU Y61 Patrols!

*** PLEASE NOTE THIS IS FOR THE BILLET ADAPTOR ROTOR HATS AND CALIPERS ONLY. ROTORS AND PADS ARE NOT INCLUDED ***

IF YOU ARE LOOKING FOR A COMPLETE KIT, PLEASE CLICK HERE!

Upgrade your GU Patrol’s braking power with a massive 4-piston front caliper and DBA 330mm rotor upgrade (24mm larger than stock!) for a MASSIVE performance boost.

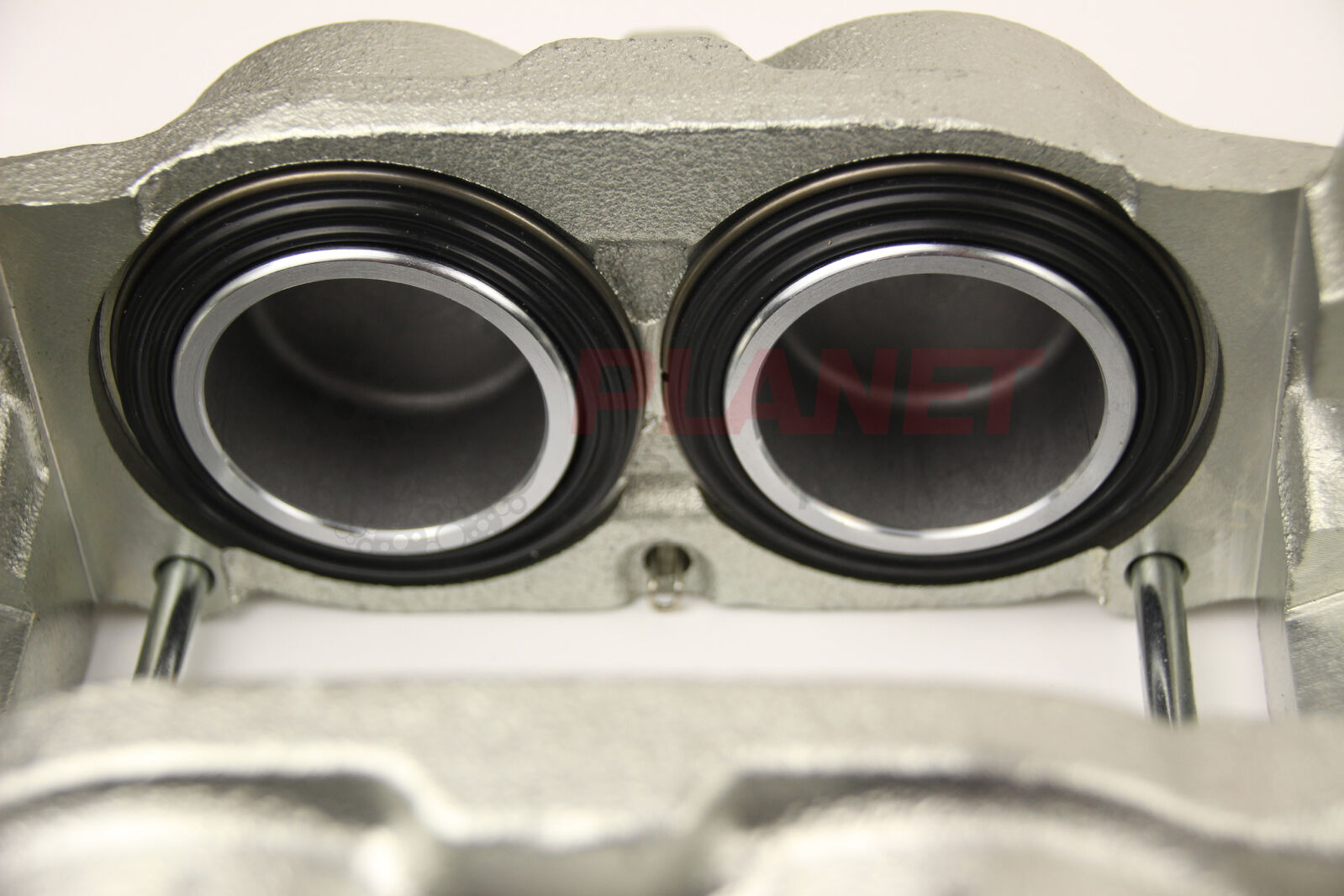

This bolt-on kit is designed for a hassle-free installation, and is compatible with factory brake hoses, and no vehicle modifications needed. It utilises the 4-piston front calipers from the 200 Series Landcruiser, which mount directly onto the Patrol’s stubs without additional brackets. The only modification we make is to the caliper - by drilling and tapping the caliper mounting holes to suit the bolt size used on the GU Patrol. This process doesn’t compromise the caliper’s strength. Every kit includes calipers professionally drilled and tapped by a local machinist, so they’re ready to bolt straight on.

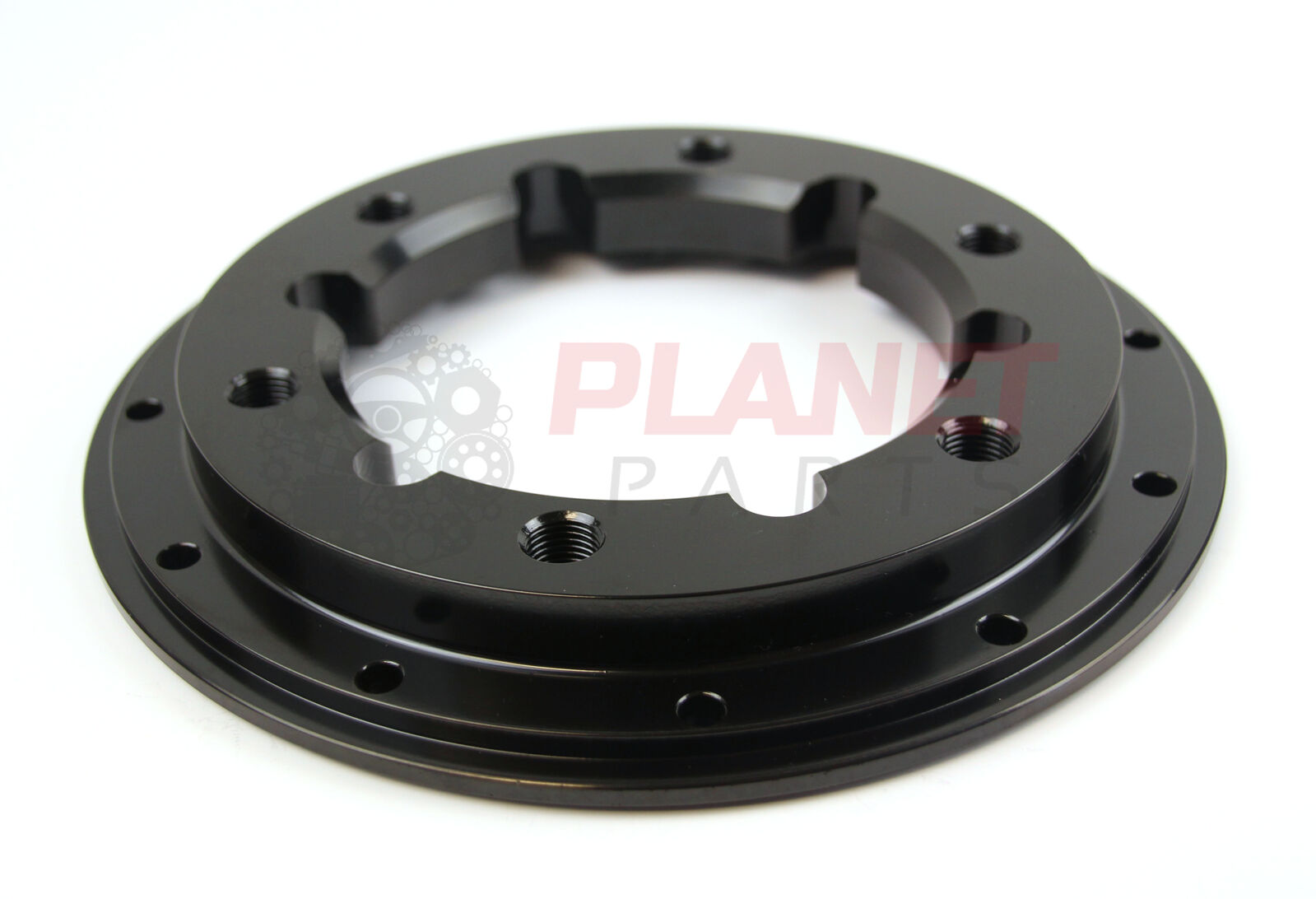

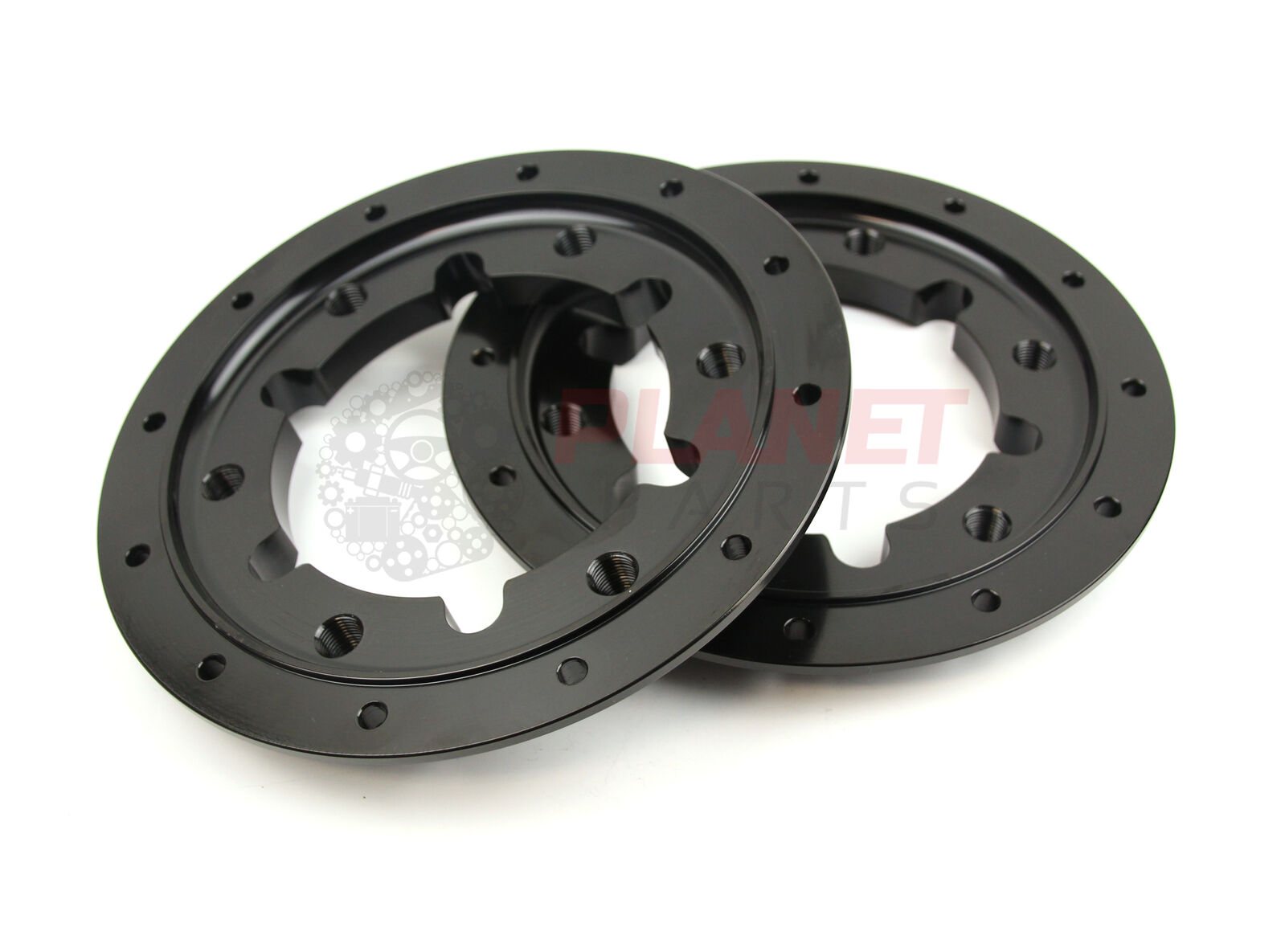

To correctly position the rotors, our kit includes Planet Parts custom billet rotor hat adaptors. Made from high-strength #45 grade billet steel and e-coated black, these adaptors are built to handle the toughest 4WD and bush-bashing conditions.

PLEASE NOTE: A minimum 17” size rim is required to clear the larger caliper. Will fit some 16” wheels. Will NOT clear factory Nissan Patrol 16” wheels.

To Suit Nissan GU Y61 Patrol models ONLY. Will NOT suit GQ or Y62 models.

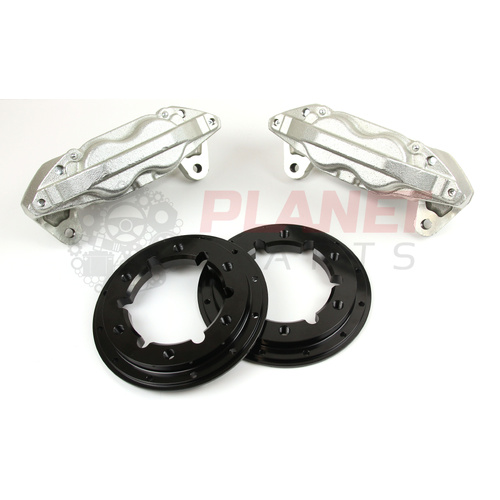

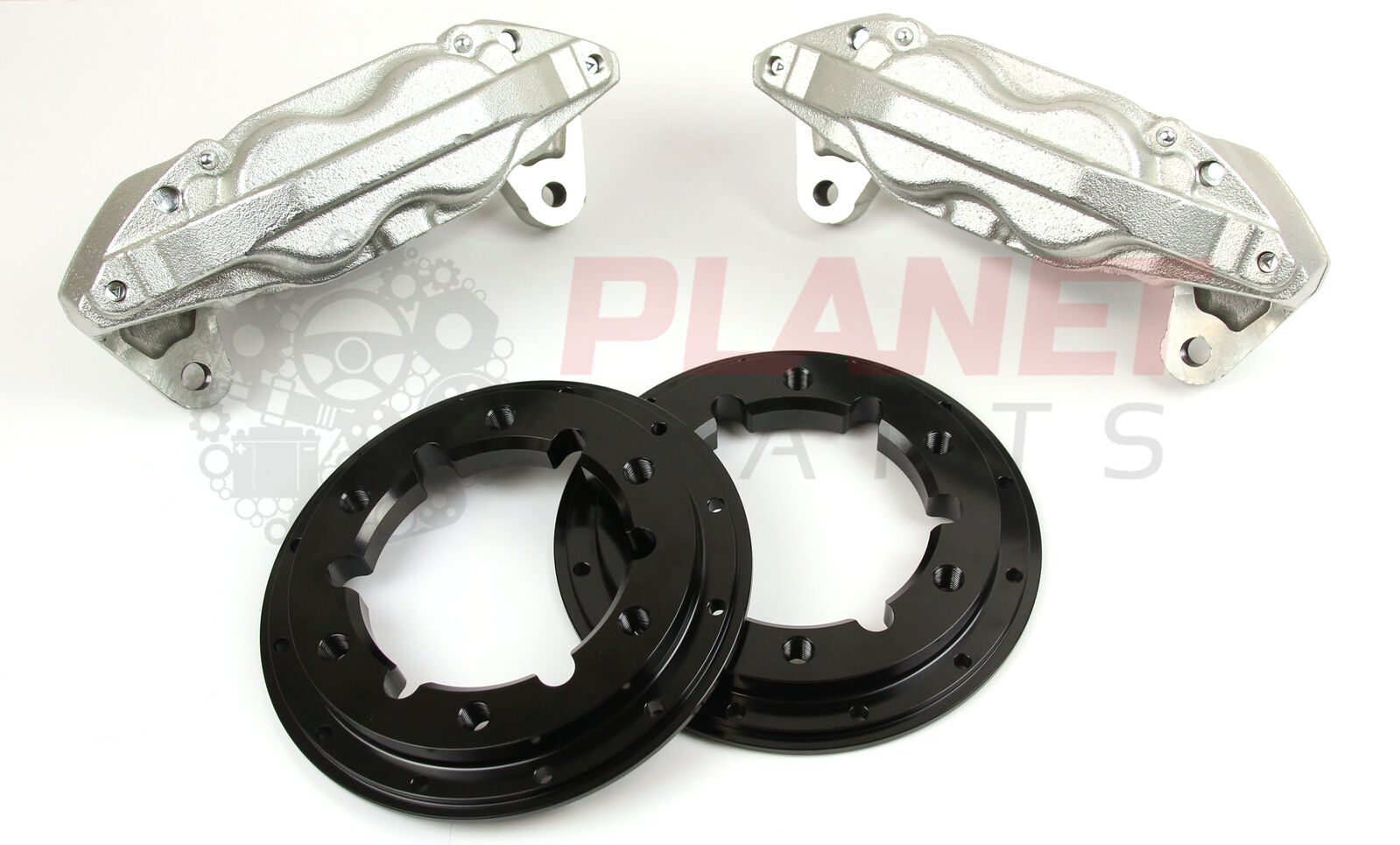

Our kit includes:

2x Planet Parts Billet Brake Rotor Adaptor Hats

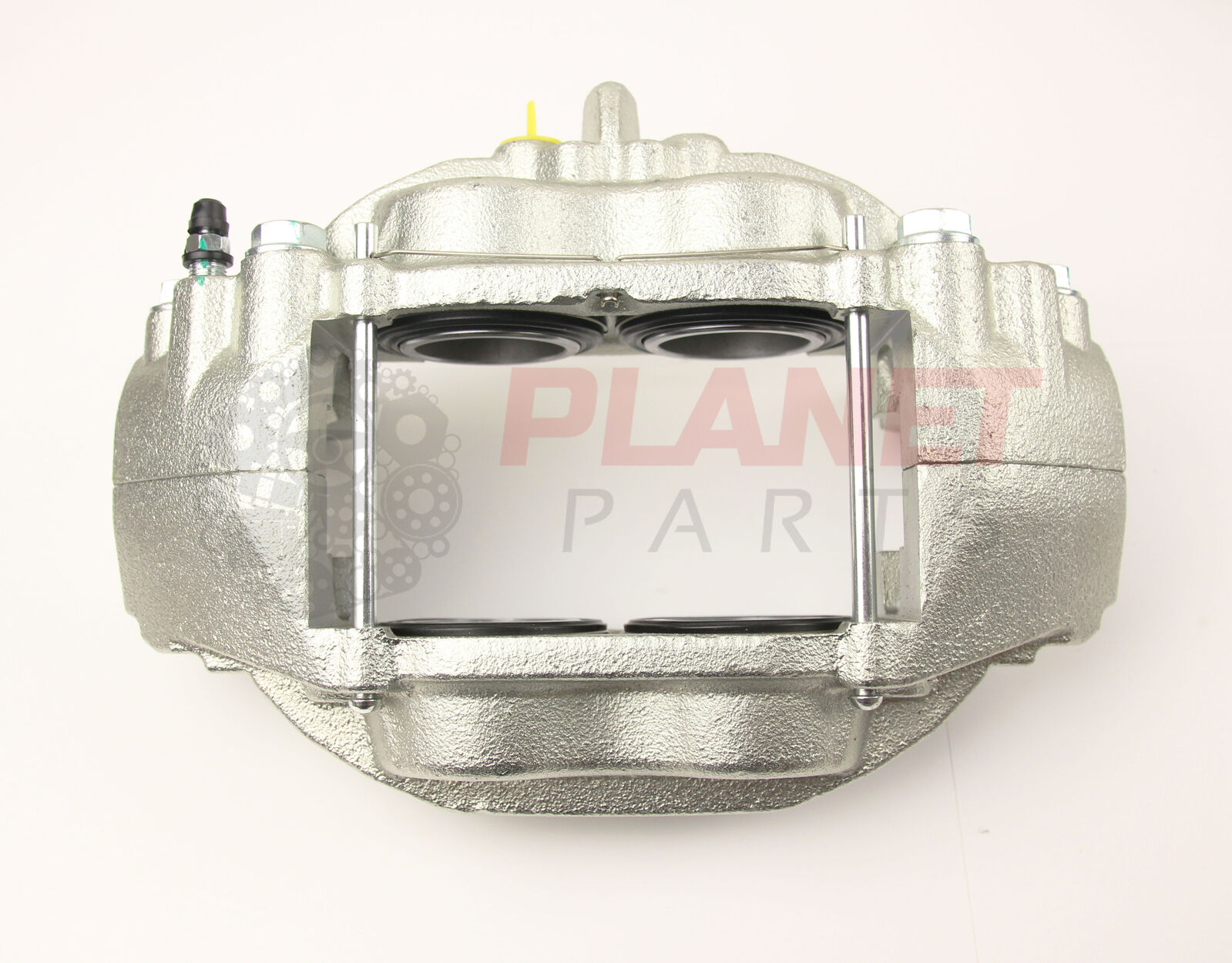

2x New Aftermarket Toyota Landcruiser 200 Series 4-Piston Calipers - to suit GU Patrol stubs.

You will need to supply your own pads and rotors to complete the conversion. Please see below for the parts required.

All DBA 2-Piece replacement rotors come with a brand new set of NAS bolts & nuts, which are used to mount our billet hats to the rotor.


Replacement/Service Parts Info:

Brake Discs Information:
The front disc rotors compatible with the Planet Parts adaptor hats are DBA 330mm LH and RH rotors. You have an option for either a smooth or performance slotted finish.
DBA Part Numbers:
DBA5048.1L and DBA5048.1R for SMOOTH FINISH.
DBA5048.1LS and DBA5048.1RS for SLOTTED FINISH.

You MUST make sure you purchase 1x ‘L’ and 1x ‘R’ brake discs as they are specific to the left and right sides.
All DBA 2-Piece replacement rotors come with a brand new set of NAS bolts & nuts, which are used to mount our billet hats to the rotor.

Brake Pad Information:
Front brake pads required: Equivalent to Toyota 200 Series Landcruiser Front Brakes.
Part Numbers:
Universal Part Number: DB1838
RDA Part Number: RDXA2036
We recommend DBA Street Series Brake Pads, Part Number DB1838SP.
