On-Car Crank Dowelling Jig Kit BARRA Ford Falcon BA BF FG FGX XR6 Turbo

Secure the flywheel or flexplate to the crankshaft with the Planet Parts Ford Barra Crank Dowelling Jig Kit.

In high-power and high-torque Barra applications, engine harmonics and repeated driveline loads can place considerable stress on the factory crank bolts and friction washer. Dowelling the crank provides a positive mechanical connection between the crankshaft and flywheel or flexplate, helping prevent movement, loose bolts and potential bolt failure.

The precision-machined jig bolts directly to the rear crank flange, allowing six accurately positioned dowel holes to be drilled with the engine still installed in the vehicle. This can save considerable time and labour compared with removing the engine solely to complete the dowelling process.

Suitable for manual and automatic Barra applications using factory or compatible aftermarket flywheels and flexplates.

Features:

• Allows the Barra crankshaft to be dowelled with the engine still in the vehicle

• Accurately positions six dowel holes around the crank flange

• Helps prevent flywheel or flexplate movement under high torque

• Suitable for both manual and automatic transmissions

• Works with factory and compatible aftermarket flywheels and flexplates

• Stepped drilling process for improved accuracy

• Reusable jig suitable for workshops and serious engine builders

• Replacement dowels and drill bits can be purchased separately

• Supplied with complete step-by-step fitting instructions

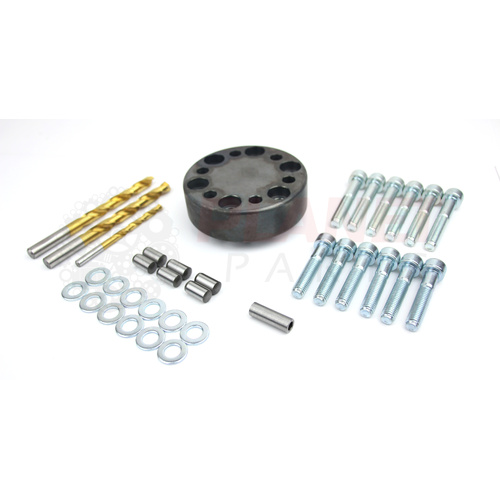

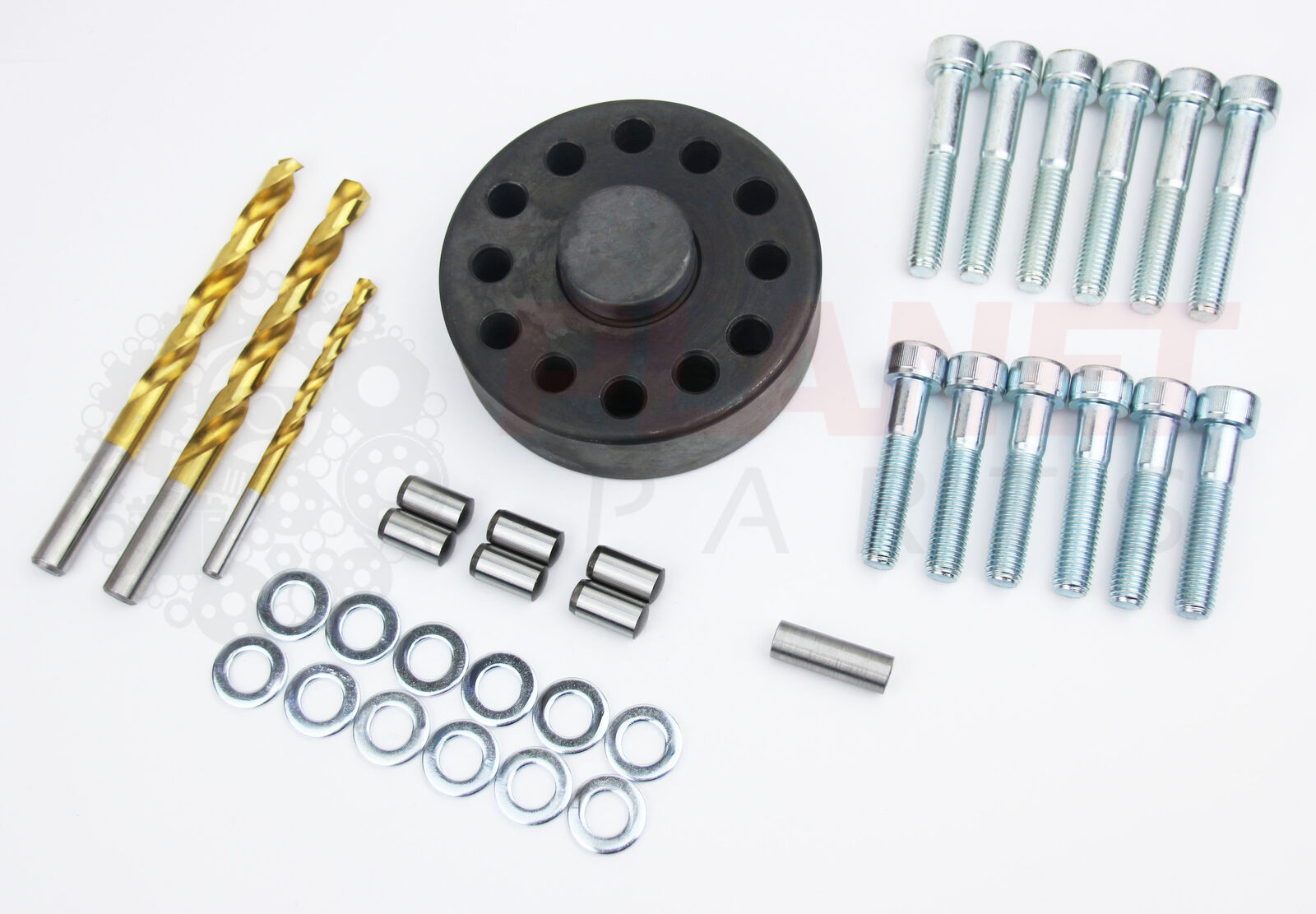

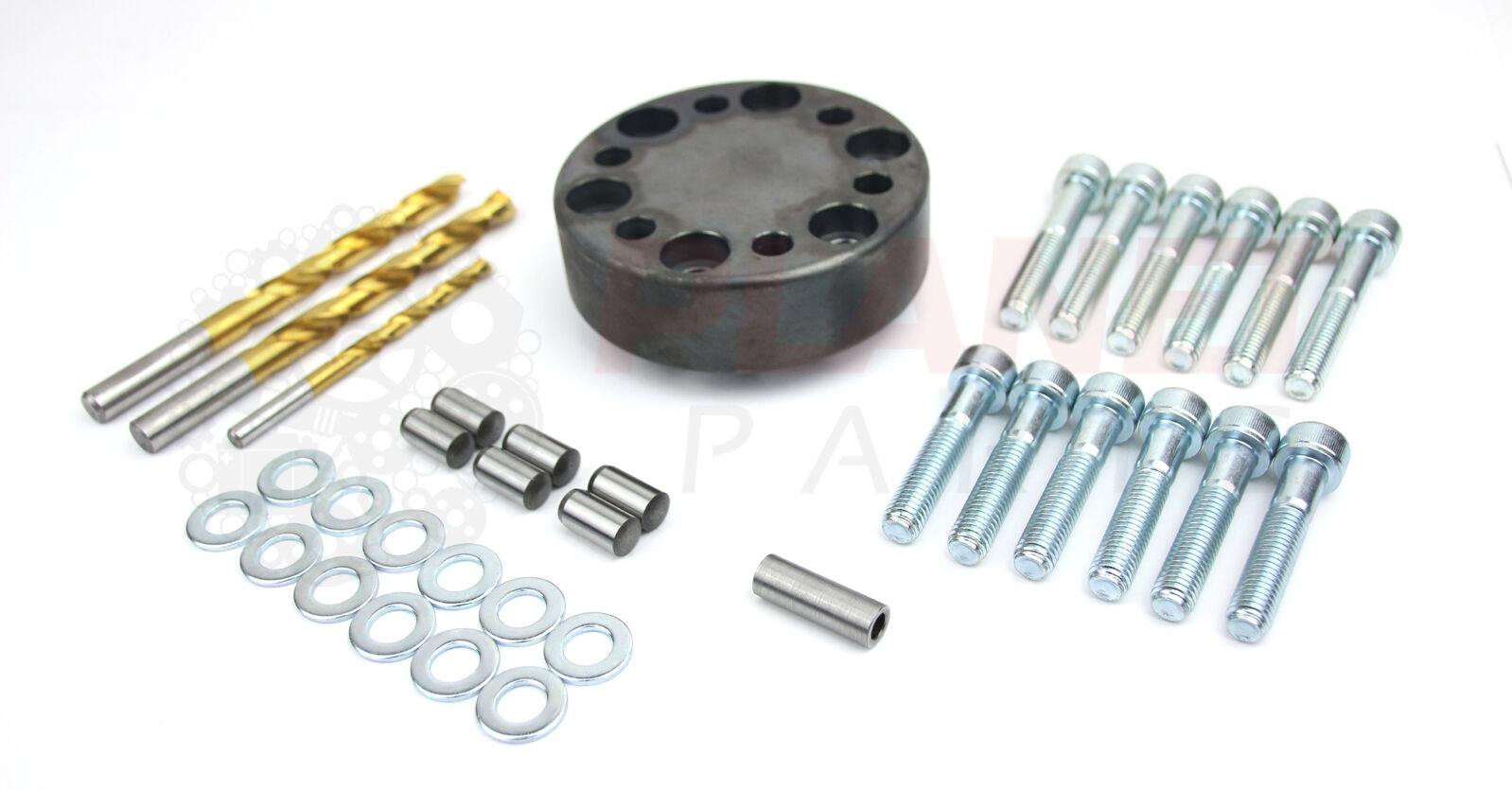

Kit Includes:

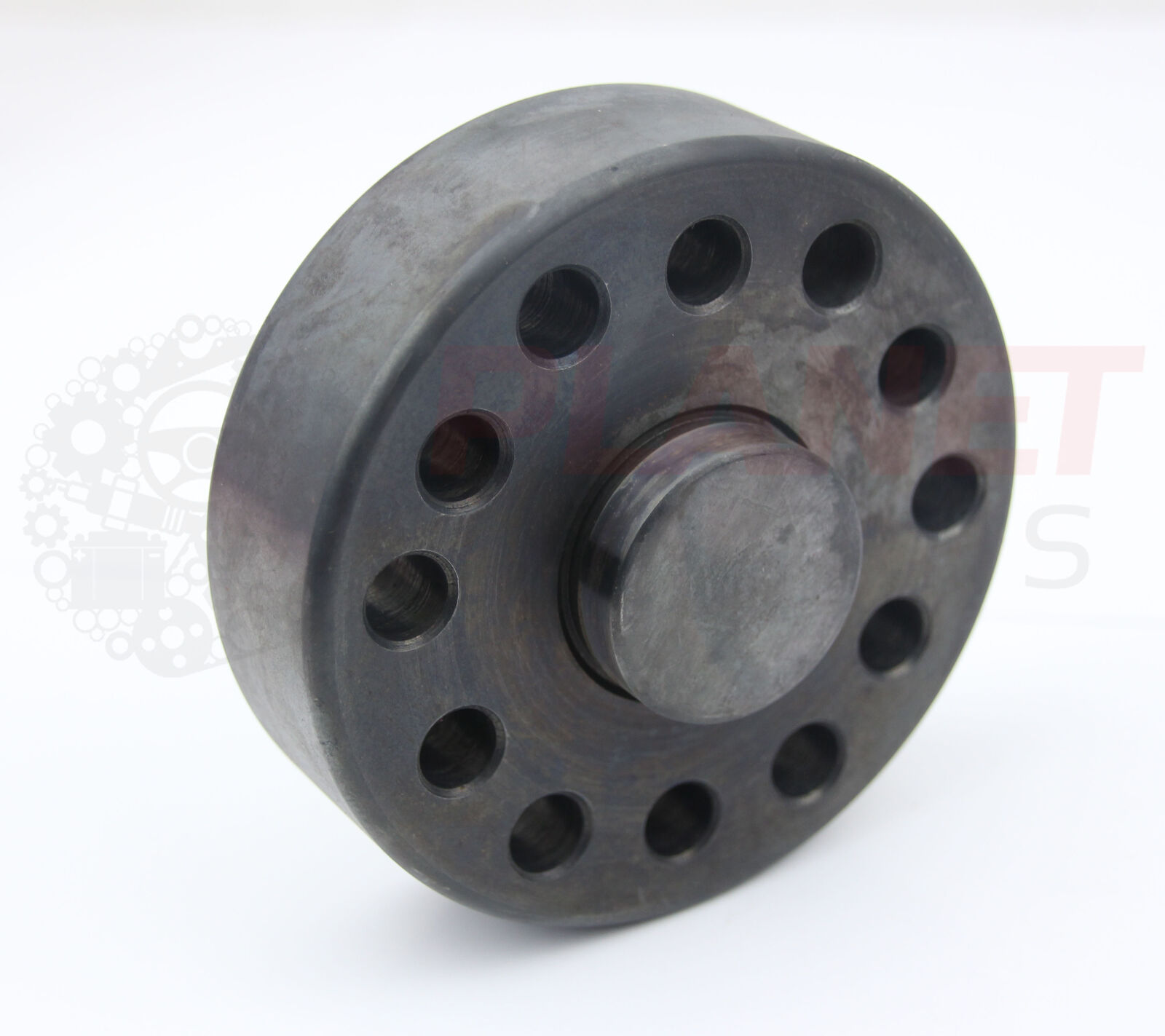

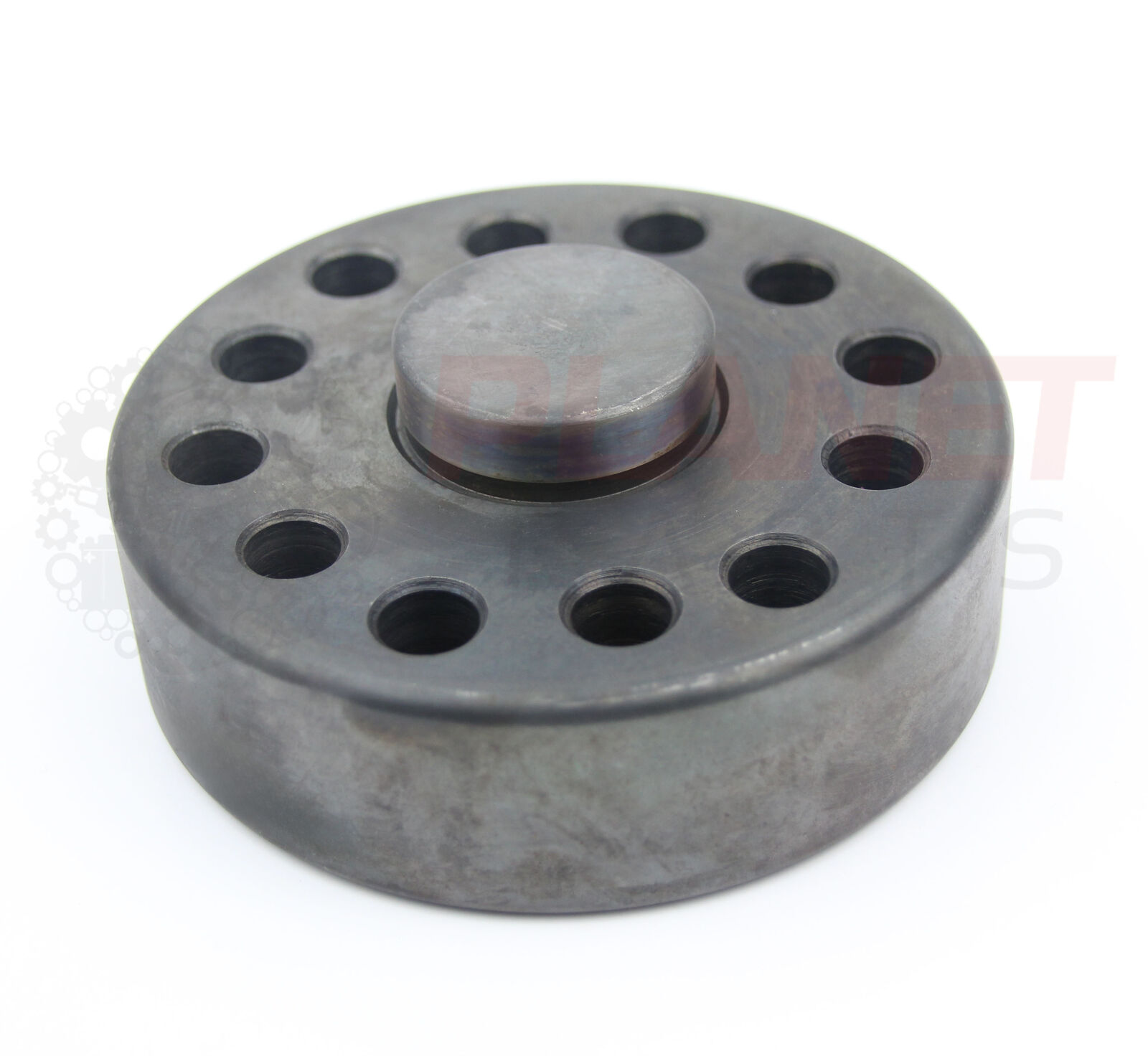

• 1 × Precision-machined crank dowelling jig

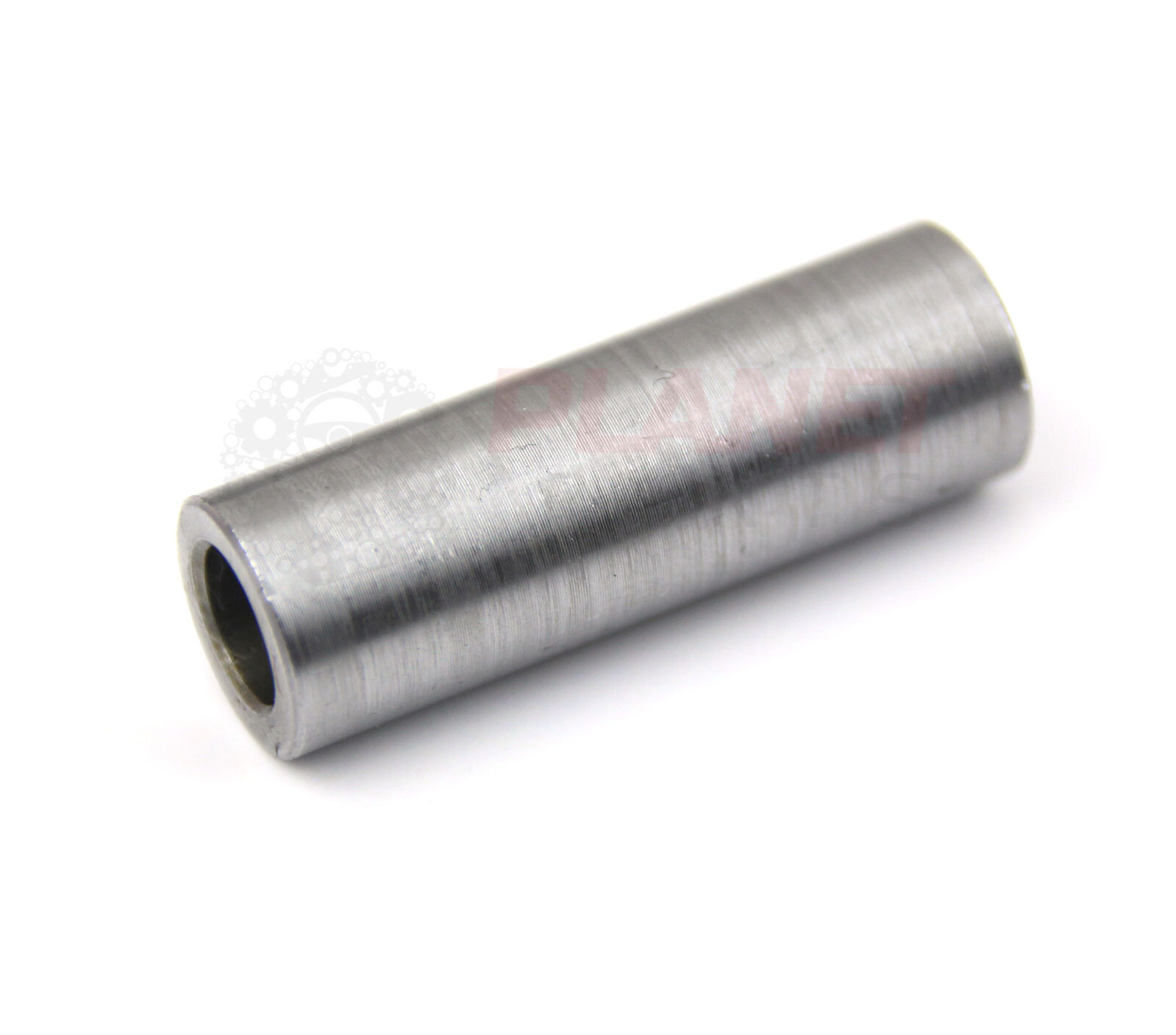

• Pilot drill guide/sleeve

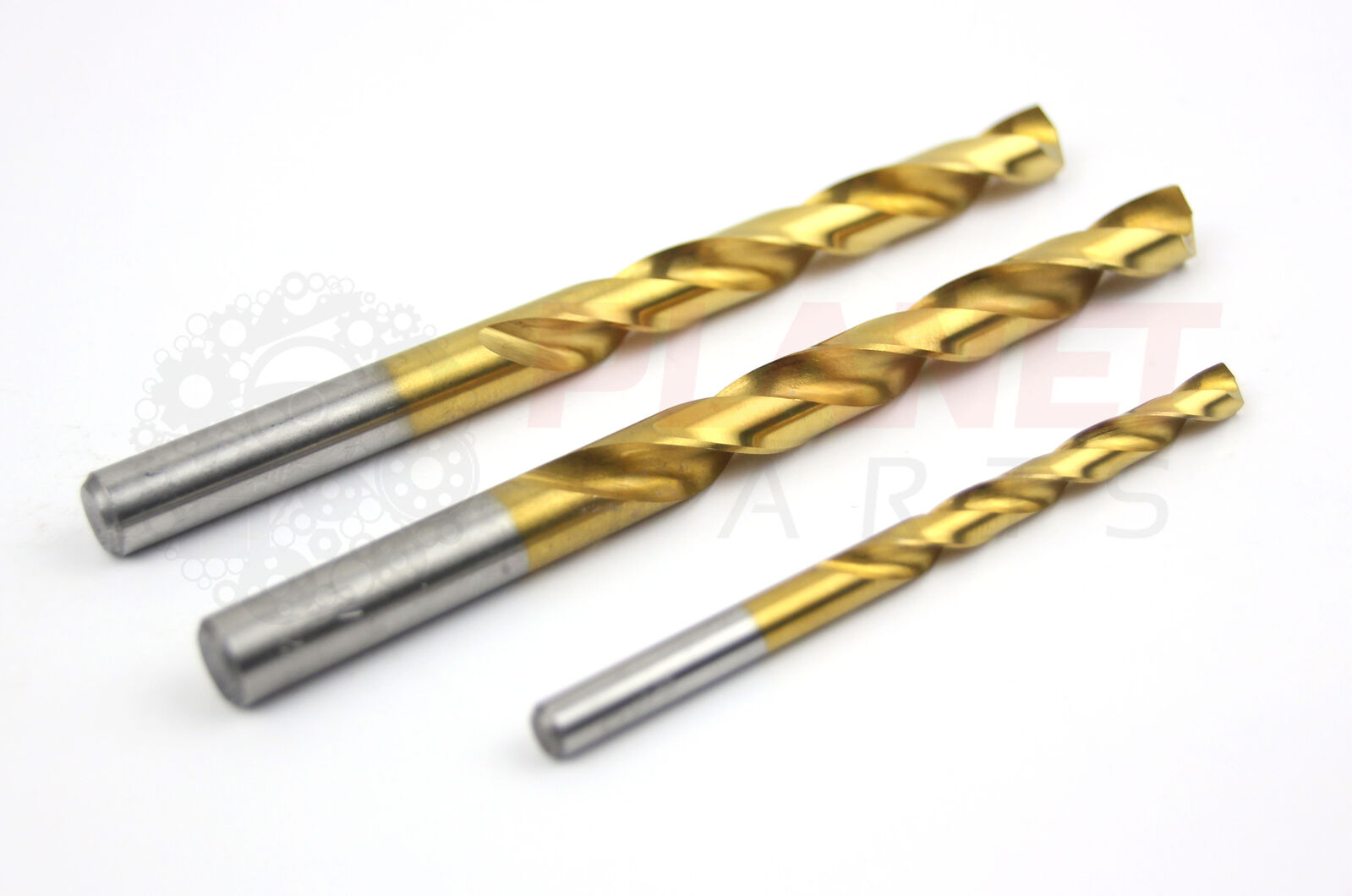

• 1 × 6mm drill bit

• 1 × 9.8mm drill bit

• 1 × 25/64-inch drill bit

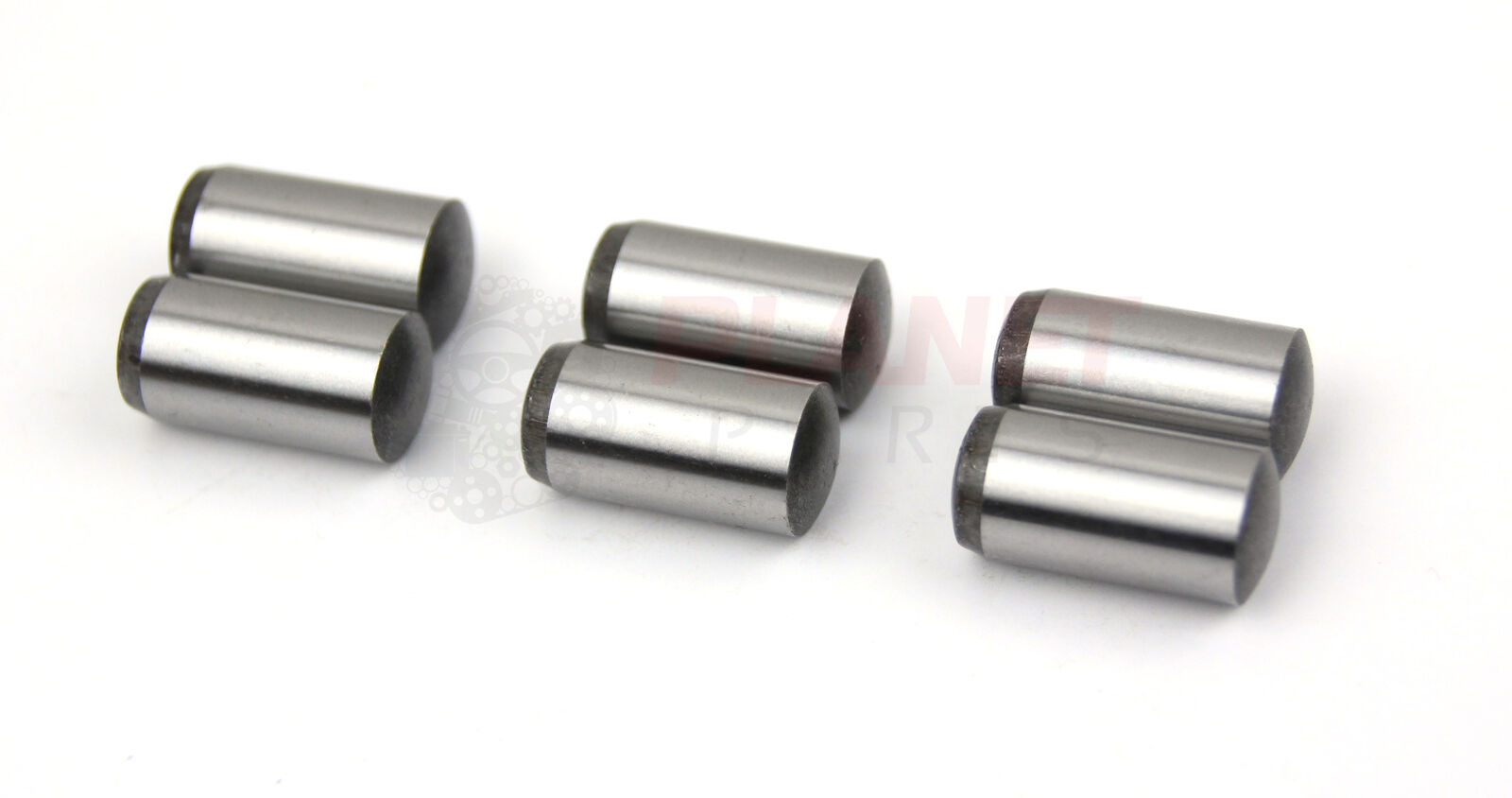

• 6 × M10 precision dowel pins

• Mounting bolts for flexplate applications

• Mounting bolts for flywheel applications

• Washers

• Storage case

• Installation instructions

Compatibility:

• Ford Falcon BA 4.0L Barra

• Ford Falcon BF 4.0L Barra

• Ford Falcon FG 4.0L Barra

• Ford Falcon FG X 4.0L Barra

• Ford Territory SX SY SZ 4.0L Barra

• Naturally aspirated and turbocharged Barra engines

• Manual and automatic transmissions

Professional installation is strongly recommended. Correct drilling procedure, depth control, lubrication and dowel interference fit are essential. Always follow the supplied instructions and confirm clearance before drilling.
