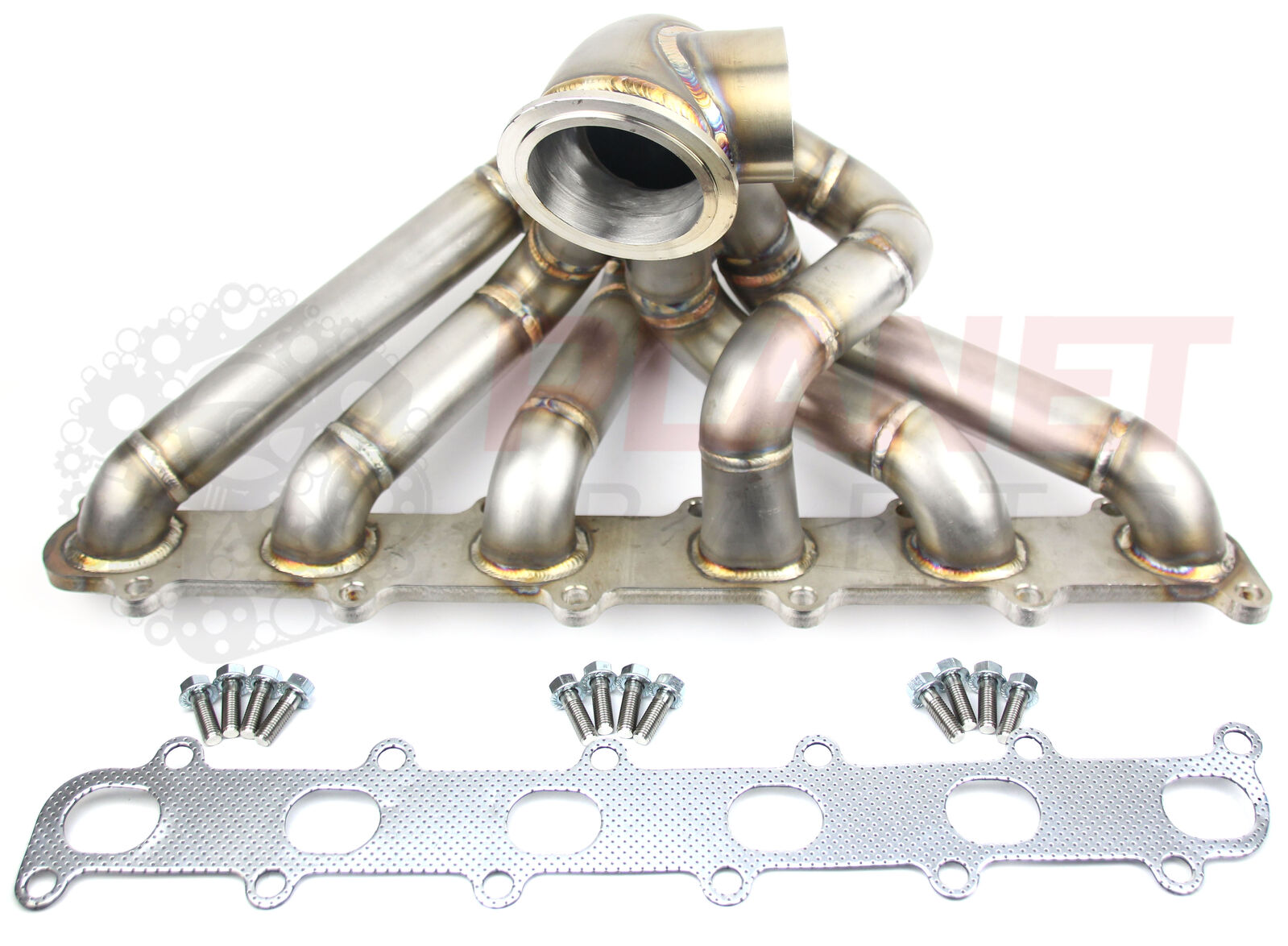

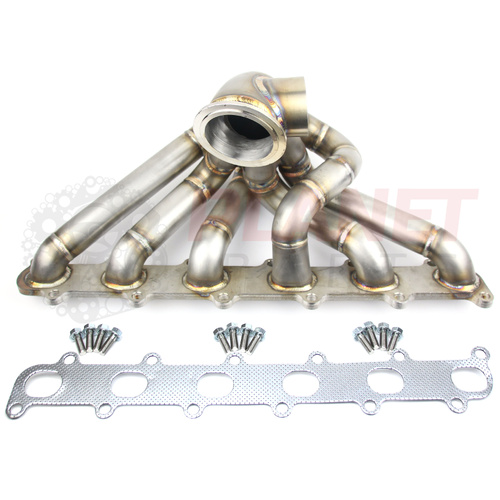

Ford Falcon BA BF FG FGX BARRA 3" V-Band High Mount Exhaust Turbo Manifold

Ford Falcon BA BF FG FGX BARRA 3" V-Band High Mount Exhaust Turbo Manifold

Designed to suit Ford BARRA BA, BF, FG and FGX Falcons, our high mount turbo manifold is built for serious power setups while maintaining serviceability and clean engine bay layout.

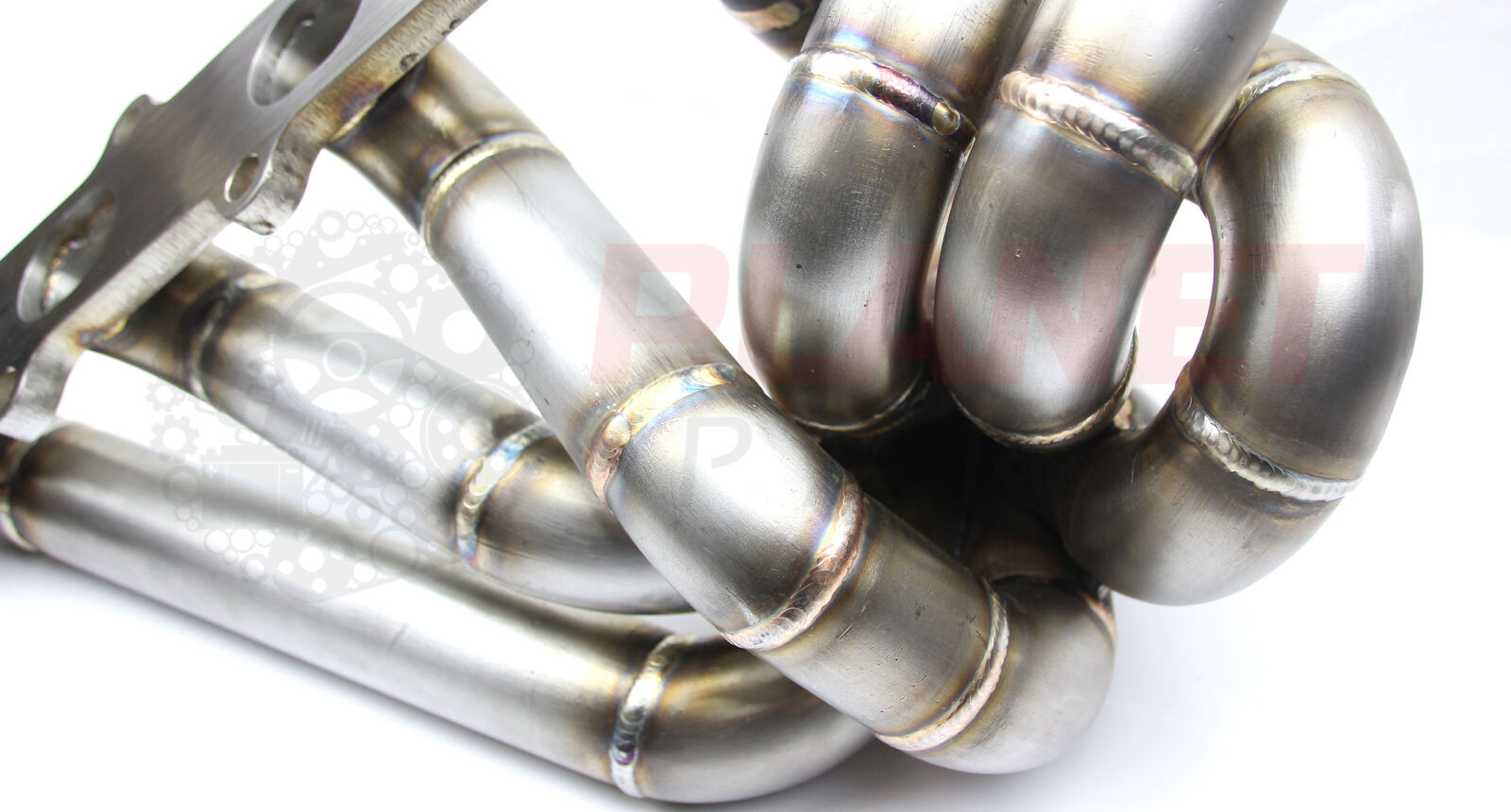

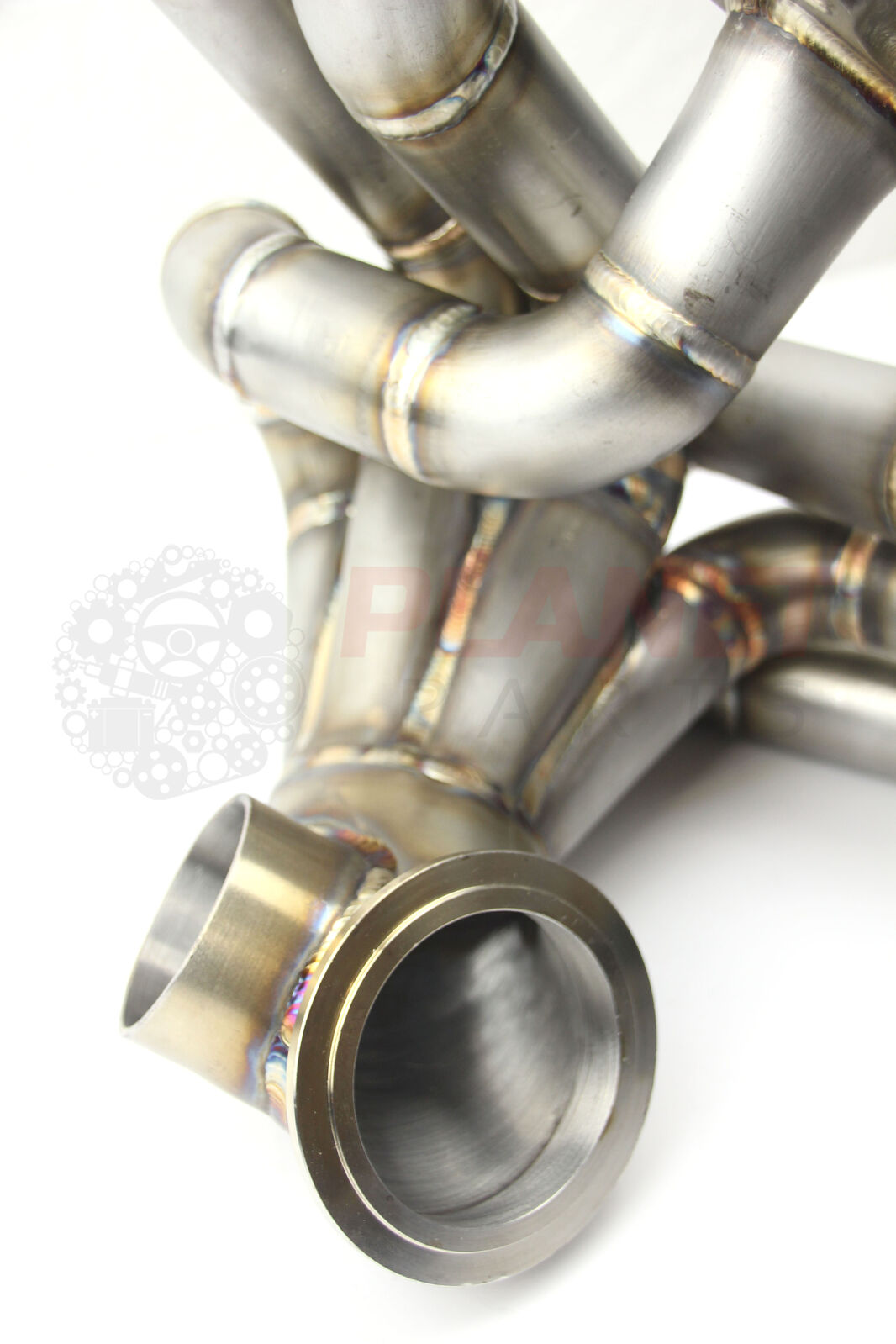

Manufactured from 3mm thick wall stainless steel, the manifold uses a true 6-into-1 merge collector design. Each runner enters the collector at a consistent angle, converging centrally to direct exhaust flow straight into the turbine. This eliminates turbulence caused by intersecting runners, improving exhaust gas velocity, boost control and overall efficiency. The result is a strong spool with minimal back pressure at the turbo flange.

Our 3" V-Band Turbo flange suits standard V-band turbo 3" outlets (commonly found on GT30/GT35/GT40 size turbochargers).

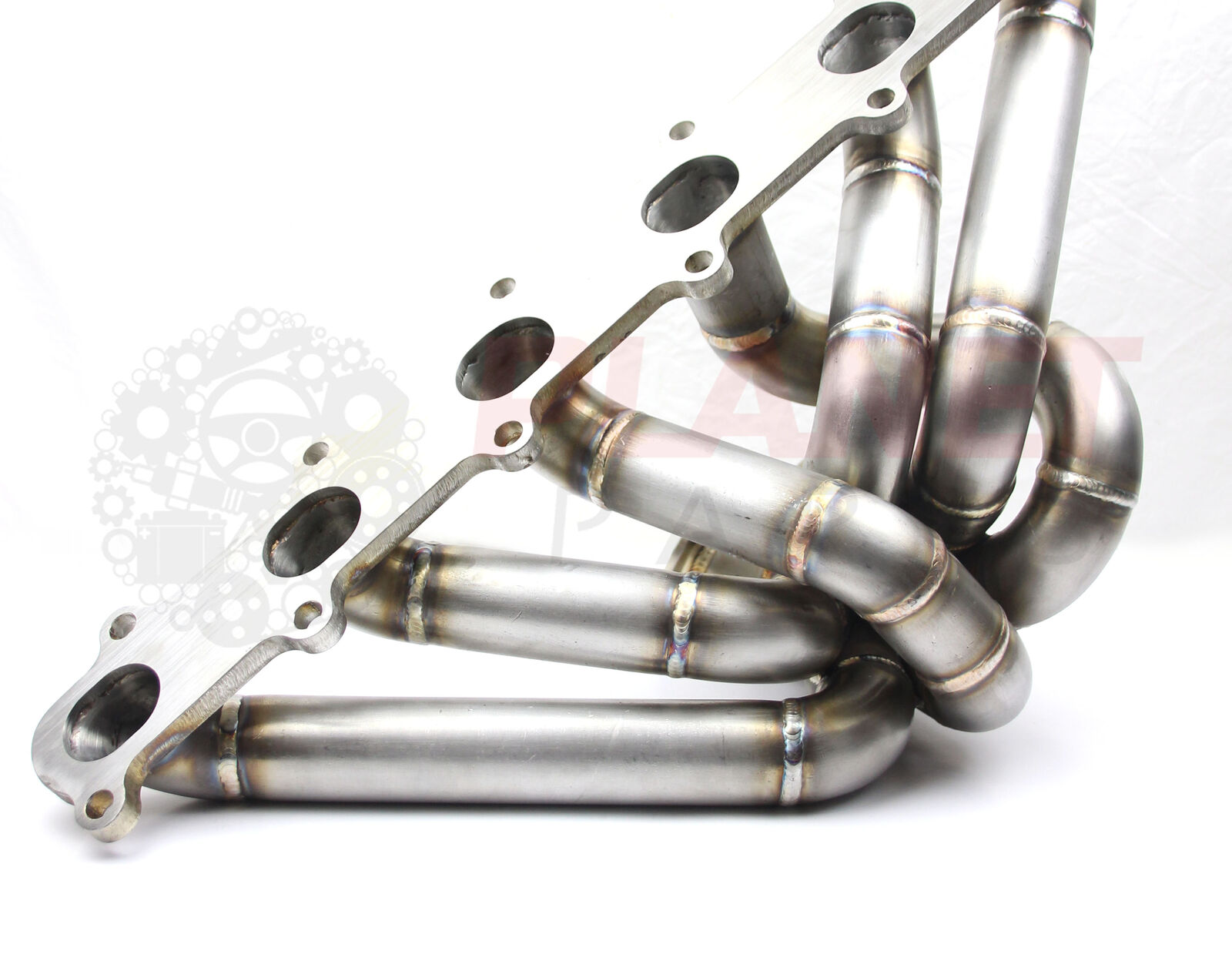

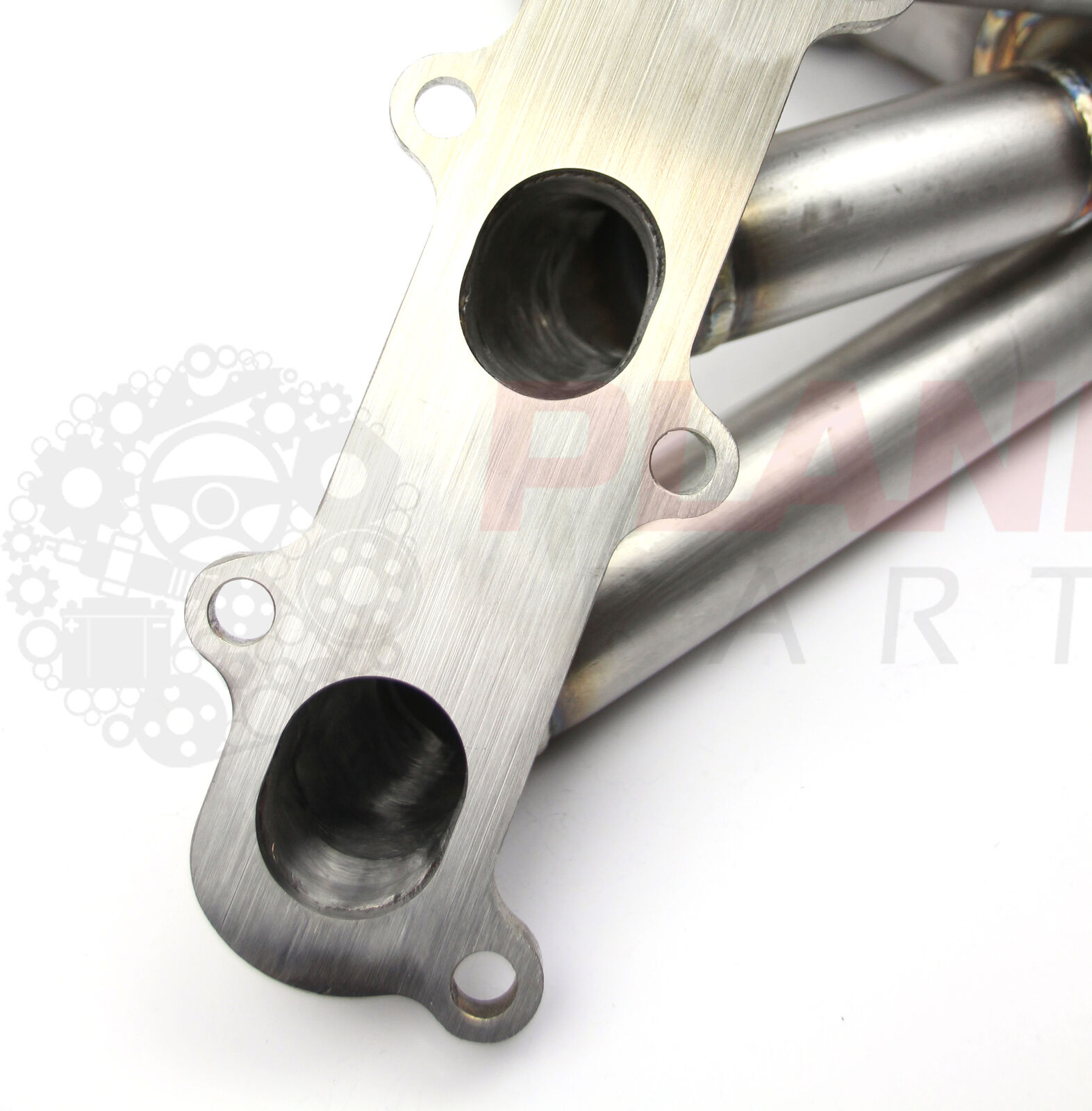

All flanges are CNC machined and milled post-welding to ensure a flat, precise sealing surface. The heavy-duty construction is suited to high heat and high horsepower applications, making it ideal for larger turbocharger setups.

The high mount configuration provides excellent access for turbo installation and removal, along with improved heat management compared to low mount designs. A V-band turbo flange allows for quick and easy turbo changeover using standard V-band clamps.

A wastegate starter pipe is included, giving flexibility for custom positioning and sizing depending on your setup. Common configurations utilise a 50mm wastegate, however the design can accommodate both 50mm and 60mm units from Turbosmart and other brands.

Supplied complete with manifold gasket and mounting hardware.

Features:

• Suits Ford Falcon BA, BF, FG, FGX Barra engines

• 3" V-Band Turbo Flange

• High mount design for improved access and heat management

• Thick wall stainless steel construction

• 6 into 1 merge collector for optimal flow and spool

• CNC machined flanges, machined flat after welding

• V-band turbo flange for quick turbo removal

• Wastegate provision suits 50mm or 60mm (starter pipe included)

• Designed for larger turbochargers and high horsepower builds

• Includes gasket and mounting hardware
