RANGER SAVER COMBO KIT Ford Ranger Next-Gen (2022-2026) 10R80 Twin Transmission Cooler & Deep Cast Pan

Ford Ranger Next-Gen 3.0L V6 Diesel Ranger Saver Complete Transmission Cooling Combo Kit – 10R80

Give your Ranger’s 10-speed automatic transmission a complete cooling and preventative maintenance upgrade with the Planet Parts Ranger Saver Combo Kit.

This all-in-one package combines three of our most important 10R80 transmission upgrades: increased external cooling capacity, improved fluid circulation and increased transmission fluid capacity.

It is designed specifically for Ford Ranger Next-Gen models fitted with the 3.0L V6 turbo diesel engine and 10-speed automatic transmission.

Complete $845 Combo Kit Includes

1 x Planet Parts Twin Transmission Cooler Kit
1 x Planet Parts Billet Thermal Bypass Valve
1 x Planet Parts 10R80 Deep Cast Transmission Pan Complete Service Kit

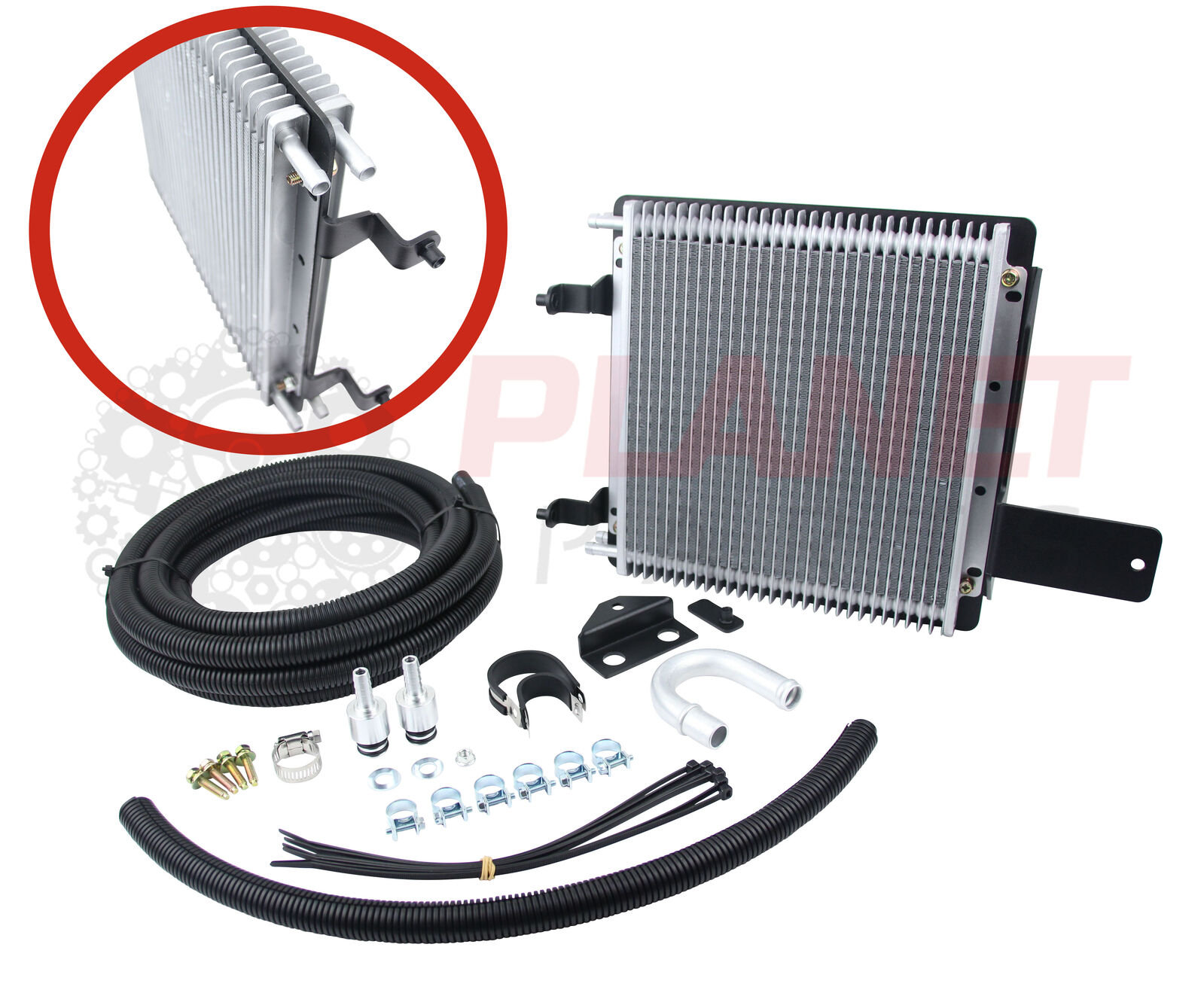

Twin Transmission Cooler Kit

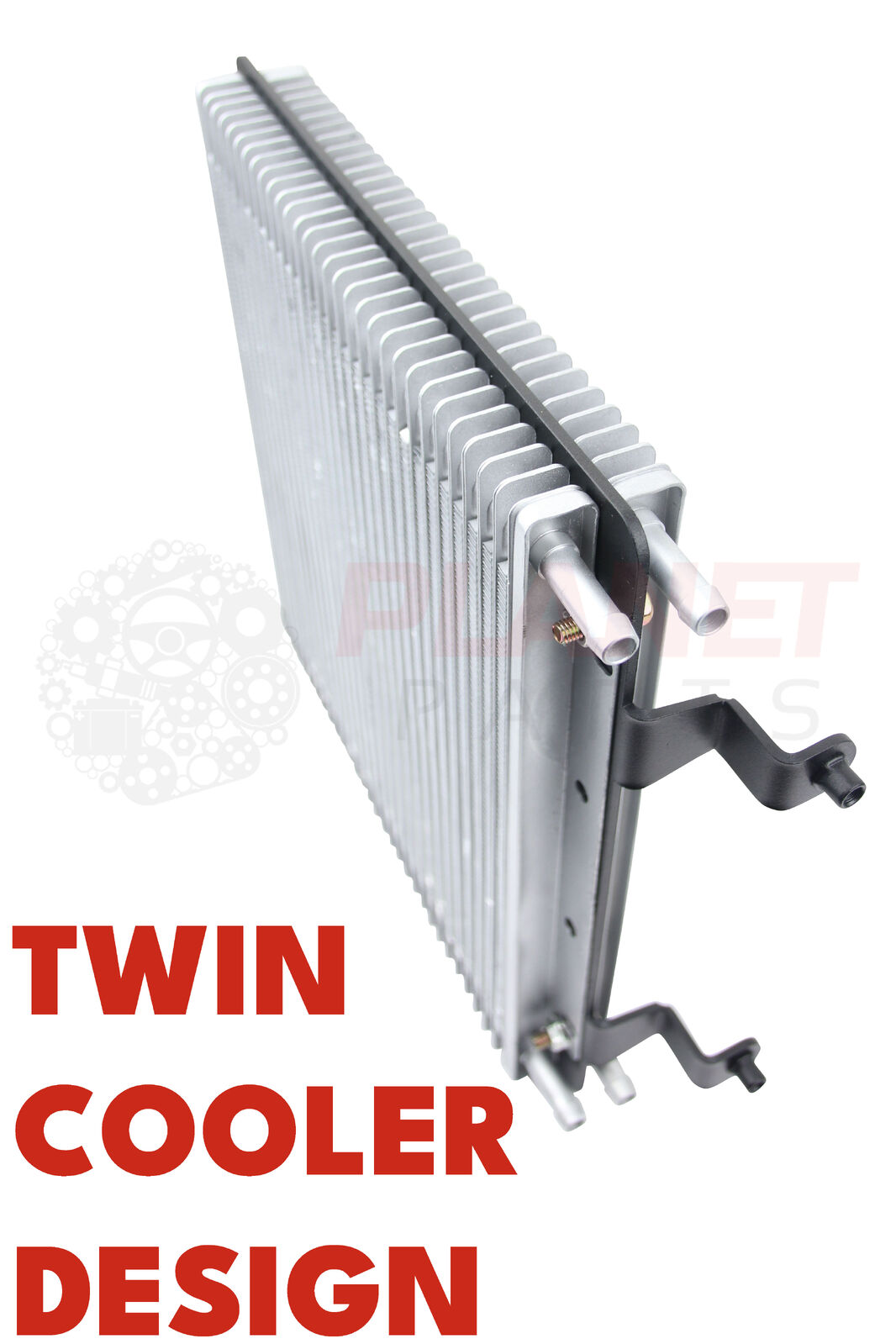

The twin cooler system uses two custom-manufactured 29-row transmission oil coolers mounted to a single heavy-duty steel bracket. One cooler is positioned at the front of the bracket, with the second mounted directly behind it to create a compact twin cooler assembly.

Both coolers feature durable 0.6mm fins. Many comparable transmission coolers use thinner 0.4mm fins, making our heavier construction better suited to vehicles exposed to towing, vibration, corrugated roads and off-road conditions.

The mounting bracket bolts directly to the radiator support panel using existing factory holes, meaning no drilling is required.

Twin Cooler Kit Includes:

• 2 x Custom 29-row heavy-duty transmission oil coolers with 0.6mm fins
• 1 x Heavy-duty steel twin cooler mounting bracket
• High-temperature transmission cooler hose

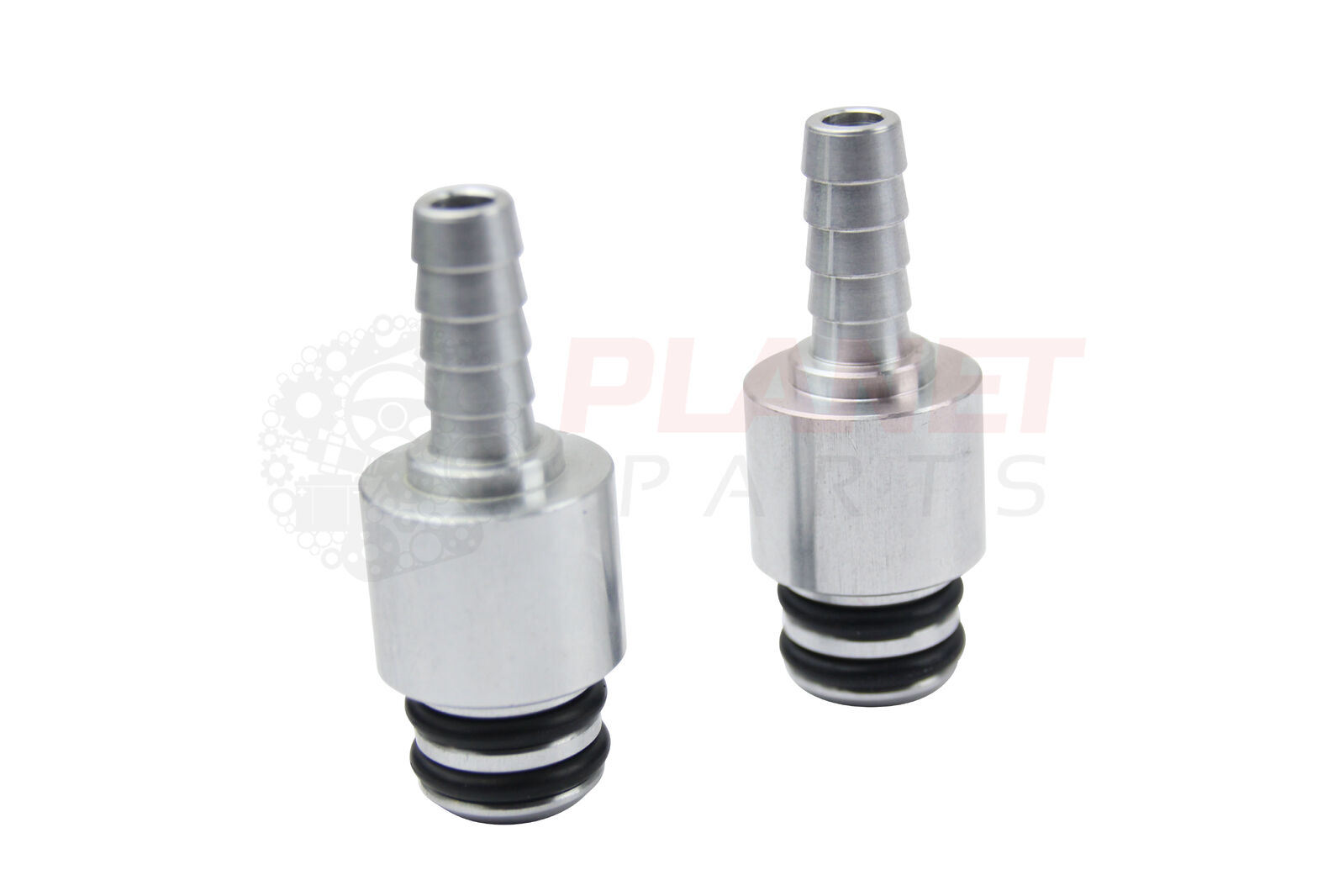

• Required fittings and mounting hardware

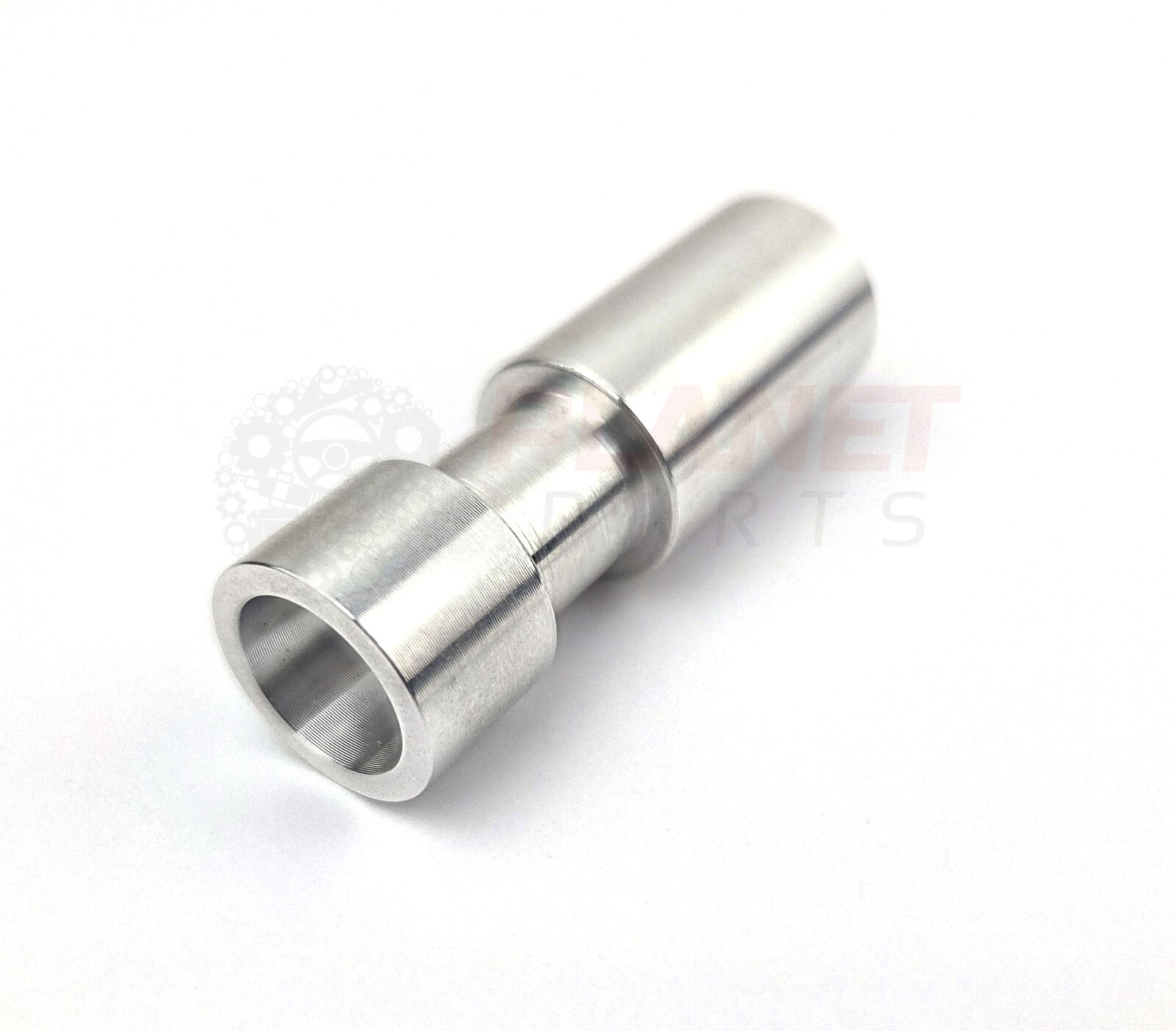

Billet Thermal Bypass Valve

The included billet thermal bypass valve allows transmission fluid to circulate through the external cooling system without relying on the restrictive factory thermal bypass operation.

This helps the upgraded twin cooler system operate effectively and maintain more consistent transmission temperatures during towing, touring, off-road driving and other sustained-load conditions.

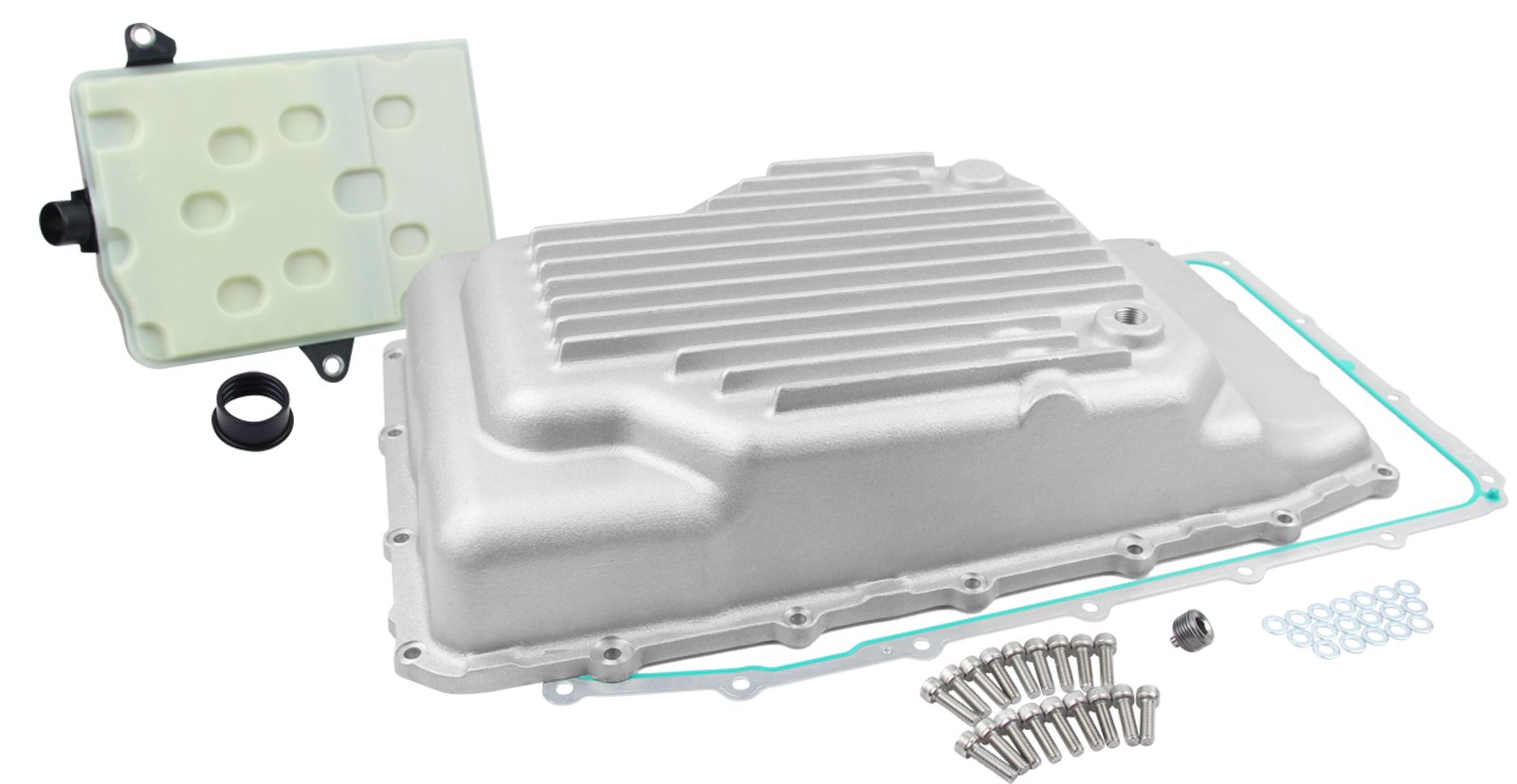

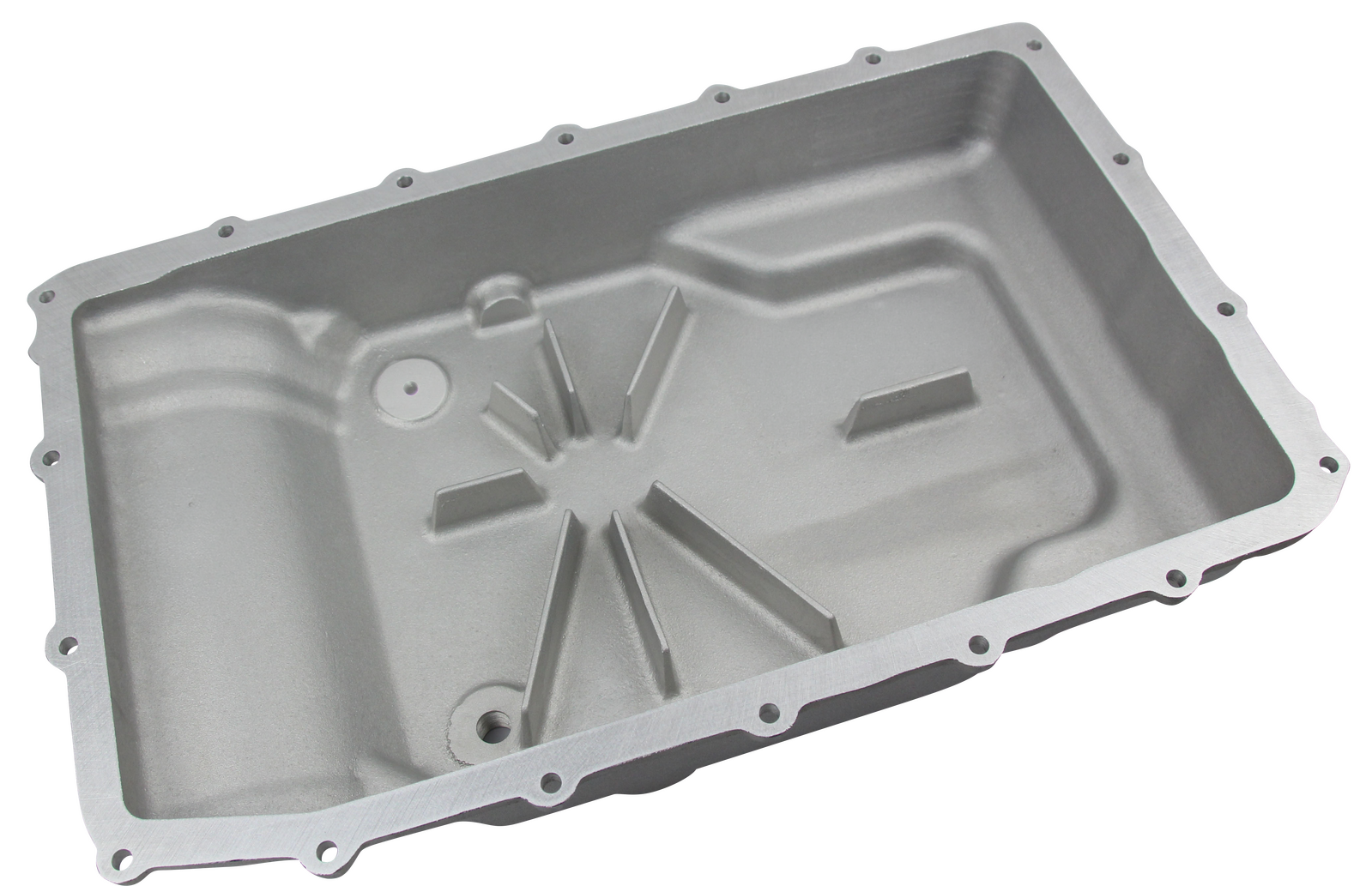

10R80 Deep Cast Transmission Pan Complete Service Kit

Our heavy-duty deep cast transmission pan increases the transmission’s fluid capacity while providing additional strength, cooling surface area and serviceability compared with the standard pan.

The cast alloy construction and external cooling fins help dissipate heat, while the magnetic drain plug makes future transmission servicing cleaner and easier.

Complete Deep Pan Service Kit Includes:

• Planet Parts deep cast alloy transmission pan
• Genuine Ford transmission filter (HL3Z-7A098-A)
• Genuine Ford transmission pan gasket (HL3Z-7A191-B)
• Genuine Ford transmission filter seal (7T4Z-7Z302-A)
• Complete fitting kit
• Factory magnet retention kit
• Magnetic drain plug

Why Upgrade the Complete System?

Excessive transmission heat can shorten fluid life, affect shift quality and accelerate internal wear. This is particularly important for vehicles used for towing, touring, off-road driving or carrying heavy loads.

Rather than upgrading only one component, the Ranger Saver Combo Kit addresses the transmission cooling system as a complete package:

• Twin coolers provide increased external cooling capacity
• Billet thermal bypass valve improves circulation through the external cooling system
• Deep cast pan increases fluid capacity and cooling surface area
• New genuine Ford filter and gasket allow the transmission to be serviced during installation

Features

• Complete transmission cooling and preventative maintenance package
• Designed for Ford Ranger Next-Gen 3.0L V6 turbo diesel models
• Suits the 10-speed 10R80 automatic transmission
• Twin 29-row heavy-duty transmission coolers
• Durable 0.6mm cooler fins
• Heavy-duty single-piece steel cooler mounting bracket
• Direct bolt-on cooler installation using existing factory mounting holes
• No drilling required for the cooler mounting bracket
• Billet thermal bypass valve included
• Deep cast alloy transmission pan with external cooling fins
• Increased transmission fluid capacity
• Magnetic drain plug for easier future servicing
• Replacement transmission filter and gasket included
• Ideal for towing, touring, off-road use and sustained-load driving
• Helps maintain more consistent transmission temperatures under load

Vehicle Compatibility

Ford Ranger Next-Gen 3.0L V6 Turbo Diesel fitted with the 10-speed automatic transmission.

Please confirm your vehicle’s engine and transmission before ordering. If you are unsure whether this package suits your Ranger, contact us with your VIN and vehicle details.



The complete Ranger Saver package for owners who want increased cooling capacity, increased fluid capacity and improved transmission protection.
