TransGo 700-PKH Hi-Rev Pump Repair Kit GM Commodore VN VP VQ 700R4 4L60E 4L65E 200-4R

TransGo 700-PKH Hi-Rev Pump Repair Kit – GM Commodore VN VP VQ – 700R4 / 4L60E / 4L65E / 200-4R

The TransGo 700-PKH Hi-Rev Pump Repair Kit is designed for high-revving applications using GM 700R4, 4L60E, 4L65E and 200-4R automatic transmissions, particularly engines regularly operating above approximately 5400 RPM.

A common issue in high-RPM applications is pump ring failure and pressure drop at elevated engine speeds. The standard pump rings can become brittle and fail, potentially causing damage to the pump, transmission and torque converter.

The TransGo 700-PKH kit replaces the original-style rings with high-carbon, heat-treated and annealed steel pump rings designed for substantially greater strength and durability.

The slightly larger and stiffer ring design can also improve pump efficiency, helping maintain stronger hydraulic pressure, particularly at hot idle and during high-RPM operation.

Designed to address:

• High-RPM transmission pressure drop

• Soft full-throttle upshifts at high engine speeds

• Pump ring breakage

• Pressure regulator buzz or moan, particularly when hot

• Reduced pump efficiency at elevated RPM

The kit also includes a pump slide priming spring, which helps correct the hydraulic pressure drop that can occur above approximately 5500 RPM.

Kit Features:

• Genuine TransGo repair kit

• Heavy-duty high-performance pump ring upgrade

• High-carbon steel construction

• Heat treated and annealed for increased durability

• Precision-ground thickness and outside diameter

• Designed for engines operating above approximately 5400 RPM

• Helps maintain hydraulic pressure at high RPM

• Helps improve pump efficiency

• Helps prevent brittle factory-style pump ring failure

• Includes pump slide priming spring

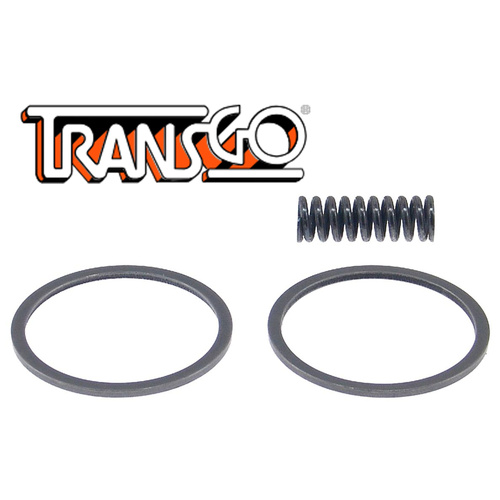

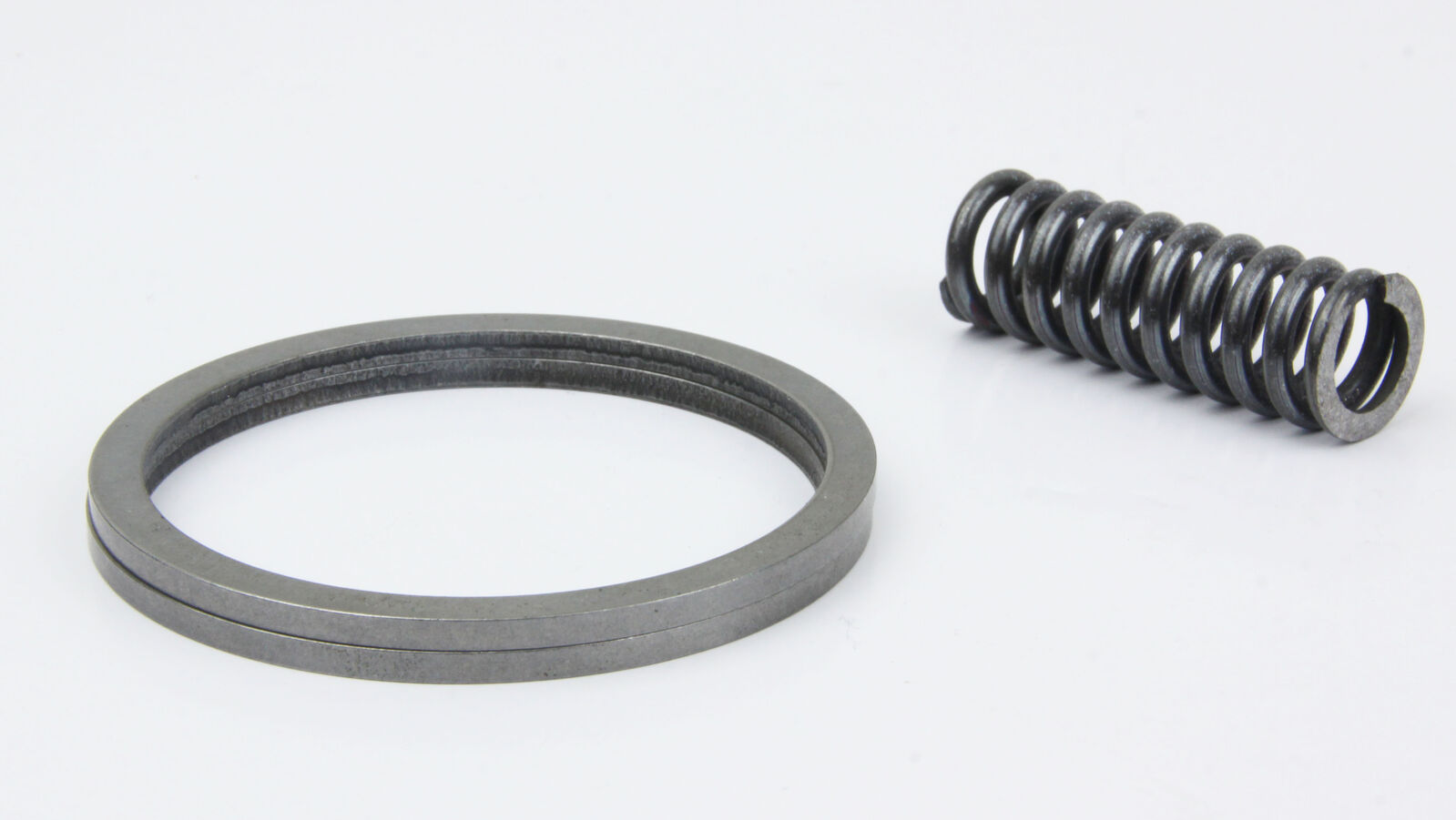

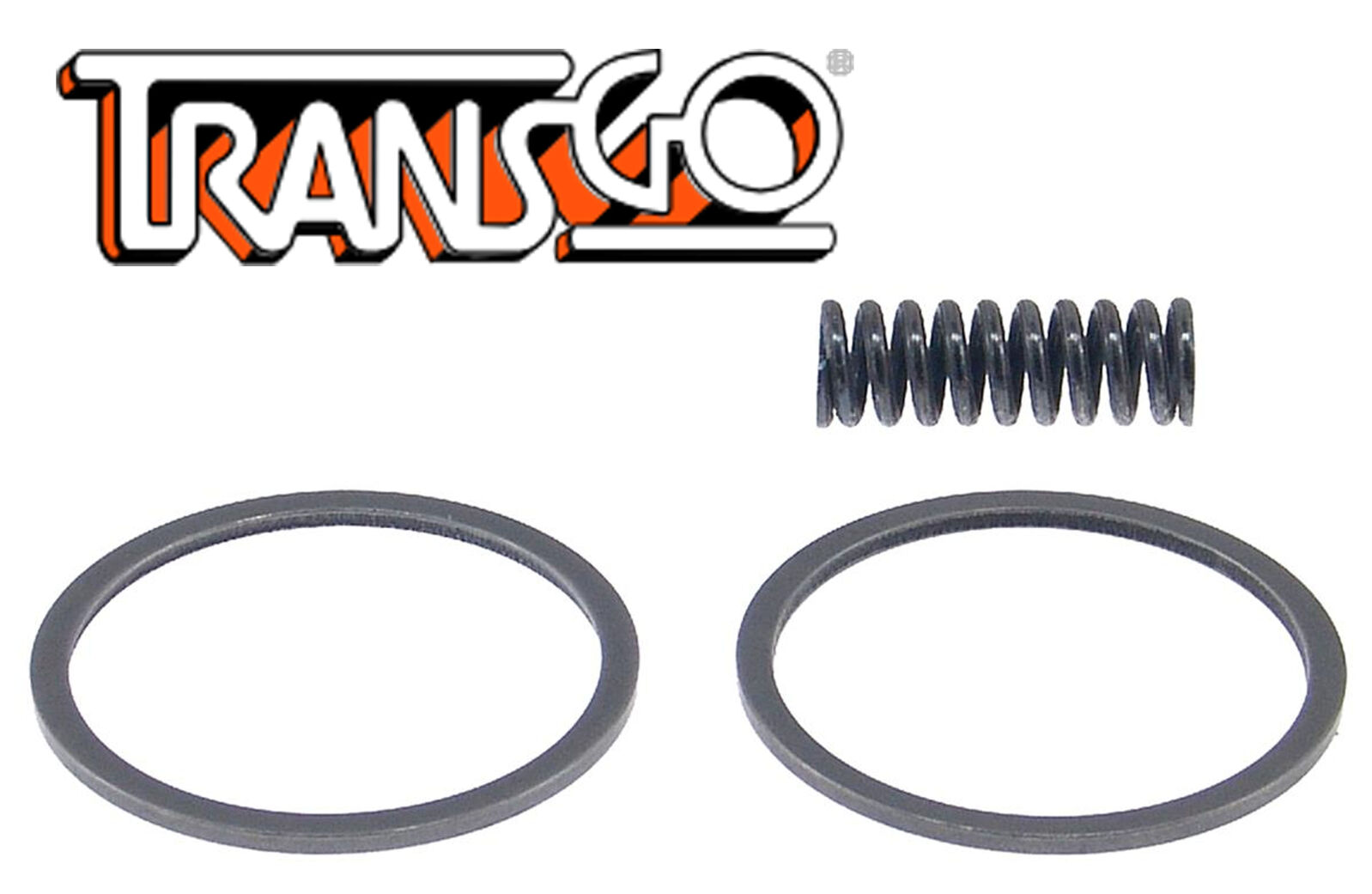

Kit Includes:

• 2 x USA-made high-carbon, heat-treated and annealed steel pump rings

• Pump slide priming spring

Transmission Compatibility:

Suitable for:

• GM TH700R4 / 700R4

• GM 4L60E

• GM 4L65E

• GM TH200-4R / 200-4R

Vehicle Applications:

Suitable for applicable Holden Commodore VN, VP and VQ models fitted with compatible transmissions, along with other GM applications using the listed transmission families.

Transmission specifications can vary between models and conversions, so we recommend confirming the transmission type before ordering.

Recommended Application: High-performance and high-RPM engines operating above approximately 5400 RPM

Installation Recommendation: Experienced transmission technician

Transmission Removal Required: Yes

About TransGo Performance Shift Kits

TransGo Performance Shift Kits are designed to improve automatic transmission hydraulic operation, shift quality and durability by addressing known weaknesses within the original valve body and control system.

Rather than simply creating excessively harsh shifts, TransGo kits are engineered to improve hydraulic control and transmission response while correcting specific factory-related shift and pressure issues.
