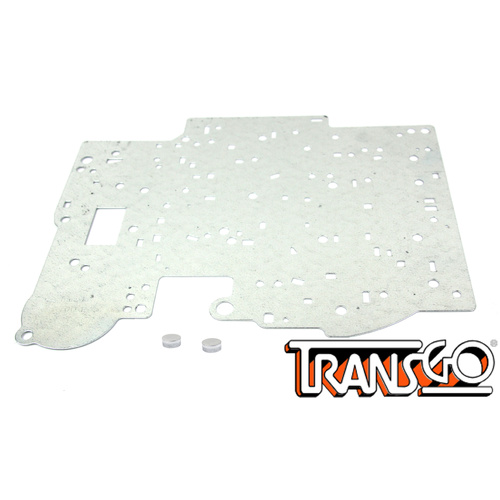

TransGo 700-P Valve Body Separator Plate Holden Commodore VN VP VQ 700R4 / 4L60 – 1981-1993

TransGo 700-P Valve Body Separator Plate – Holden Commodore VN VP VQ – 700R4 / 4L60 – 1981 to 1993

The TransGo 700-P Separator Plate is a replacement valve body separator plate designed for GM 700R4 / 4L60 automatic transmissions.

Suitable for applicable Holden Commodore VN, VP and VQ models, this plate is designed to replace worn, damaged or incorrectly matched factory separator plates and help restore correct hydraulic transmission operation.

The separator plate is located between the valve body and transmission case, where it controls fluid flow through the transmission's hydraulic circuits.

Over time, the original plate can become worn or damaged from repeated check-ball contact, potentially causing hydraulic leaks and poor transmission operation.

Designed to address:

• Worn or damaged factory separator plates
• Check-ball wear through the plate
• Incorrect separator plate / valve body combinations
• Loss of line pressure boost
• Loss of forced wide-open-throttle downshifts
• Hydraulic cross-leaks
• Poor or inconsistent transmission operation

A key advantage of the TransGo 700-P is its universal design. Earlier 700R4 / 4L60 transmissions used different valve body configurations, and incorrect separator plate matching can create hydraulic problems.

The TransGo universal plate is designed to work with both Type 1 and Type 2 valve bodies, allowing one plate to cover the applicable transmission range.

Features:

• Genuine TransGo replacement separator plate
• Fits Type 1 and Type 2 valve bodies
• Tempered steel construction
• Plated for rust and corrosion resistance
• Helps restore correct hydraulic operation
• Replaces worn or damaged OEM separator plates
• Suitable for servicing and transmission rebuilds
• Transmission removal not required

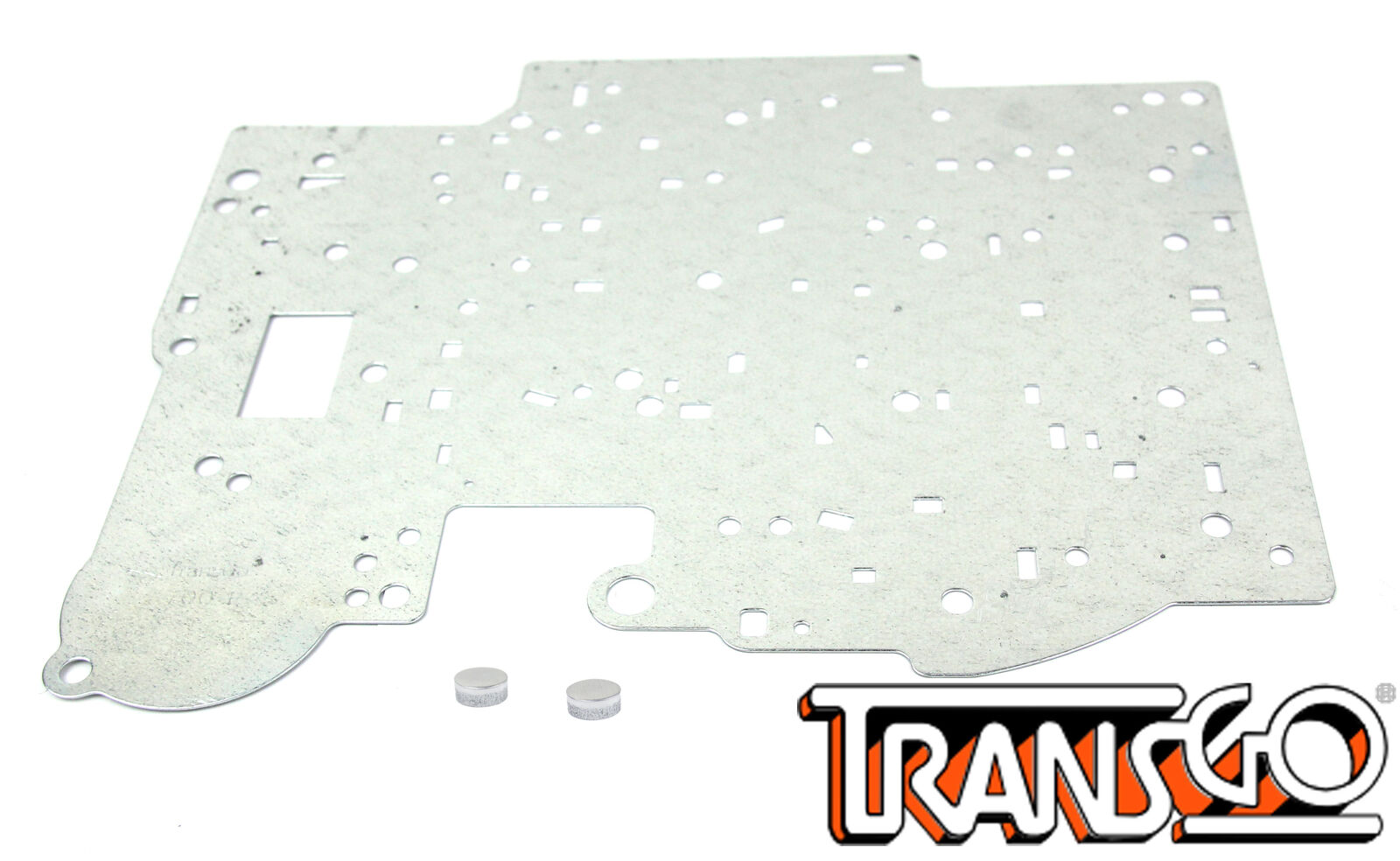

Kit Includes:

• 1 x Tempered steel separator plate
• 2 x Aluminium slugs

Transmission Compatibility:

Suitable for:

• GM 700R4
• GM 4L60 hydraulic automatic transmission

For applicable 1981-1993 transmission applications.

Holden Applications:

Suitable for applicable:

• Holden Commodore VN
• Holden Commodore VP
• Holden Commodore VQ

Please confirm your vehicle is fitted with a compatible 700R4 / 4L60 transmission before ordering.

Important: Separator plate gaskets are not included.

Transmission Removal Required: No
