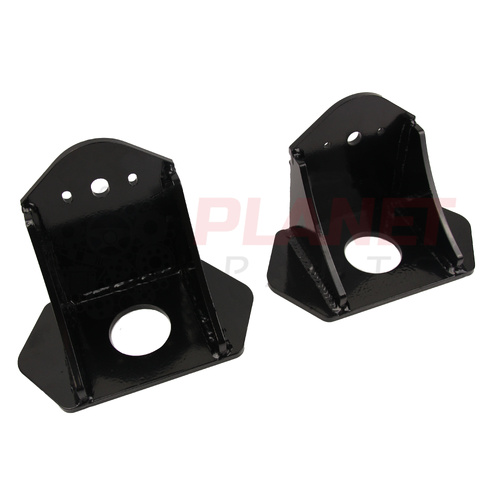

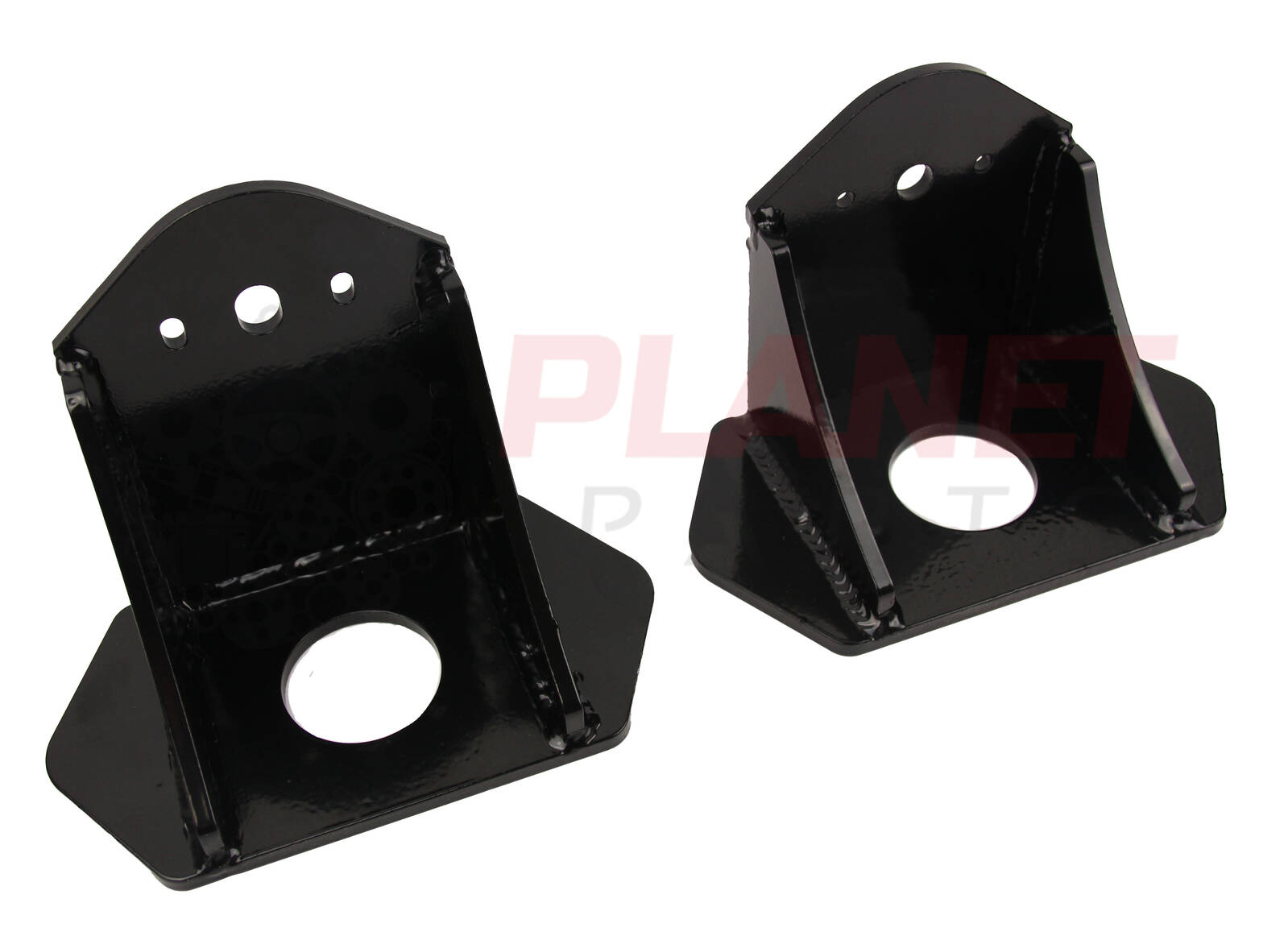

WELD-IN ENGINE MOUNTS for Nissan GQ GU Patrol to Ford Falcon BARRA Engine Conversion BRACKETS (inc. XR6 Turbo)

Planet Parts’ Barra WELD-IN engine mount brackets allows you to install a Ford Falcon BARRA 4.0L Engine (Turbo or N/A) into Nissan Patrol GQ & GU Chassis.

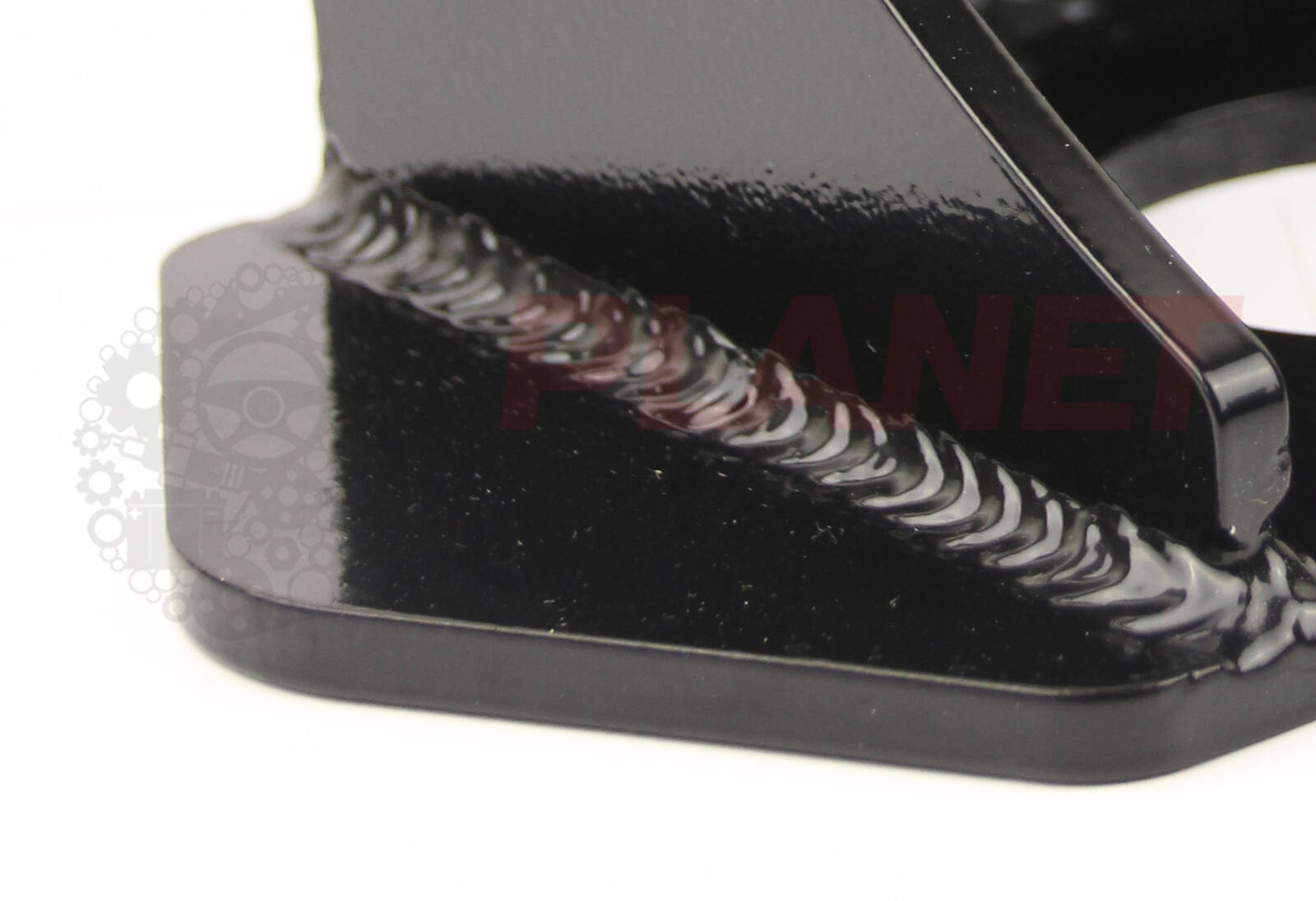

All our engine mounts come in a black powder-coated finish to ensure they won’t rust once installed.

Please note: Additional parts are still required to complete the conversion. This kit is supplied with the parts required to bolt-on the motor only. Additional parts will be required.

What’s included:
1x Pair of Conversion Engine Mount Brackets


Installation notes:

IF YOU ARE USING AN FG OR FGX ENGINE: The factory FG/FGX engine mounts are too wide for the Patrol chassis rails. You will need to replace them with the BA/BF engine mounts for the motor to fit.

The engine mounts will position the engine slightly off-centre to allow enough space for the factory Barra Turbo to be installed.

This kit is designed to work with the ZD30 remote Power Steering Pump Reservoir. You will need to supply this part yourself. A longer belt is also required.
