BOLT-IN ENGINE MOUNTS for Nissan GQ GU Patrol TD42 TB45 TB48 TB42 to Ford Falcon BARRA Engine Conversion BRACKETS (inc. XR6 Turbo) GQ GU
Description

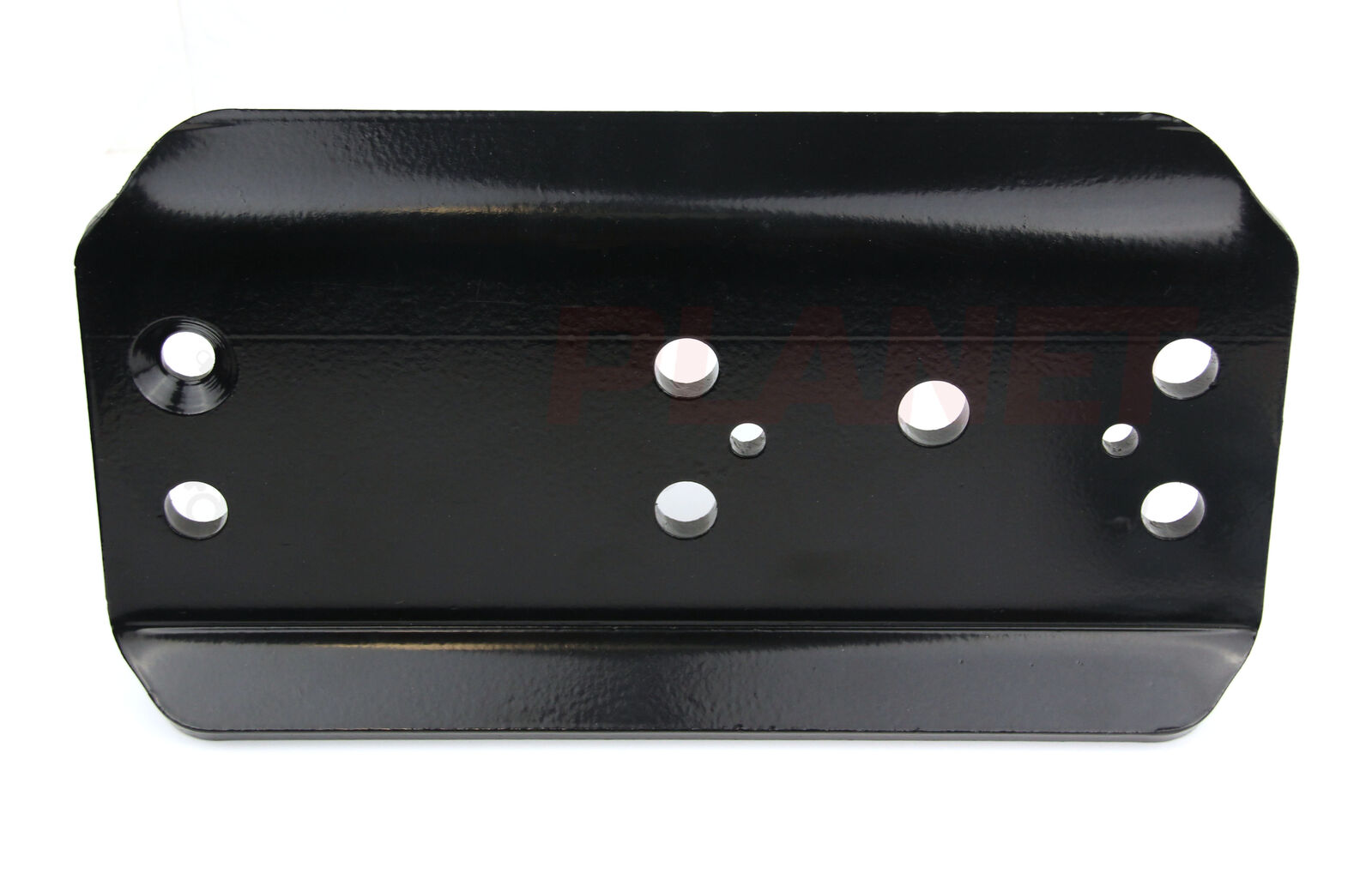

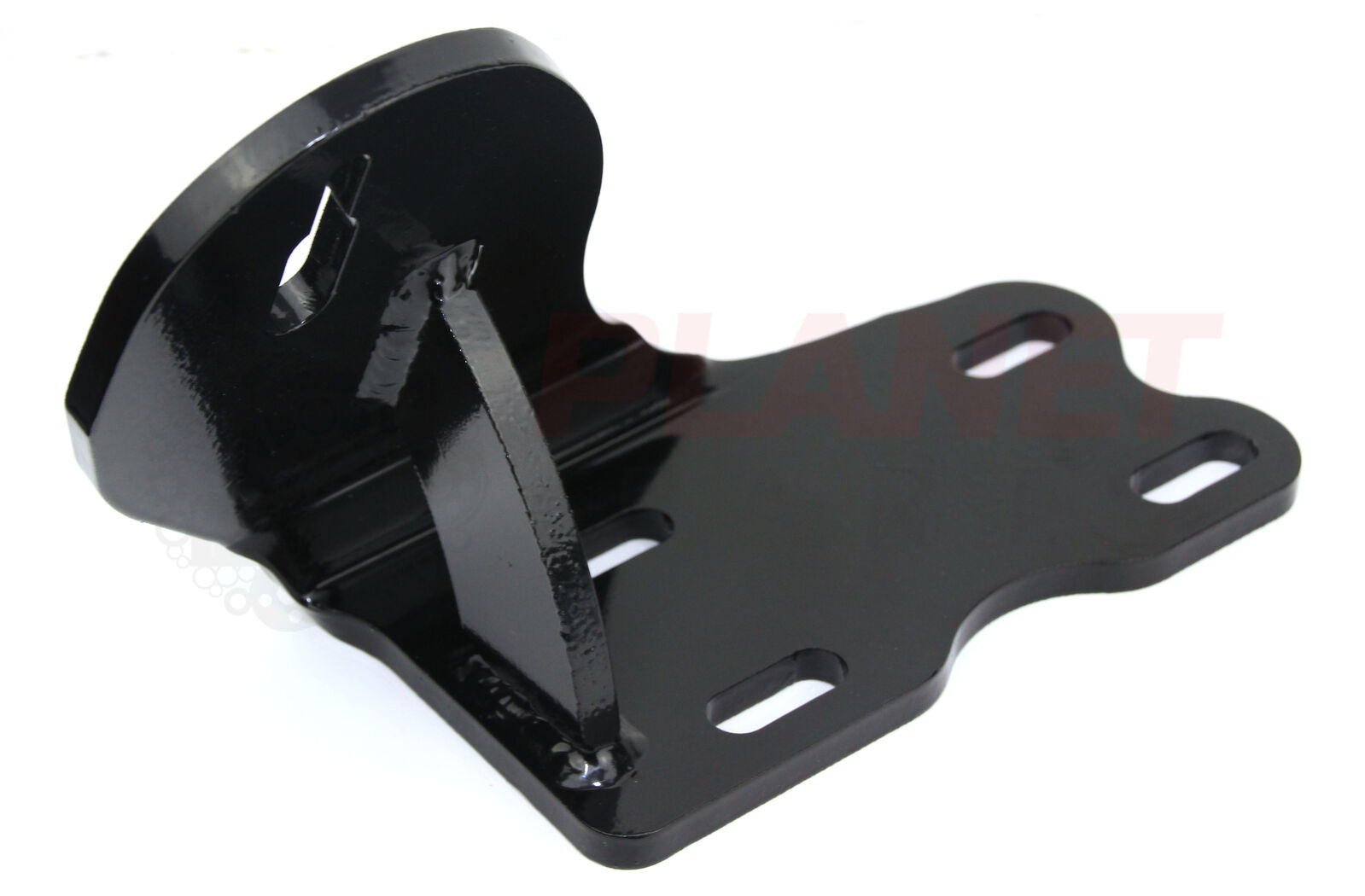

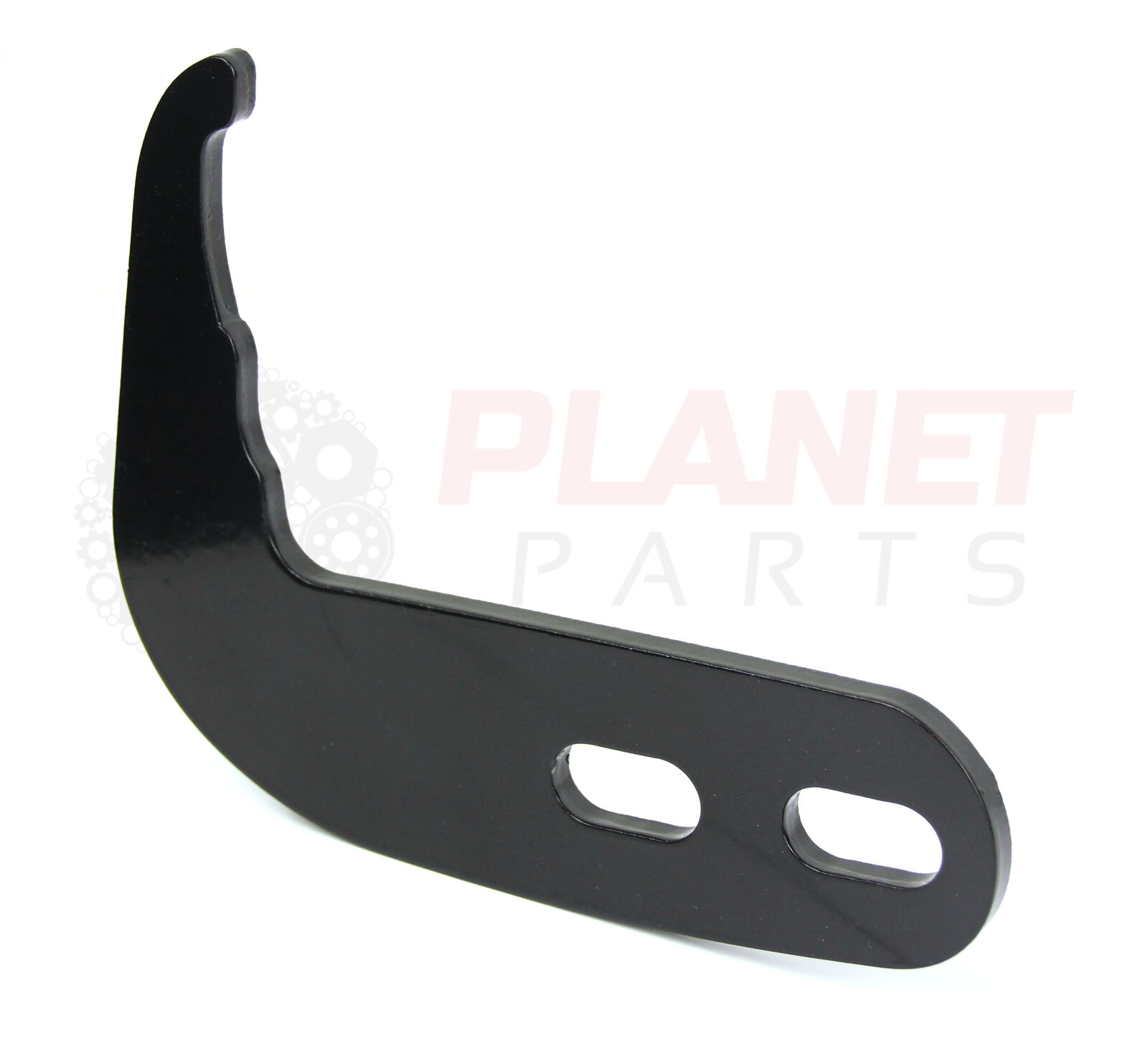

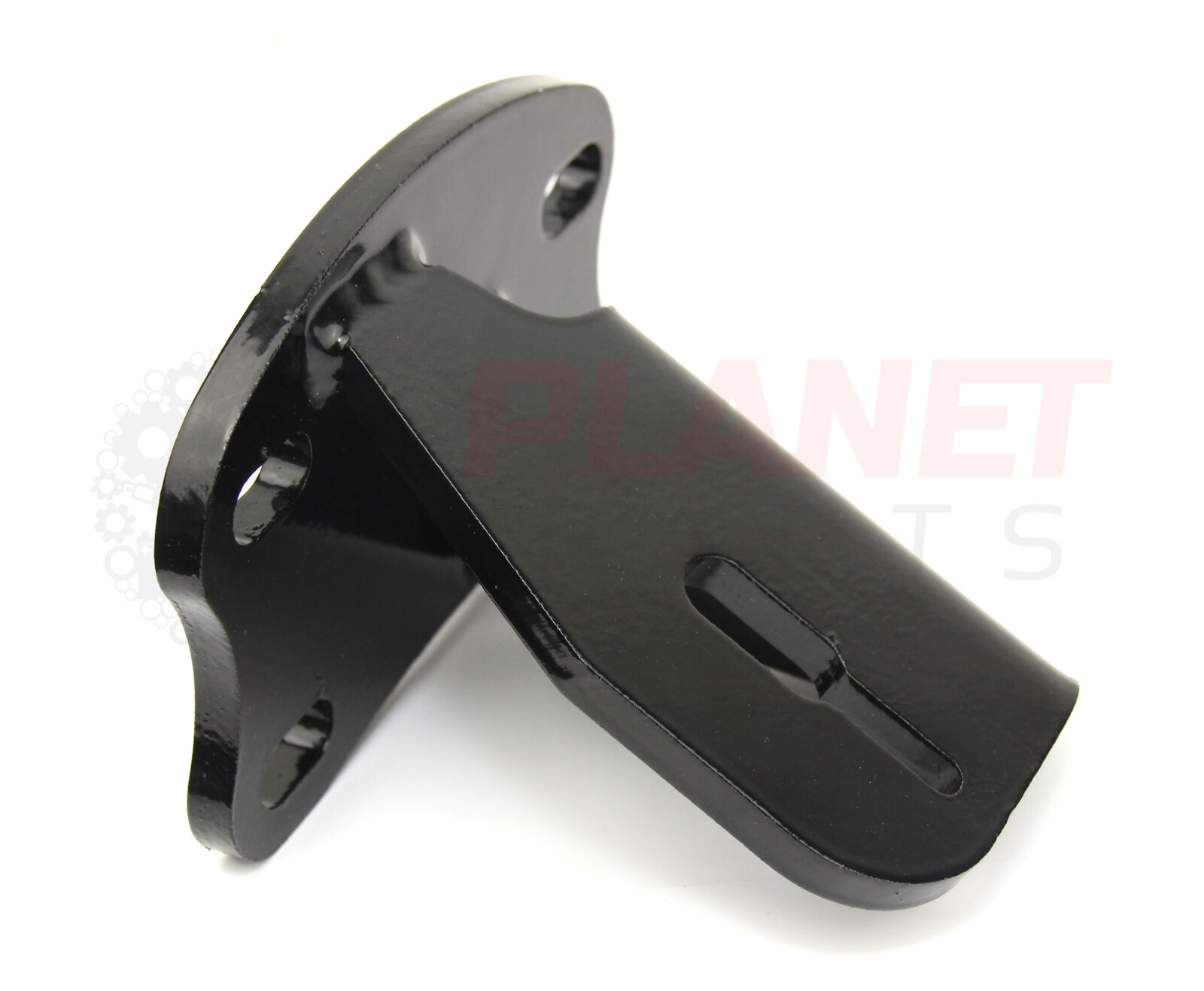

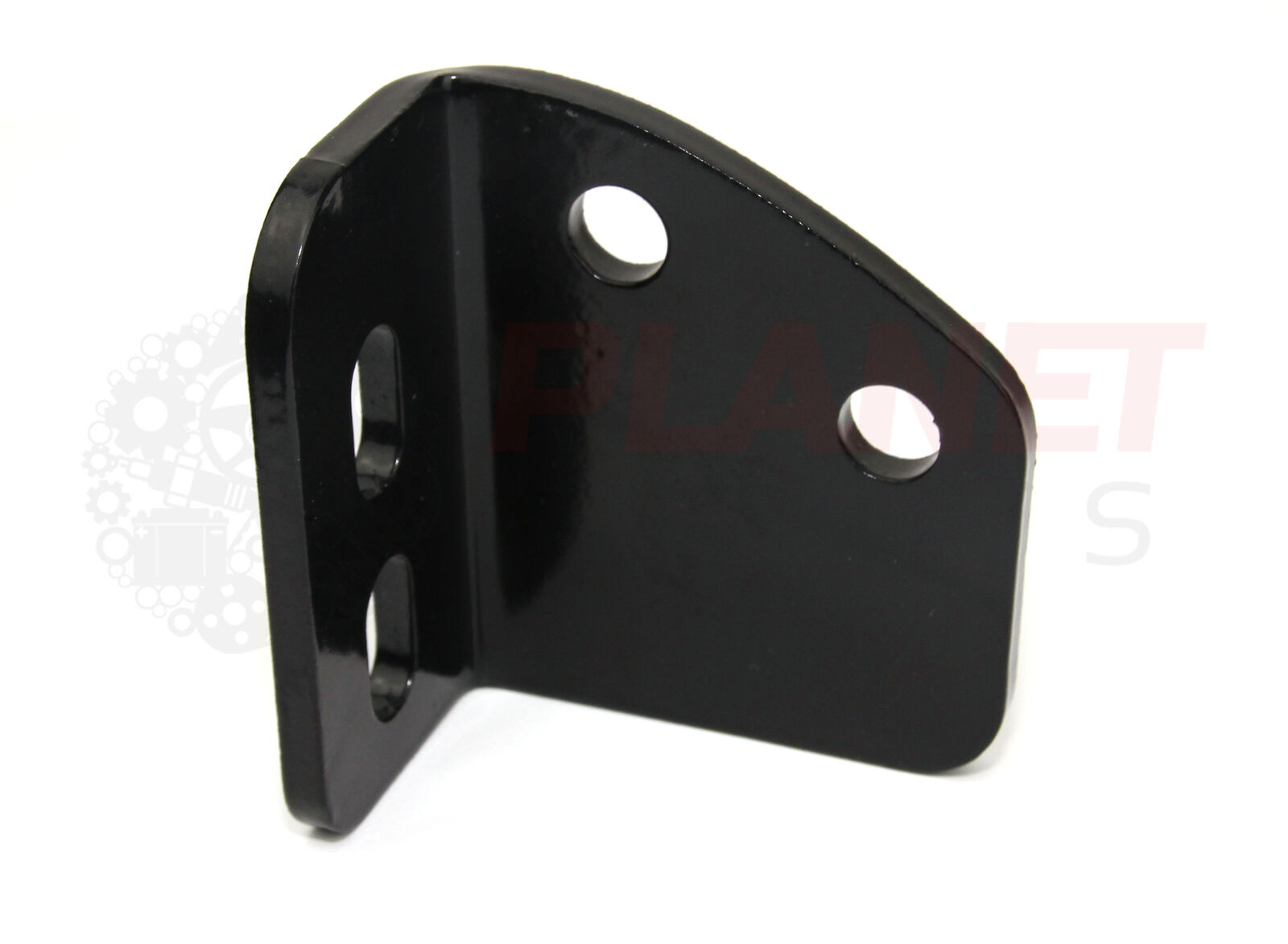

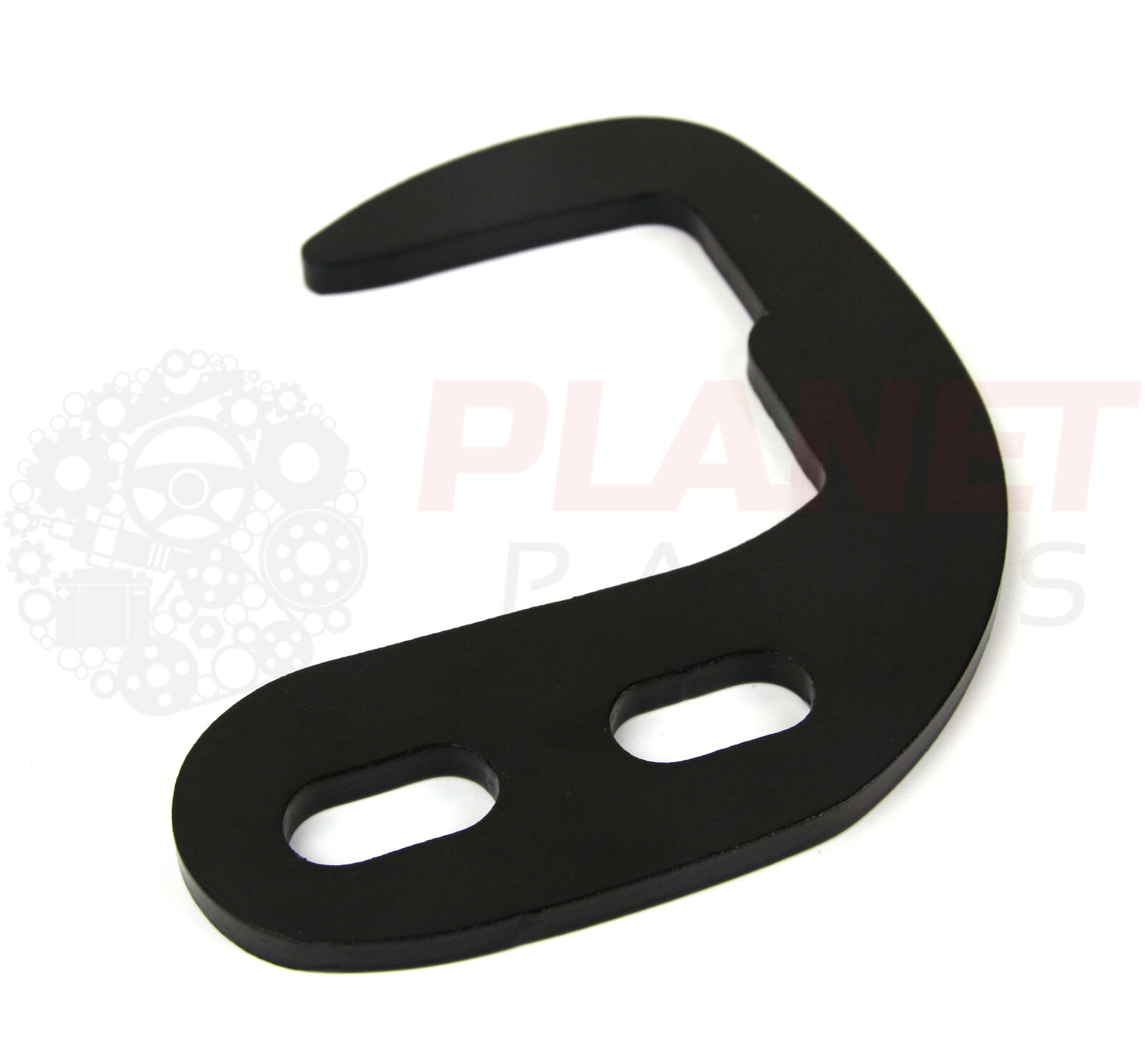

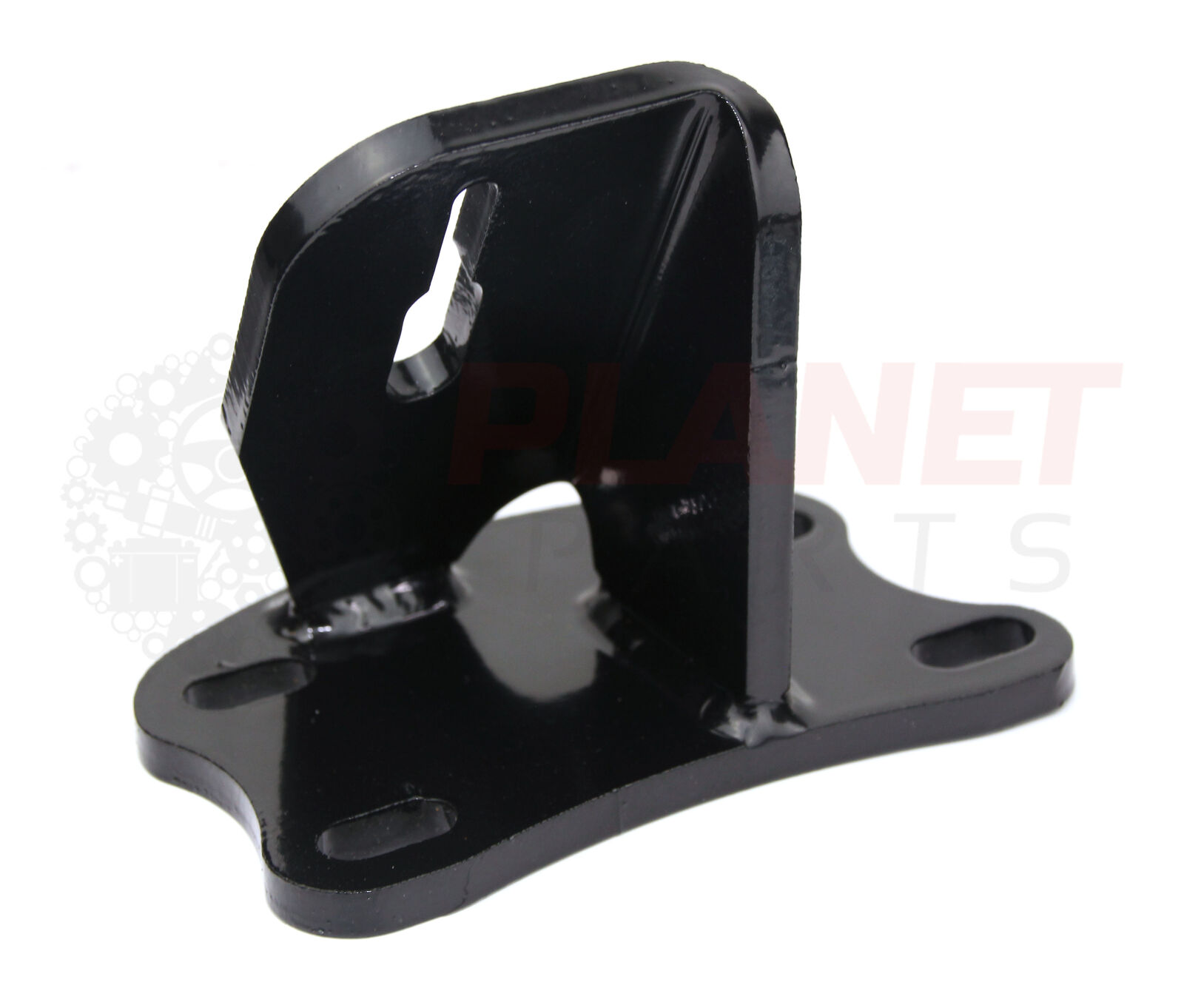

Planet Parts’ Barra BOLT-IN engine mount brackets allows you to install a Ford Falcon BARRA 4.0L Engine (Turbo or N/A) into Nissan GU Patrol with factory TD42, TB45 or TB48 engines. Can also fit GQ Patrol Models with TD42 or TB42 chassis but MUST have the 4-bolt engine mounts. GQ models will require GU TD42 engine mounts.
All our engine mounts come in a black powder-coated finish to ensure they won’t rust once installed.
Please note: Additional parts are still required to complete the conversion. This kit is supplied with the parts required to bolt-on the motor only.

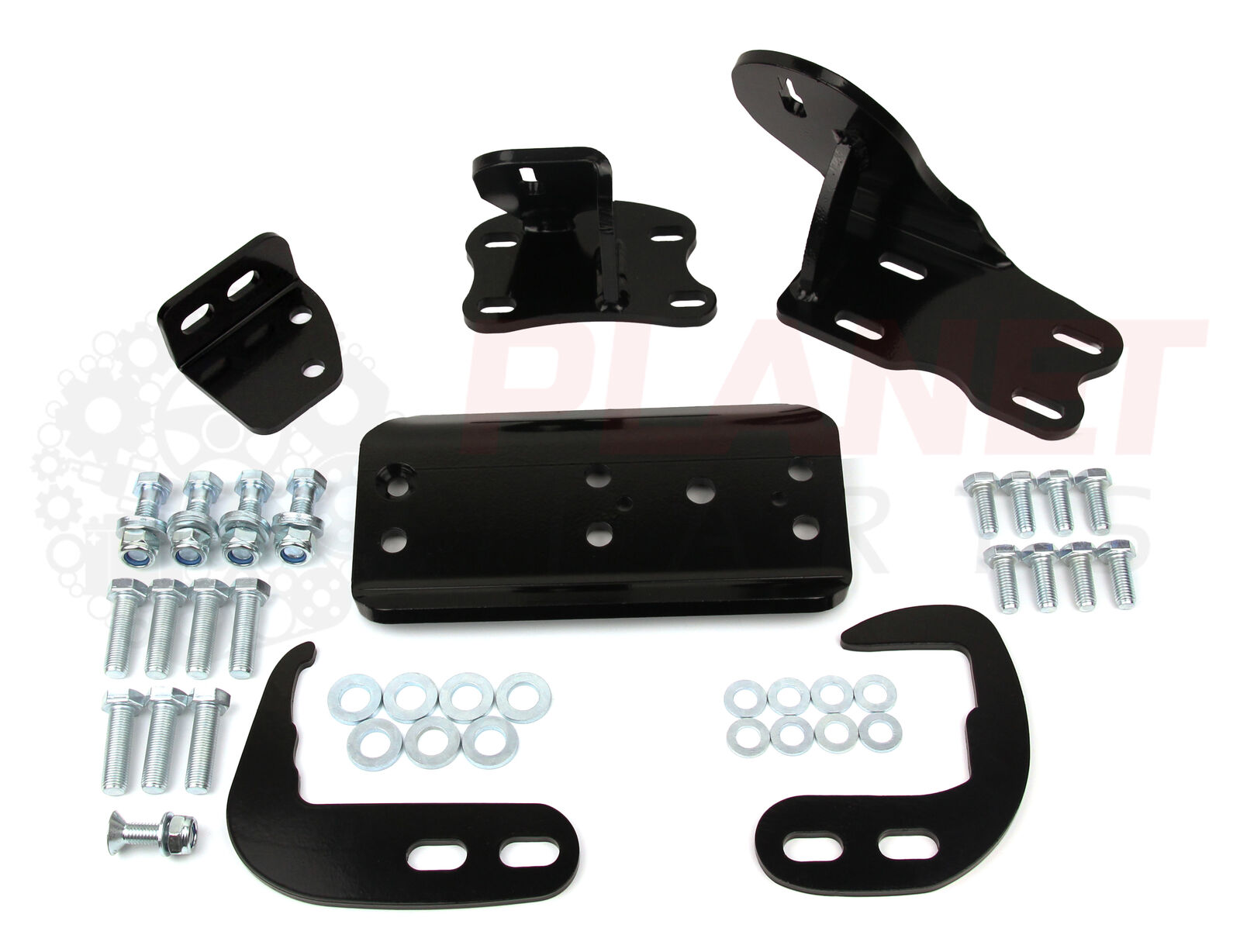

What’s included:

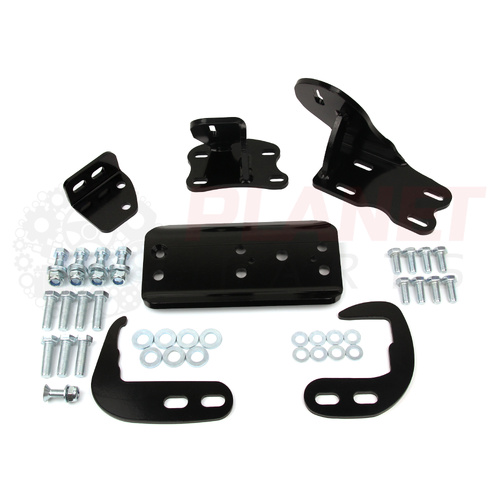

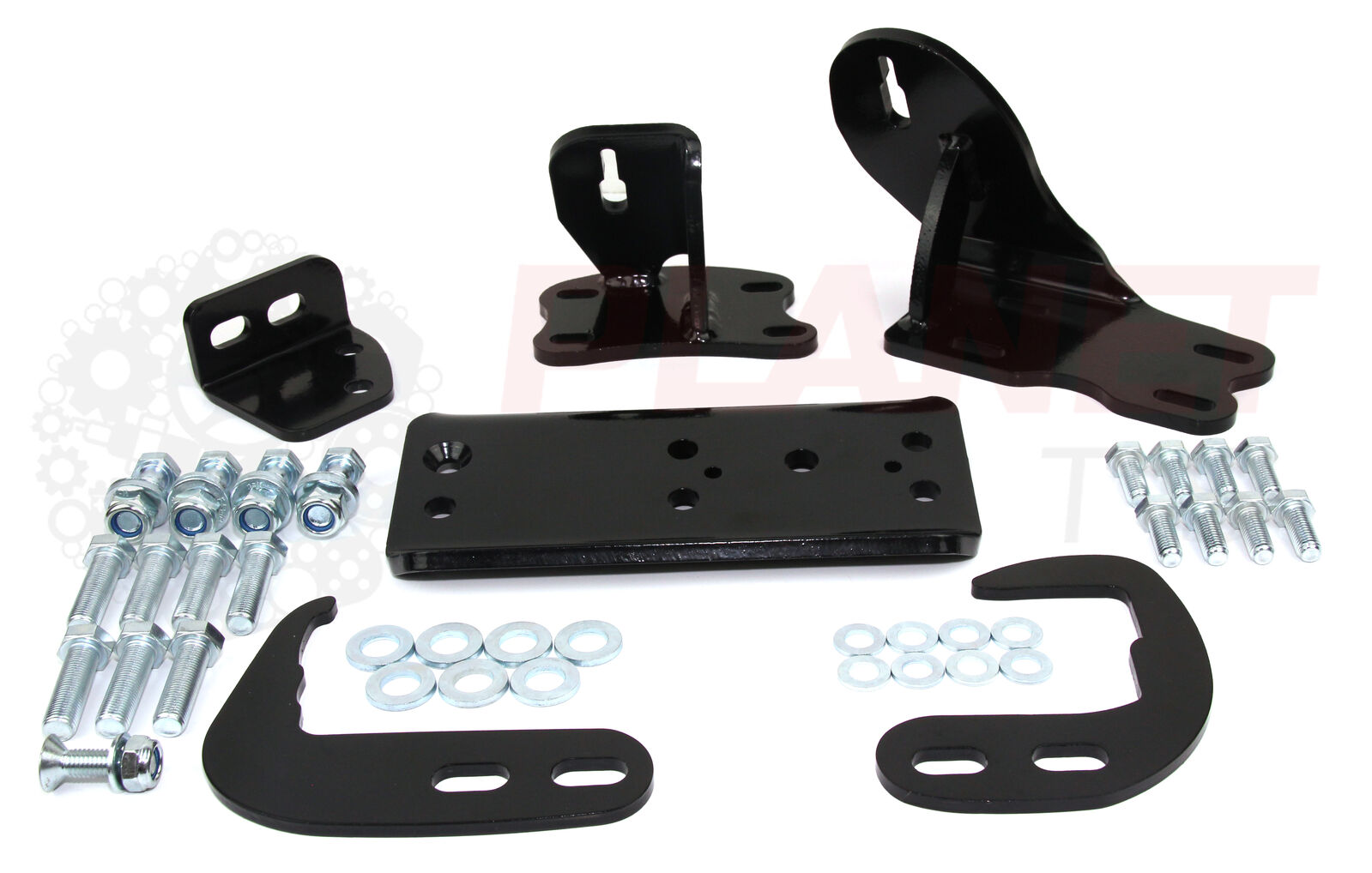

1x Set of Conversion Engine Mount Brackets
1x All high-tensile bolts & washers required
Installation notes:
If you are looking to run the Ford Falcon ZF 6-Speed transmission, please click here to view our transmission adaptor kit. You’ll also need a ZD30 manual crossmember and ZD30 RE4 AUTO Driveshaft.
If you are looking to run the Patrol 5-Speed Manual Gearbox, you will need to purchase a bellhousing adaptor. Unfortunately we don't currently stock the bellhousing adaptors, but they are readily available from other parts suppliers. Use a ZD30 auto crossmember and ZD30 RE4 AUTO Driveshaft.
You will need to relocate your alternator higher as it will not fit between the engine and chassis.
You will need to relocate your oil filter as the factory barra oil filter will not fit between the LHS engine mount. We also sell the appropriate oil filter relocation block separately.
For BA Engines with Z9 oil filter: www.planetparts.com.au/billet-aluminium-remote-oil-filter-adaptor-for-3-4
For BF-FGX Engines with Z516 oil filter: www.planetparts.com.au/billet-aluminium-remote-oil-filter-adaptor-for-22m
Specifications
SKU | BCKP-05 |
Brand | Planet Parts |
Shipping Weight | 4.0000kg |
Shipping Width | 0.250m |
Shipping Height | 0.200m |
Shipping Length | 0.250m |
Shipping Cubic | 0.012500000m3 |
