ZF 6HP26 to Nissan Patrol Transfer Case Adaptor KIT suit GQ GU ZD30 Crossmember & Driveshafts
Description

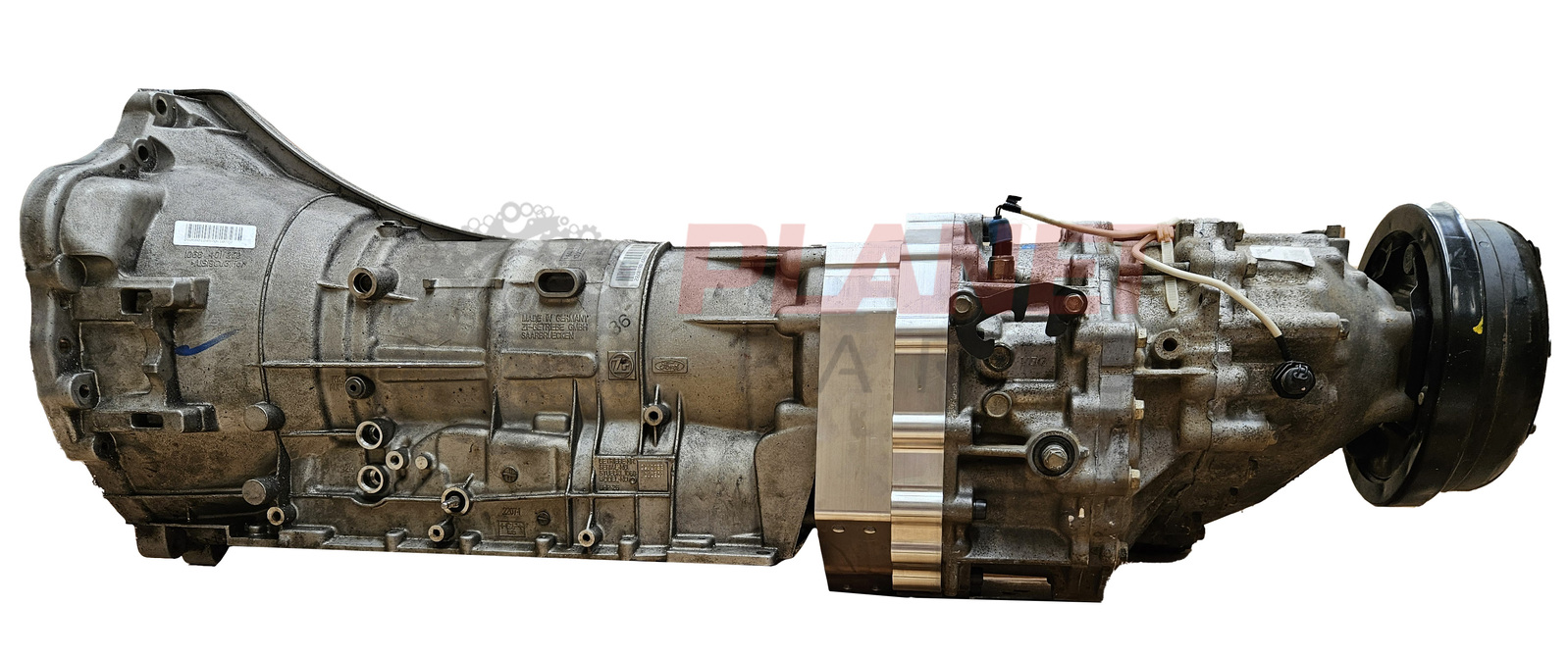

Planet Parts’ Transmission Adaptor Conversion kit allows you to install a Ford Falcon/Territory ZF 6HP26 2WD transmission into a Nissan Patrol Transfer Case.
This adaptor is commonly used in BARRA Patrol conversions as you can use a complete BF/FG/FGX 6-Cyl Engine and Transmission into a Patrol conversion.
It is recommended to use a Manual ZD30 Crossmember & Auto Driveshaft as it eliminates the need for a custom driveshaft length. This adaptor will suit all Nissan Patrol Transfer Cases.
This adaptor is designed to work with our bolt-in BARRA Patrol engine mounts available here.
The large adaptor plate is manufactured from billet 6061 aluminium and machine polished. Our crossmembers mounts are powder-coated black and are supplied with SuperPro polyurethane bushes. The input shaft is manufactured from billet 40CR steel and then heat-treated, which we have found to be more than enough to handle applications up to 600kw. However for those chasing more power, we will have a shaft for high-HP applications available shortly.

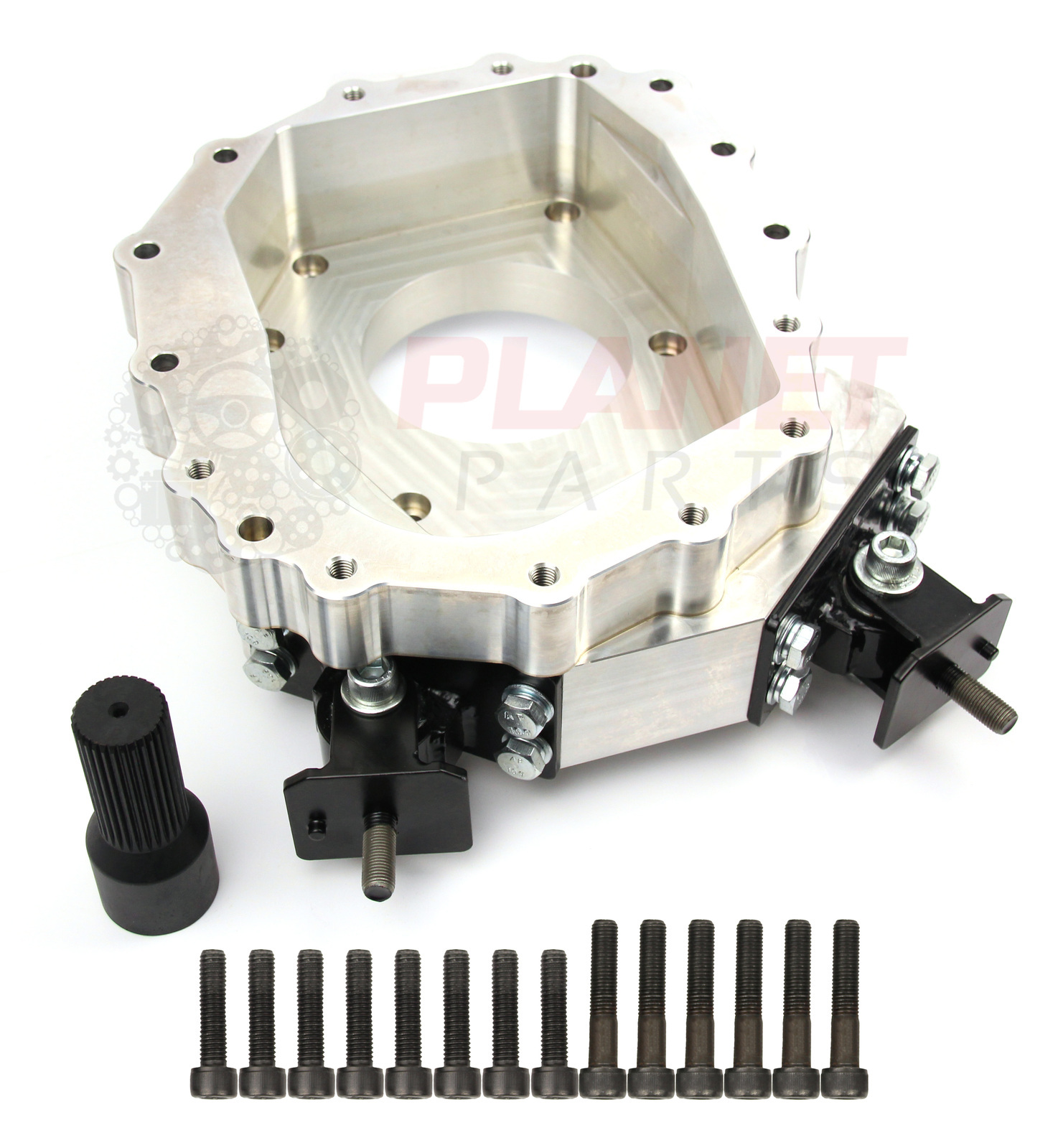

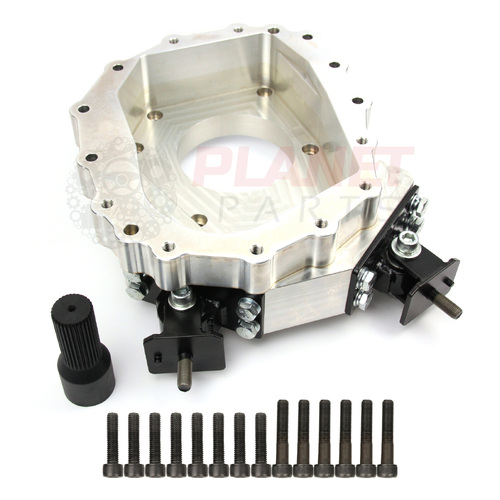

What’s included:

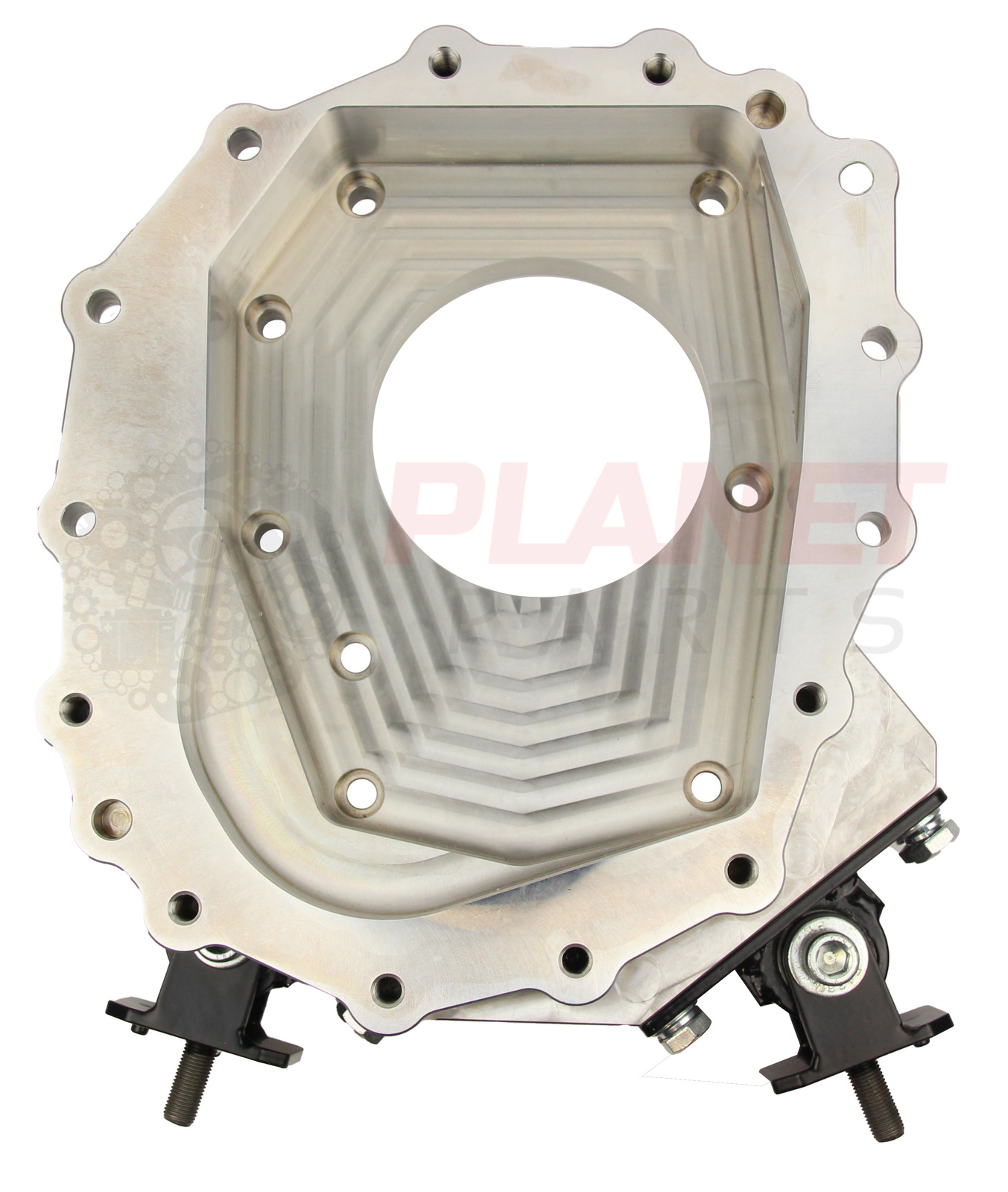

1x Billet 6061 Aluminium Adaptor Plate

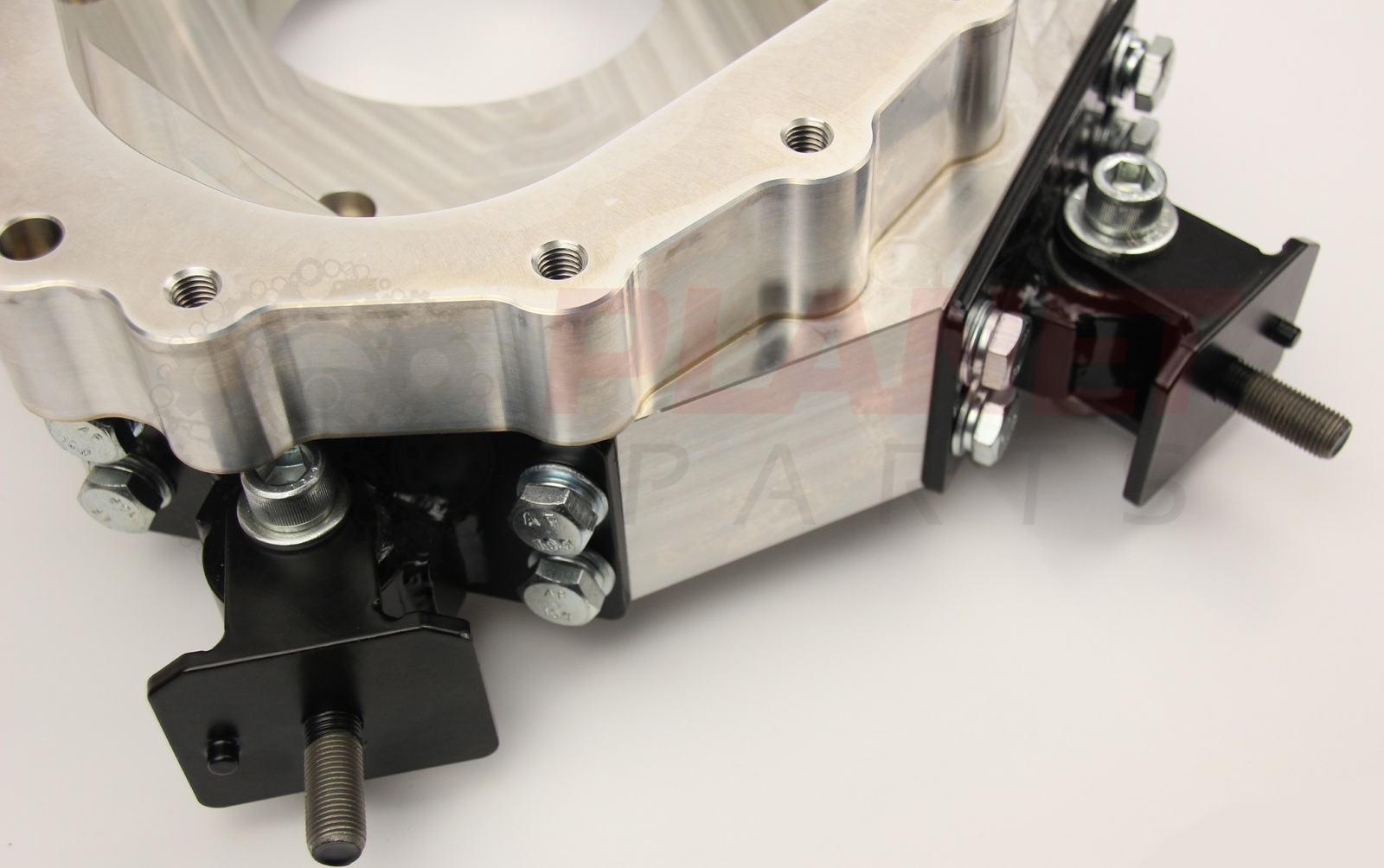

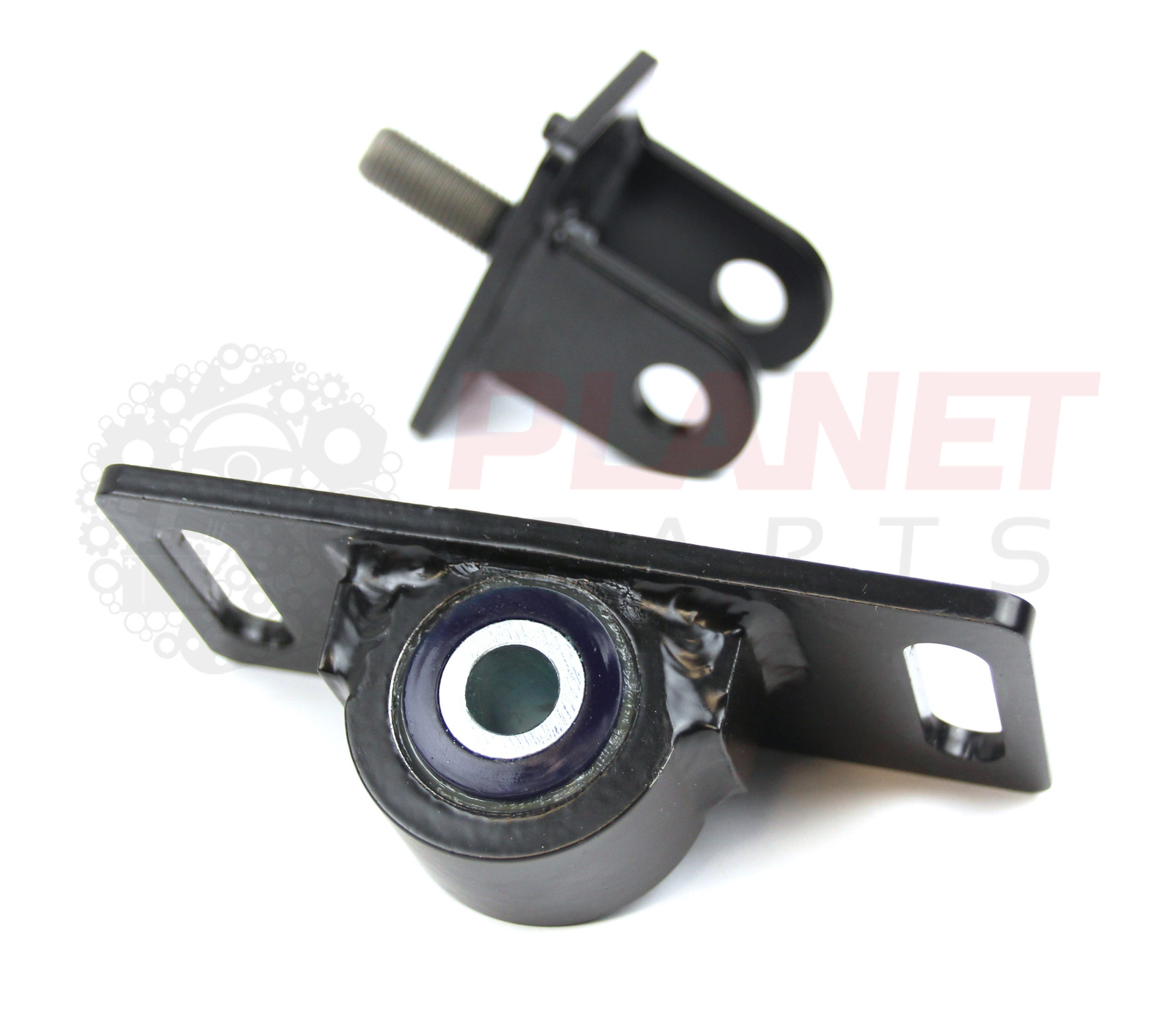

1x Pair of Crossmember mounts with brand new SuperPro polyurethane bushes pre-installed

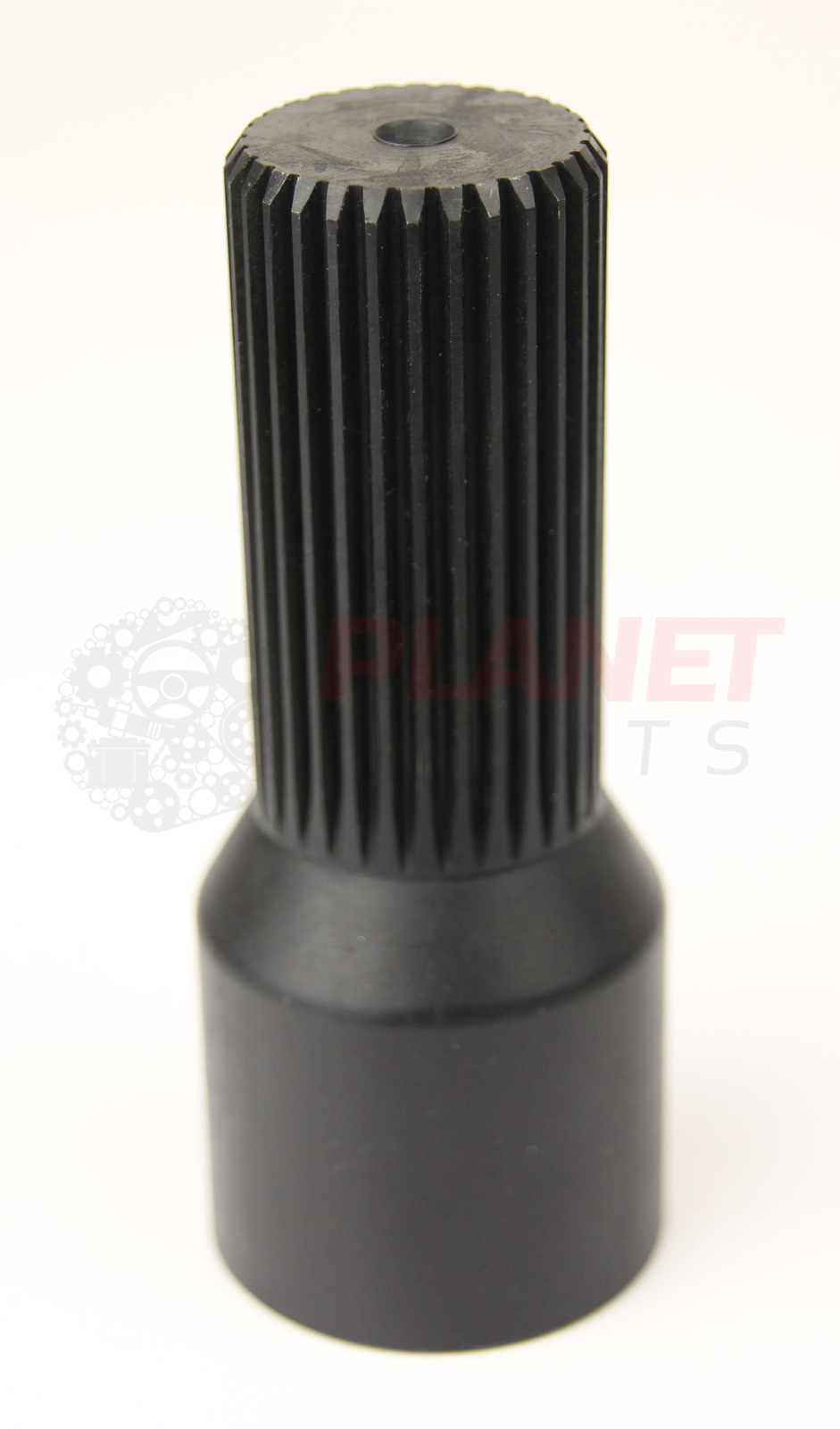

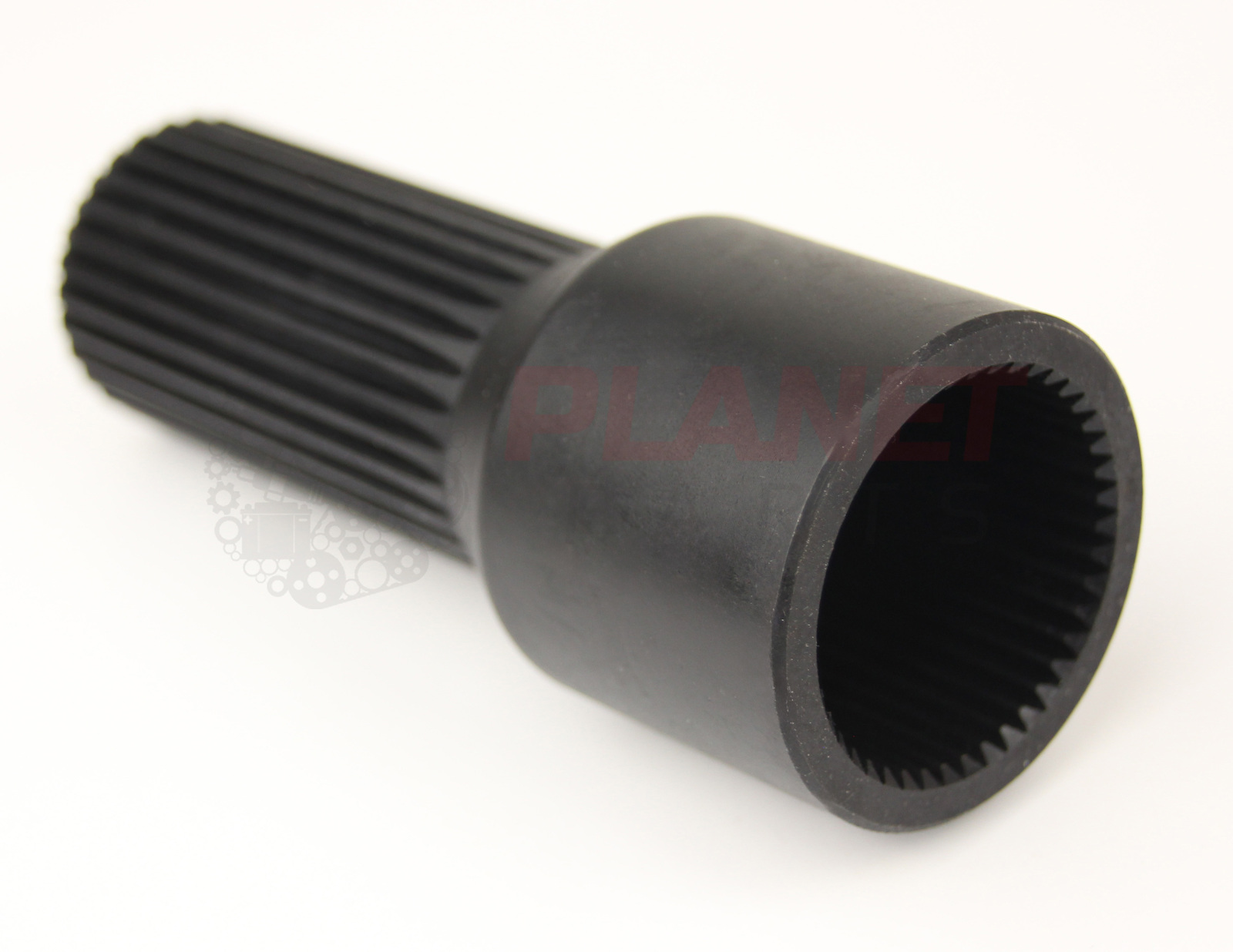

1x Brand New Input Shaft Adaptor
1x All high-tensile bolts, nuts & washers required
Installation notes:
Will NOT suit ZF6 Transmissions built in China. Will only suit the ZF models built in Germany.
Can be used in GQ & GU Patrol applications.
Can be fitted to Auto ZD Crossmembers, however you'll have a tighter diff-to-sump clearance.
You will need to tap/thread the mounting holes on the ZF transmission for it to mount up to our adaptor plate (M10 x 1.5).
Will NOT suit ZF6 AWD Transmissions
Specifications
SKU | BCKP-03 |
Brand | Planet Parts |
Shipping Weight | 8.0000kg |
Shipping Width | 0.600m |
Shipping Height | 0.300m |
Shipping Length | 0.500m |
Shipping Cubic | 0.090000000m3 |
