Description

⚠️ PRE-ORDER NOW OPEN ⚠️

STOCK ARRIVES LATE JUNE 2026

Secure your spot in our upcoming production batch of the Planet Parts HIGH VOLUME ZF Transmission Alloy Oil Pans.

Please note this is a pre-order item. Unlike many businesses, we do not open pre-orders until materials have been purchased and production has already commenced on the batch. Your order secures a position in an active production run - not funding a future one. Pricing is locked in at the time of purchase with no surprise increases later.

All delivery dates are estimates only and delays can occasionally occur due to manufacturing or freight circumstances outside of our control. If your build is time-sensitive, please contact us prior to ordering for the latest production update.

We also never refuse reasonable pre-order cancellations or refund requests. If plans change, simply get in touch and we’ll sort it out.

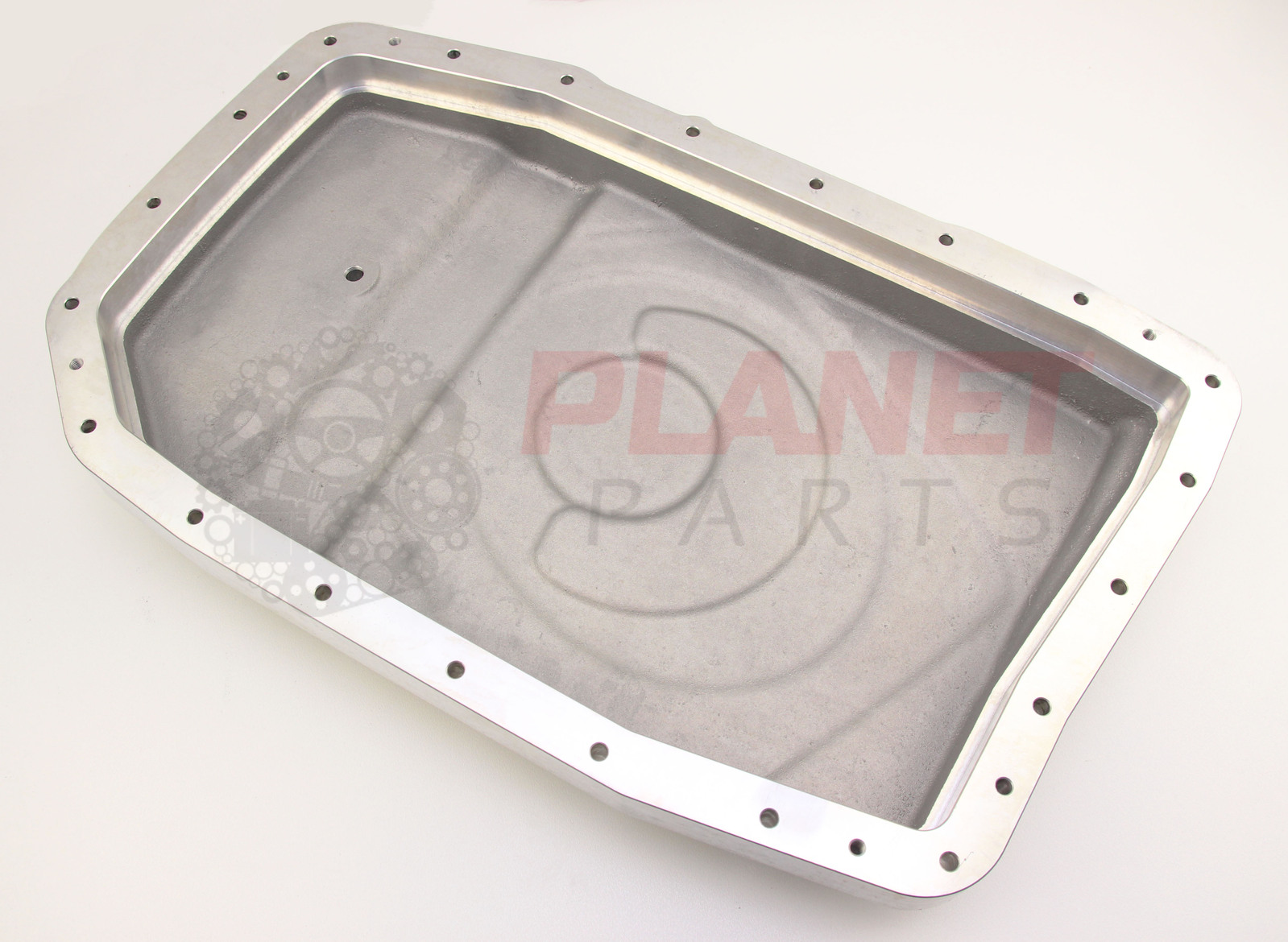

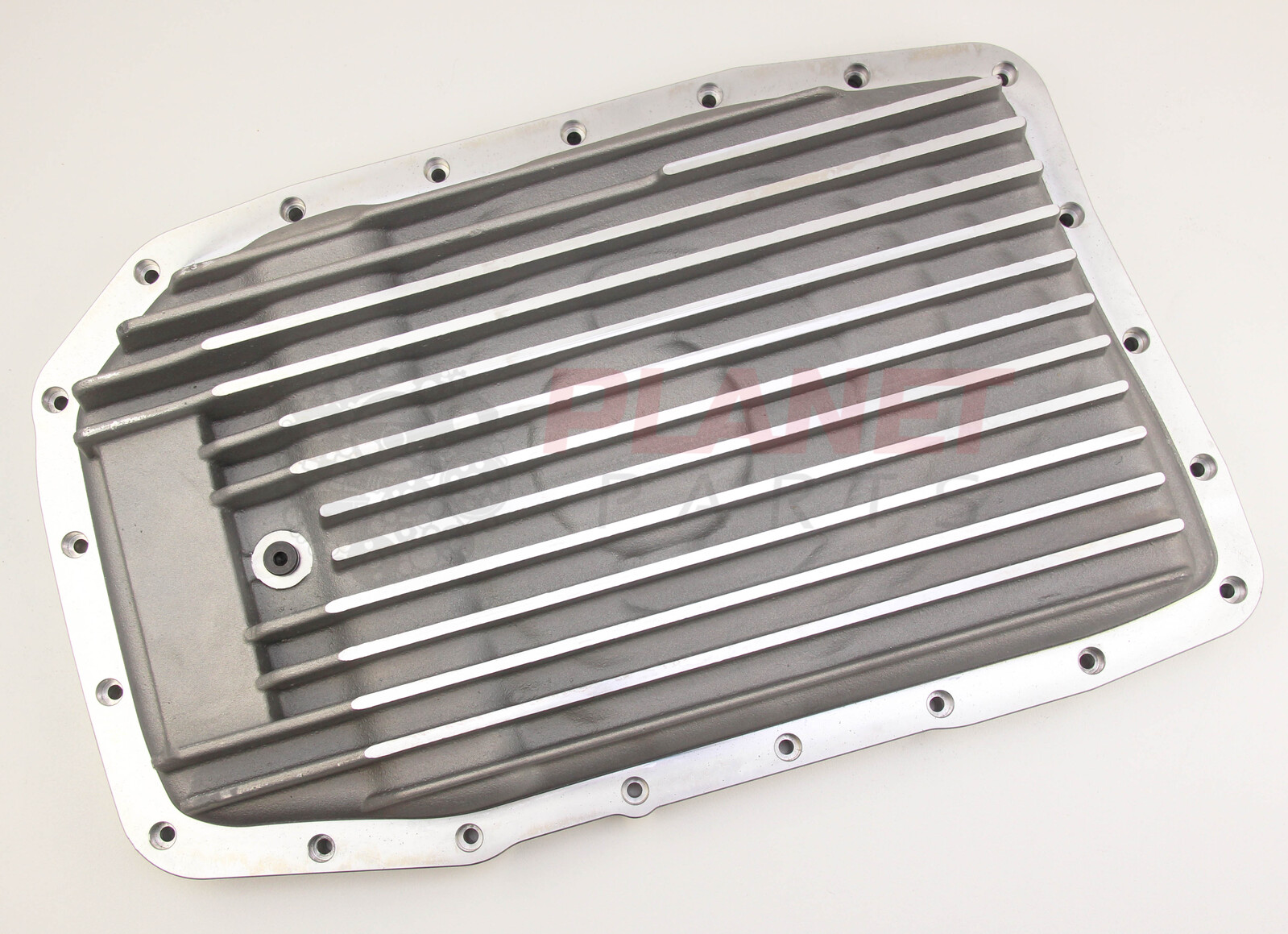

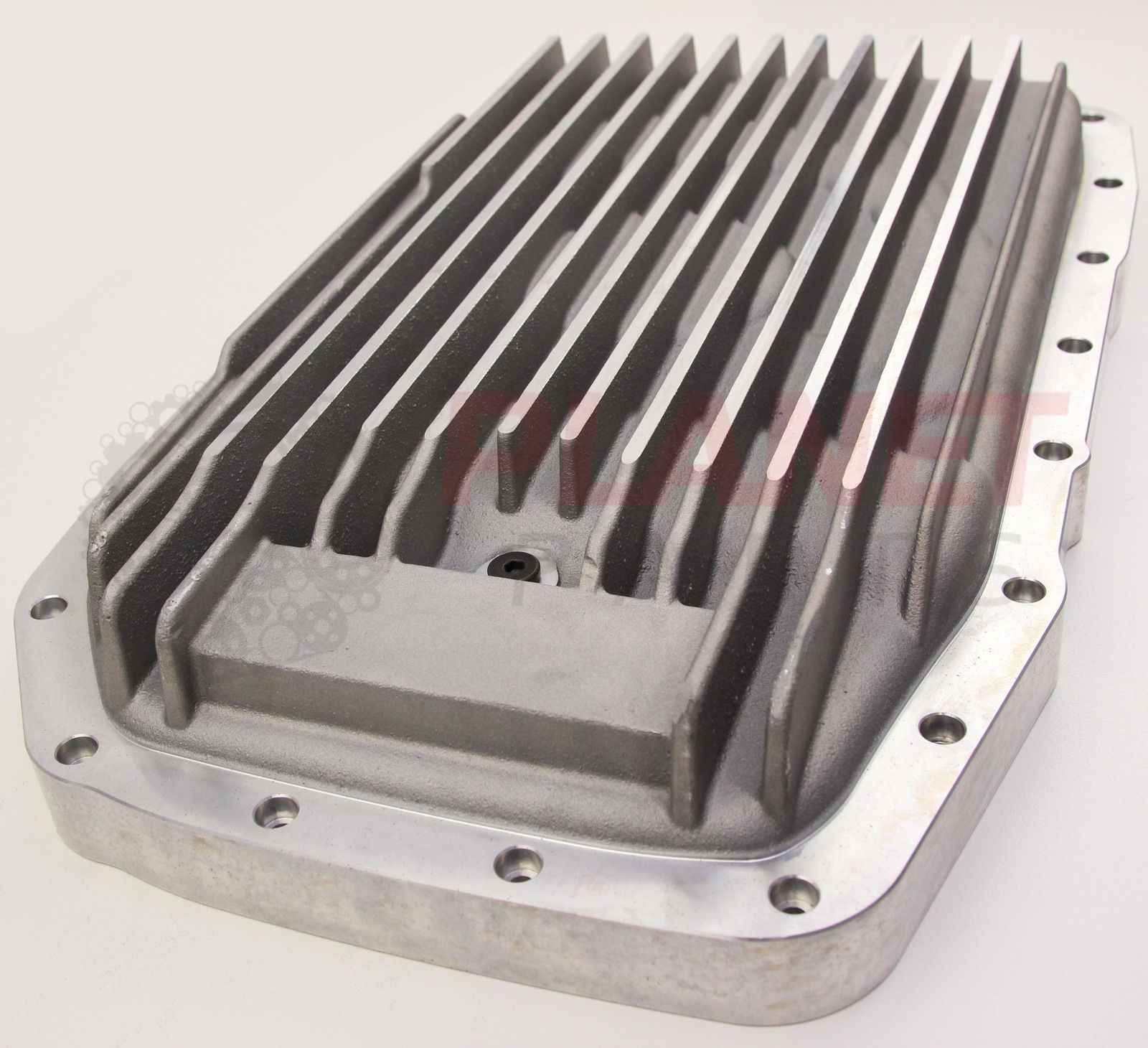

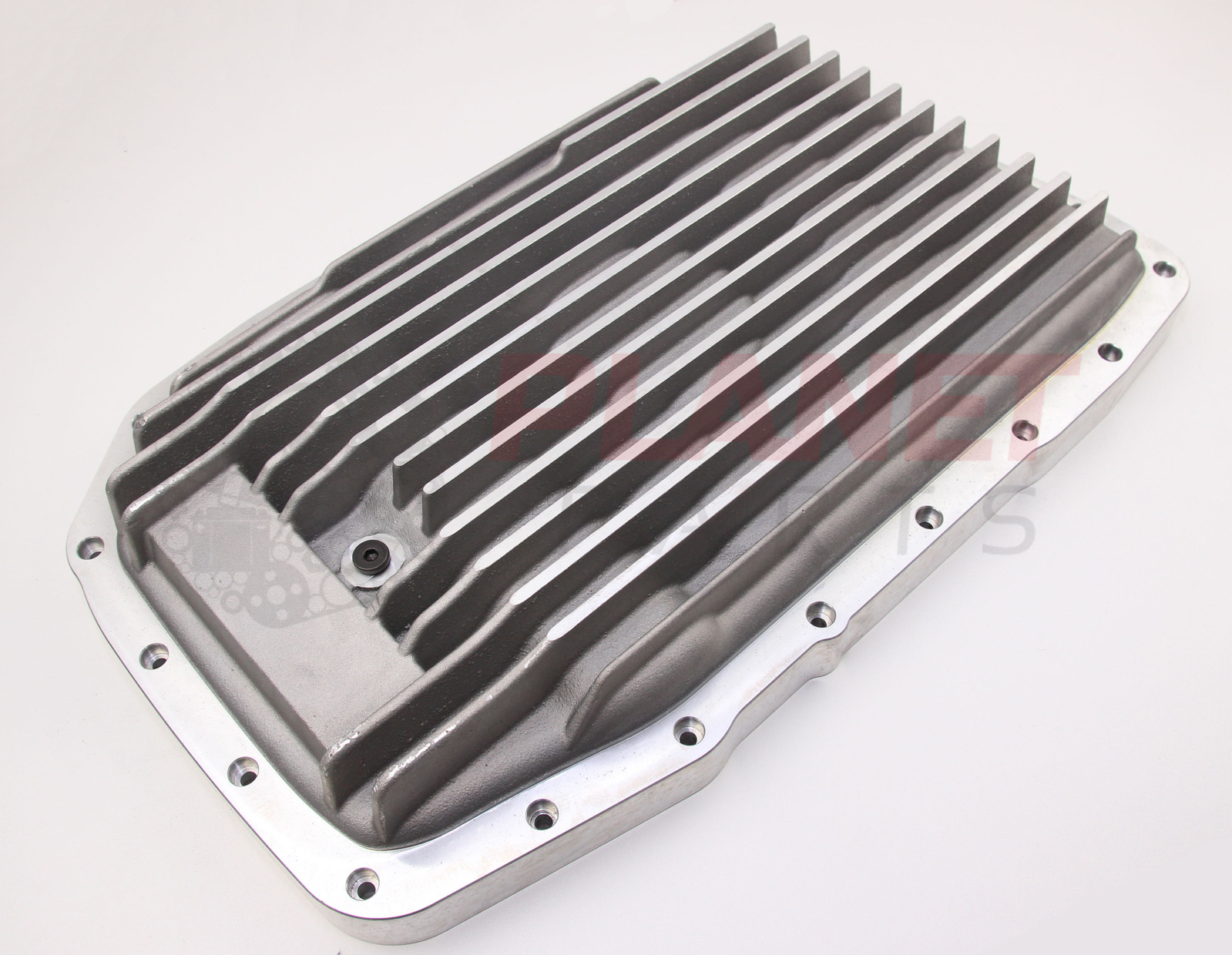

The Planet Parts High-Volume Alloy Transmission Oil Pan is a must-have for any ZF 6-Speed Transmission. Our 20mm deeper design holds an additional 3 litres more fluid. With the combination of the additional fluid and our cooling fins, we’ve seen transmission oil temperature get between 15 and 25 degrees COOLER than the factory setup. As the filter we supply has a longer pickup neck than the factory Ford filters, it allows the transmission to pick up the coldest oil right at the base of the pan.

The filter used in this kit is readily available from all major parts retailers, making servicing your transmission easy & affordable. (Replacement part numbers: Western Filters: WCTK199, RYCO: RTK182, or filters to suit AUDI Q5 models with a ZF transmission)

Benefits:

Additional Fluid helps reduce oil temperature.

Cooling Fins help pull heat away from the oil.

Manufactured from Cast Alloy.

Cheaper than purchasing a separate transmission oil cooler, with similar benefits.

Extends the life of your transmission.

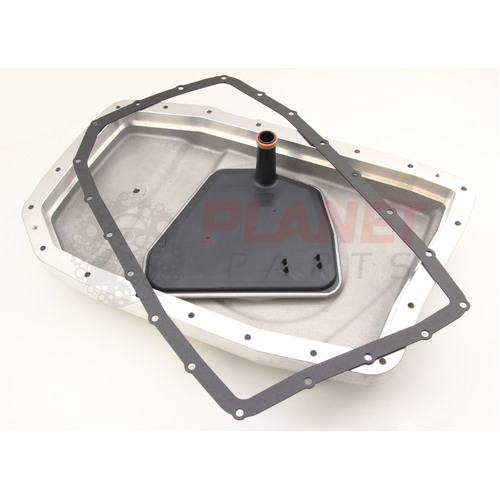

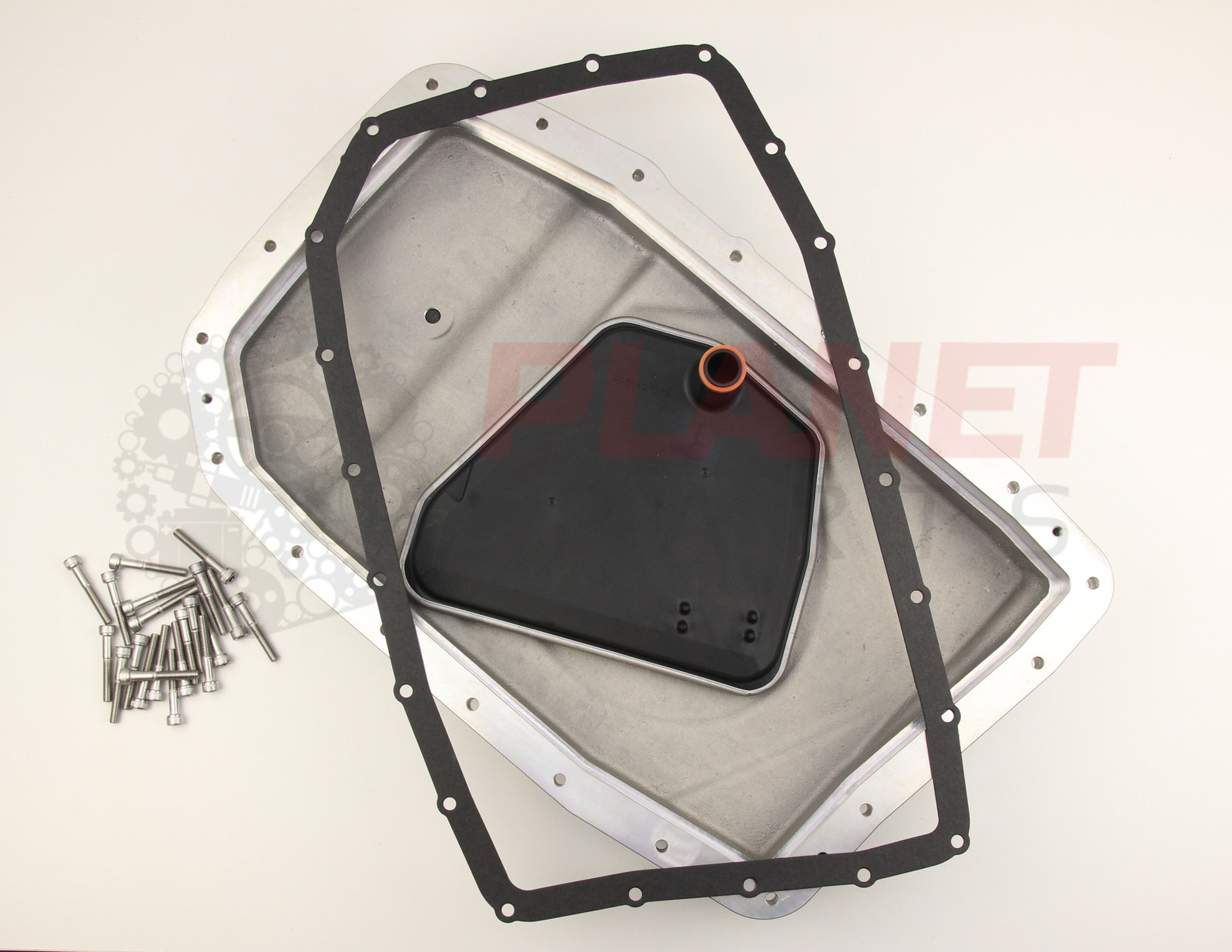

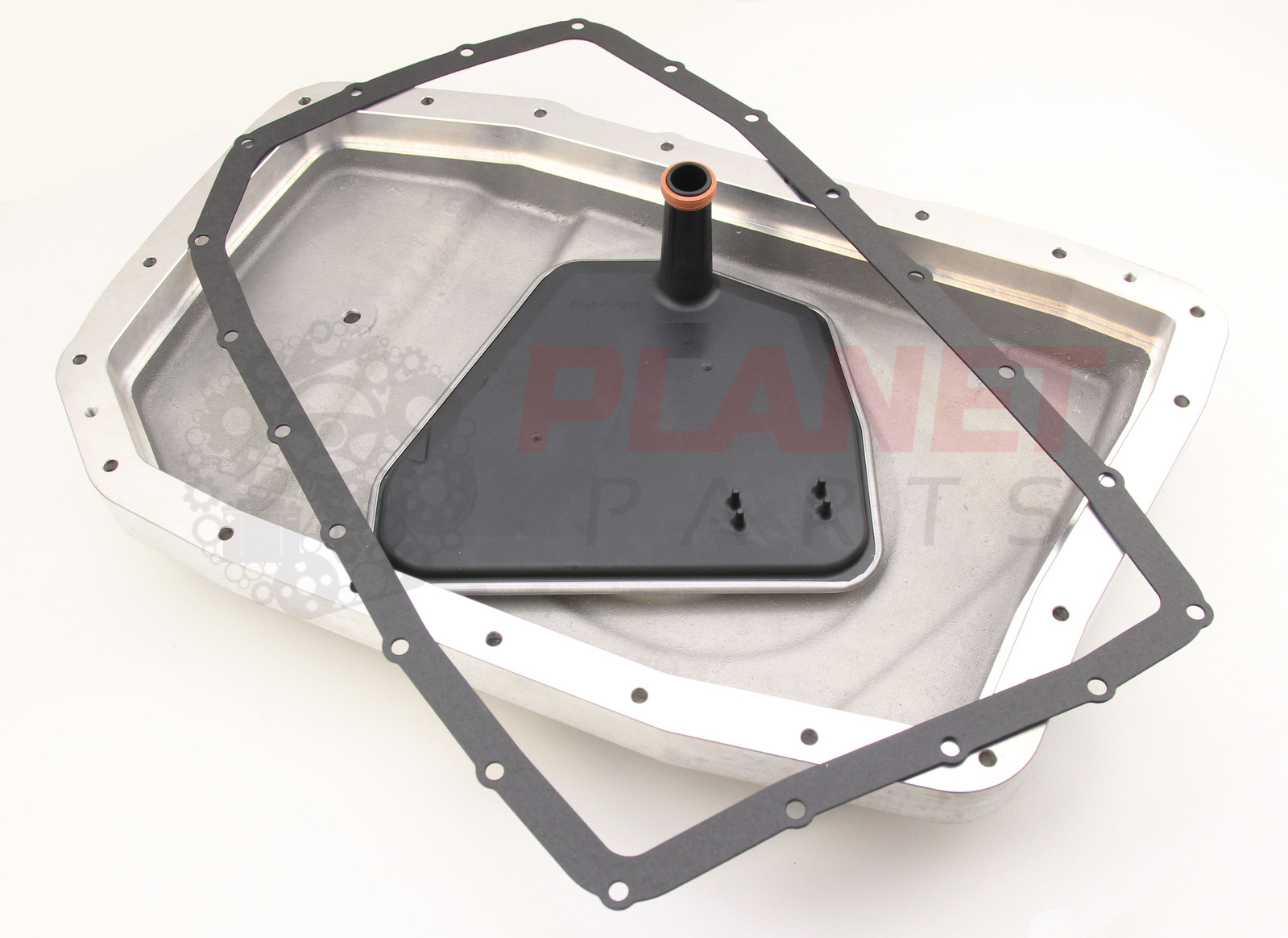

Package Includes:

1x High-Volume Oil Sump

1x ZF Transmission Oil Filter

1x Neoprene Gasket

21x High Tensile Fitting Bolts

Installation Notes:

Can be installed on any 6-Speed ZF Transmission (including ZF 6HP26 & ZF 6HP19). Will not fit 8-Speed ZF Transmissions.

Specifications

SKU	TP410
Brand	Planet Parts
Shipping Weight	3.0000kg
Shipping Width	0.200m
Shipping Height	0.200m
Shipping Length	0.200m
Shipping Cubic	0.008000000m3
