Ford Falcon BA BF FG FGX BARRA Performance Valve Springs & Valve Spring Compressor/Removal Tool


More info.

Make 4 payments of $103.75 over 8 weeks and get it now!

In Stock

Calculate Shipping

In Store Pick-Up - $0.00
Please email or call us to book a time to collect your order.

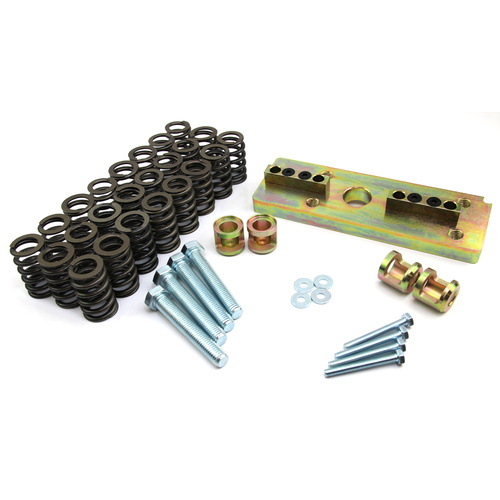

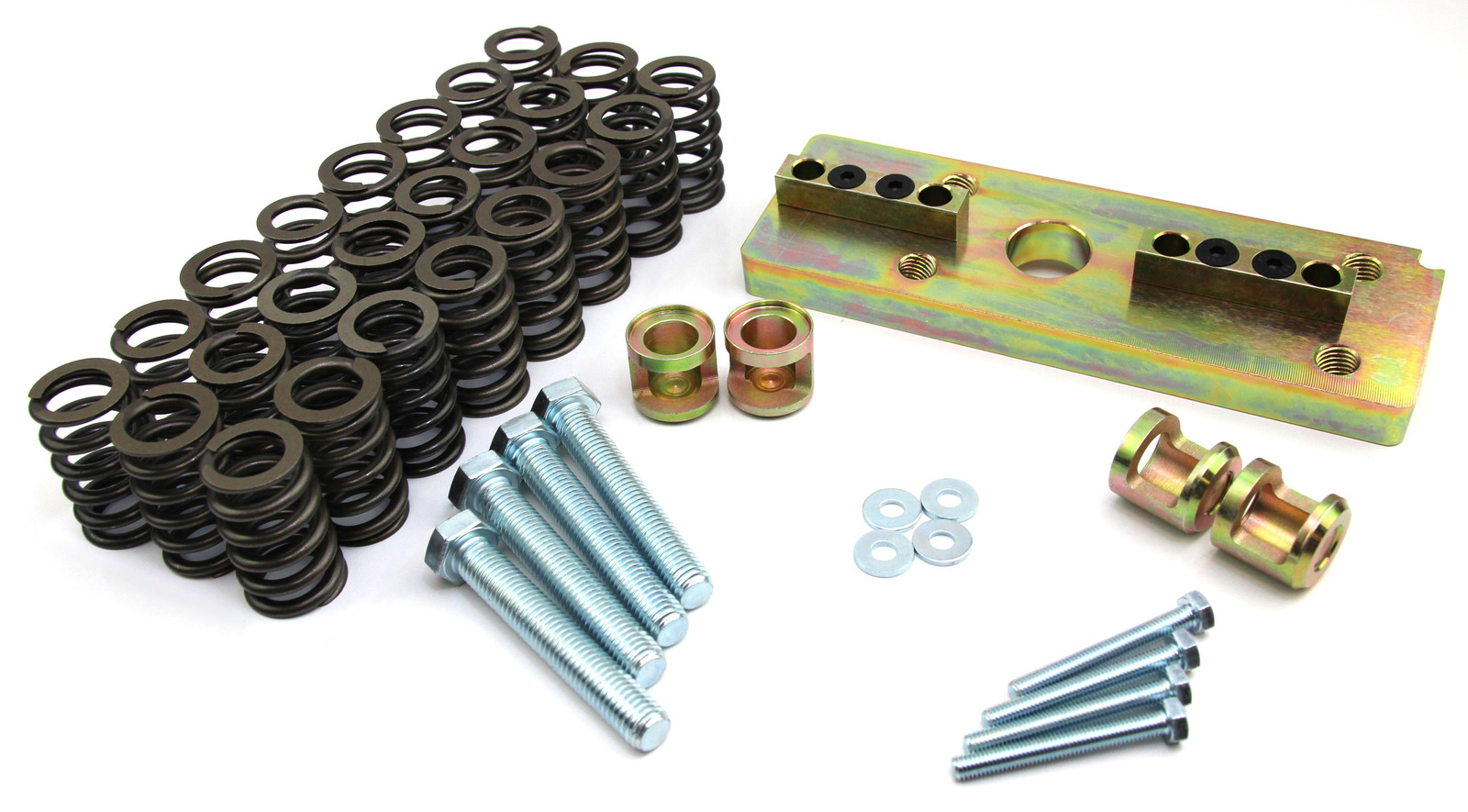

** Package Deal! This listing is for one set of our performance valve springs and our valve spring removal tool **

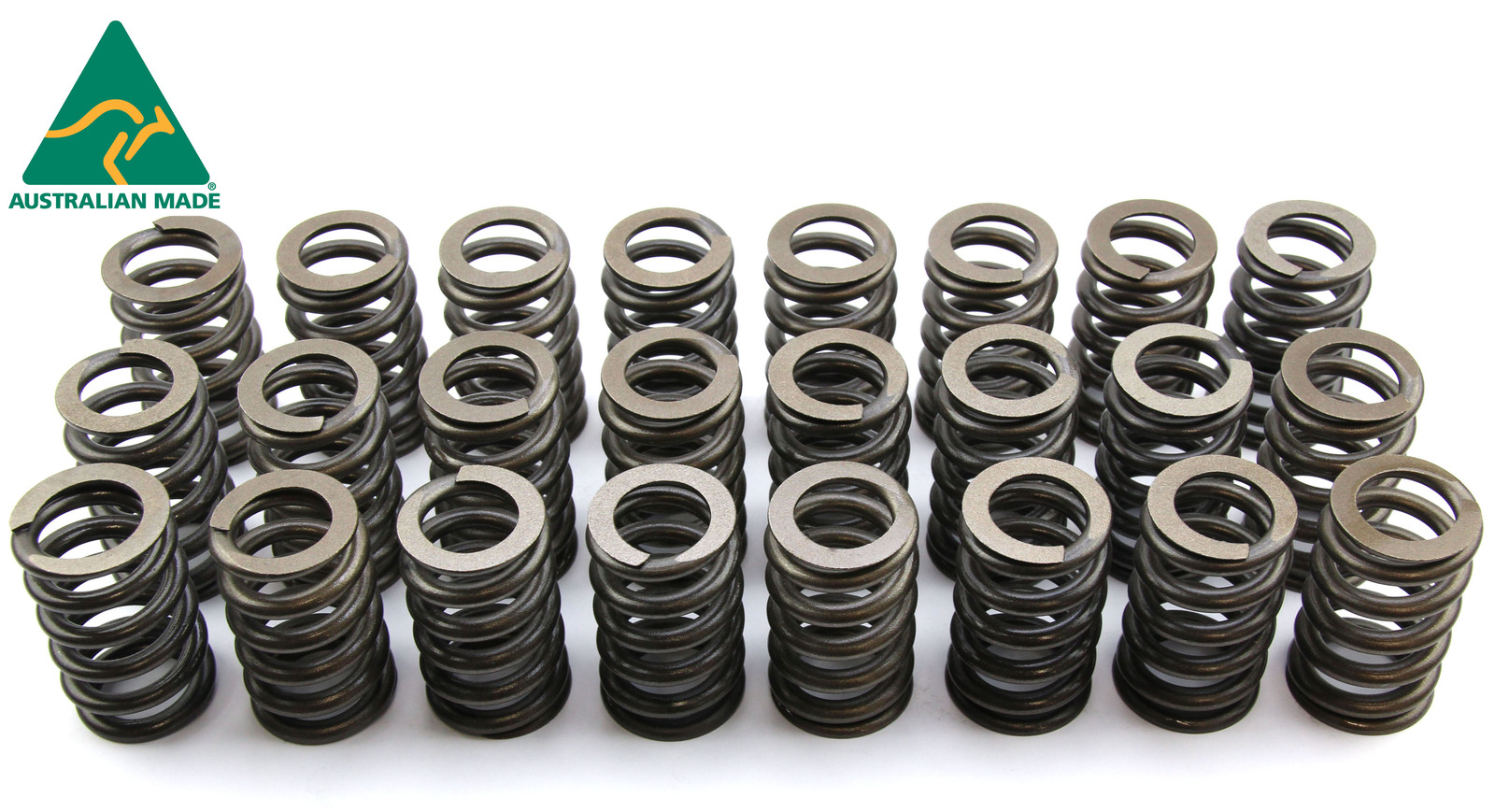

Ford Falcon BA BF FG FGX BARRA Performance Valve Springs (95Lbs seated, 235Lbs at .500 lift):


To suit:
Ford Falcon BA, BF, FG & FGX models with Barra 6-cyl engines. Including Turbo models.

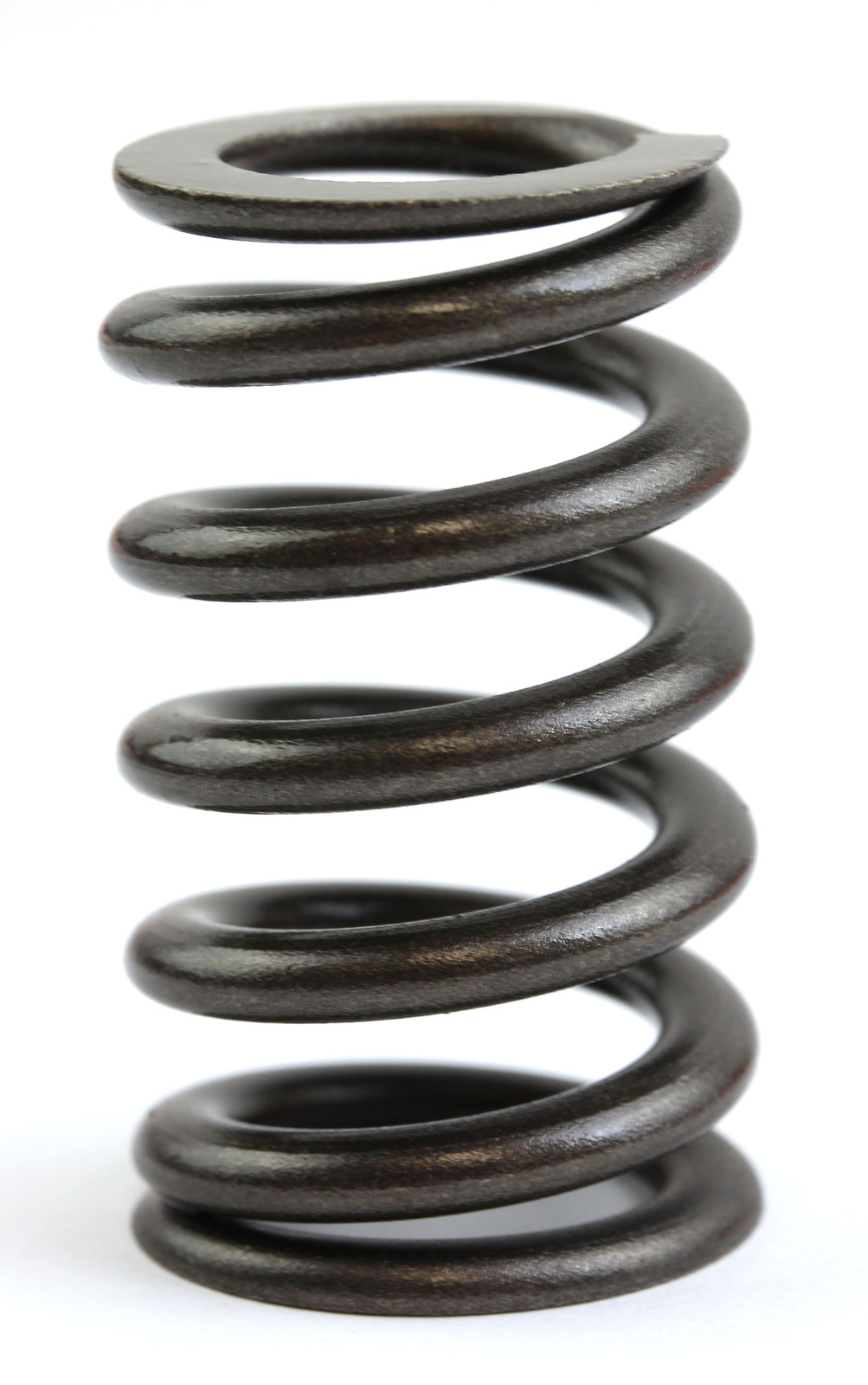

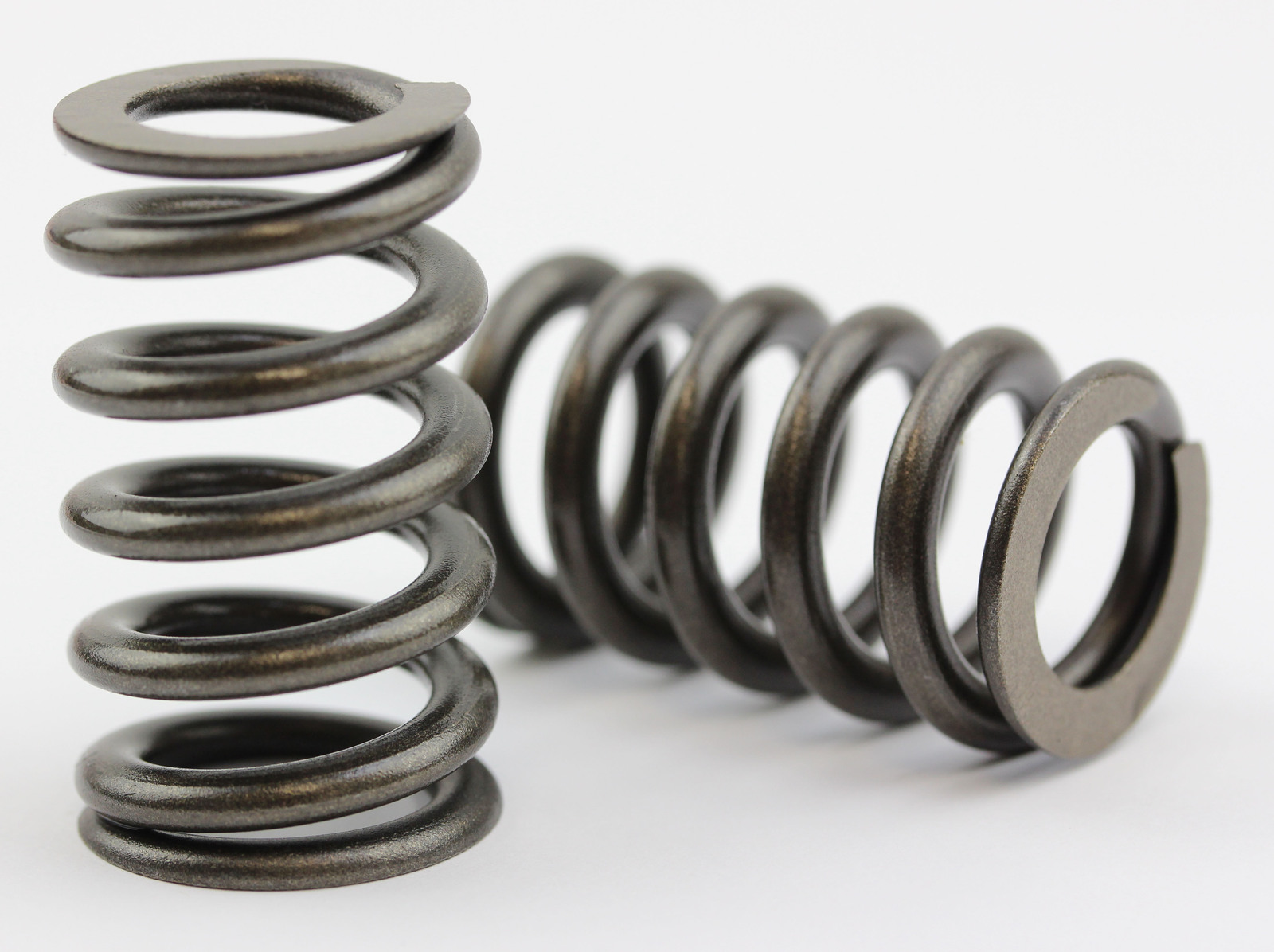

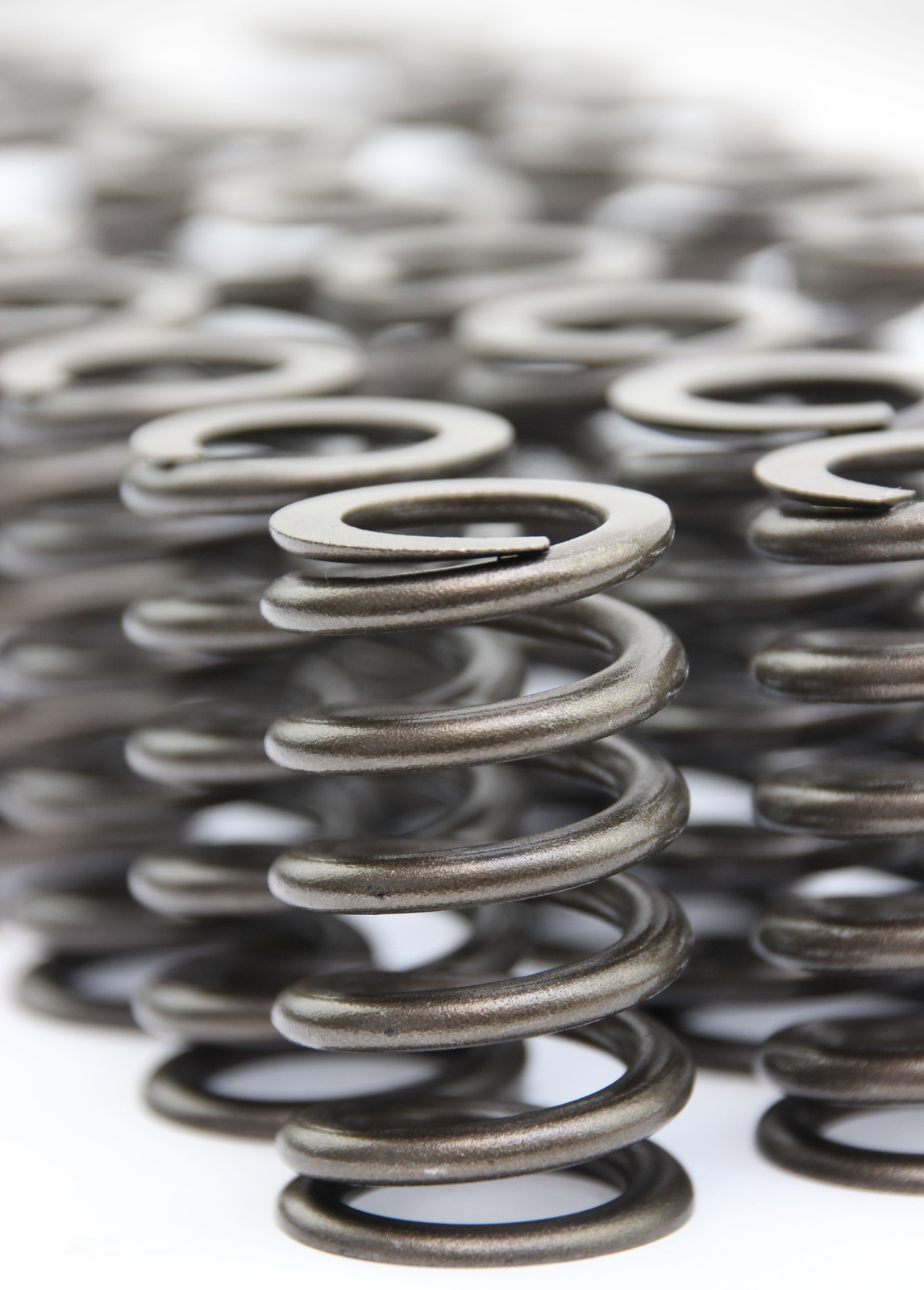

Our Performance Valve Springs are an Ovate wire spring, with 95Lbs seated tension and 235Lbs at .500 lift.

These are a MUST for engines with over 300rwkw. Our springs help eliminate valve float, which causes power loss. Valve float can also damage valve stem seals, collets and retainers.

The factory valve springs have
(approx.)  48-50psi of seat pressure. When you increase your boost, this reduces the pressure further (e.g. An additional 20psi will also reduce the seat pressure by 20psi). Adding anything above 10psi of pressure will not give enough seat pressure for the valves to remain closed at high rpms.

Our springs are a simple drop-in set up designed to work with stock retainers & locks, however we recommend using Titanium Retainers for vehicles with over 500rwkw.

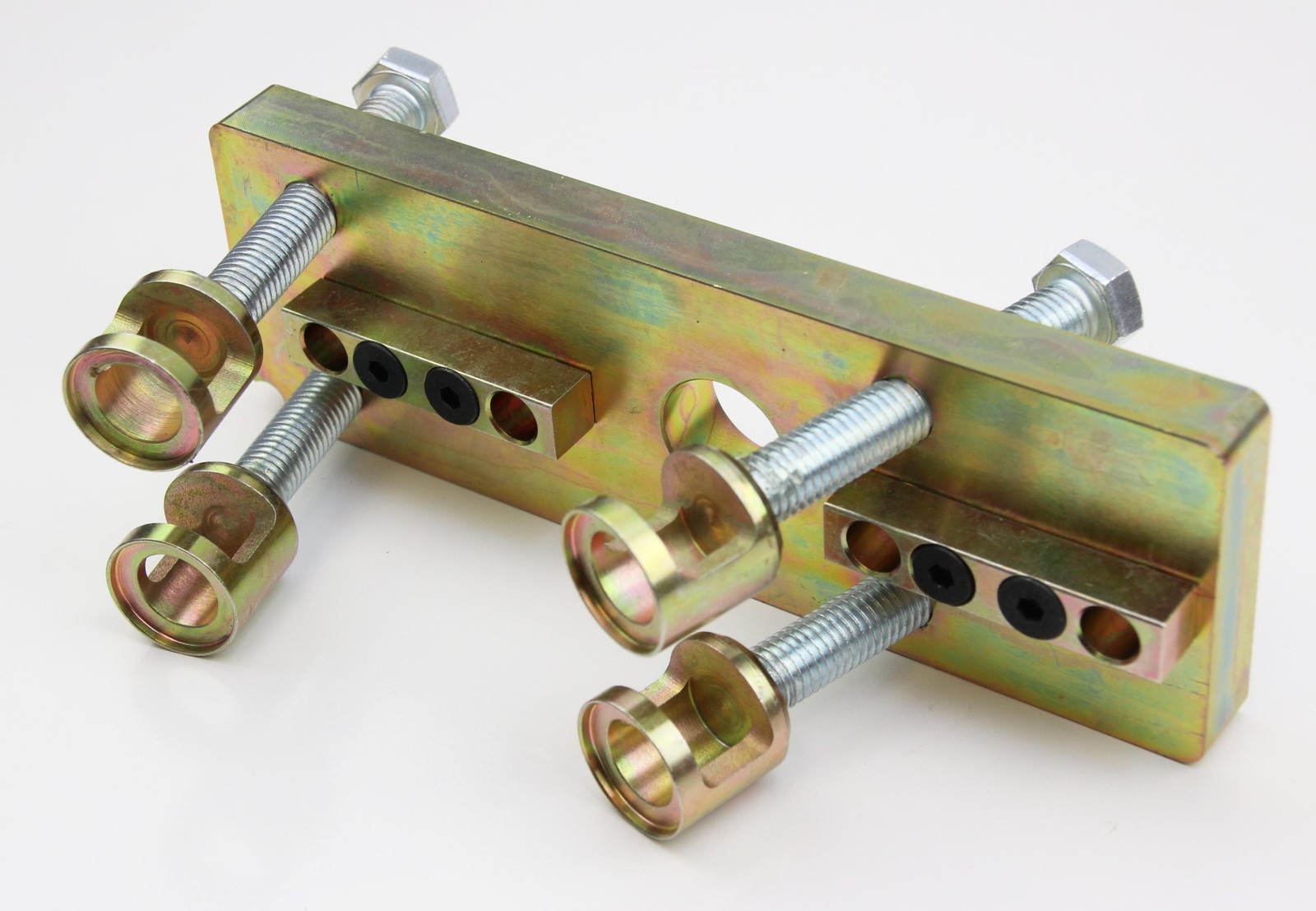

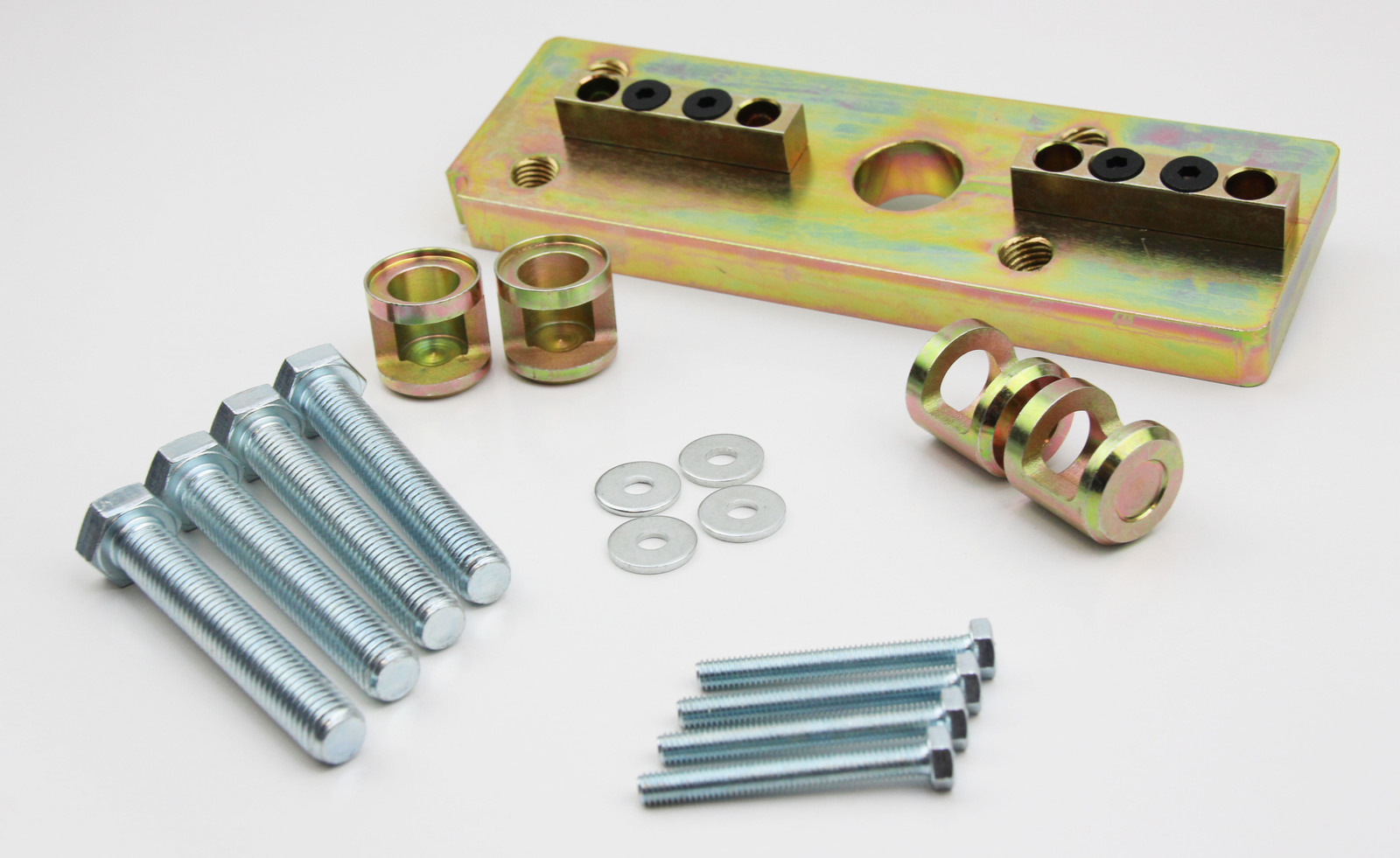

Valve Spring Compressor/Removal Tool for Ford Falcon BA BF FG DOHC 6-Cyl Barra Models (inc. Turbo):

Quick and easily remove the valve springs on any 6-Cyl BA, BF, FG & FGX Ford Falcons (including Turbo models).

This tool can also be used on any model vehicle fitted with a Falcon Barra motor.

Our tool allows you to remove and replace valve springs without having to remove the cylinder head.


Please note: The valve locks are under significate pressure, so always be cautions when using any spring compressor tool.
