Holden VT VU VX VY VZ Commodore RED Brembo Big Brake Kit 4-Piston (Rear) (Inc. Brake Pads)


More info.

Make 4 payments of $398.75 over 8 weeks and get it now!

Sold Out

Calculate Shipping

In Store Pick-Up - $0.00
Please email or call us to book a time to collect your order.


The most affordable big brake kit for VT-VZ Commodores!


  • Under 3-Hour installation time
  • All fittings included
  •  Aircraft-grade billet brackets
  • Genuine Brembo calipers



Upgrade your brakes to these MASSIVE 4-piston Rear RED Brembo calipers – a huge improvement from the factory Commodore brakes!

This brake upgrade kit has been specifically designed to suit Holden VT, VU, VX, VY & VZ Commodores. It utilises the rear Brembo calipers from VF2 Redline edition models. This means future access to affordable replacement pads and discs.

The kit is very straight-forward and easy to install by anyone familiar with brake systems and can be installed with basic hand tools in under 3 hours.

The adaptor brackets are manufactured from billet 6061-T6 aircraft-grade aluminium and are heat treated and anodized black to guarantee durability.

The kit retains use of the factory handbrake.

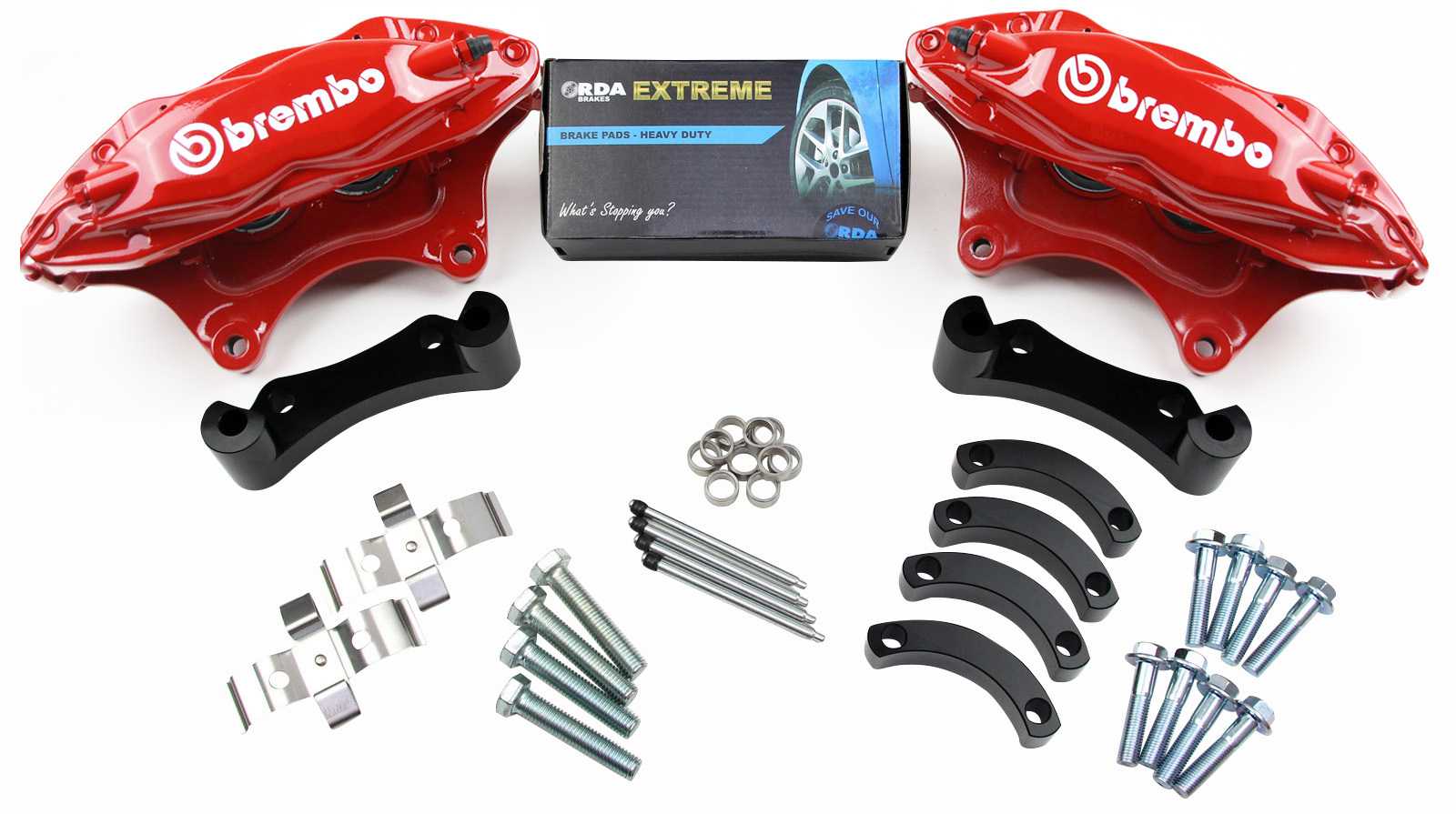

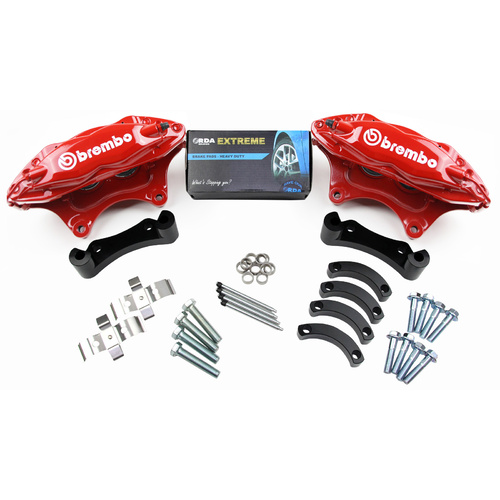

What the kit includes:

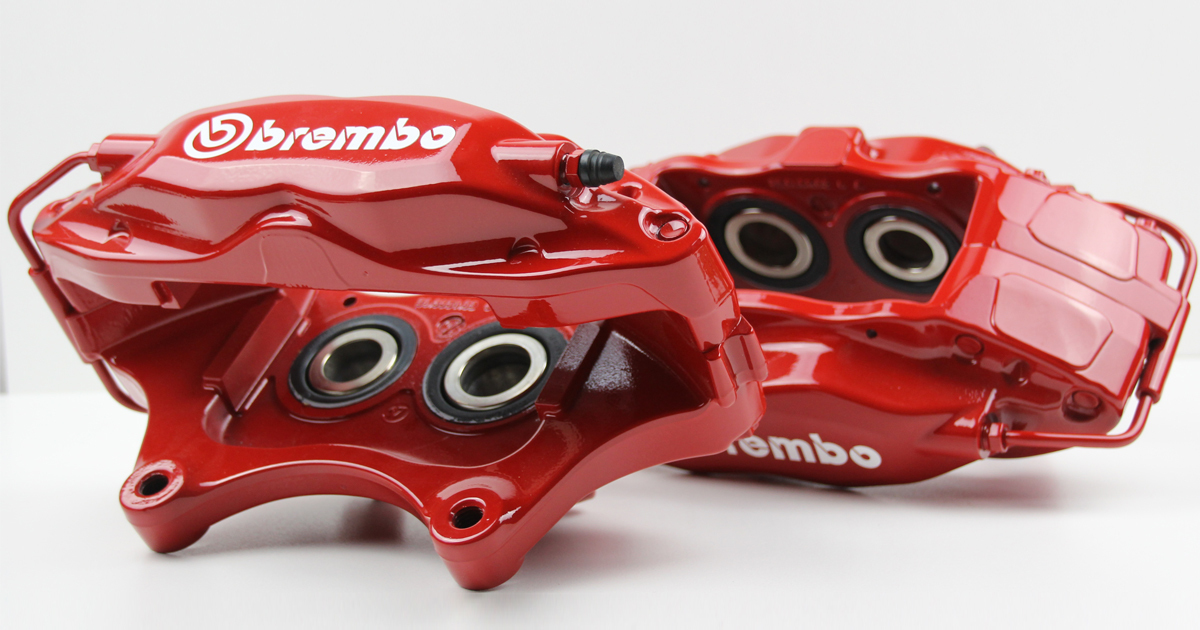

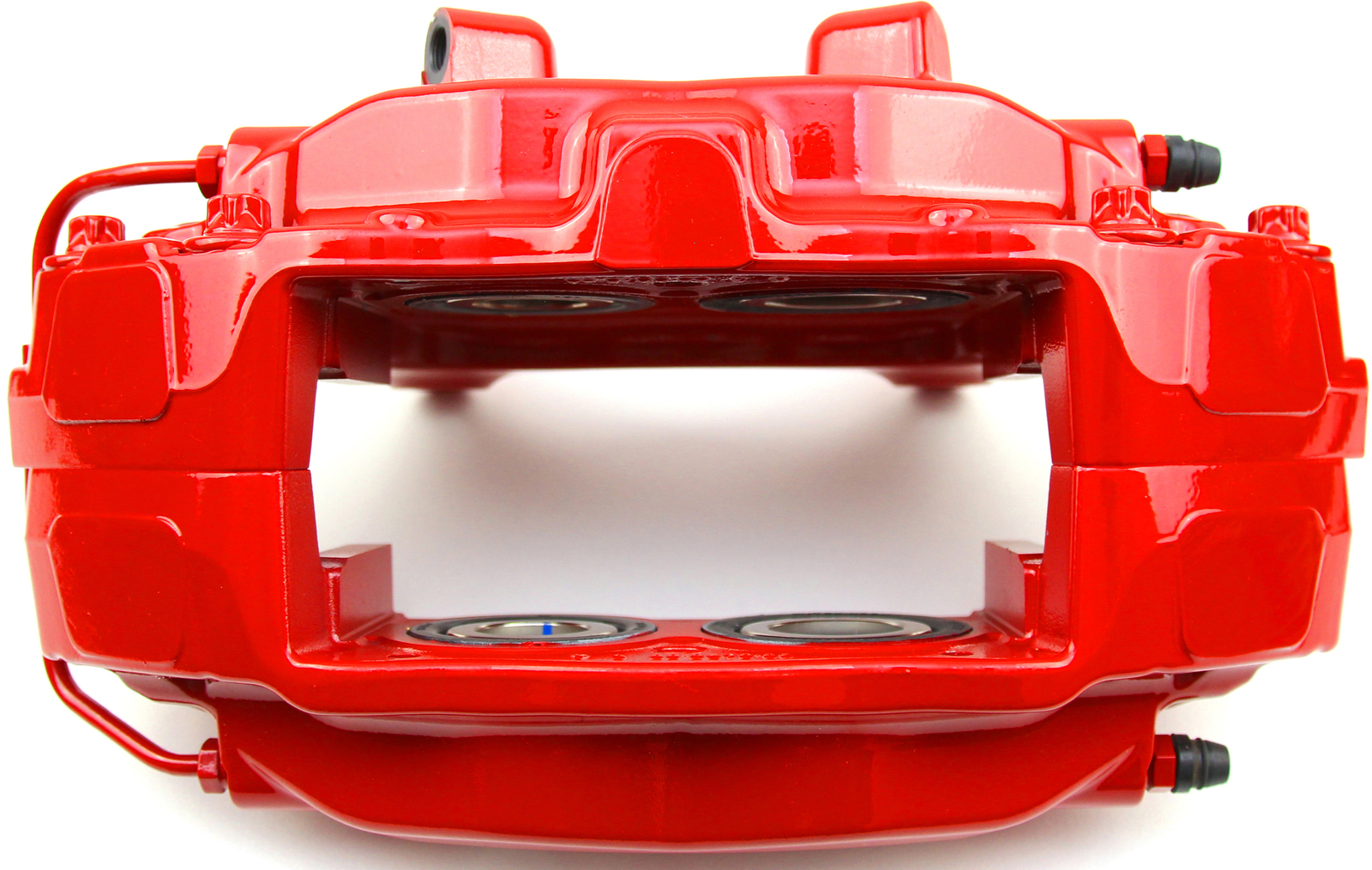

  • Set of REAR 4-Piston RED Genuine Brembo Calipers

  • Set of REAR RDA EXTREME High-Performance Brake Pads

  • Set of REAR Brake Pad Retainer Pin Kit

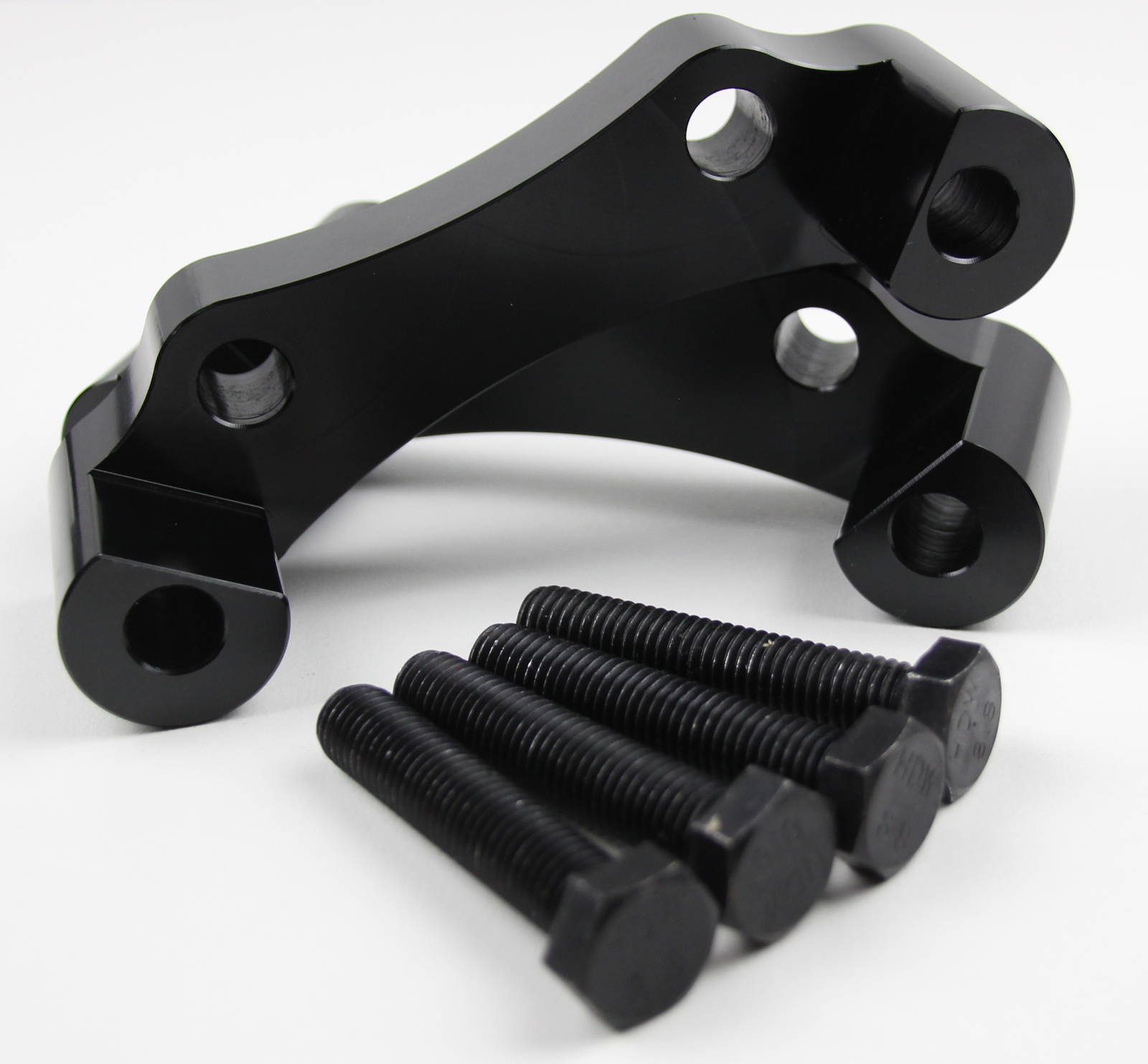

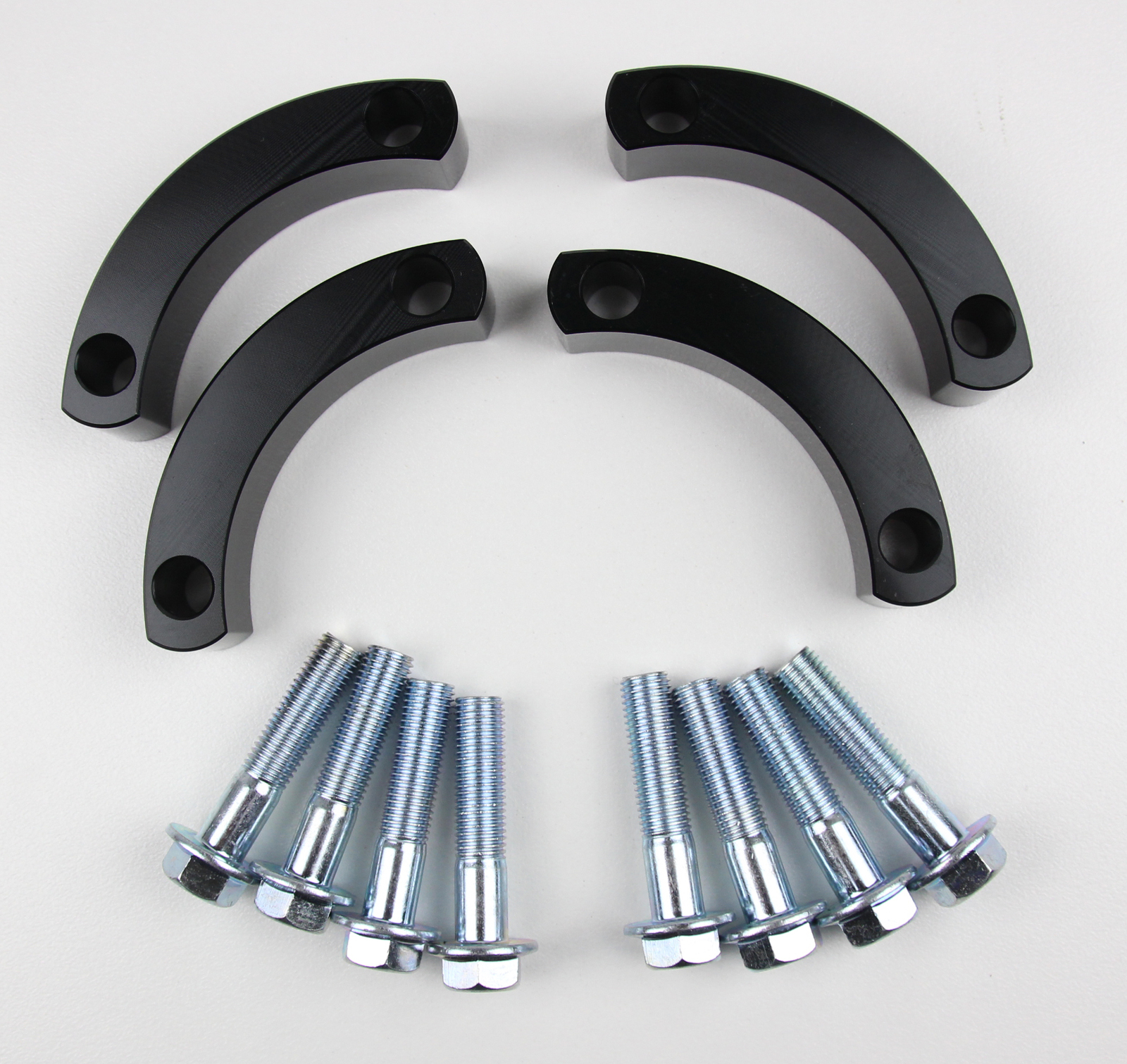

  • Set of REAR billet 6061-T6 aircraft aluminium caliper adaptor brackets (including hand brake spacer brackets)

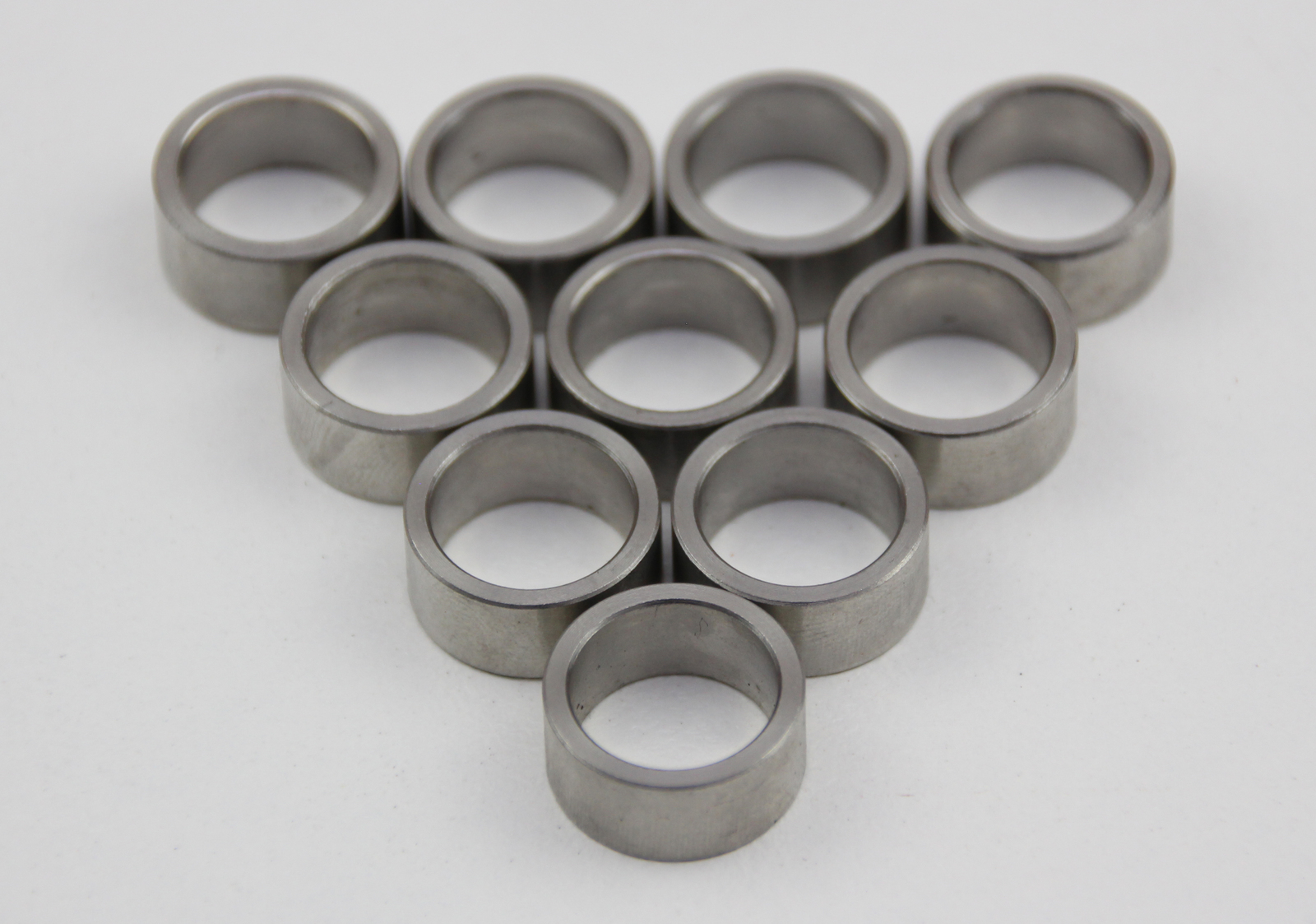

  • 10 x REAR rotor bushings (required to reduce the stud holes on the brake discs to accept the smaller diameter  VT-VZ wheel studs)

  • All bolts and washers required for installation

Please read before purchasing:

Brake Discs Information:
Brake discs are not included in this kit.
The rear discs required are the brake discs that come fitted to HSV E-Series models, Size: 350mm x 25mm. (RDA Part Number: RDA7376, DBA Part Number: DBA42031)

IMPORTANT: You will need to enlarge the centre hole on both front and rear rotors from 67.4mm to 71.4mm (if you follow the same taper/angle as the stock centre hole). If you cannot reproduce the same taper, then it is recommend to increase the hole size to 76.2mm – this will still allow the disc to still sit central on the hub because of the stainless steel stud sleeves (included with our kit).
The hole can be enlarged with a rotary tool/Dremel quite easily, however we do recommend having it done on a lathe or by a machinist.

Brake Pad Information:

Brake pads are included in this kit (RDX2083).

Brake Pad specs:
Rear brake pads required: Equivalent to VF2 Redline Edition Models with rear Brembo Calipers (RDA Part Number: RDX2083).

Installation Notes:

The factory steering knuckles are cast iron and may have an uneven finish from the manufacturing process. This can cause the brackets to not sit flush against the knuckle. If this is the case, you will need to sand/grind the steering knuckles to a smooth finish.

You will need a minimum 18” wheels to clear the brake upgrade. Wheels needs to have an offset of 35mm – 42mm. Larger offsets can work but these wheels usually have concave wheel spokes that may rub on the caliper. In some instances, a small wheel spacer (2mm-5mm thick) may be required.

You will need to trim/remove the rear dust shields to allow the larger caliper to fit.

We purchase these calipers brand new and in a silver finish. We then have them repainted in Melbourne by a well trusted and professional automotive workshop. They are painted in high-temp paint and clear-coated to ensure the paint won't fade or crack. Over the past few years we have sold our brake package to many car enthusiasts who take their cars down to the track very often and we have never had any issues with the paint finish - even after days of heavy circuit racing.

As we get the calipers painted locally, it means we can get them in any colour combination you want - just contact us with what you're after and we can get you a quote!


Brand Planet Parts
Shipping Weight 14.0000kg
Shipping Width 0.300m
Shipping Height 0.200m
Shipping Length 0.300m
Shipping Cubic 0.018000000m3
