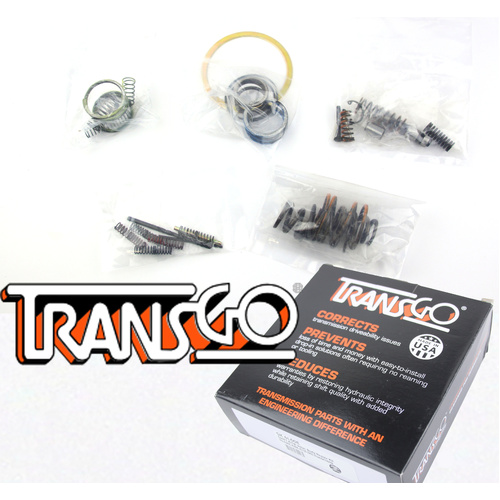

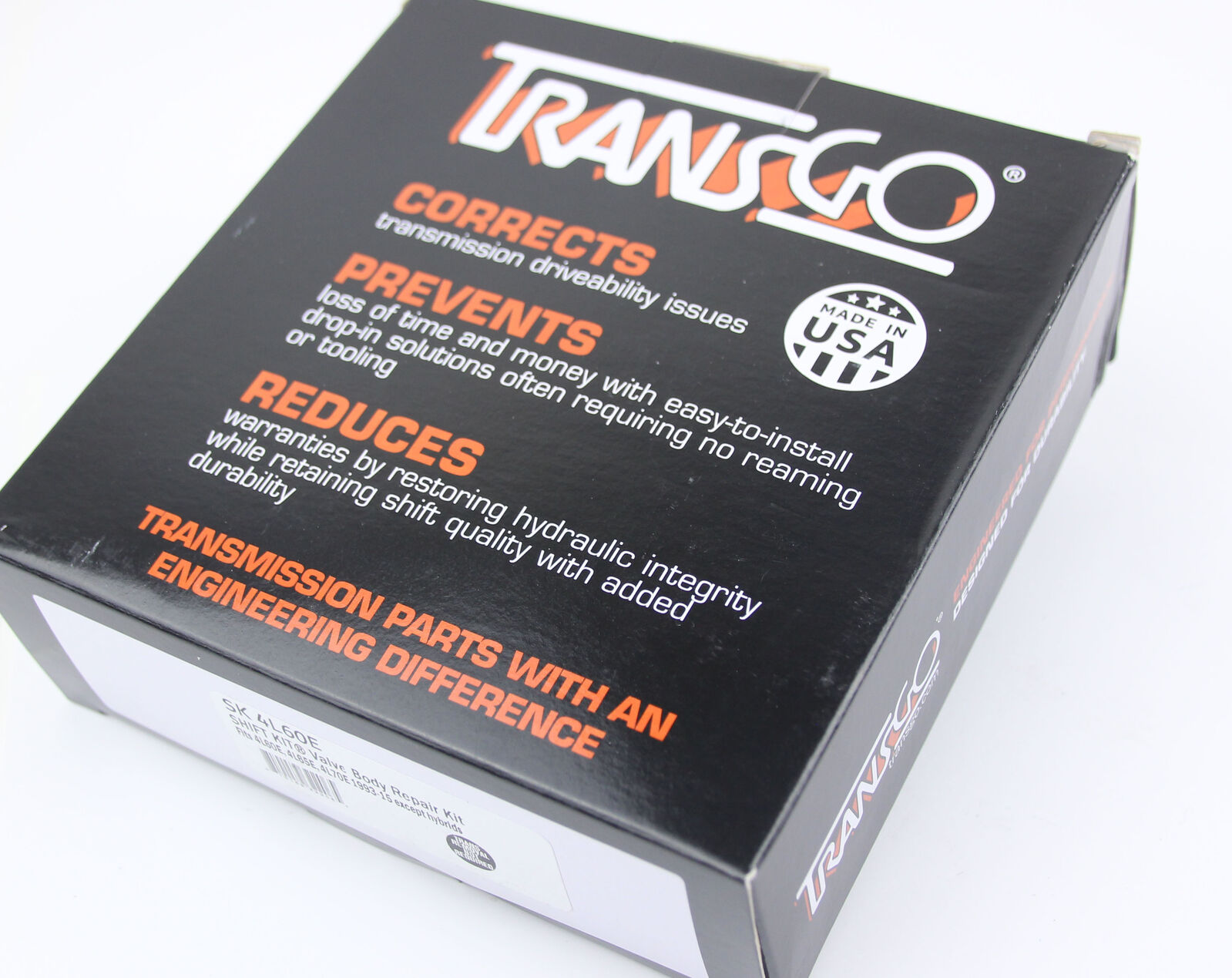

TransGo SK 4L60E Stage 1 Shift Kit Holden Commodore VR VS VT VE 4L60E 4L65E 4L70E (1993-Onwards)

TransGo SK 4L60E Stage 1 Shift Kit – Holden Commodore VR VS VT VE – 4L60E / 4L65E / 4L70E – 1993 Onwards

The TransGo SK 4L60E Stage 1 Shift Kit is a comprehensive valve body repair and recalibration kit designed to correct many of the most common problems found in GM 4L60E, 4L65E and 4L70E automatic transmissions.

Suitable for applicable Holden Commodore VR, VS, VT and VE models, as well as other GM vehicles using these transmissions, the kit improves hydraulic control, shift quality and overall transmission durability without requiring transmission removal.

A major feature of the kit is TransGo's ISO-CONV Valve, a one-piece replacement for the factory isolator and converter regulator valves. These factory valve bores are particularly prone to wear, which can result in torque converter clutch slip, shudder, fault codes and harsh shifting.

Designed to address:

• TCC slip or shudder

• Trouble code P1870

• Trouble code P0894

• Harsh 1-2 shifts

• Double-bump 1-2 or 2-3 shifts

• 2-3 flare

• No converter lock-up

• Loss of 4th gear

• Burnt 3-4 clutch plates

• 2-4 band failure

• Inconsistent line pressure

• Pump and valve bore wear caused by pump slide bounce

• Premature pump wear or failure

The included hardened steel TCC regulator and isolator valve assembly uses longer valve lands to operate in previously unused areas of the valve bore, helping restore hydraulic integrity without machining the valve body.

The kit also recalibrates the accumulation and pressure control systems to provide quick, clean and smooth shifts while improving clutch and band durability.

Kit Features:

• Genuine TransGo Stage 1 Shift Kit

• Suits 4L60E, 4L65E and 4L70E transmissions

• Comprehensive valve body recalibration

• Upgraded ISO-CONV valve system

• Hardened steel TCC regulator and isolator valve

• Helps restore worn TCC hydraulic circuits

• Improved converter clutch apply

• Improved line pressure control

• Recalibrated accumulation system

• Helps reduce 3-4 clutch and 2-4 band failure

• Suitable for vehicles with or without Active Fuel Management / cylinder deactivation

• Drop-in valve installation

• No special machining required

• Transmission removal not required

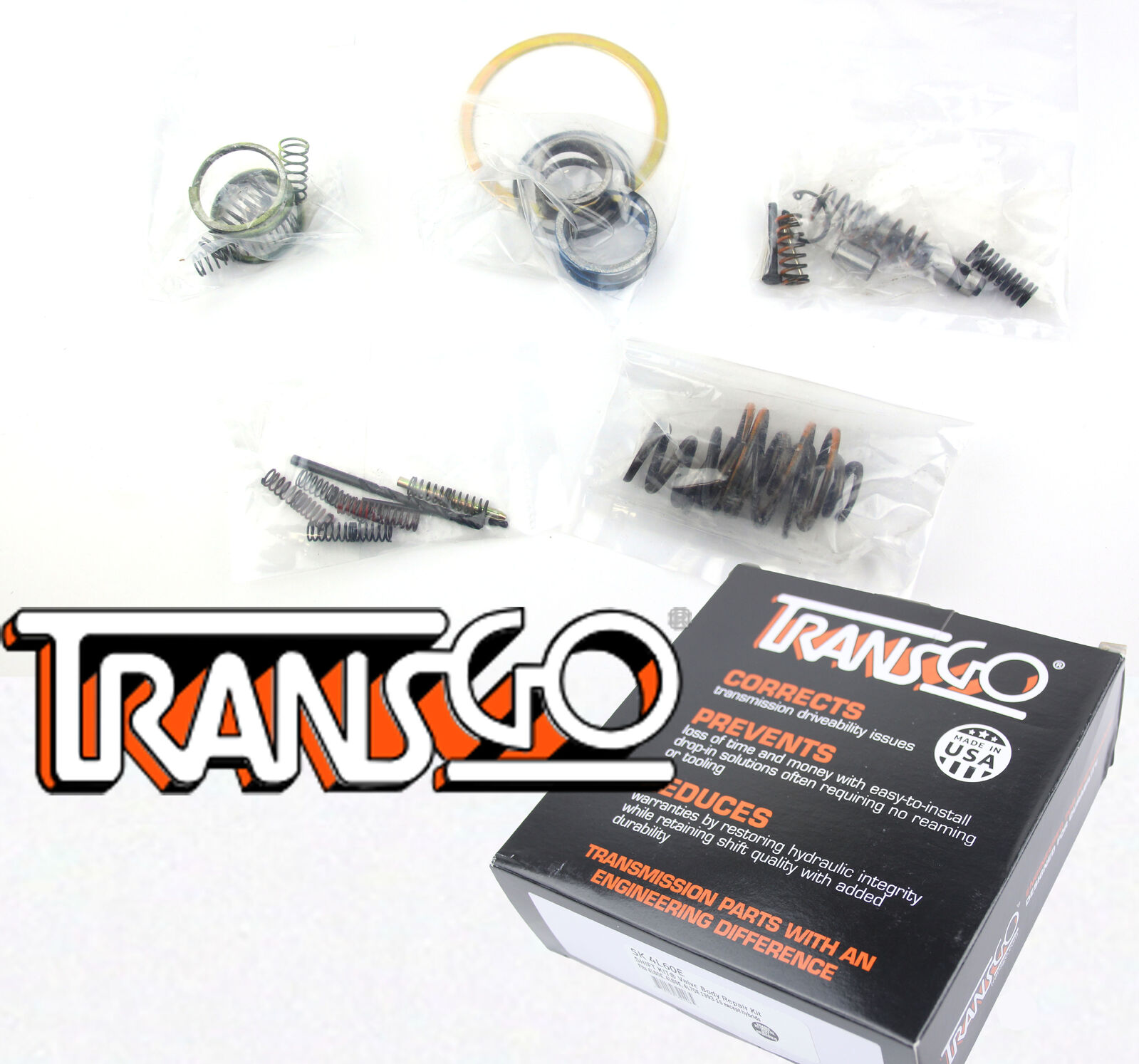

Kit Includes:

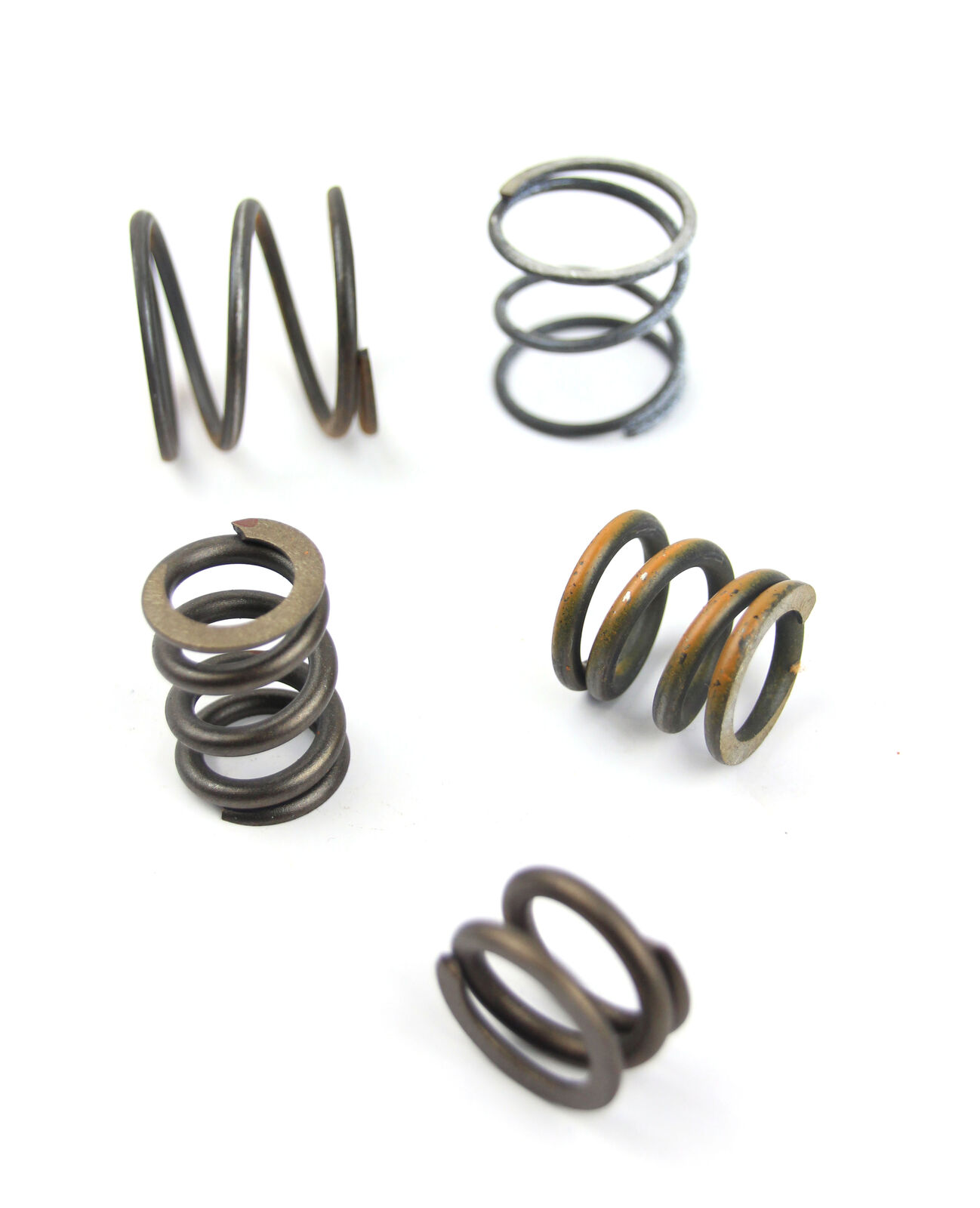

• 5 x 1-2 accumulator springs

• 2 x second servo piston springs

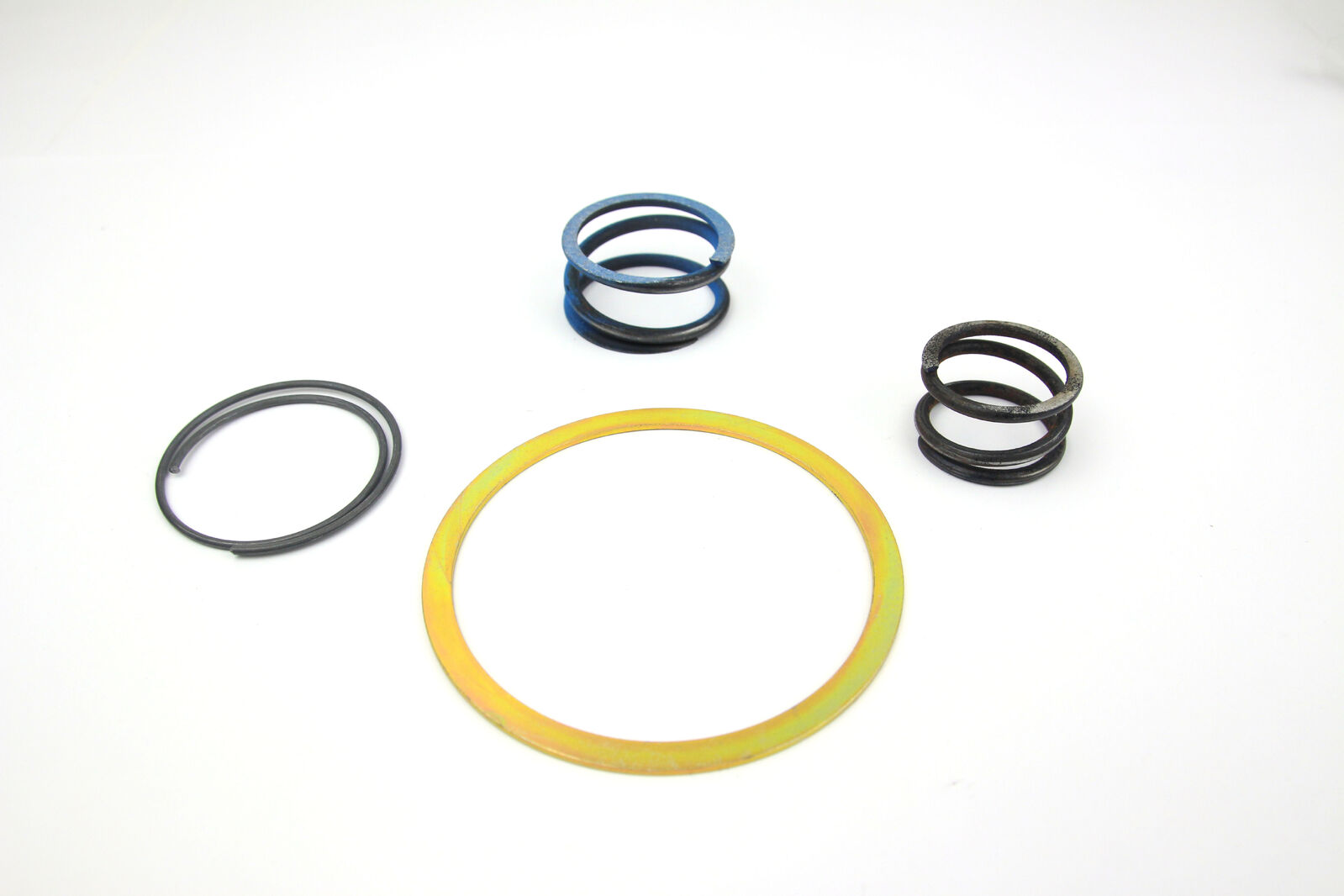

• Servo coil spacer and shim

• EPC screen

• Wire spacer

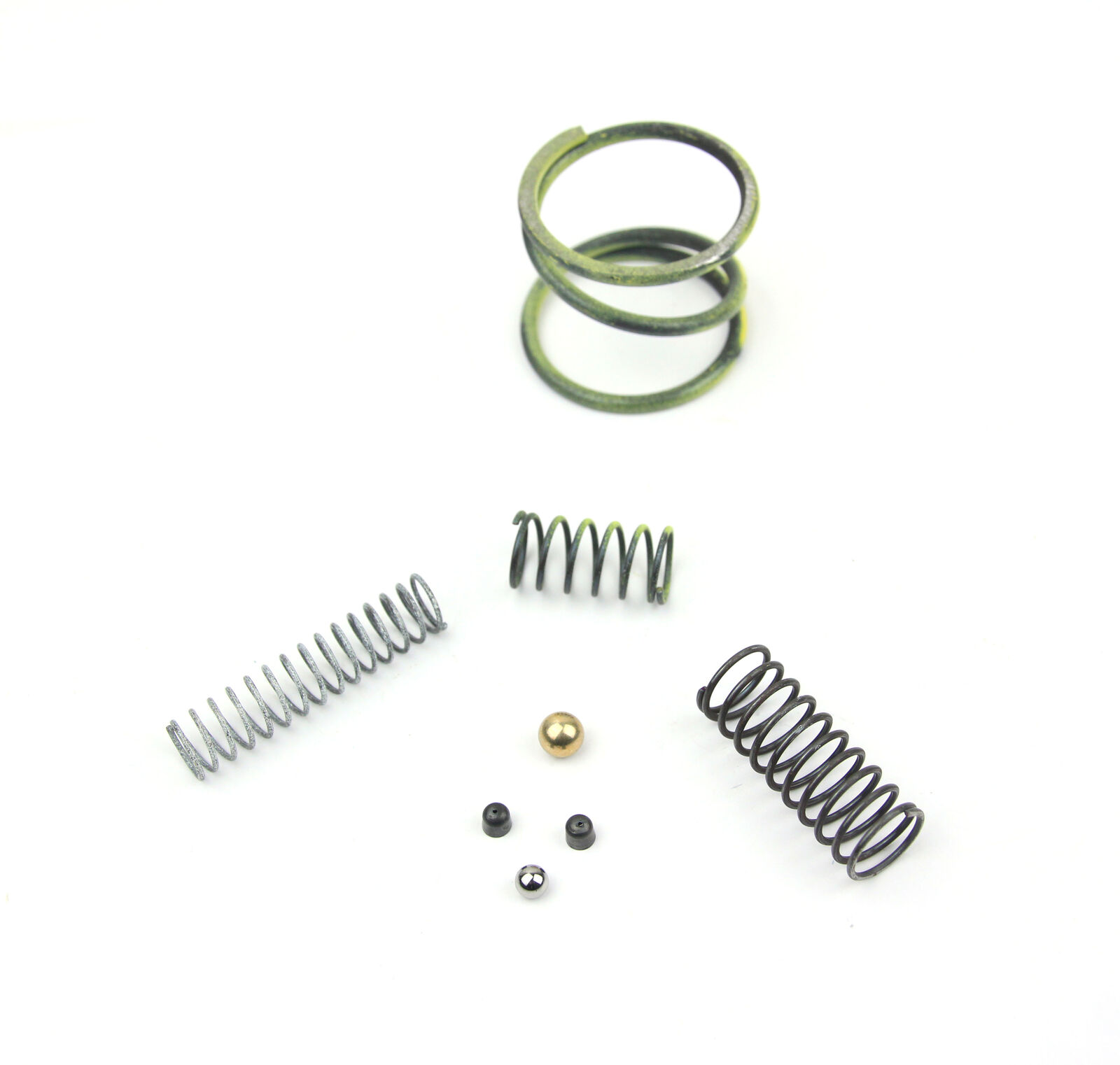

• Oversized 1-2 checkball

• 2 x pressure regulator valve springs

• Snap ring

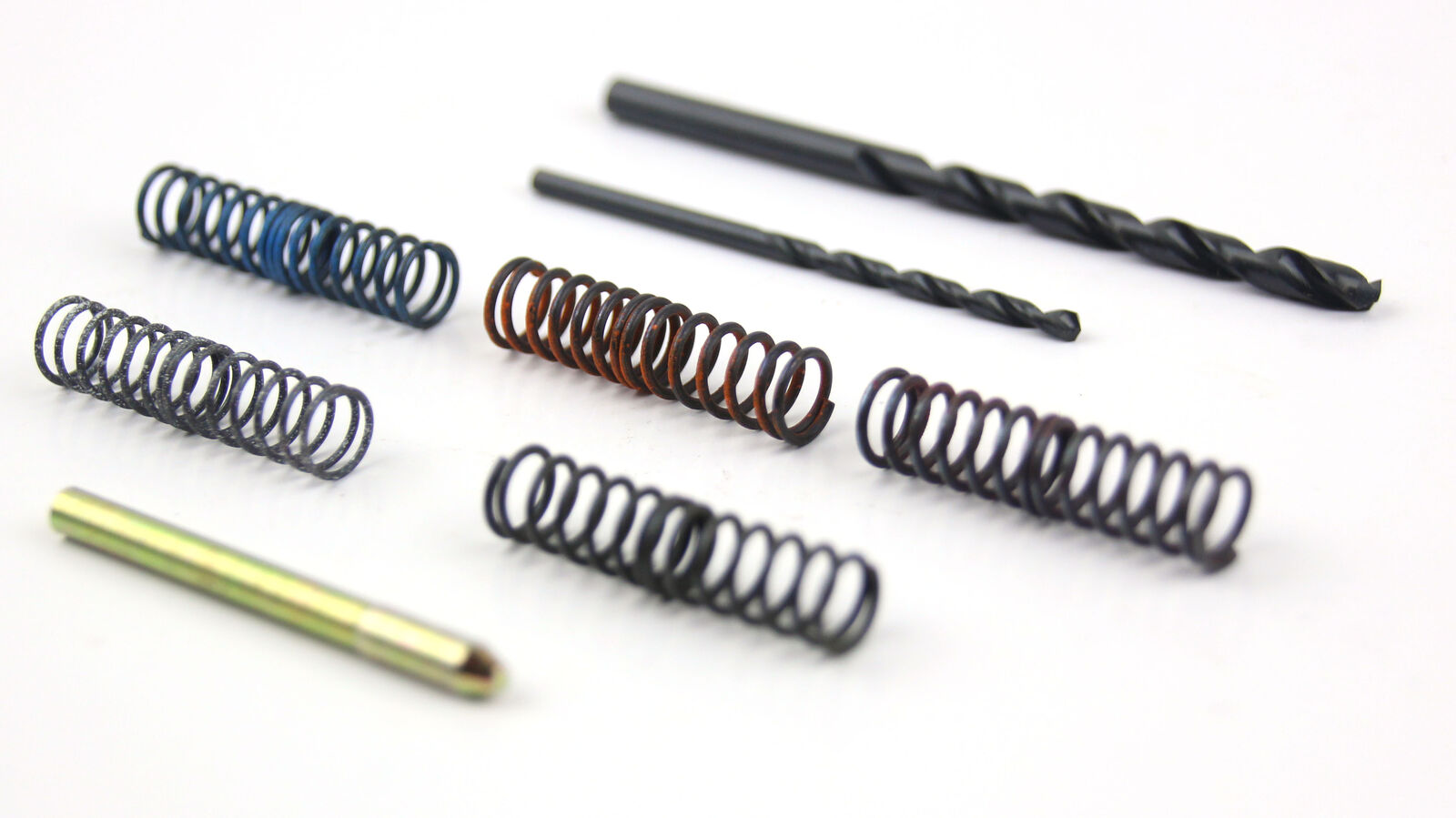

• 2 x drill bits

• 2 x reverse input piston orifice cup plugs

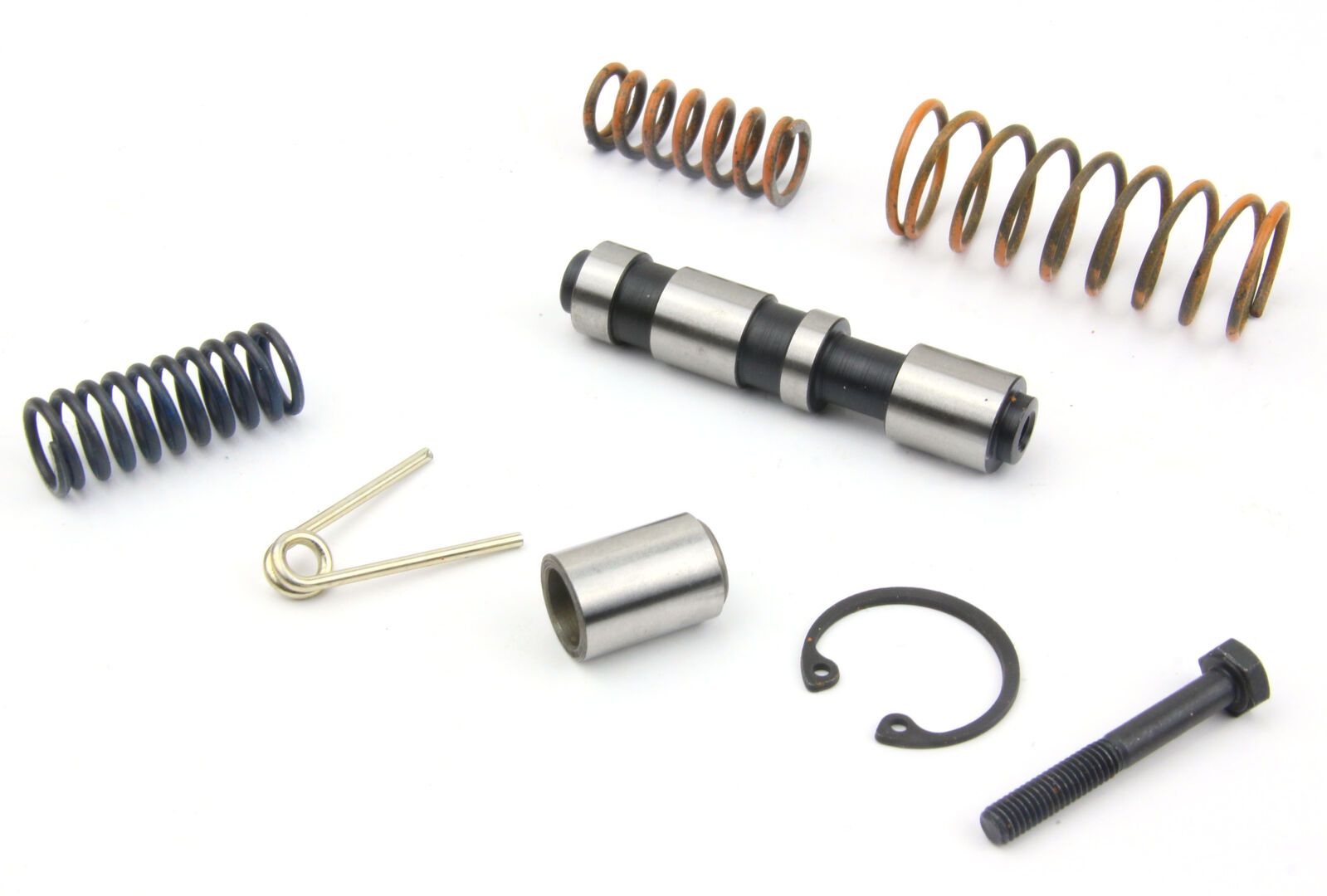

• USA-made hardened steel TCC regulator valve

• USA-made hardened steel TCC isolator valve

• TCC spring, spacer and installation bolt

• Actuator feed limit valve spring

• 3-2 control valve spring

• Low control valve spring

• 3/16" steel ball for torque valve line-up

• 5 x 1-2 accumulator valve springs

• Special pin

• 3-4 accumulator spring

Transmission Compatibility:

Suitable for:

• GM 4L60E

• GM 4L65E

• GM 4L70E

Generally suitable for 1993 onwards applications, excluding applicable Hybrid transmission variants.

Holden Applications:

Suitable for applicable:

• Holden Commodore VR

• Holden Commodore VS

• Holden Commodore VT

• Holden Commodore VE

Exact transmission fitment can vary depending on model, engine, production year and transmission specification. We recommend confirming the transmission type before ordering.

Performance / Heavy-Duty Applications:

For dedicated performance, towing or heavy-duty applications requiring firmer shift options and additional transmission control, the TransGo 4L60E-HD2 Reprogramming Kit may be more suitable.

Installation Recommendation: Experienced transmission technician

Transmission Removal Required: No
