TransGo 46-PLT-96 Valve Body Separator Plate Holden Commodore VR VS VT 4L60E 4L65E 4L70E 1996-2006

TransGo 46-PLT-96 Valve Body Separator Plate – Holden Commodore VR VS VT – 4L60E / 4L65E / 4L70E – 1996 to 2006

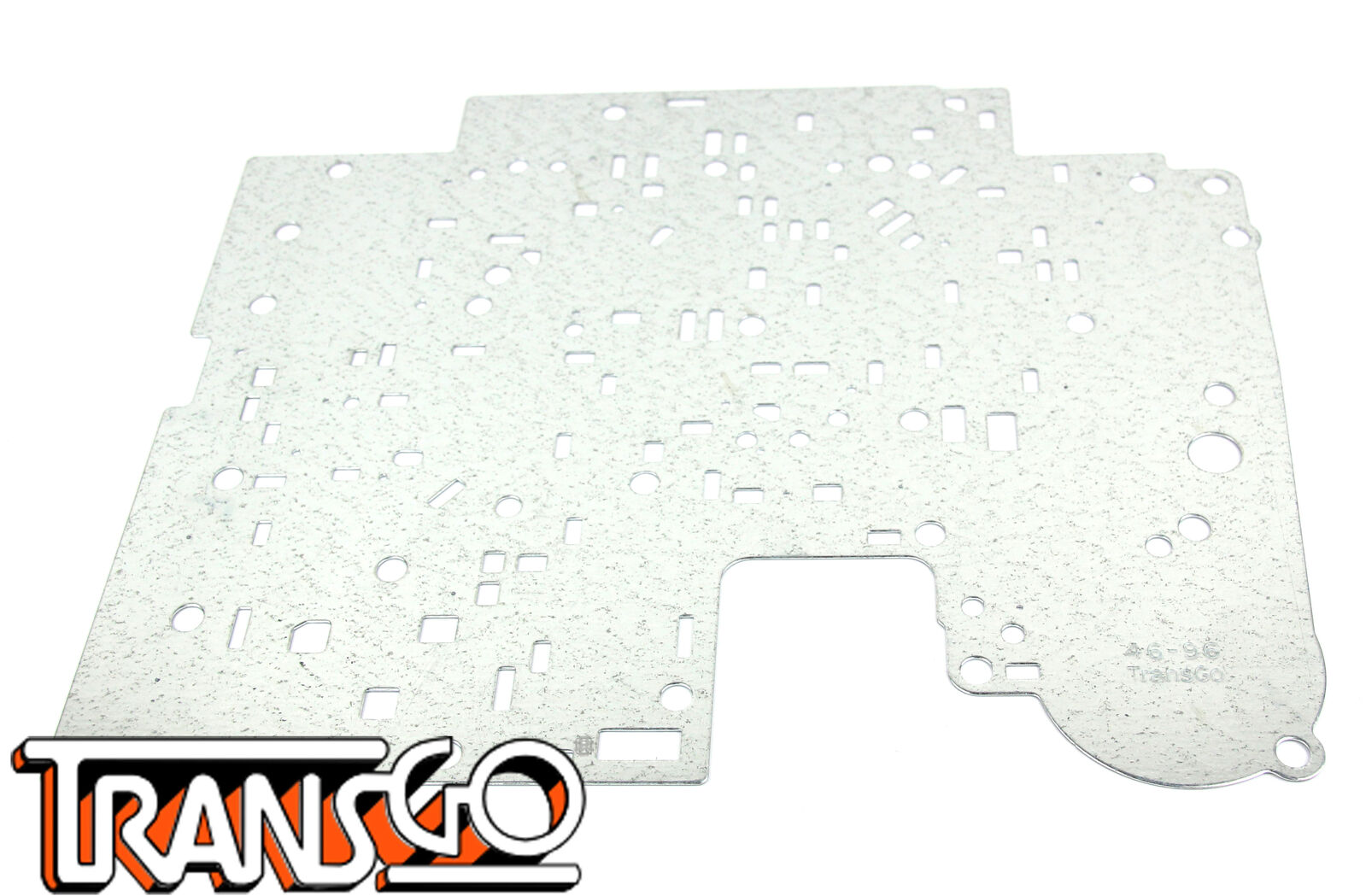

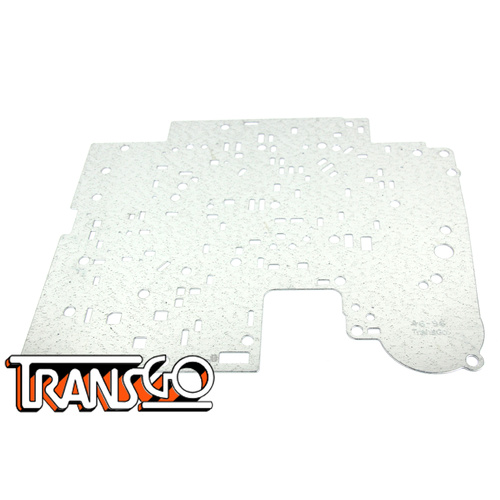

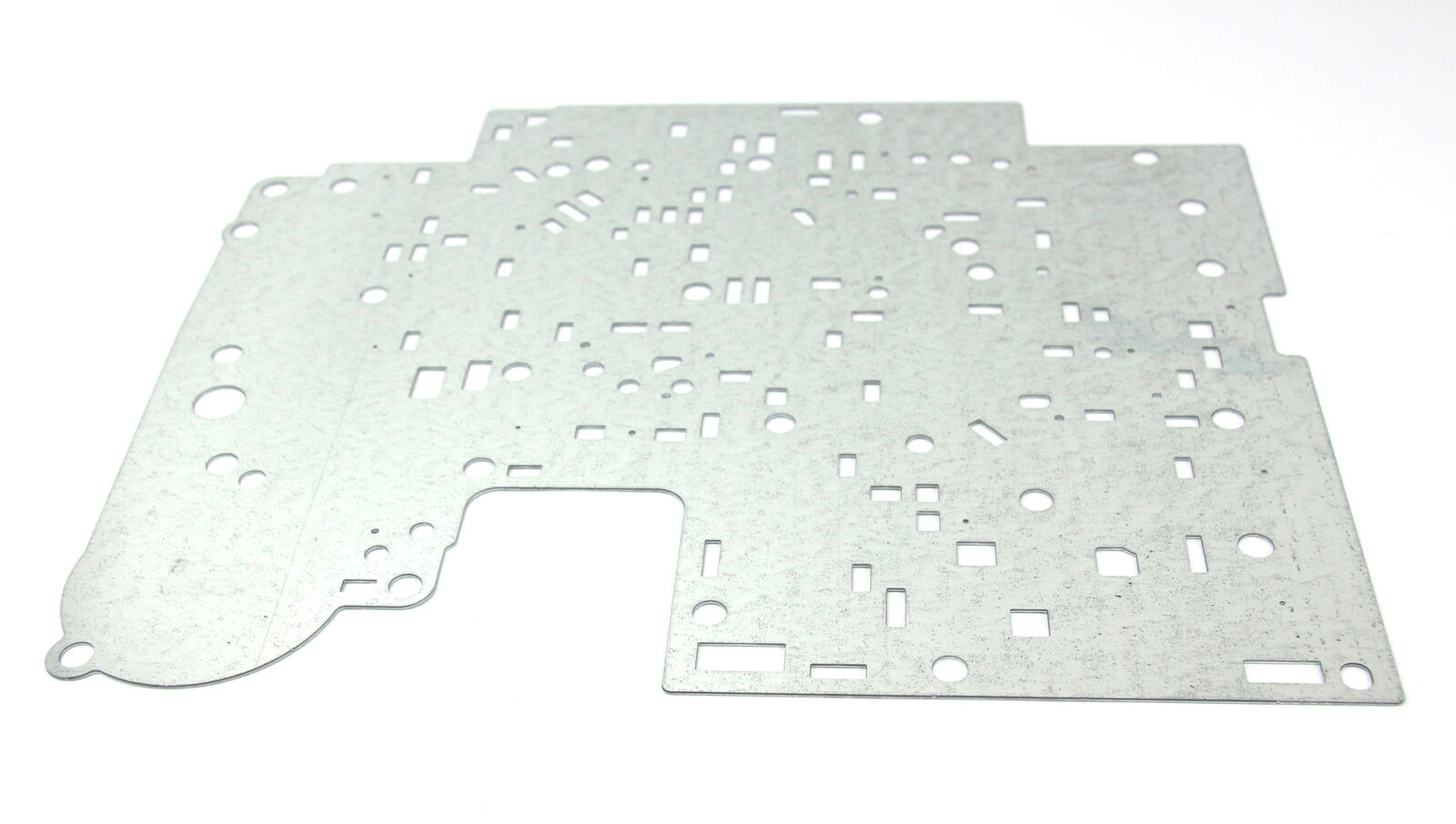

The TransGo 46-PLT-96 Separator Plate is a direct replacement for worn or damaged valve body separator plates used in applicable GM 4L60E, 4L65E and 4L70E automatic transmissions.

Located between the valve body and transmission case, the separator plate plays an important role in directing hydraulic fluid through the transmission's control circuits.

Over time, the original plate can become worn, distorted or damaged from repeated check-ball contact, heat cycling and high mileage. In severe cases, the check balls can wear into or through the plate, causing hydraulic cross-leaks, poor shift quality and transmission control issues.

The TransGo replacement plate is manufactured from tempered steel for improved durability and is plated for added corrosion resistance.

Designed to address:

• Worn factory separator plates
• Check-ball wear through the plate
• Hydraulic cross-leaks
• Poor or inconsistent shift quality
• High-mileage valve body wear
• Damaged or distorted OEM separator plates

Features:

• Genuine TransGo replacement separator plate
• Tempered steel construction
• Plated for rust and corrosion resistance
• Replaces worn or damaged OEM separator plates
• Helps restore correct hydraulic operation
• Suitable for transmission servicing and rebuild applications
• Transmission removal not required

Transmission Compatibility:

Suitable for applicable:

• GM 4L60E
• GM 4L65E
• GM 4L70E

For applicable 1996 to 2006 transmissions.

Holden Applications:

Suitable for applicable:

• Holden Commodore VR
• Holden Commodore VS
• Holden Commodore VT

Exact fitment depends on transmission build date and specification, so we recommend confirming the transmission model before ordering.

Important Notes:

• Does not include separator plate gaskets
• Does not suit 2005 Corvette applications
• 2005 Corvette applications require the TransGo 46-PLT-05V separator plate

Installation Recommendation: Experienced transmission technician

Transmission Removal Required: No
